Jabra Panacast 50 Table Stand Instruction Manual

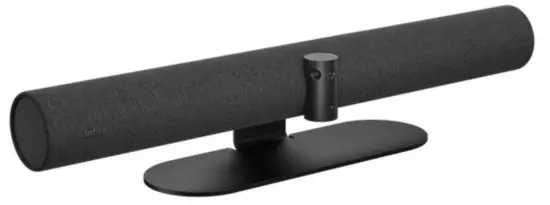

Jabra PanaCast 50 Table Stand Instruction Manual

Tools

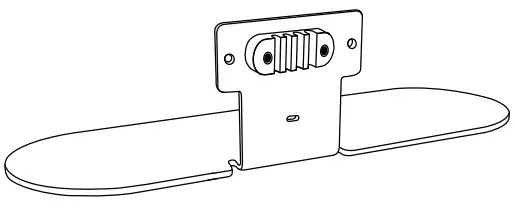

• Table Stand and cable organizer

• Screws

  M3x10 (2pcs)
  M5x12 (2pcs)
• Table Stand cable lid

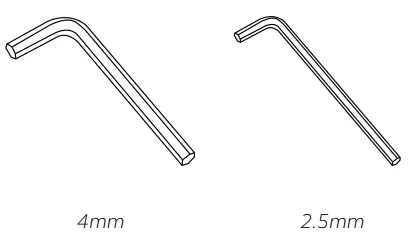

• Hex keys


Assembly Instructions

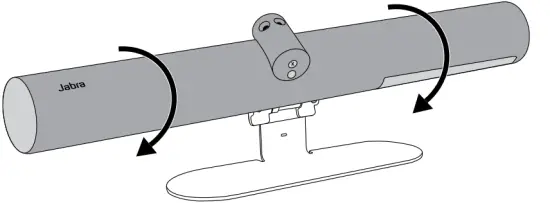

1. Tilt the hinge on the PanaCast 50 for easy access to the screw holes.

2. Screw the PanaCast 50 to the Table Stand using the supplied M5x12 screws and a 4mm hex key.

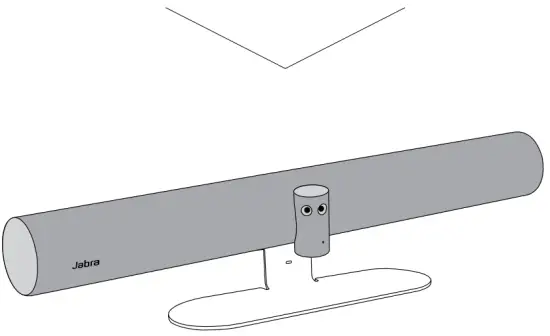

3. Rotate the PanaCast 50 into its final position and ensure it is angled to the eye-level of meeting room participants.

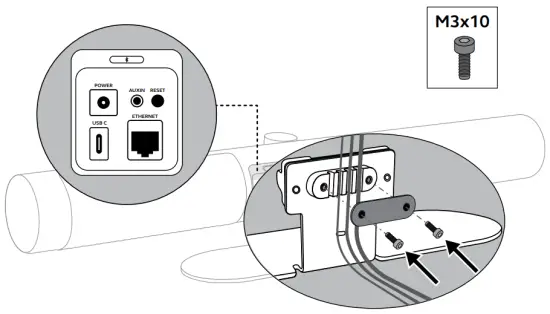

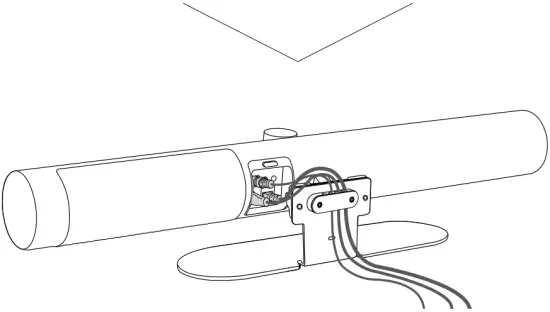

4. Use the cable organizer to keep the cables neat and tidy. The thickest cables should be positioned on the right.
