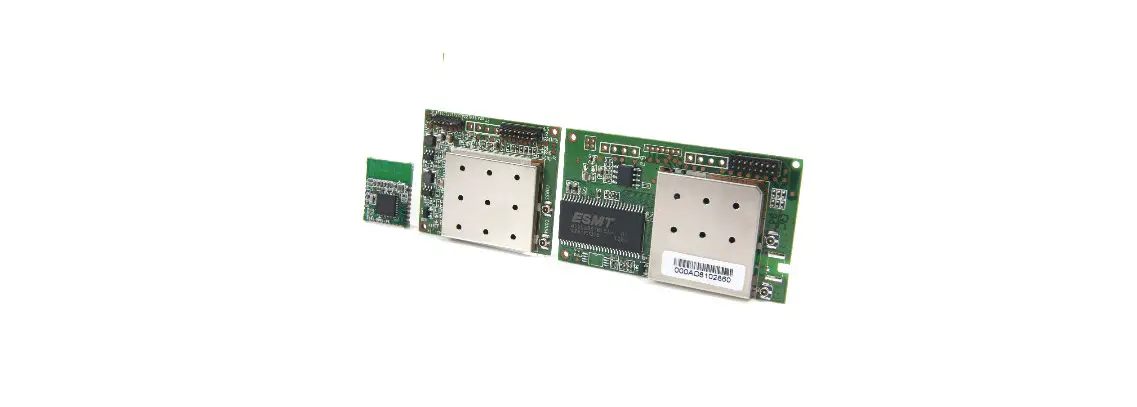

Lyngsoe Systems XREADER2 WiFi and Bluetooth Module
Addendum for Radio Frequency (RF) Exposure
The Lyngsoe Systems Wi-Fi module bearing the FCC ID: PQG-XREADER2, IC: 4113A-XREADER2 was evaluated for co-location with one or two other modular approved radios at a time as per the following eight options (configurations):
| Lyngsoe | Impinj | Jadak | Quectel | Telit | |
| Wi-Fi | RFID | RFID | LTE cell | LTE cell | |
| FCC ID: | PQG-XREADER2 | TWYIPJREV | QV5MERCURY6E-M | XMR201906EG21G | RI7LE910CXNF |
| IC: | 4113A-XREADER2 | 6324A-IPJREV | 5407A-MERCURY6EM | 10224A-201906EG21G | 5131A-LE910CXNF |
| Option 1 | ☓ | ☓ | ☓ | ||
| Option 2 | ☓ | ☓ | ☓ | ||
| Option 3 | ☓ | ☓ | |||
| Option 4 | ☓ | ☓ | ☓ | ||
| Option 5 | ☓ | ☓ | ☓ | ||
| Option 6 | ☓ | ☓ | |||
| Option 7 | ☓ | ☓ | |||
| Option 8 | ☓ | ☓ |
The calculations were done for a minimum distance of 55 cm for North America and of 36 cm for European Union.
This module complies with FCC/ISED RF radiation exposure limits set forth for an uncontrolled environment. These co-located modules shown in the table above must be installed and operated with a minimum distance between the radiators (antennas) and users of 55 cm for North America or 36 cm for the European Union.
