Signcomplex Dl203t-4-10w Disc Series Downlight Owner's Manual

DISC Series
DL203T-4-10W/DL203T-6-15W
2700K 3000K 4000K 5000K Warm
Natural white

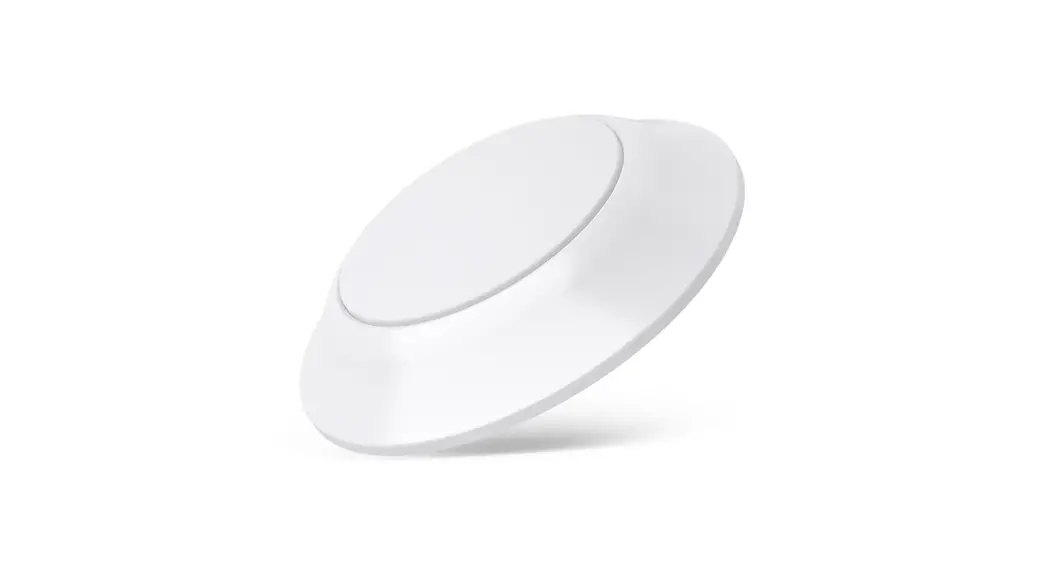

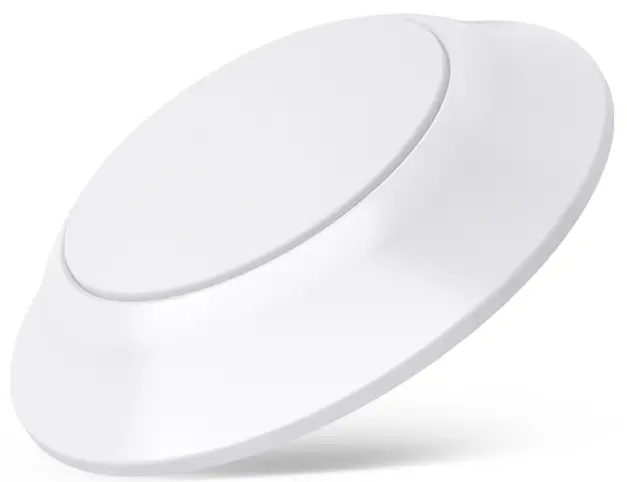

DL203T-4-10W DISC Series Downlight

Application

Suitable for hotel, corridor, home decoration, shopping mall, exhibition room, etc.

Description

DISC downlight for 120V AC ,10W/15W. Available triac dimmable and non dimming. DISC downlight can fit 4″ junction box and replace of most 4″ and 6″ surface mount downlights; DISC downlight can fit 4″ & 5″ & 6″ downlight housings and replace of most 4″ & 5″ & 6″ recessed downlights; This product is ideal for use in many residential and commercial lighting applications with E26 base.

Features

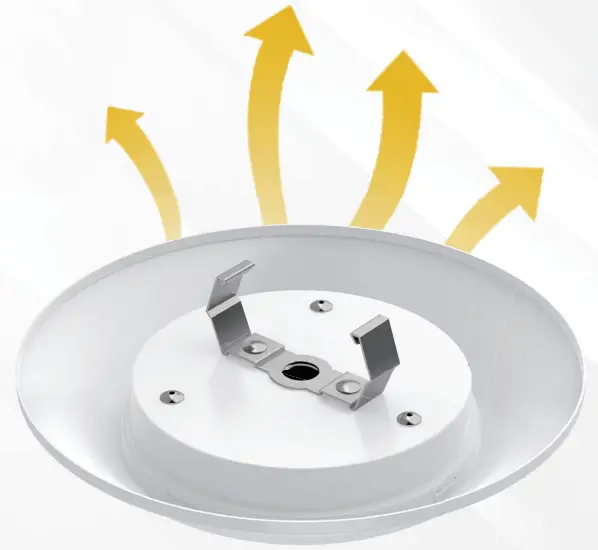

Good heat dissipation
Adopt spinning iron as heat sink

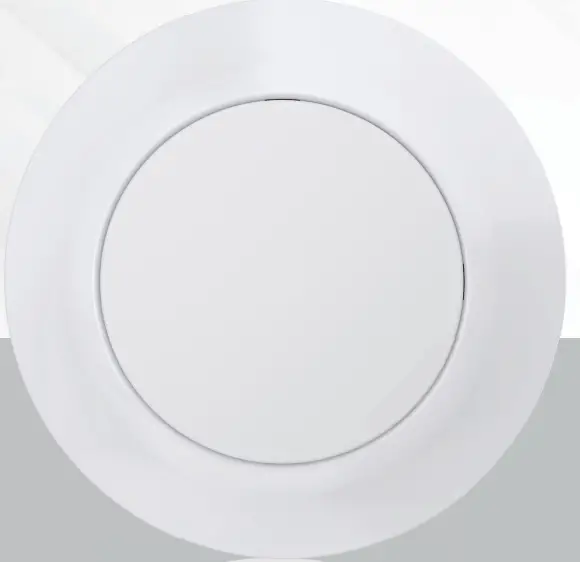

Unique appearance
Beautiful design and gorgeous
High color rendering

Excellent thermal management to ensure long lifetime of LED ment to

High efficiency
High efficiency and energy-saving LED dirver

Features
Selectable color temperature (2700K, 3000K, 4000K)

Triac dimmable / Non dimming
This product is suitable for use in dimming circuit. For 5-100% light control, use
This product is suita with a compatible dimmer. Compatible dimmers include most standard dimmers, such as Lutron :SCL-153P,CTCL-153P,DVCL-153P,MACL-153M. with a compatible dim such as Lutron :SCL

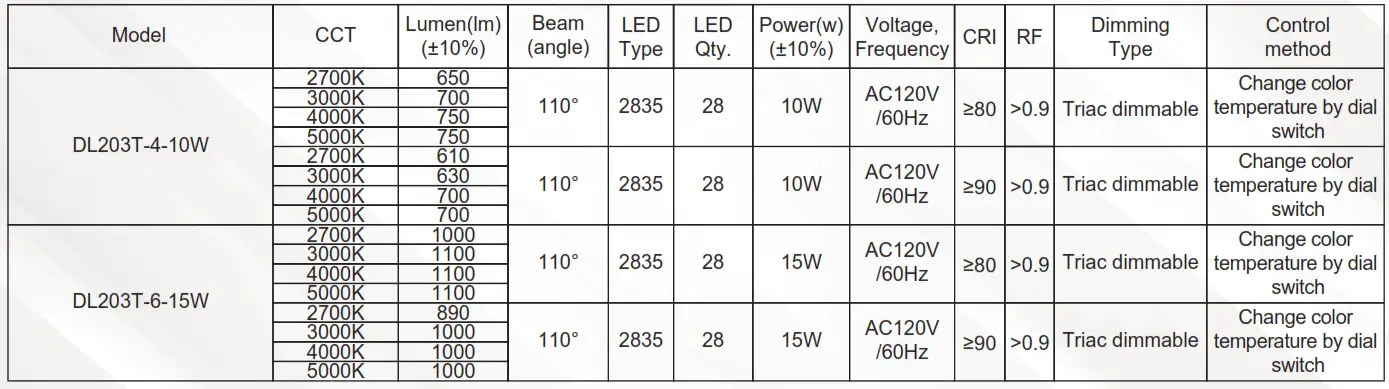

Technical parameters

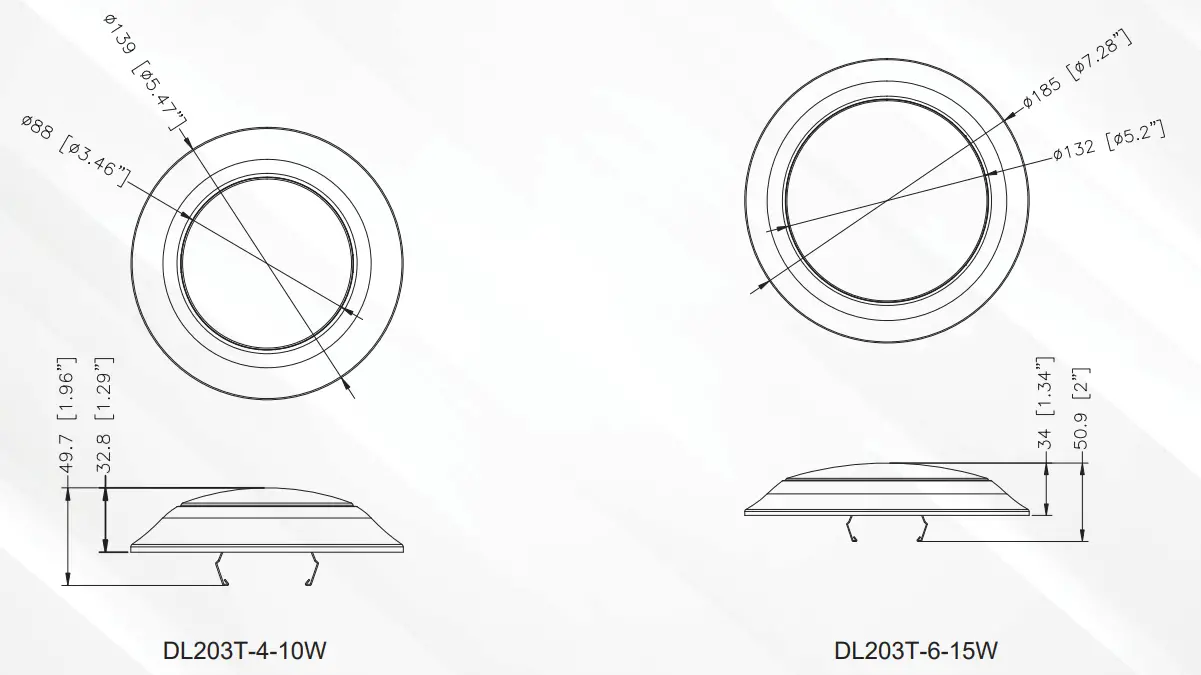

Dimensions (Unit: mm)

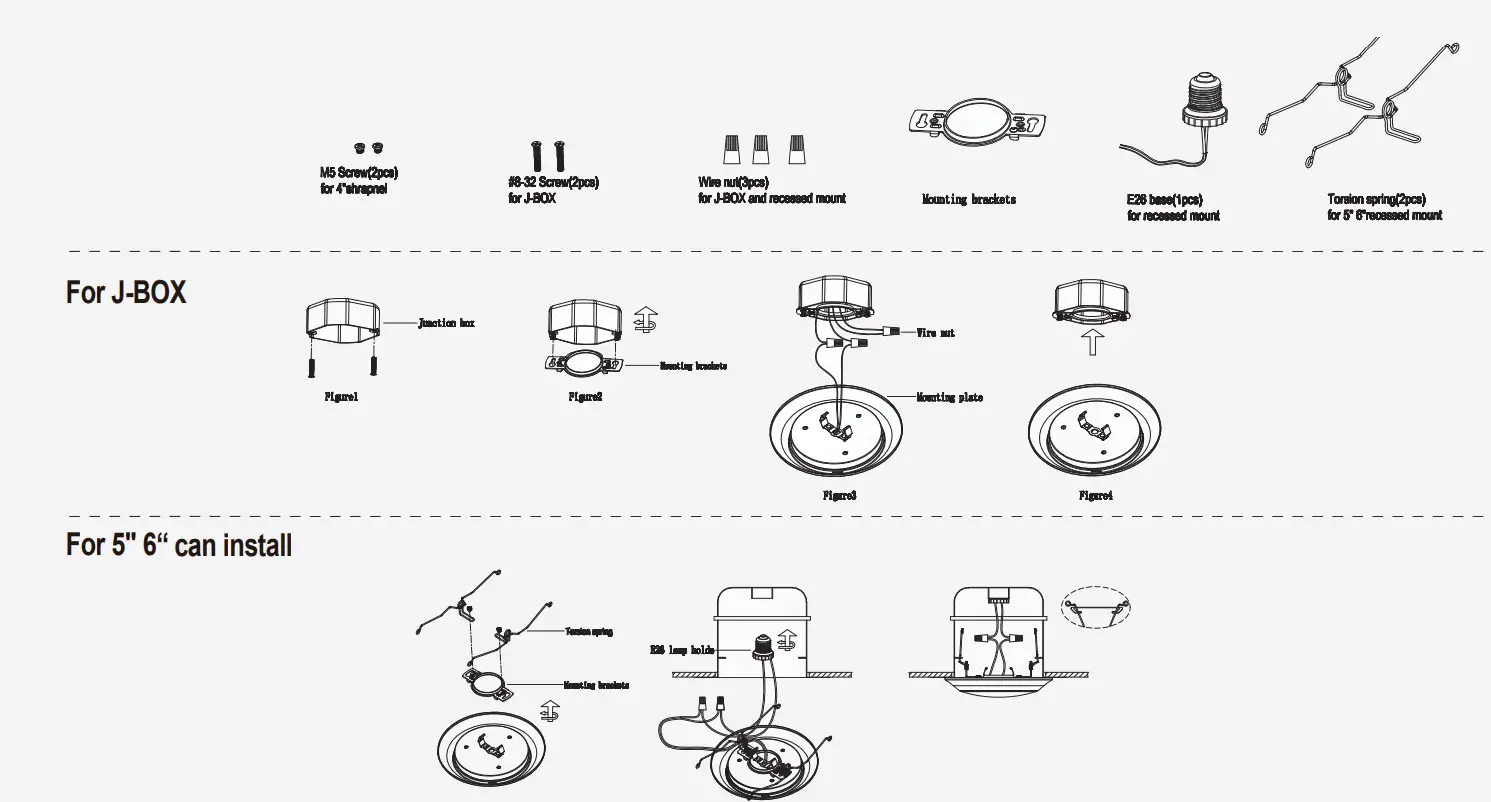

Installation (DL203T-4-10W)

Installation (DL203T-6-15W)

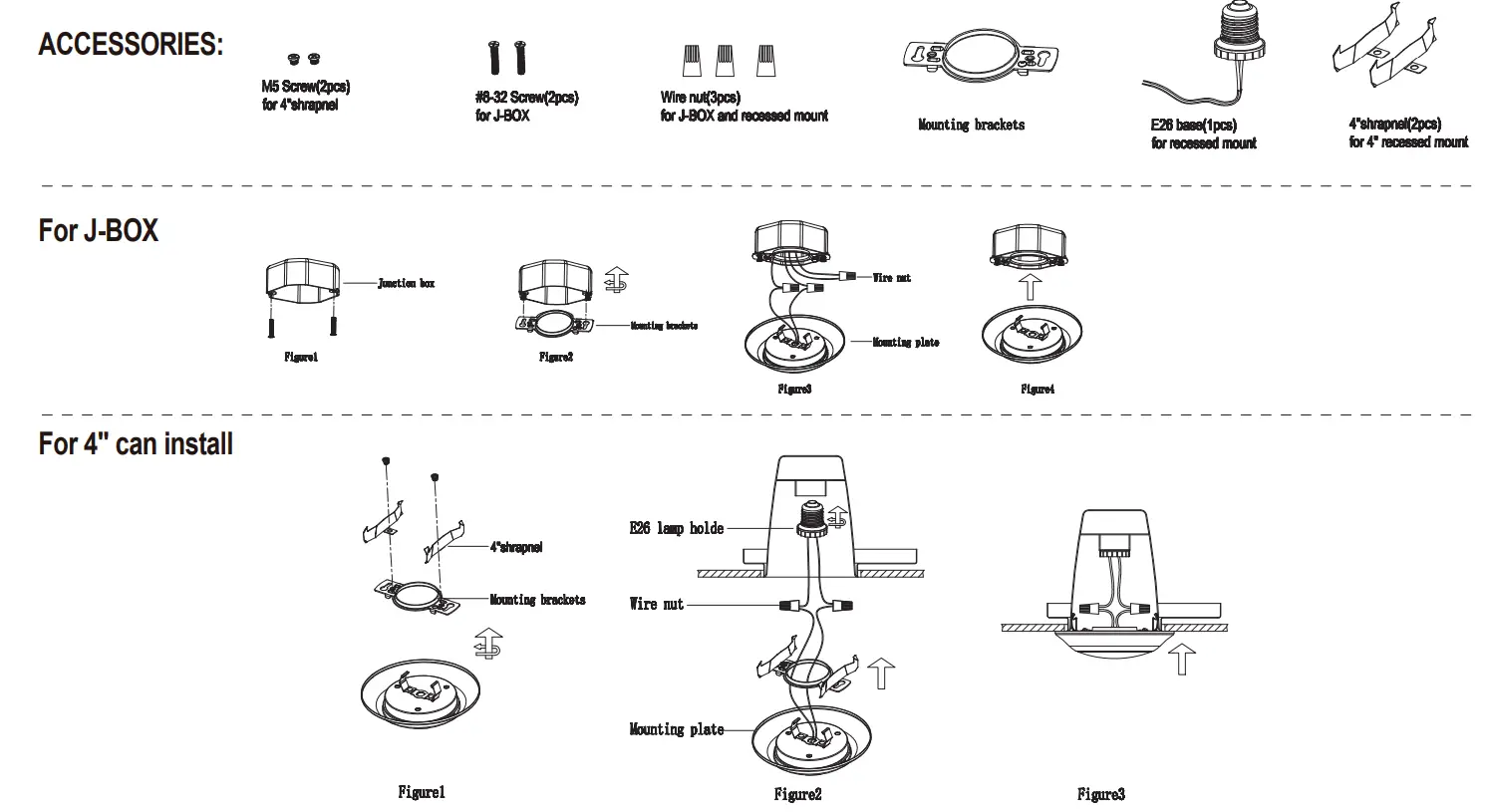

ACCESSORIES:

Packing information

WARNING

• WARNING – Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of luminaires electrical systems.
• If not qualified, do not attempt to install. Contact a qualified electrician.” or equivalent in Format S24-L5.
• WARNING – Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of theluminaire.” or equivalent in Format S24-L5.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.” Verbatim in Format S24-L5.
• WARNING – To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.” or equivalent in Format S24-L5.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved” or equivalent in Format S24-L4.
