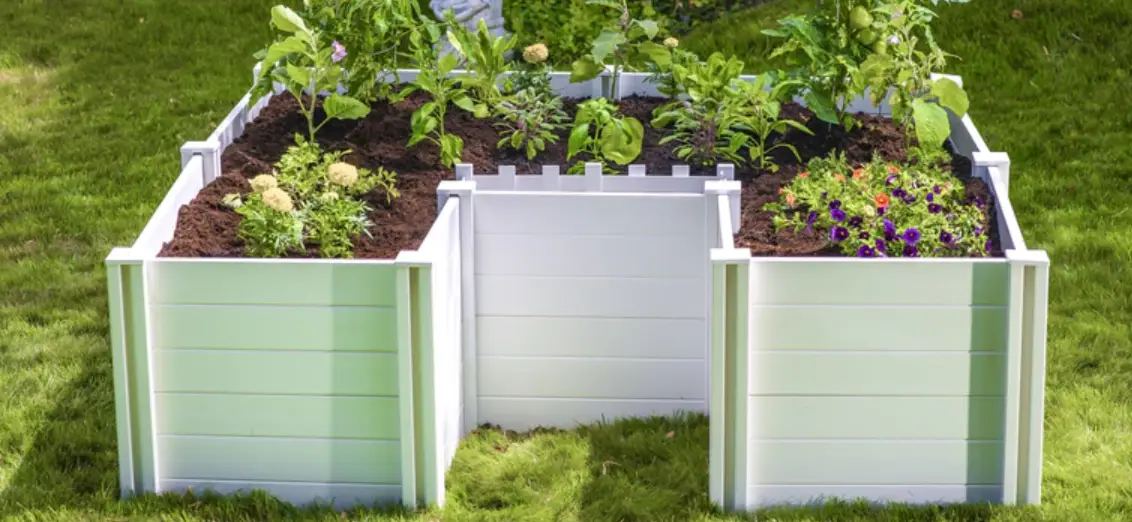

vita VT17120 Classic 6×6 Keyhole Composting Garden
Product Information
The product is a Classic Composter with model number VT17120. It comes with a post, wall boards, post-basket connectors, post caps, and ground stakes. The compost volume is 71 7/8 cubic inches (182.5cm) and the product dimensions are 22 1/2″ x 33 3/8″ x 56.1cm. The required tools and materials are not included in the package.
Assembly Guide
Before beginning the assembly process, completely unpack the product and take inventory of all the parts.
Assembly Instructions
- Assemble the posts, wall boards, and post-basket connectors.
- Hammer the ground stakes into the ground.
- Attach the post to the ground stakes by using post-basket connectors.
- Attach the wall boards to the posts.
- Assemble and install the basket and the post caps.
Note: Use Phillips #2 screwdriver to assemble the product. Hold a flat piece of wood over the stake end and hammer on top until the stake end is flush with the post top.

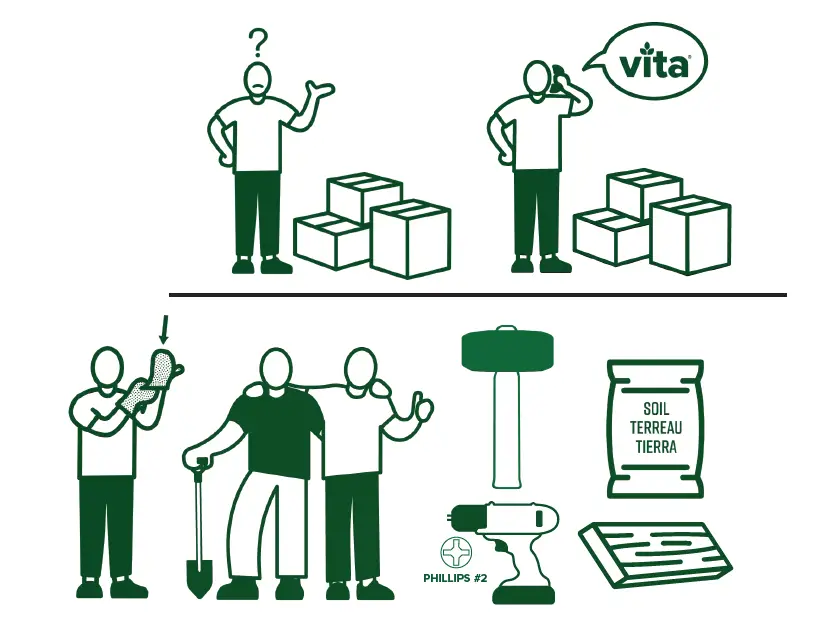

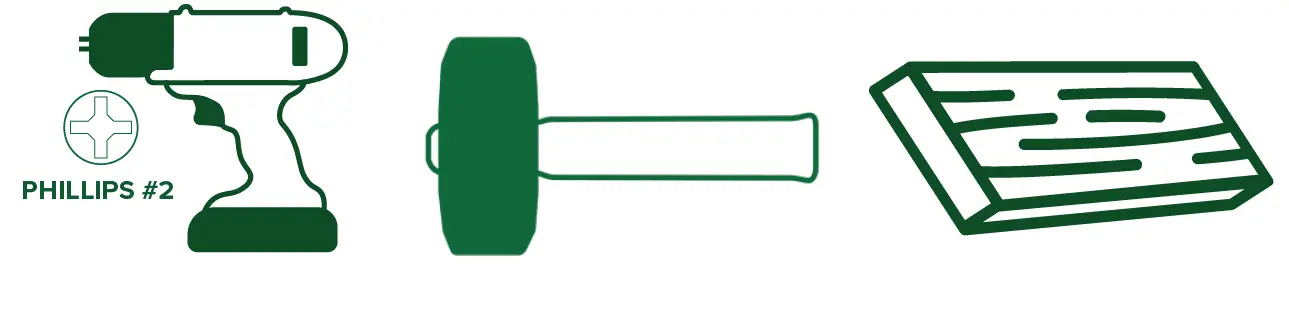

REQUIRED TOOLS AND MATERIALS (NOT INCLUDED)
[email protected]
WWW.WEAREVITA.COM
CLICK – CLIOUER – HACER CUC
‘CHAT’
1-800-282-9346
MONDAY- FRIDAY
LUNDI – VENDREDI – BAM – 5PM EST
LUNES -VIERNES

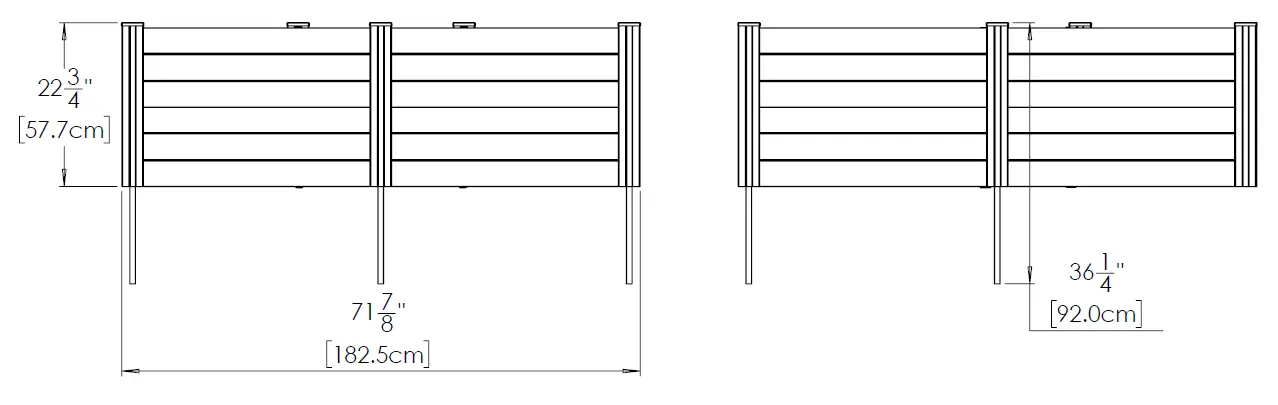

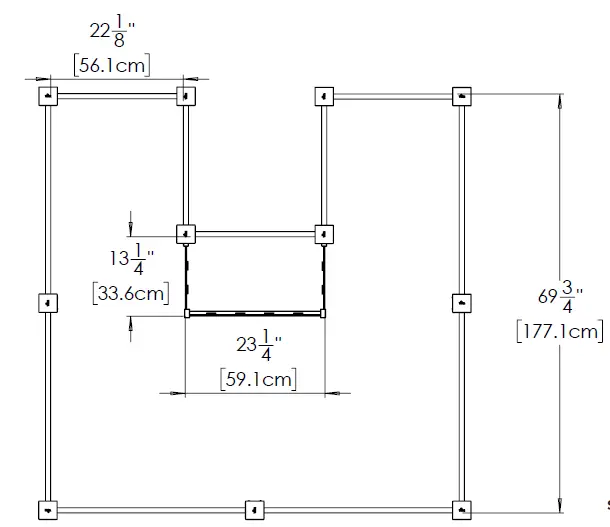

PRODUCT DIMENSIONS
Soil capacity: 1415.8 L (50 ft³)
COMPLETELY UNPACK AND TAKE INVENTORY OF PARTS BEFORE BEGINNING

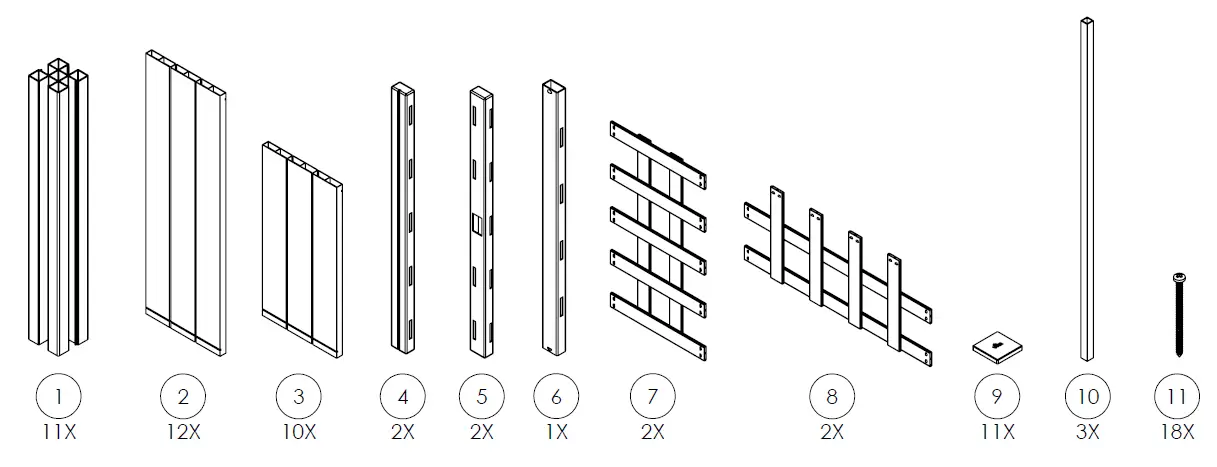

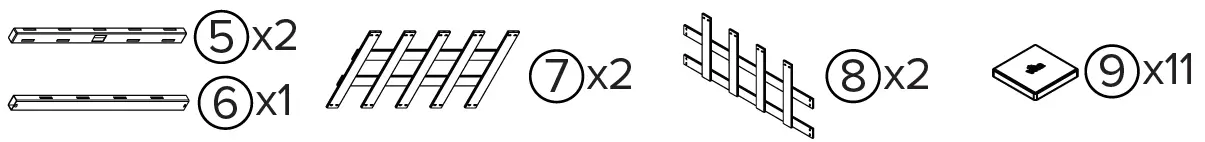

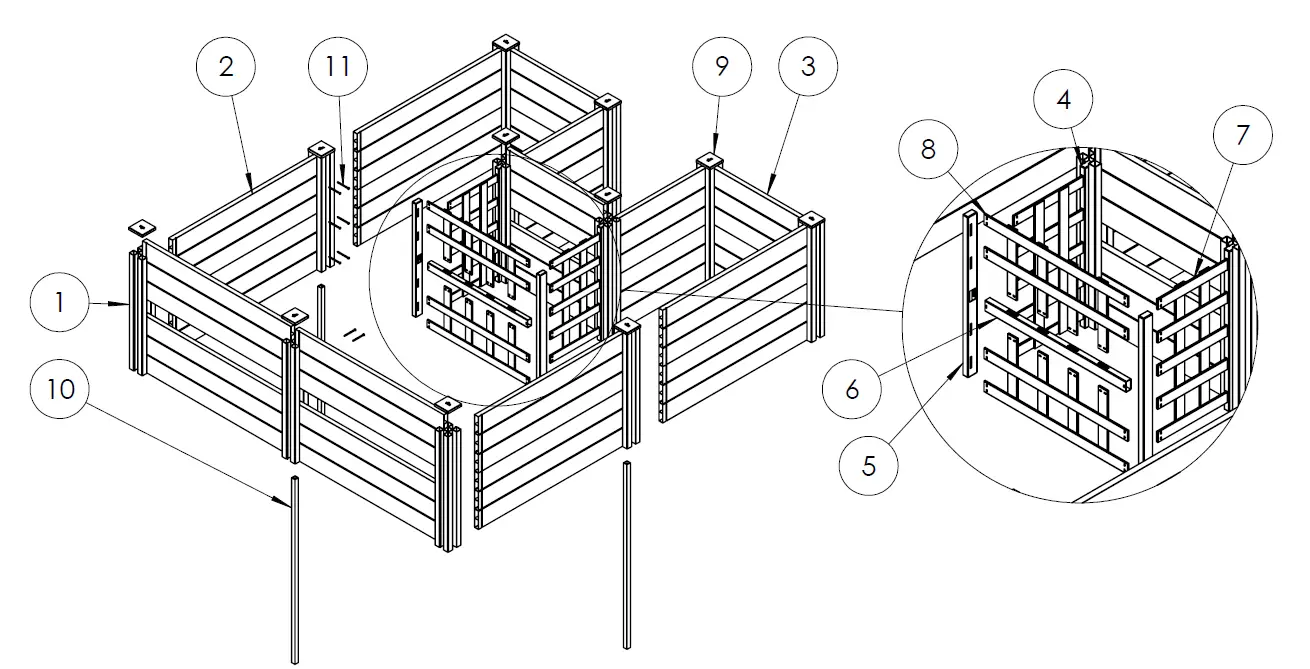

PARTS LIST
| Item No. | Part Number | Description | Dimensions | Qty. |
| 1 | 60073 | Post | 22 1/2″ (57.2cm) | 11 |
| 2 | 60074 | Long Board | 33 3/8″ (84.8cm) | 12 |
| 3 | 60075 | Short Board | 21 7/8″ (55.6cm) | 10 |
| 4 | 60076 | Post-Basket Connector | 22 1/4″ (56.4cm) | 2 |
| 5 | 60077 | Basket Corner Connector | 22 1/4″ (56.4cm) | 2 |
| 6 | 60078 | Horizontal Basket Connector | 22 1/2″ (57.1cm) | 1 |
| 7 | 11017 | Basket Panel A | 11 5/8″ x 20 3/4″ (29.4cm x 52.7cm) | 2 |
| 8 | 60079 | Basket Panel B | 22 7/8″ x 9 5/8″ (58.1cm x 24.4cm) | 2 |
| 9 | 60045 | Post Cap | 3″ x 3″ (7.62cm x 7.62cm) | 11 |
| 10 | 60080 | Ground Stake | 36″ (91.4cm) | 3 |
| 11 | 20009 | Pan Head Screw | #8 x 2.5″ (6.4cm) | 18 |

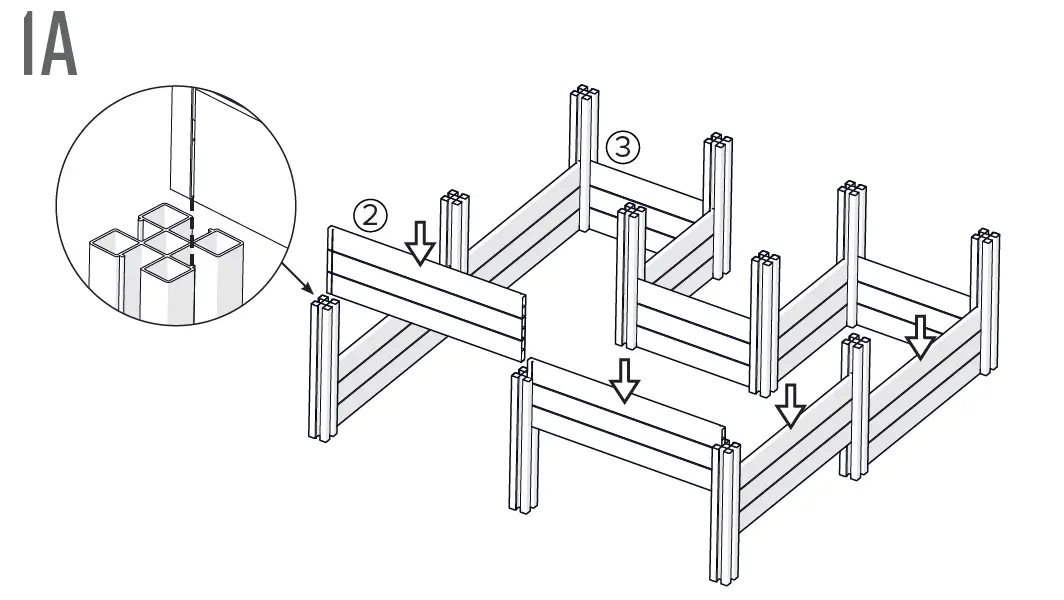

ASSEMBLE THE POSTS, WALL BOARDS, AND POST-BASKET CONNECTORS

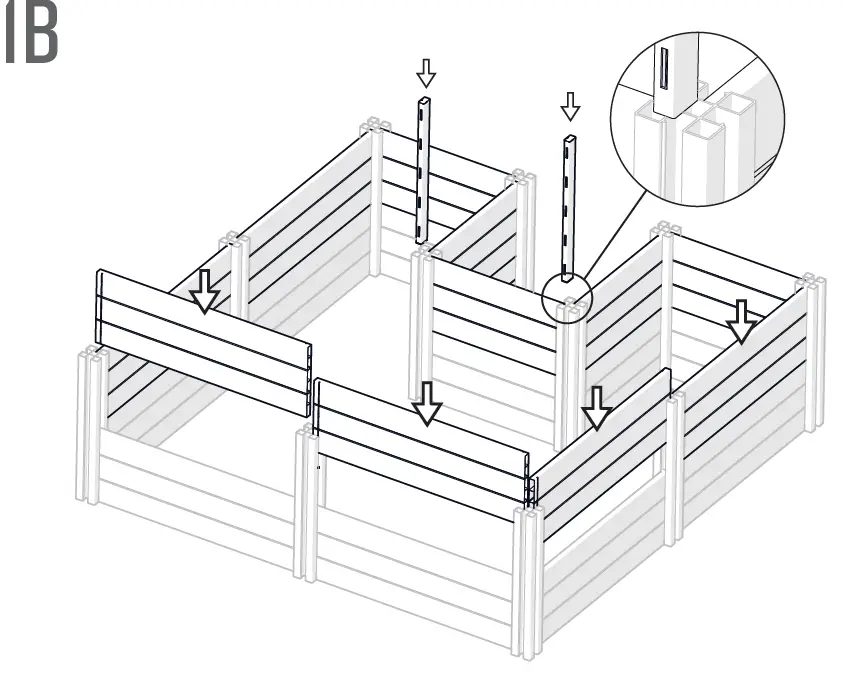

SECURE THE WALL BOARDS AND HAMMER IN THE METAL STAKES

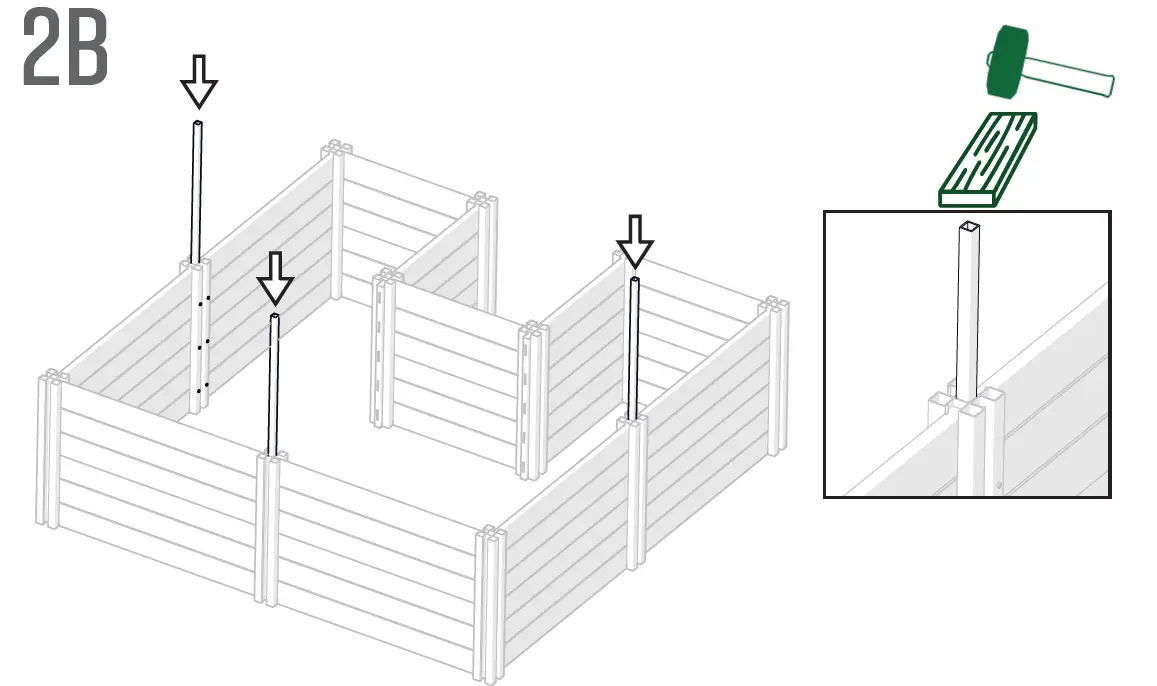

HOLD A FLAT PIECE OF WOOD OVER THE STAKE END AND HAMMER ON TOP UNTIL THE STAKE END IS FLUSH WITH THE POST TOP

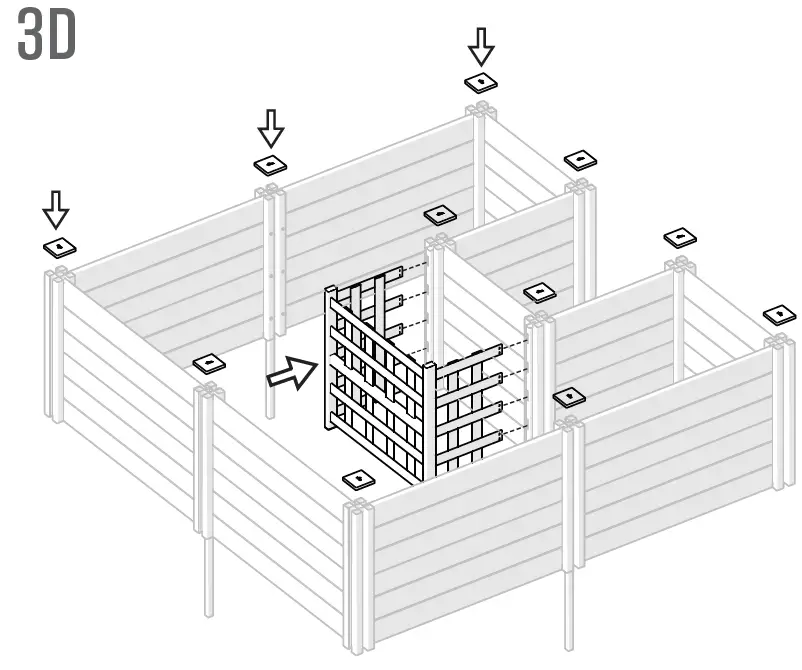

ASSEMBLE AND INSTALL THE BASKET AND THE POST CAPS

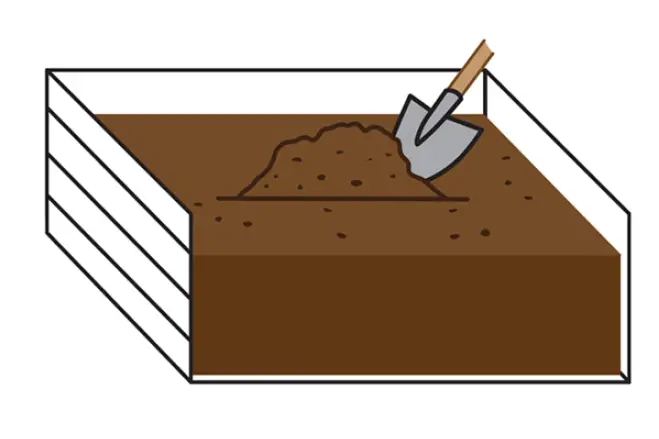

FILL WITH SOIL!

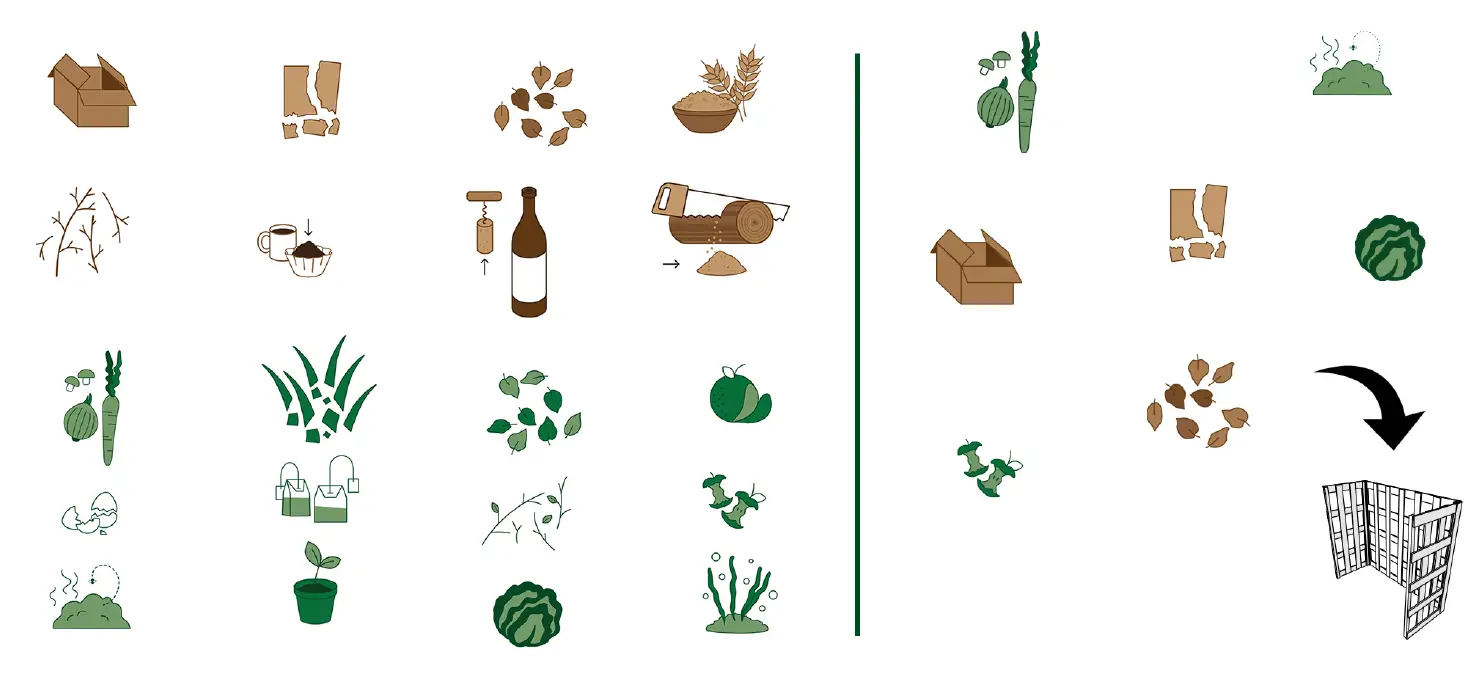

MAKE YOUR OWN SOIL!
