Vitamix 067892 One Instruction Guide (+ PDF)

To give you more counter space, we shrunk our traditional Vitamix while still leaving plenty of room for play. Smoothies, dressings, sauces, purees, and frozen desserts can all be made using the tough, fibrous fruits and vegetables. It is not recommended to use this container to make hot soups, nut butters, or grind grains, but it does make fantastic smoothies, sauces, dips, and frozen treats.

IMPORTANT SAFEGUARDS

WARNING
To avoid the risk of serious injury when using your Vitamix® blender, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS SAFEGUARDS, AND WARNINGS BEFORE OPERATION.

Read all instructions.
Do not use blender for other than the intended use.
Not intended for use by or near children or persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Close supervision is necessary when any blender is used by or near children or incapacitated persons. Children should be supervised to ensure that they do not play with the blender.
WARNING: To avoid inadvertent activation, turn off and unplug before cleaning.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, power to this blender must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
DO NOT IMMERSE. To protect against risk of electrical shock, do not put the blender base in water or other liquid.
To protect against risk of electrical shock turn the appliance OFF (O), then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
Avoid contacting moving parts.
Do not operate any blender with a damaged cord or plug or after the blender malfunctions, or is dropped or damaged in any manner. Call Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840 or email service@ vitamix.com at once for examination, repair, replacement, or adjustment.

GFI circuit breakers might be installed in your kitchen. Look for them in outlets near sinks. If the blender won’t operate, unplug the blender. Reset the wall outlet or circuit breaker. If the circuit breaker continues to trip, unplug the blender from the outlet. Allow the blender to sit for 24 hours before attempting to use it again. Contact Vitamix Customer Service if the problem persists.
Alteration or modification of any part of the blender, including the use of any part or parts that are not genuine authorized Vitamix parts, may cause fire, electric shock, or injury and will void your warranty.
The use of attachments not expressly authorized or sold by Vitamix for use with this blender, including canning jars, may cause fire, electric shock, or injury. Use in this way will void your warranty.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
Do not place on or near a hot gas or electric burner, in or on a heated oven.
Always operate blender with lid and lid plug firmly in place. The lid plug should be removed only when adding ingredients and when using the tamper.
The tamper provided must be used only when the main part of the lid is in place.
Keep hands and utensils, other than the tamper provided, out of container while blending to reduce the risk of severe injury to persons or damage to the blender. The cover must remain in place when using the tamper through the cover opening. A scraper may be used but must be used only when the blender is not running.
Blades are sharp. Clean around the blade assembly in the container with extreme care to avoid injury. To reduce the risk of injury, never place a blade assembly on the motor base unless assembled to the Vitamix container.
Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.
Do not leave foreign objects, such as spoons, forks, knives or the lid plug, in the container as this will damage the blades and other components when starting the blender and may cause injury.
Never attempt to operate with damaged blades.
Never attempt to operate with the centering pad removed.
Make sure that the container is flush with the centering pad to ensure that the drive spline is engaged with the drive socket before operating.
A utensil may be used in the container only when the it has been removed from the motor base.
DO NOT put the container in a freezer or a microwave.
DO NOT use this blender to make hot soups, nut butters or to process dry grains.
If the Variable Speed Dial is pointed to “O”, the machine is off.
If the Variable Speed Control is rotated clockwise and away from “O”, the blades will spin.
CAUTION: If you unplug the unit and plug it back in when the Variable Speed Dial is not pointed at “O”, the motor will start at the speed indicated on the Variable Speed Dial.
To avoid inadvertently starting the machine, always make sure the Variable Speed Dial is pointed to “O” when finished with a blend and before plugging the machine in with the power cord.
DO NOT operate the blender with an empty container.
DO NOT continuously use the blender for more than 3 minutes.
DO NOT blend soup or nut butters.
DO NOT grind dry grains.

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR SAFE USE

This product is intended for HOUSEHOLD USE ONLY and is not intended to be used for commercial purposes.

Do not leave your Vitamix blender unattended when operating.

Any repair, servicing, or replacement of parts must be performed by Vitamix or a Vitamix authorized service representative.

NOTICE
THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS AND IMPORTANT INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR VITAMIX BLENDER THAT CAN VOID YOUR WARRANTY AND CREATE THE RISK OF SERIOUS INJURY.

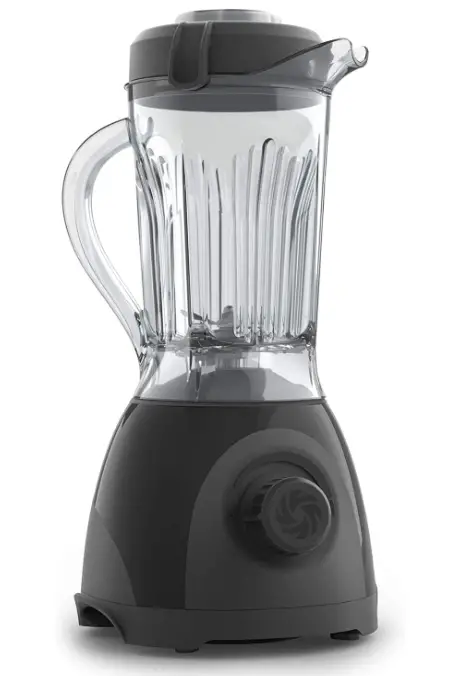

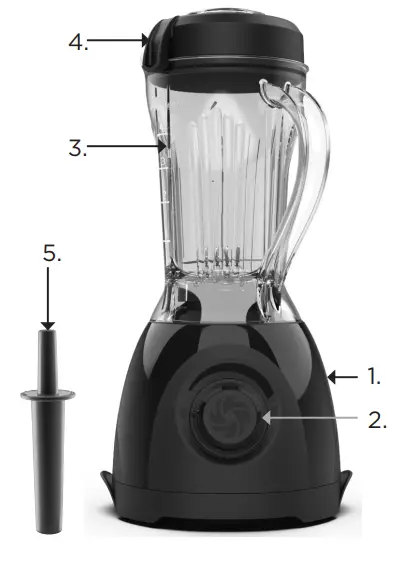

PARTS AND FEATURES

Motor Base
Variable Speed Dial
Container
2-part Lid Assembly

Tamper

Container Compatibility
The container included in your Vitamix ONE blender is the only Vitamix container that will work on this motor base.

Off (O)
when the indicator on the Variable Speed Dial is aligned with “O”, the blender is off. By rotating the dial clockwise (to the right) and away from O, you will increase the blade speed.

Variable Speed Dial
The Variable Speed Dial lets you control blade speed from Low to High. Tip: Follow the instructions in the recipe you are using for best results.

The Variable Speed Dial stops in three places:

O (Off)
Low (the blades start to spin) and
High

Motor
The motor is designed to protect itself from overheating. If the blender will not start immediately, check to make sure you have plugged the unit in. If the motor has overheated, allow the motor to cool for 20-45 minutes.

Tips to prevent ‘overloading’ your blender:

Process only Vitamix recipes when learning to use the blender. Do not process recipes at lower speeds than recommended. Do not process recipes at higher speeds than recommended.

Do not process recipes for longer than recommended.

DO NOT continuously use the blender for more than 3 minutes.

Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades.

Tamper

Lids and tampers are not interchangeable between different container styles, types and sizes. Use the tamper that was supplied with your blender.
The container should not be more than two-thirds full when the tamper is used during blending.
To avoid overheating, DO NOT use the tamper for more than 30 consecutive seconds.

CONTROLS

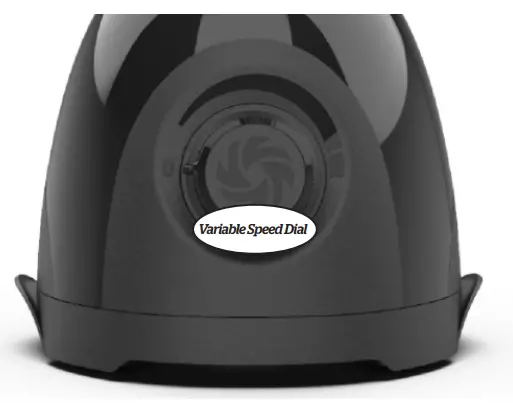

Variable Speed Dial

The Variable Speed Dial gives you control from Low Speed (slowest) to High Speed (fastest).
If the Variable Speed Dial is pointed to “O”, the machine is off.
If the Variable Speed Control is rotated clockwise and away from “O”, the blades will spin.
CAUTION: If you unplug the unit and plug it back in when the Variable Speed Dial is not pointed at “O”, the motor will start at the speed indicated on the Variable Speed Dial.
To avoid inadvertently starting the machine, always make sure the Variable Speed Dial is pointed to “O” when finished with a blend and before plugging the machine in with the power cord.

BLENDING

WASH UP

Fill the container halfway with warm water, add a drop of dish soap, and secure the lid. Start the blender, and quickly increase to its highest speed. Blend for 1 minute, then rinse the container.

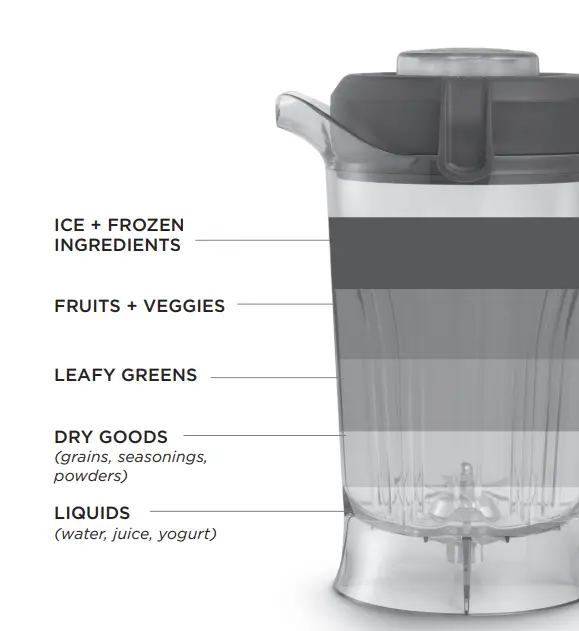

LOAD INGREDIENTS

Add ingredients in the order shown here for the fastest, smoothest blend.

BLEND IT

Start the machine, quickly increase to its highest speed, and blend for 45 to 60 seconds.

TASTE YOUR CREATION

Pretty good, right?

Congratulations, you’ve completed your first blend!

BLENDING

Remove all packaging materials. Keep or dispose of the materials, following all local guidelines for disposal.
Load your container according to your recipe.
IMPORTANT! Always use the lid and the lid plug when the machine is in operation. Never operate the blender without checking to make sure that the lid and lid plug are securely locked in place.
Push the lid down into place until the two tabs snap onto the lip of the container. Insert the lid plug. Turn the lid plug clockwise to lock.
Put the container onto the base.
Look at the Variable Speed Dial. Make sure it is pointing to O.
To start the machine, rotate the Variable Speed Dial clockwise (to the right). The blades will begin to turn.
Rotate the Variable Speed Dial between Low and High during the blending cycle to increase or decrease the speed of the blades.
At the end of the blend, rotate the Variable Speed Dial counter-clockwise to O.
If the mixture stops circulating, insert the tamper through the lid plug and stir until it ‘burps.’ If this does not work, turn the Variable Speed Dial back to O to stop the motor. Remove the container from the blender base and use a rubber spatula to press the air bubble away from the blades. Add liquid if necessary. Replace the lid and lid plug. Return the container to the blender base and continue blending.

After blending, turn the Variable Speed Dial back to O. Wait until the blades completely stop before removing the lid or container from the blender base.

Tips to prevent ‘overloading’ your blender:

Process only Vitamix recipes when learning to use the blender.
Do not process recipes at lower or higher speeds than recommended.
Do not process recipes for longer than recommended.
DO NOT continuously use the blender for more than 3 minutes.
Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades.

How to use the Tamper

IMPORTANT! The splash disk (near the top of the tamper) and lid prevent the tamper from hitting the blades when the lid is secured properly in the locked position.

The container should not be more than two-thirds full when the tamper is used during blending.
To avoid overheating during blending, DO NOT use the tamper for more than 30 consecutive seconds.
If the food does not circulate, the blender may have trapped an air bubble. Carefully remove the lid plug, while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening.
Holding the tamper straight down may not help the ingredients circulate. If necessary, point the tamper towards the sides or corners of the container. DO NOT try to force the tamper deeper into the container.

CARE

Hand Wash Only

Note
Your Vitamix container is designed to be completely cleanable without removing the retainer nut and blade assembly. DO NOT attempt to remove the retainer nut or blade assembly from the container. Our Normal Cleaning and Sanitizing procedures will ensure a complete and thorough cleaning of your container and it’s components. If your container is damaged, please do not use. Contact Vitamix Customer Service IMMEDIATELY for assistance.

BEFORE FIRST USE

Wipe the base with a warm damp cloth and wipe clean with a dry, soft cloth. Wash the container, lid, lid plug, and tamper with warm, soapy water. Rinse all parts. Wipe dry with a dry, soft cloth.

To Clean the Container

Fill the container half full with warm water and add a couple of drops of dish liquid.
Snap or push the complete 2-Part lid into the locked position.
Rotate the Variable Speed Dial clockwise away from O. Continue to rotate to the high position.
Run the machine for 30 to 60 seconds. DO NOT continuously operate the blender for more than 3 minutes.
Rotate the Variable Speed Dial back to O. Allow the blades to stop.
Rinse and drain all pieces.

To sanitize the container using bleach

Follow the cleaning instructions above.
Fill the container half full with water and 1 ½ teaspoons of liquid bleach.
Snap or push the complete 2-part lid into the locked position.
Rotate the Variable Speed Dial clockwise away from O. Continue to rotate to the high position.
Run the machine for 30 to 60 seconds. DO NOT continuously operate the blender for more than 3 minutes.
Rotate the Variable Speed Dial back to O. Allow the blades to stop.
Allow mixture to stand in the container for an additional 1 ½ minutes.
Pour bleach mixture out. Allow the container to air dry. Do not rinse after sanitizing.

Lids, Lid Plug, Centering Pad and Tamper

Wash the parts in warm soapy water. Rinse clean under running water, then dry.

Blender Base

Turn off and unplug the blender.

Wash the outside surface with a damp, soft cloth or sponge that has been rinsed in a mild solution of liquid dish soap and warm water. Do not place the blender base in water. The centering pad can be removed for more thorough cleaning.
Immediately dry all surfaces and polish with a soft cloth.

TROUBLESHOOTING

Problem:

Machine will not run after Variable Speed Dial is rotated away from O.

Solution

Make sure the power cord is firmly plugged into power outlet and that the outlet has power.
Make sure the controls are clean and moving freely.

Problem

My blender stopped working or shut off unexpectedly.

Solution

All Vitamix blenders come with thermal protection that may cause your machine to temporarily stop working. See Parts and Features for tips on preventing the motor from overheating.

Problem

My blends aren’t turning out the way I want (too chunky, too thick, etc.).

Solution

See the Blending section to learn the best way to layer ingredients in the container. For more tips and tricks, visit vitamix.com/tips.

WARRANTY 2-YEAR FULL WARRANTY

WHAT IS COVERED?

Vita-Mix Corporation (“Vitamix”) warrants that a Blender will be free from defects in material or workmanship and will withstand wear and tear from ordinary household use for 2 years from the date of purchase. Vitamix will, within 30 days of receipt of the returned product, repair the failed Blender free of charge. If, in Vitamix’s sole discretion, the failed Blender cannot be repaired, Vitamix will elect to either (A) replace the Blender free of charge or (B) refund the full purchase price to the owner, unless Vitamix receives prior written notice of the owner’s preference.

WHAT IS NOT COVERED?

This Warranty applies only to owners for ordinary household use. This Warranty does not cover cosmetic changes that do not affect performance, such as discoloration or the effects of the use of abrasives or cleaners or food build up. This Warranty is only valid if the Blender is used in accordance with the instructions, warnings and safeguards contained in the owner’s manual. Additional items offered with the blender purchase, with the exception of the Vitamix tamper, are not covered by this full warranty.

Vitamix will not be responsible for the cost of any unauthorized warranty repairs.

REPAIR, REPLACEMENT OR REFUND OF THE PURCHASE PRICE ARE THE EXCLUSIVE REMEDIES OF PURCHASER AND THE SOLE LIABILITY OF VITAMIX UNDER THIS WARRANTY. NO EMPLOYEE OR REPRESENTATIVE OF VITAMIX IS AUTHORIZED TO MAKE ANY ADDITIONAL WARRANTY OR ANY MODIFICATION TO THIS WARRANTY WHICH MAY BE BINDING UPON VITAMIX. ACCORDINGLY, PURCHASER SHOULD NOT RELY UPON ANY ADDITIONAL STATEMENTS MADE BY ANY EMPLOYEE OR REPRESENTATIVE OF VITAMIX. IN NO EVENT, WHETHER BASED ON CONTRACT, INDEMNITY, WARRANTY, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, SHALL VITAMIX BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF PROFIT OR REVENUE.

Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the U.S.A. and Canada, other warranties may apply.

WHAT VOIDS THIS WARRANTY?

Abuse, misuse, negligent use, alteration of the Blender, exposure to abnormal or extreme conditions, or failure to follow the operating instructions, will void this Warranty.

The Warranty is also void if repairs to the Blender are performed by someone other than Vitamix or an authorized Vitamix Service Provider.

HOW TO OBTAIN RETURN AUTHORIZATION UNDER THIS WARRANTY.

In the event the Blender needs service or repair, please call Vitamix Customer Service at 1.800.848.2649. You will be asked to provide a date of purchase and proof of purchase for any product that has not been registered with Vitamix. For product subject to this Warranty you will be provided with a return authorization number, up-to-date shipping instructions and a

pre-paid return pick up label. Vitamix will pay standard shipping costs on the return of the Blender for warranty service and repair and for return shipment of the product to you after the warranty repair or replacement. Purchaser is responsible for the costs of special shipping requests.

Within the U.S.A. and Canada, this Warranty is honored directly through the Vita-Mix® Corporation.

United States

Vita-Mix® Corporation 8615 Usher Road Cleveland, Ohio 44138-2199 1.800.848.2649

[email protected]

Canada

Vita-Mix® Corporation

200-1701 Shepherd Street East Windsor, Ontario N8Y 4Y5 1.800.848.2649

[email protected]

You will be deemed to have accepted the returned product “as is” upon delivery unless you notify Vitamix of any problem, including shipment damage, within 48 hours of delivery.

©2020 Vita-Mix® Corporation. No part of this publication may be reproduced or transmitted in any form or by any means or stored in a database or retrieval system without the written permission of the Vita-Mix® Corporation.

Frequently Asked Questions

Does it require a certain minimum volume to function? Is 2 cups of food or liquid enough, for instance?

Yes, two cups are more than sufficient.

Can you use this to mix butter into hot coffee?

The Vitamix One works best when blending cold ingredients.

Could it crush ice?

It will crush ice, but the machine needs liquid to function.

Can it blend beets, celery, and carrots that are raw?

If you cut them up and add a lot of liquid, it will blend, but I wouldn’t throw them in whole.

Can I add powdered frozen fruits and vegetables to this?

I had trouble getting the suction cups holding the blender in place while I was making smoothies. It moves. Although the larger unit was excellent, it was too big for my needs.

Can this cut ice cubes?

Yes, liquid will still need to be added to the machine to improve grinding.

Ice can it be crushed?

Yes it will.

What cannot be blended in a Vitamix?

Think twice before packing your blender with whole frozen fruits and vegetables, including berries, for your upcoming smoothie adventure. This is because using frozen ingredients in your blender could put a lot of strain on the blade (via Cuisinart).

A motor for a Vitamix can it burn out?

Rich blends may cause the motor to overheat. It will turn off on its own before burning out and won’t let you turn it on until it has cooled down. Don’t blend more than 4 cups of thick mixtures, such as hummus, nut butter, or ice cream, to prevent overheating.

Does Vitamix require upkeep?

Utilizing the Blender Care & Maintenance Guide, Vitamix® advises weekly drive socket and centering pad inspections. Look for surface flaws like gouges, cracks, or nicks. Replace them if any are present. Examine the drive socket’s inner gear teeth.

Can Vitamix remain plugged in?

Your Vitamix should not be plugged in when it is not in use, even if it is a permanent fixture on your kitchen counter. In addition to wasting energy, it will also cause the appliance’s electrical parts to degrade over time.
