IMPORTANT INSTRUCTIONS

Read and understand all instructions before using this vacuum. Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. This appliance is intended for household use only and not for commercial or industrial

WARNING:

• Do not run vac unattended.
• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or dust.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Keep children and animals at a safe distance when using this appliance.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Keep the cord away from heat, oil and sharp edges.
• Be careful not to pinch the cord in the vehicles’ doors, windows or levers.
• Do not use with damaged cord, plug or other parts.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked.
• Keep free of dust, lint, hair or anything that may reduce airflow.
• Do not insert accessories when unit is running.
• Do not use this vacuum with a torn filter or without the filter installed. Replace a damaged filter promptly.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not use or store near hazardous materials.
• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not expose to rain. Store in a dry place when not in use.
• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Have any damaged or defective parts repaired or replaced by an authorized repair agent.
• Regularly check the power cord for damage. Replace the cord if it is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.
• The appliance is designed for use with 12V negative ground vehicle battery systems.
• Turn off the vacuum before unplugging.
• DO NOT handle plug or the vacuum with wet hands.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials

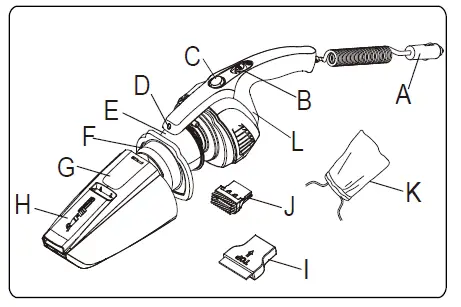

GETTING TO KNOW YOUR VACUUM

• A. 12V power plug
• B. On/Off switch
• C. Container release button
• D. LED light
• E. Filter
• F. Filter holder
• G. Container
• H. Retractable crevice tool
• I. Rubber squeegee
• J. Detail brush
• K. Storage pouch
• L. Detail brush storage

VACUUM OPERATION.

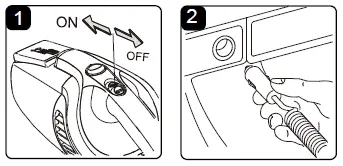

CONNECTING TO THE VEHICLE’S POWER SUPPLY

• Make sure that the vacuum is switched to the OFF position.
• Remove the cigarette lighter from the socket.
• Insert the 12V power plug (A) into the 12V power socket.

OPERATING THE APPLIANCE

• To power on the vacuum, slide the ON/OFF switch (B) forward to the ON position
• To power off the vacuum, slide the ON/OFF switch (B) back to the OFF position

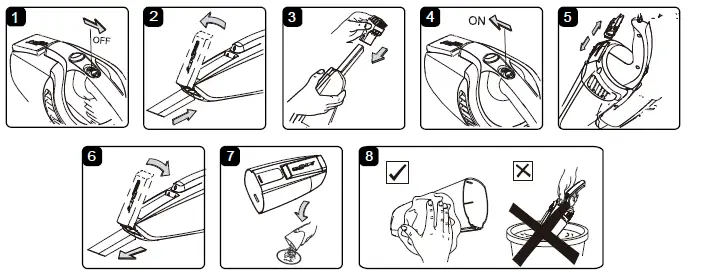

OPERATING INSTRUCTIONS – DRY VACUUMING

• The vacuum can be used as assembled or with the crevice tool. For your convenience, the crevice tool is permanently built-in onto the top portion of the container.
• Verify that the switch is in the OFF position before plugging in.
• Flip the crevice tool over to the fully extended position and push it into the container nozzle until secured in place
• Insert the detail brush into the front of the crevice tool.
• Turn the motor on by sliding the switch to the ON position.
• After use, turn the vacuum OFF by sliding the switch to the OFF position
• Remove detail brush from the crevice tool and store it.
• Pull the crevice tool out of the container nozzle and flip it forward towards the front of the unit and lock into place
• Empty the container, clean and dry the inside and outside before storage.

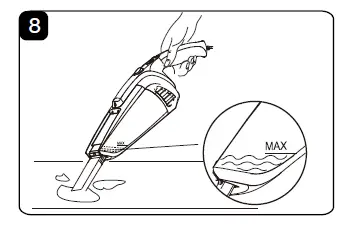

OPERATING INSTRUCTIONS – WET VACUUMING

• The vacuum can be used for wet pick up with or with out the use of the squeegee nozzle (J). For use with the squeegee nozzle:
• Verify that the switch is in the OFF position before plugging in.
• Fit the squeegee nozzle into the nozzle opening on the container
• Insert the plug into the 12V power socket.
• Turn the motor on by sliding the switch to the ON position and vacuum.
• When finished vacuuming, slide the power switch to the OFF position and disconnect the plug from the 12V power socket
• After use, empty the container, clean and dry the inside and outside before storage.

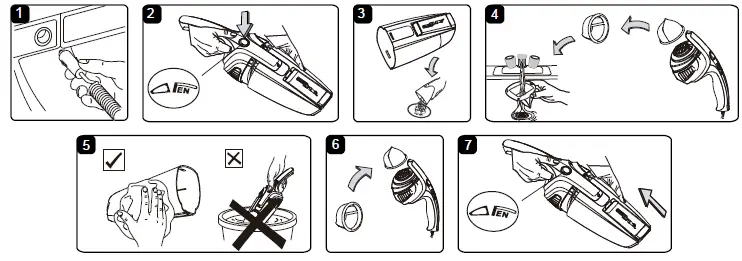

CLEANING AND MAINTENANCE

• Verify that the plug is disconnected from the power outlet
• Press the release button (C) and remove the container (G).
• Empty all debris and any dust from the container.
• Remove the filter (E) and clean any loose dust off the filter.
• Wash the filter in warm, soapy water.
• Make sure the dust bowl and filter are clean and dry before using it again. DO NOT immerse the appliance in water.
• Refit the filter (E) onto the appliance.
• Refit the container onto the appliance. Make sure the container clicks into place.

MAINTENANCE
Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the vacuum motor area; never immerse any part of the vacuum into liquids.

TROUBLESHOOTING

WARRANTY

We take pride in producing a high-quality, durable product. This vac carries a limited one (1) year warranty against defects in workmanship and materials from date of purchase under normal household use. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or alterations and lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. For product service call Cleva Customer Service at (866) 384-8432.

Not Covered by Warranty
Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs or alterations; Consumables such as cartridge filters, cloth filters, dust collection bags, foam filter sleeves; Normal wear and tear of parts and attachments, such as hose, nozzles, or casters; Normal deterioration of the exterior finish due to use or exposure; Any product where serial number/data label is tampered with or removed; Any product purchased from an unauthorized retailer.

FAQS

Do old Vitamix containers fit all models?
No! (They used to be, but with more recent releases, that is no longer the case

Is the Explorian Vitamix worth it?
The Vitamix Explorian E310 is remarkable for multi-purpose use. It does an amazing job at blending smoothies, is exceptional at crushing ice, and can even blend hot foods like soups

Can I get a smaller container for my Vitamix?
You can choose between a 32-oz or a 48-oz narrow-bodied container if you have a Classic Vitamix model

Can you buy a bigger container for Vitamix E310?
Yes! If you want to make large batches in your E310, you should use a tall 64-ounce container.

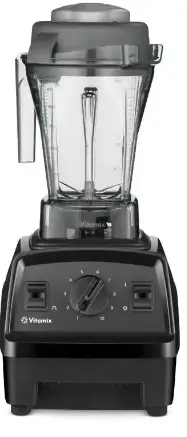

What model is Vitamix vm0197?
VM0197 E310 Explorian Series Blender
