ASSEMBLY GUIDE
URBANA
6X6 KEYHOLE GARDEN
VT17507 / VT17607
ESPRESSO SLATE
V 1.12 | AUG 08, 2020
1-800-282-9346
[email protected] WWW.WEAREVITA.COM 8:00 AM – 4:00 PM EST
PARTS LIST
16002 – POST A – 21 7/8″ (55.5 CM) – X11
16200 – POST B – 12 3/8″ (31.5 CM) – X1

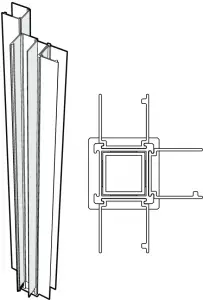

16037 – C-CHANNEL C – 21 7/8″ (55.5 CM) – X24
16201 – C-CHANNEL D – 12 3/8″ (31.5 CM) – X6
16202 – BASKET POST E – 22″ (55.8 CM) – X2
16203 – SLATE
15203 – ESPRESSO
BOARD F
34 1/8″ (86.6CM) – X12
16204 – SLATE
15204 – ESPRESSO
BOARD G
22 1/4IN (56.6CM) – X10

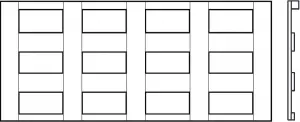

16205 – SLATE
15205 – ESPRESSO
BASKET PANEL H
22″ X 9 3/4″ (55.8 CM X 24.8 CM) – X2
3 V 1.12 | AUG 08, 2020

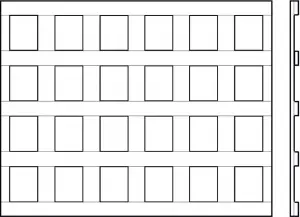

16206 – SLATE
15206 – ESPRESSO
BASKET PANEL I
22″ X 24 1/2″ (55.8 CM X 62.1 CM) – X1
16207 – SLATE
15207 – ESPRESSO
U-SPACER J
9 1/2″ (24 CM) – X6
16208 – SLATE
15208 – ESPRESSO
BRACE K
34 1/8″ (86.6 CM) – X3
16325

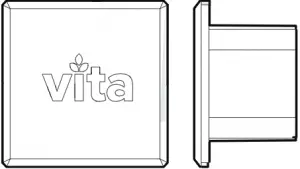

POST CAP L
1 1/4”(3.2 CM) – X24
4 V 1.12 | AUG 08, 2020

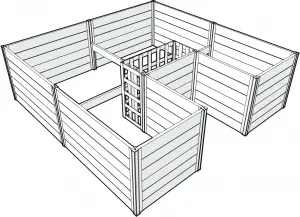

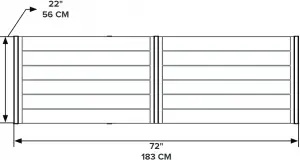

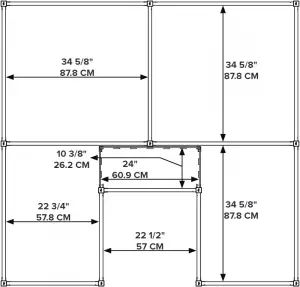

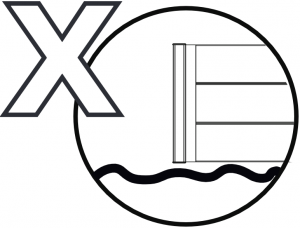

PRODUCT DIMENSIONS
5 V 1.12 | AUG 08, 2020

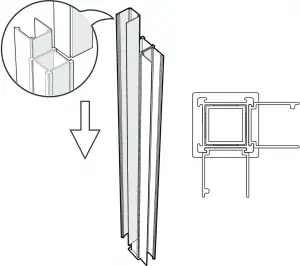

1
16002 – x11 A
16325 – x11 L
X11

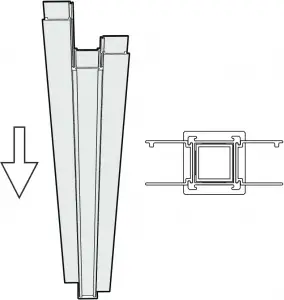

2
16037 – x12 C
X6
6 V 1.12 | AUG 08, 2020

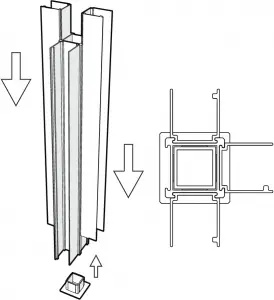

3
16037 – x6 C
X3
4
16037 – x6 C
X2
7 V 1.12 | AUG 08, 2020
5
16203/15203 – x2 F
16204/15204 – x2 G

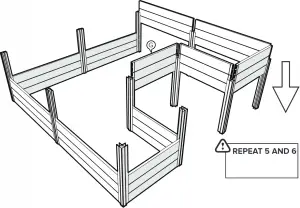

6
16203/15203 – x2 F
x1
x1
8 V 1.12 | AUG 08, 2020
7
16203/15203 – x2 F
16204/15204 – x3 G
x1
x3
x1

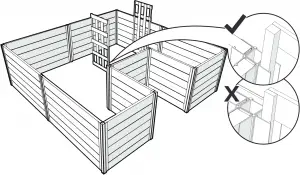

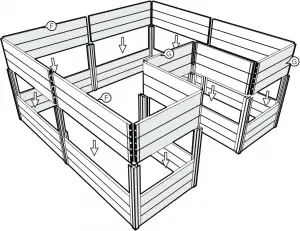

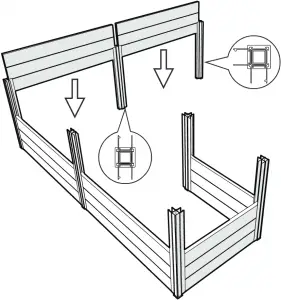

8
16203/15203 – x6 F
16204/15204 – x5 G
9 V 1.12 | AUG 08, 2020

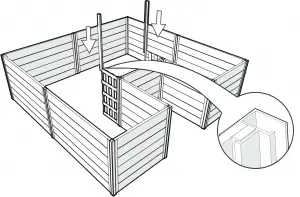

9
16205/15205 – x2 H
10
16202 – x2 E
10 V 1.12 | AUG 08, 2020

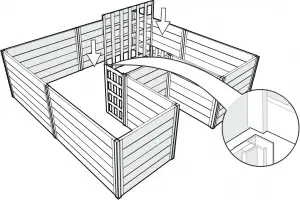

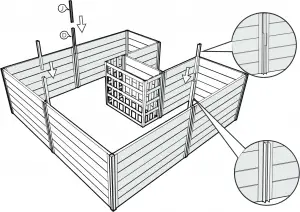

11
16206/15206 – x1 I
12
16201- x3 D
16207/15207 – x3 J
11 V 1.12 | AUG 08, 2020
13
16201 – x3 D
16200 – x1 B
16325 – x1 L

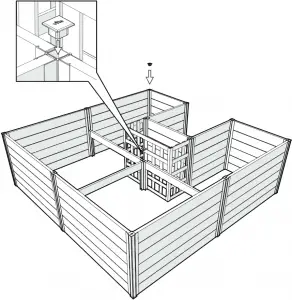

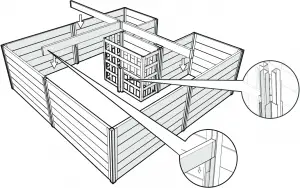

14
16208/15208 – x3 K
16207/15207 – x3 J
12 V 1.12 | AUG 08, 2020
15
16325 – x12 L
13 V 1.12 | AUG 08, 2020

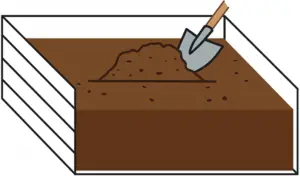

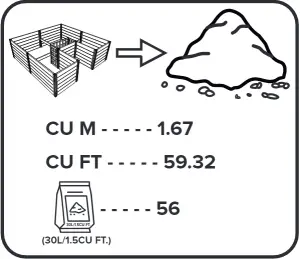

A. FILL WITH SOIL!

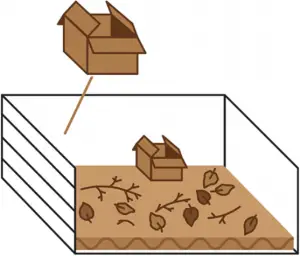

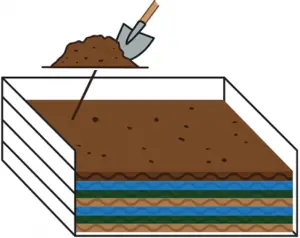

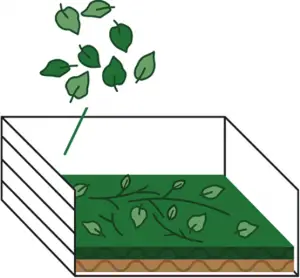

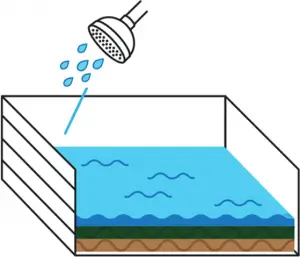

B. MAKE YOUR OWN SOIL!
1 2
3 4 5

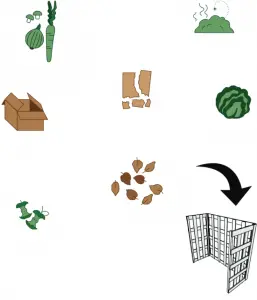

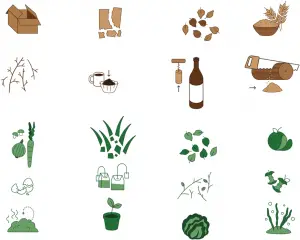

CARBON
NITROGEN
14 V 1.11 | AUG 05, 2020
