Igear Ig-1130 Ensemble Wooden Sound Bar User Manual

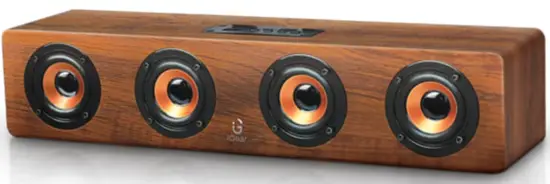

iGear iG-1130 Ensemble Wooden Sound Bar

Specifications

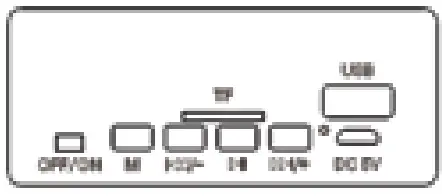

Functions

OFF/ON: To turn ON/OFF the speaker.
DC 5V: Plug the Micro USB cable to the speaker and connect other end of the USB port to the power source.
USB SLOT: Used to read the Mp3 files in FAT32 format with maximum size of 64GB.
TF SLOT: Used to read the Mp3 files in FAT32 format with maximum size of 64GB.
PLAY/PAUSE: Under USB/TF/Bluetooth mode, short press for play and pause.
M: To change mode between USB/TF, Bluetooth and FM mode.
PREV/VOL-: In USB/TF/Bluetooth/FM mode: Swipe left to move to previous FM channel/track. Swipe left and long press the button to decrease the volume.
NEXT/VOL+: In USB/TF/Bluetooth/FM mode: Swipe right to move to next FM channel/track. Swipe right and long press the button to increase the volume.

Bluetooth

Turn on the speaker; it comes into the Bluetooth mode directly. Search for bluetooth name “iGear-Ensemble” & pair with the device to start playing music. Short Press to Play/Pause. Press -/ and /+ to Prev and Next. Press and hold the -/ and c /+ button to turn down and turn up the volume.The -/ and /+ button to turn down and turn up the volume.

USB/TF Card

Insert the U-flash memory or Micro-TF card into the USB/TF slot. It will read the MP3 format music automatically. Press to Play/Pause, short time press -/ and /+ to Prev. For next, press and hold -/ and /+ button to turn down and turn up the volume.

FM Radio

Press M to switch to FM Mode. Short press -/ and /+ to Prev. For next, press and hold -/ and /+ button to turn down and turn up the volume.

Charging

Please use the original charging cable to charge. Red LED turns on while charging.

Name of Commodity: Ensemble
Month and Year of Import: January, 2021
Country Of Origin: PRC
Net Weight: 1.1 Kg
Net Quantity: 1 unit
Dimensions: 16 in x 4 in x 4in
Voltage: 5V
Wattage: 20W
Warranty Period: 1 Year
