KUFATEC Complete Set MBUX Augmented Reality Instruction Manual
Assembly Instructions

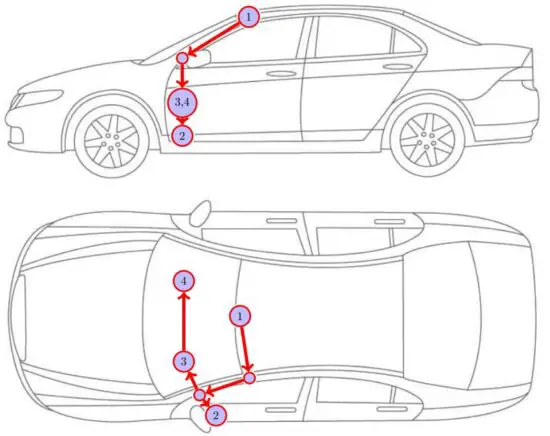

The following illustration shows the cable routing as well as the position of the individual components.
Figure 3: Vehicle overview
- Camera
- Ground pin
- Main unit/CAN bus distributor
- Fuse box
Please be aware that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing,
please refer to the relevant sections of the following manual.
