THULE 302916 Adapter Wall TO 5200 Ford Transit H3 V2

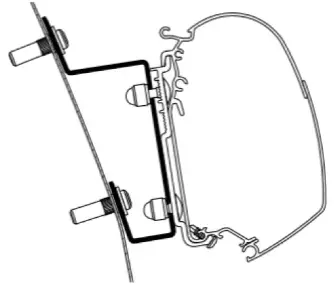

THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-PRODUCT

Product Information

  • Product Name: Thule Adapter Wall – TO 5200 Ford Transit H3 V2
  • Product Code: 302916
  • Manufacturer: Thule
  • Website: https://www.thule.com

Product Usage Instructions

Installation StepInstructions
Step 1: Warnings & InfoRead and understand all safety warnings and information
provided in the user manual.
Step 2: FitguideDetermine the appropriate adapter size based on the vehicle
size and awning length. Refer to the fitguide table provided.
Step 3: ContentCheck the contents of the package to ensure all necessary parts
are included.
Step 4: ToolsPrepare the following tools for installation:
  • M6 x 18 mm DIN 9021 A2 – x1
  • M6 x 9 x 30 Blind rivet nut – x11
  • M6 x 16 mm DIN 603 A2 – x1
  • M6 x 20 mm DIN 7985 – TX30 A2 – x9
  • M6 DIN 985 A2 – x9
  • M6 Nut Cap – x4
  • M6 x 20/20 mm DIN 603 A2 – x5
  • 4,2 x 16 mm DIN 7504M – TX20 A2 – x5
  • TX20 – P60 – x1
  • TX30 – P60 – x1
Step 5: InstallationFollow the installation instructions provided in the user
manual. Refer to the diagrams and measurements for proper
positioning and alignment.

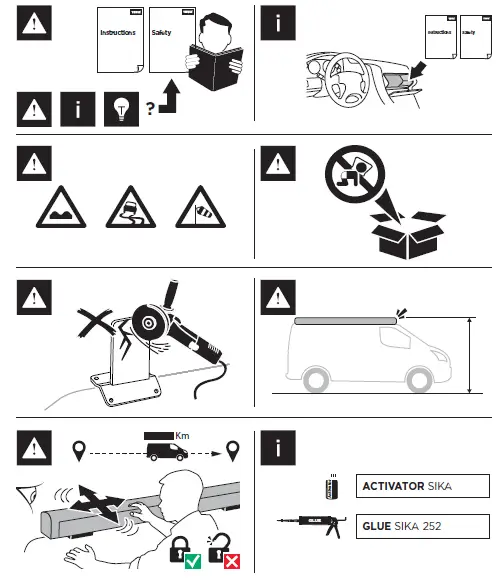

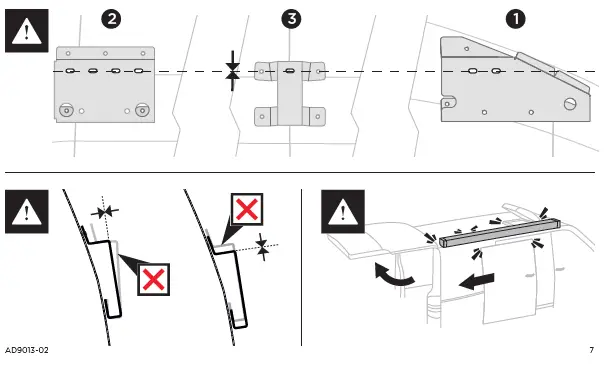

WARNINGS & INFOTHULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (1)

FIT GUIDE



VEHICLE SIZE



AWNING



AWNING LENGTH



ADAPTER





L2 H3













TO 5200





3m00













302916





L3 H3





3m50





L4 H3





4m50

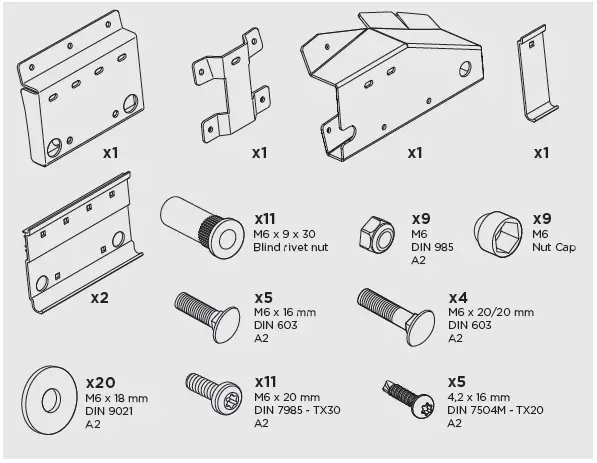

CONTENTTHULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (2)

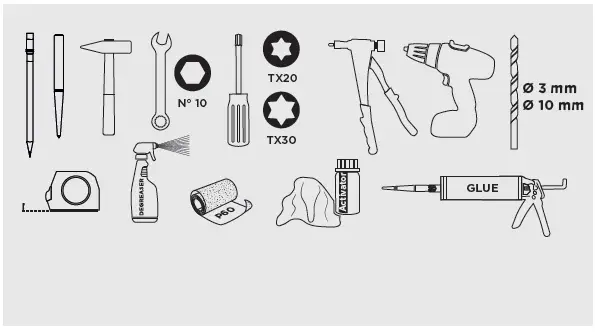

TOOLSTHULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (3)

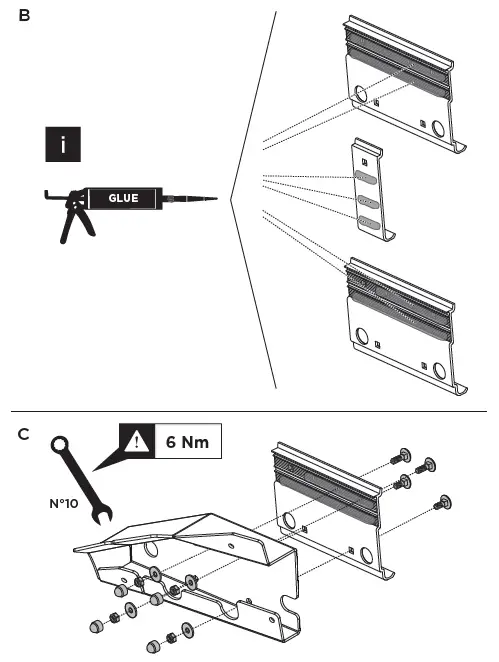

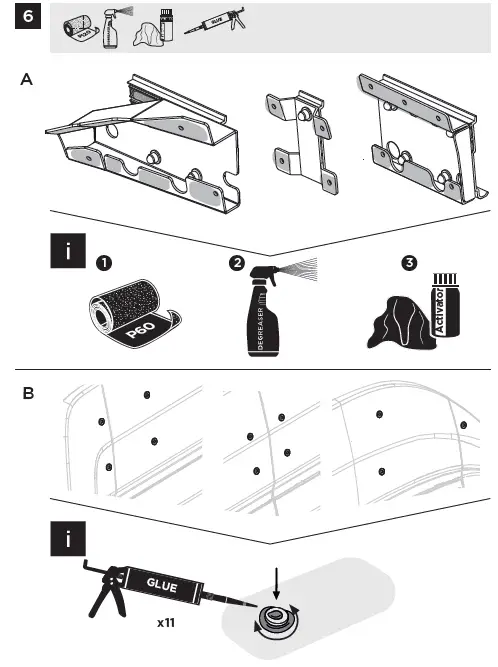

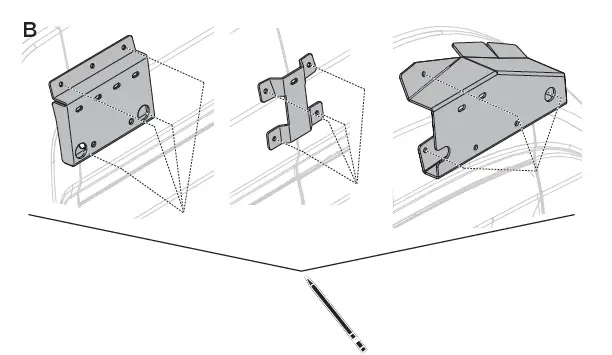

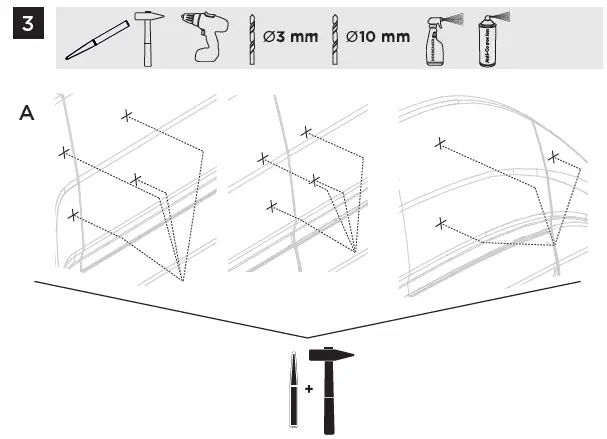

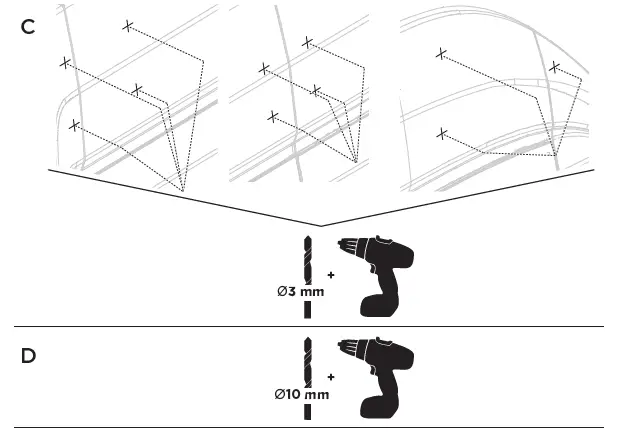

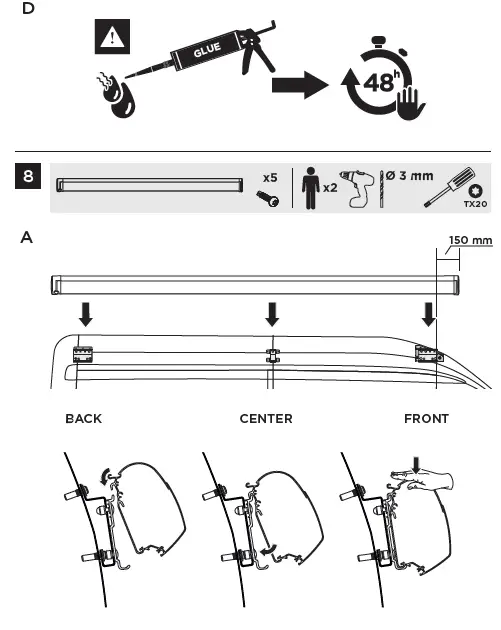

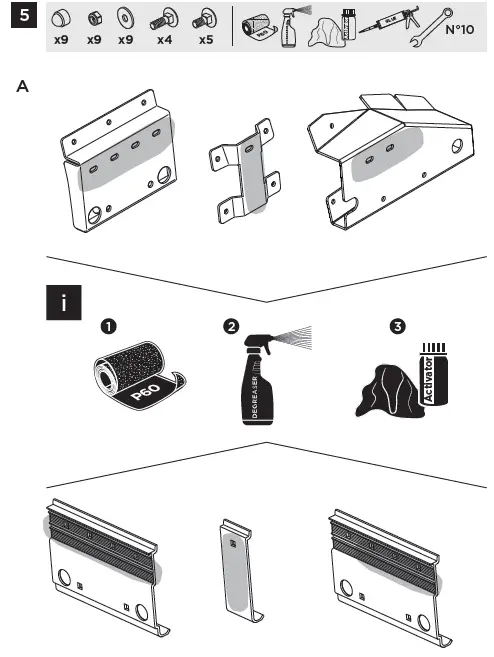

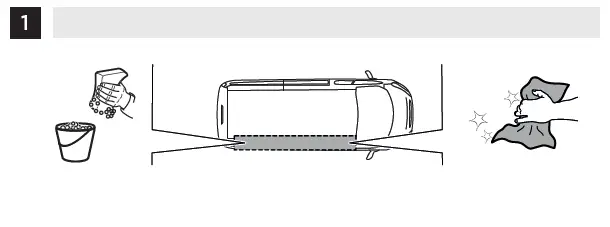

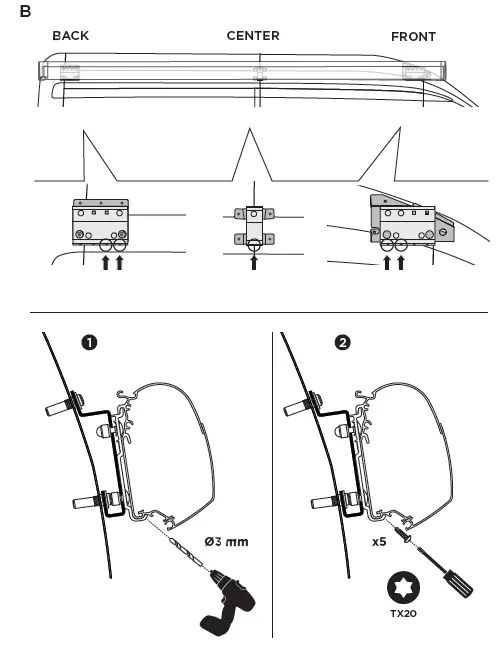

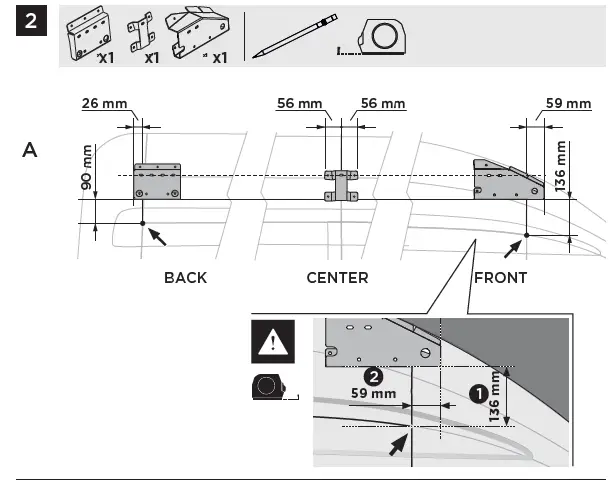

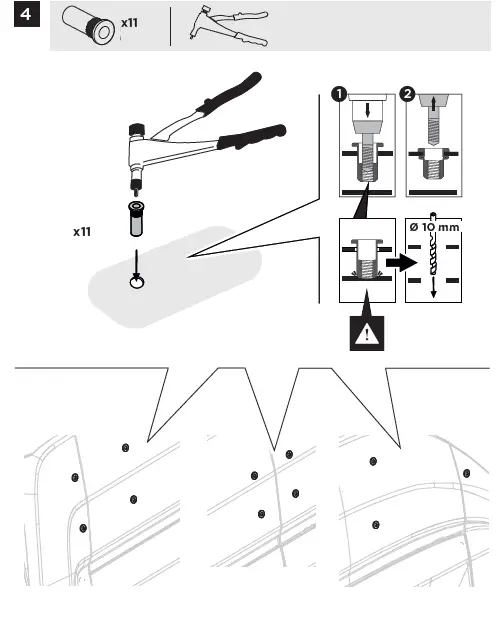

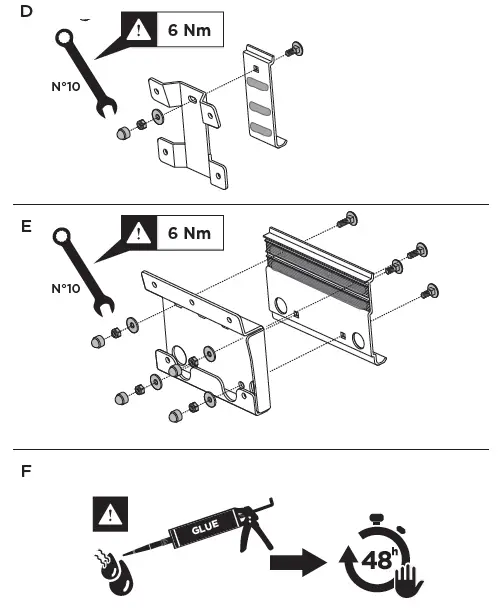

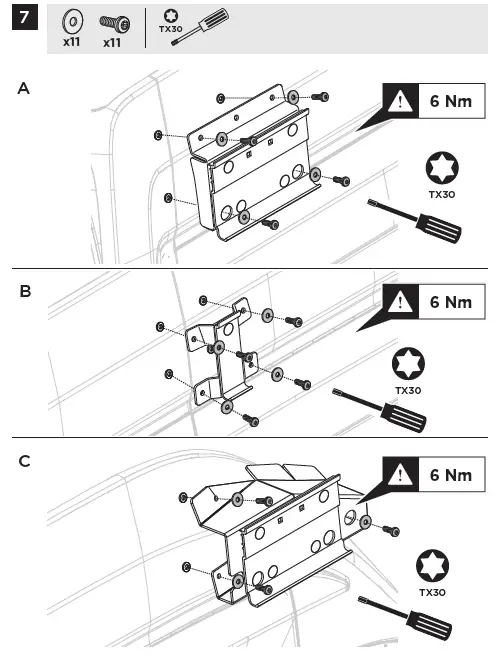

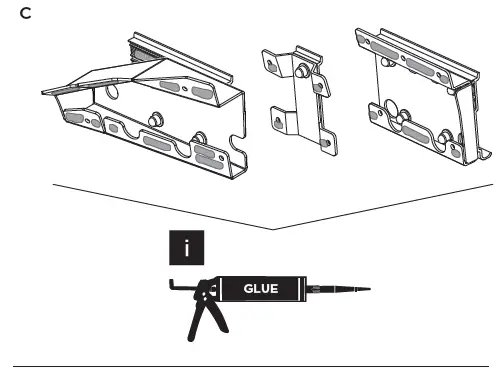

INSTALLATIONTHULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (4)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (5)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (6)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (7)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (8)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (9)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (10)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (11)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (12)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (13)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (14)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (15)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (16)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (17)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (18)THULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (19)

Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM [email protected] www.thule.comTHULE-302916-Adapter-Wall TO-5200-Ford-Transit-H3-V2-FIG- (20)
© Thule Group 2020. All rights reserved. Ad9013-02
