Thule Vw Crafter 2017 Adapter Roof Instructions

Adapter Roof
VW Crafter 2017
InstructionsProd no.: 301768 / 301771
Doc. no.: ADR912 -03 / 3380048800
Date: 12/11/2018
Bring your life
thule.com

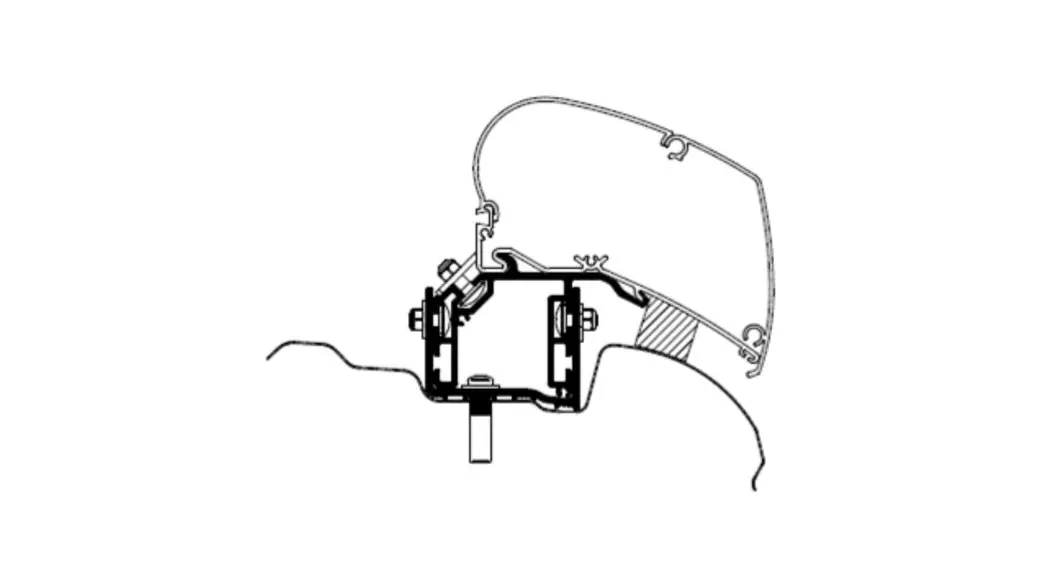

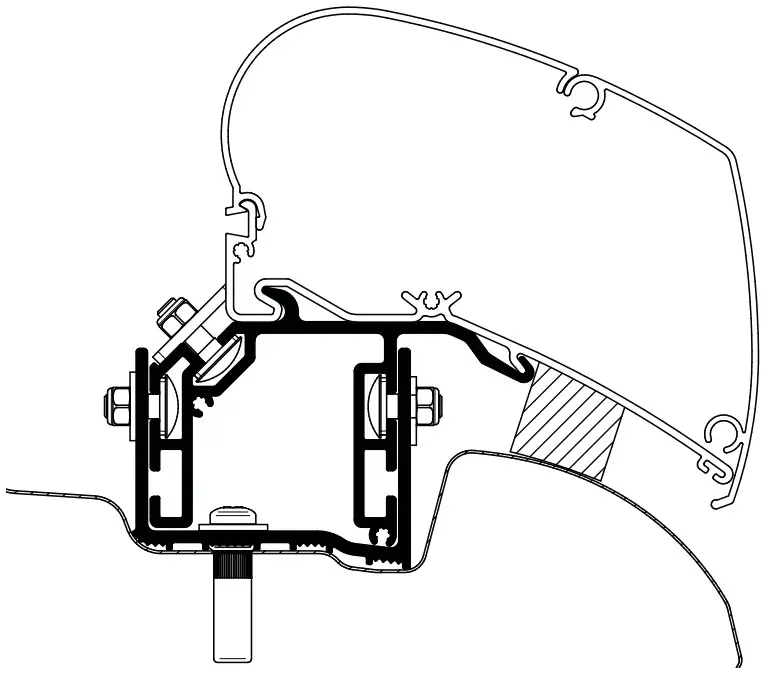

VW Crafter 2017 Adapter Roof

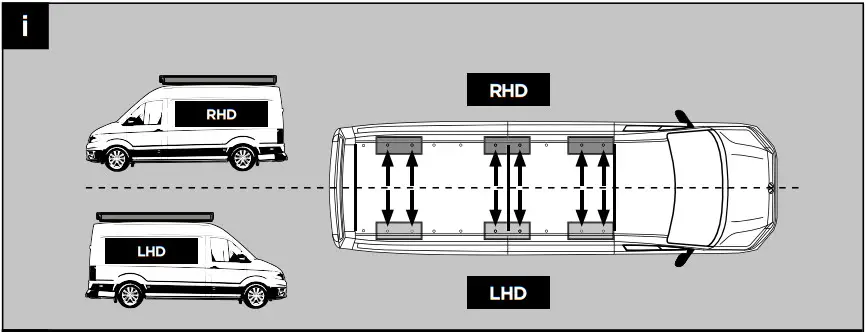

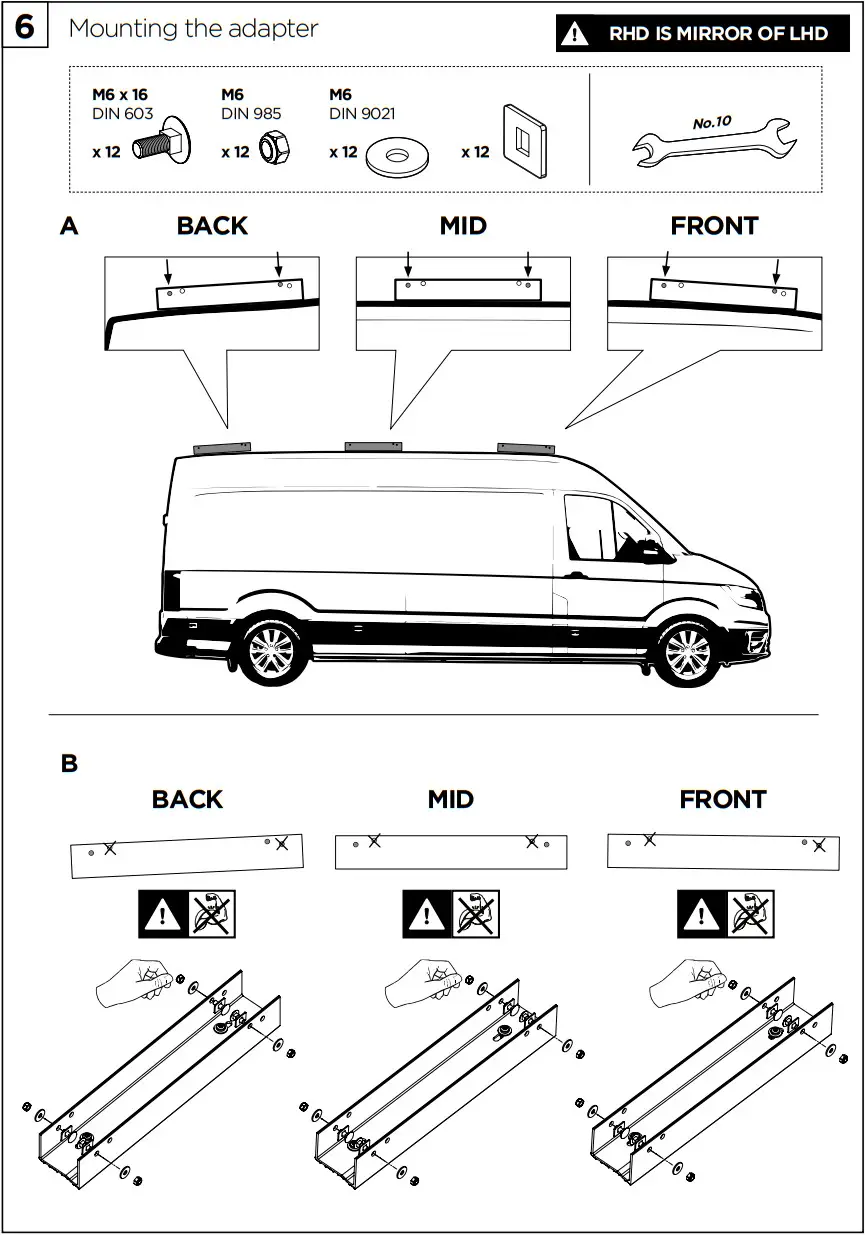

RIGHT HAND DRIVE (RHD) is MIRROR of LEFT HAND DRIVE (LHD)

IN THIS MANUAL LEFT HAND DRIVE (LHD) IS SHOWN BY DEFAULT

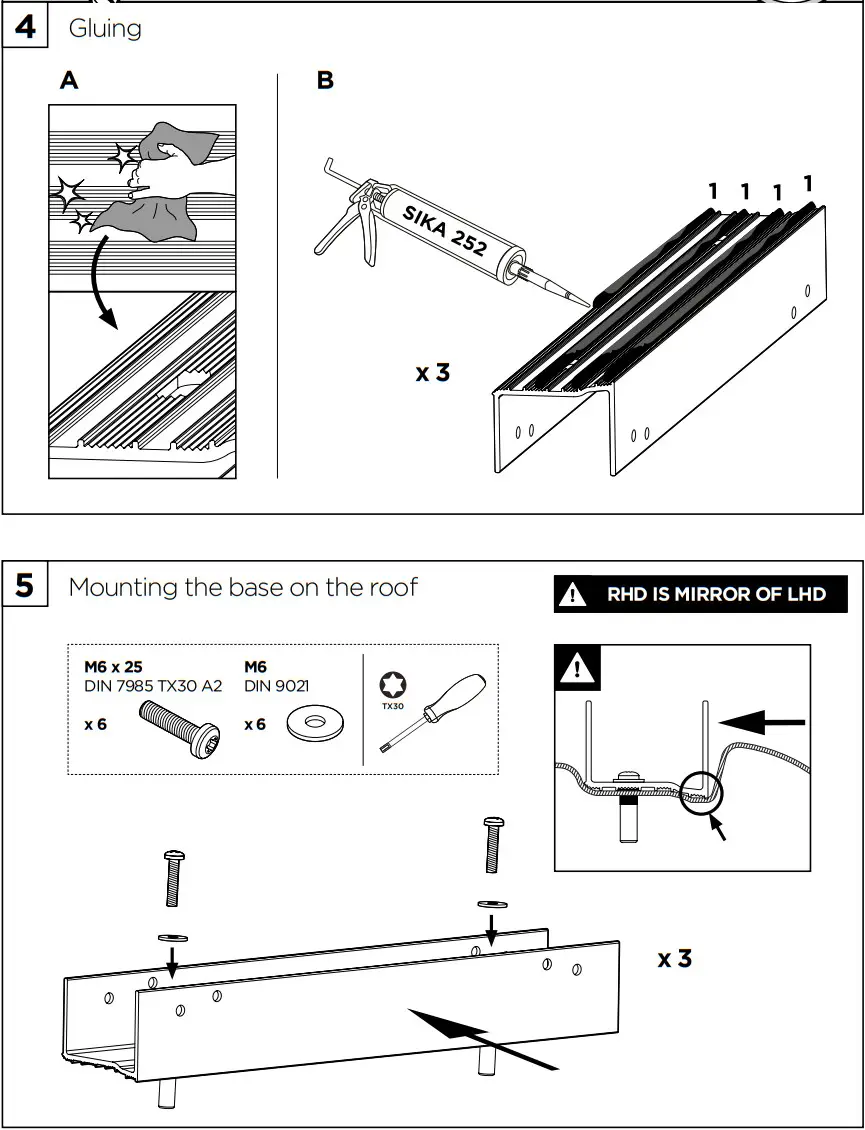

Glue:
Thule recommends: SIKA 252 or Terostat MS937
Preparation and sealing according to the prescripts of the glue supplier.

More information https://www.caravansplus.com.au

Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM
[email protected]
www.thule.com
ADR912-03
