THULE Adapter Roof for SmartClamp System
Product Information

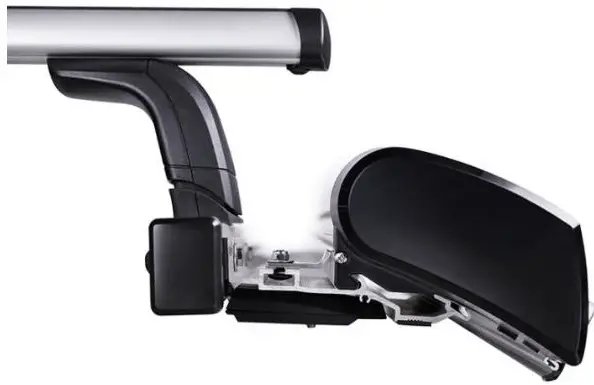

The Adapter Roof for Thule SmartClamp System (part number 301651-301652 ADR911-01 | 3380049700) is an accessory designed for use with the Thule SmartClamp System. The product is manufactured by Thule, a brand known for producing high-quality outdoor and transportation products. This adapter roof is designed for use with L2H2, L3H2, and L4H2 models and is compatible with THULE Omnistor awnings.
Product Usage Instructions
Before installing the Adapter Roof for Thule SmartClamp System, ensure that you have all the necessary components as listed in the user manual. It is recommended to read the manual thoroughly before installation.
- Start by assembling the product components as per the instructions provided in the manual.
- Place the adapter roof on top of your vehicle’s roof and align the mounting holes with those on the vehicle’s roof.

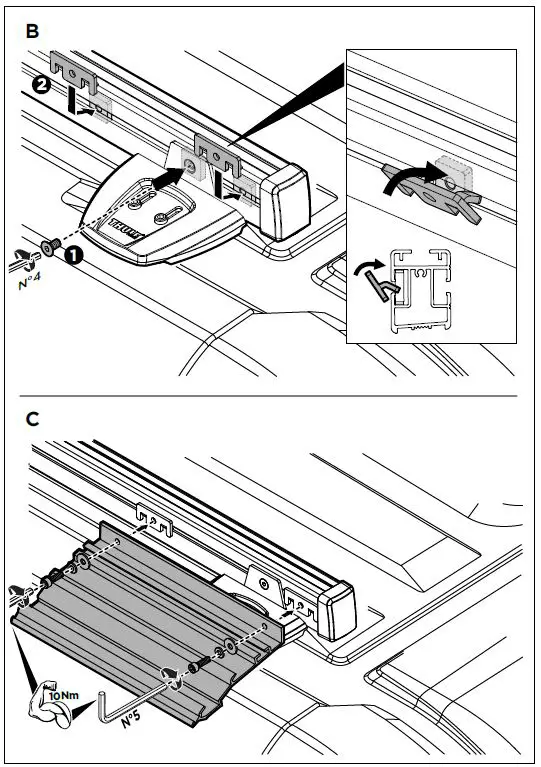

- Securely attach the adapter roof to the vehicle’s roof using the M6x25 DIN7985 screws and TX30 screws provided with the product. Tighten the screws to a torque of 10Nm.

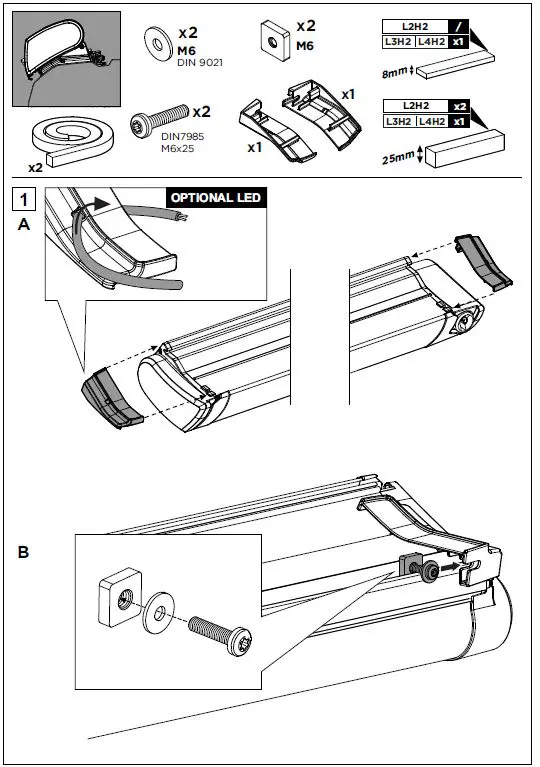

- If required, attach an optional LED light using the M6 DIN 9021 washers provided with the product.
- The product is compatible with THULE Omnistor awnings. If you wish to install an awning, follow the instructions provided in the awning user manual.
It is essential to ensure that the product is installed correctly and securely to prevent any damage or accidents. If you encounter any difficulties during installation, please refer to the user manual or contact Thule customer support for assistance.

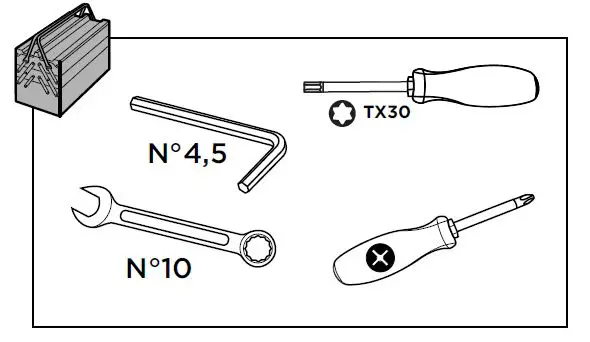

TOOLS REQUIRED

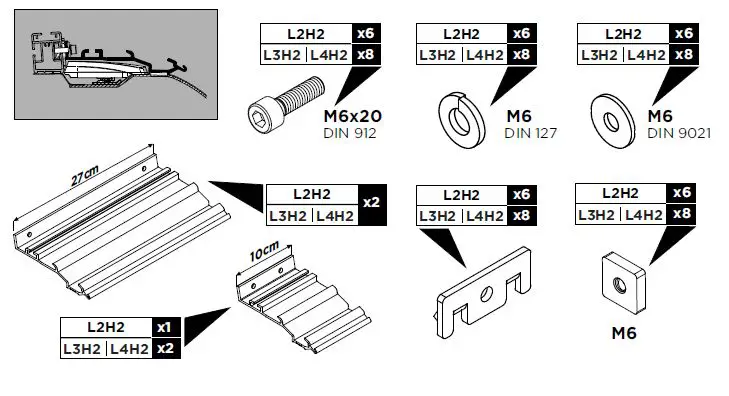

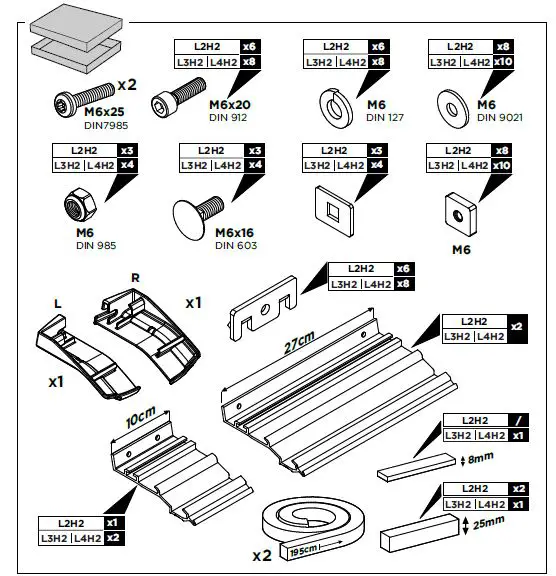

PARTS

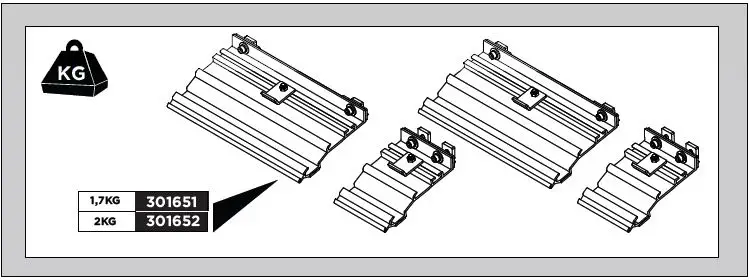

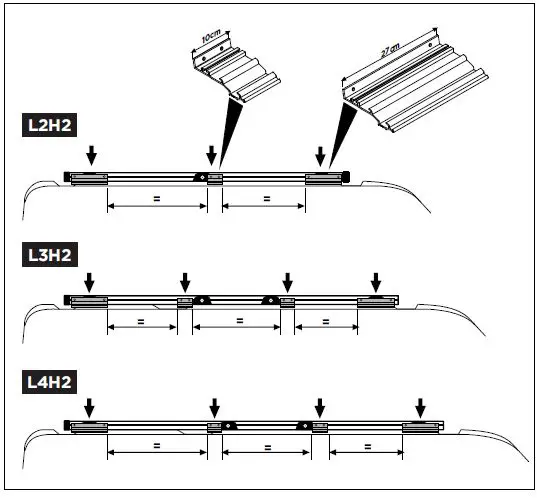

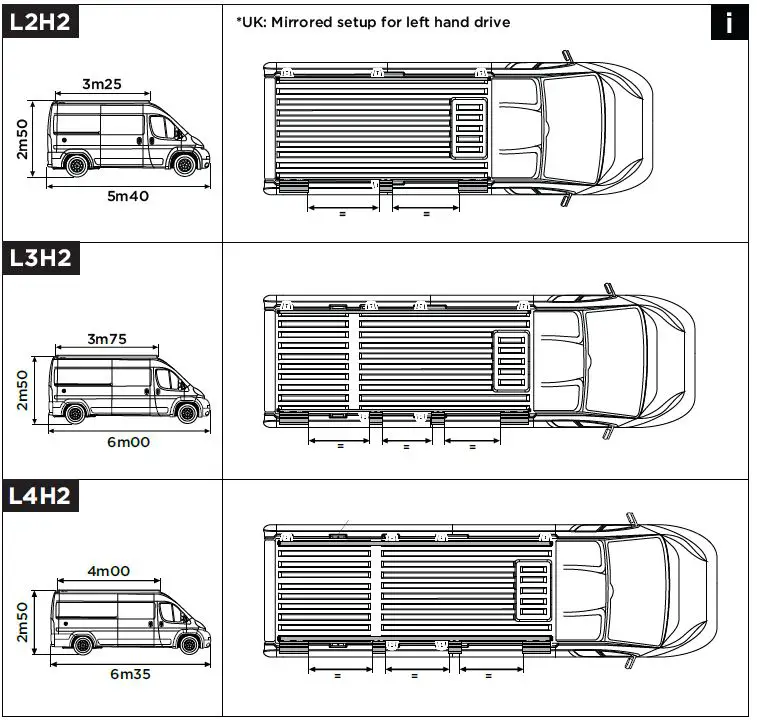

DEMENSION

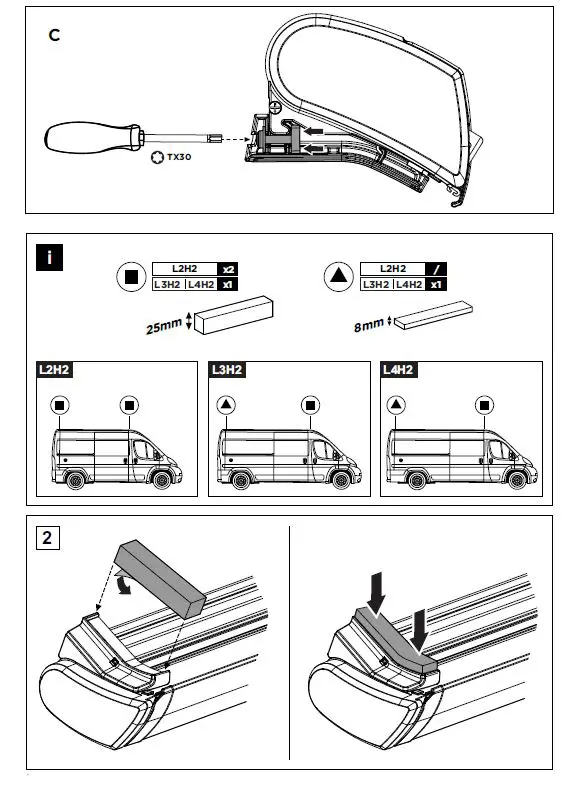

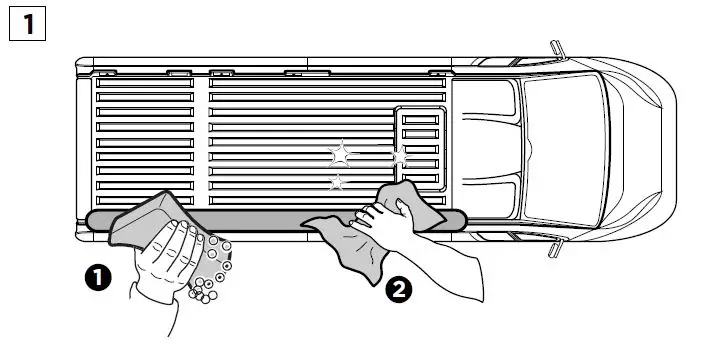

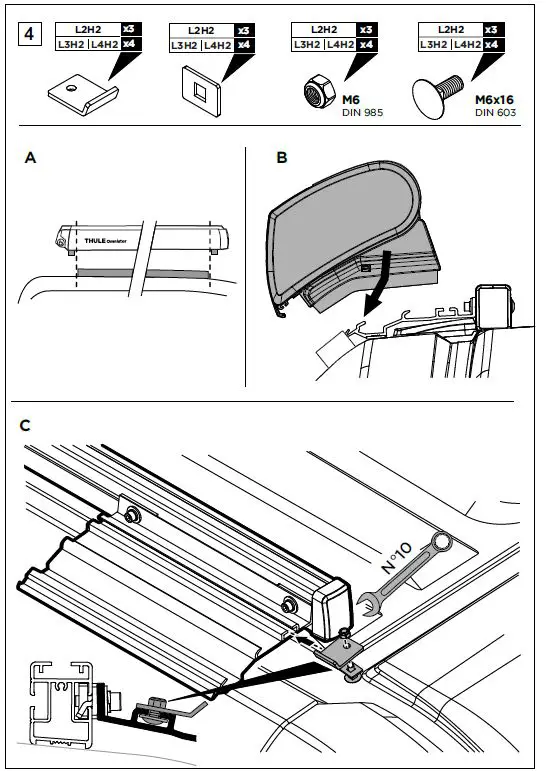

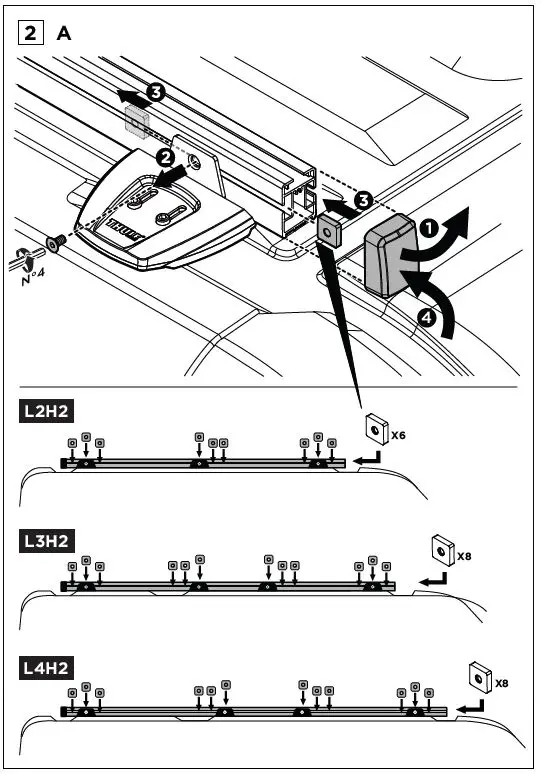

INSTALLATION
- Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM
@ [email protected] - 1A1 www.thule.com
