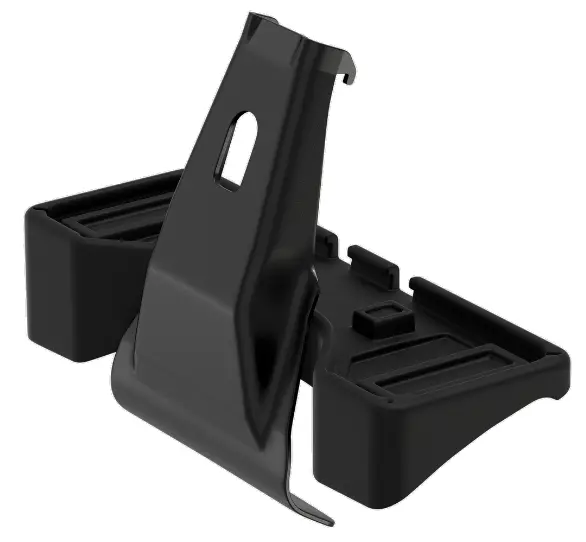

THULE 145320 Roof Rack Fitting Kit

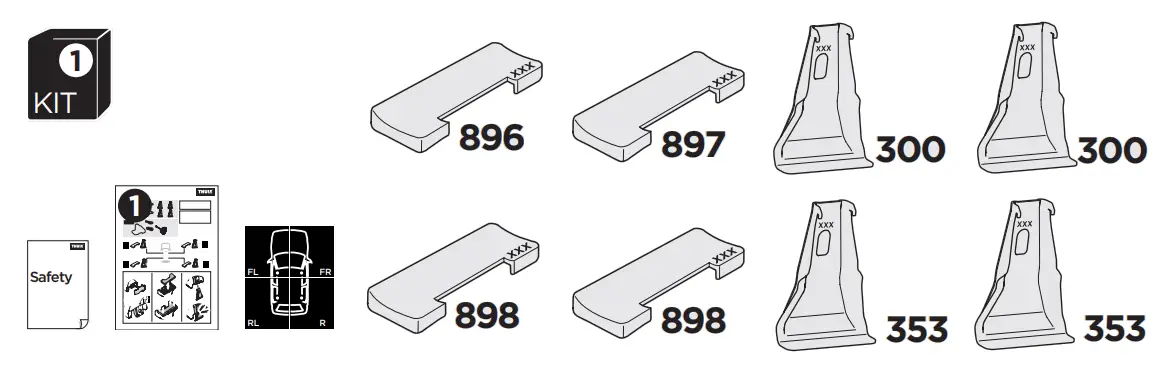

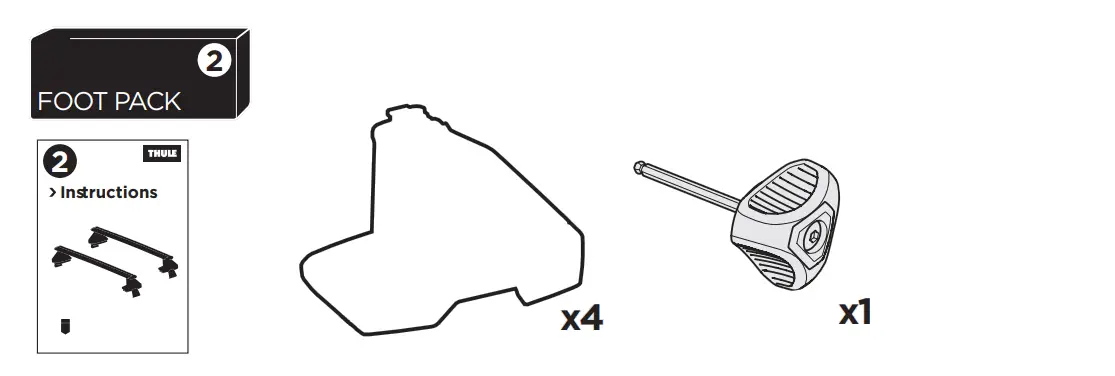

Package Content

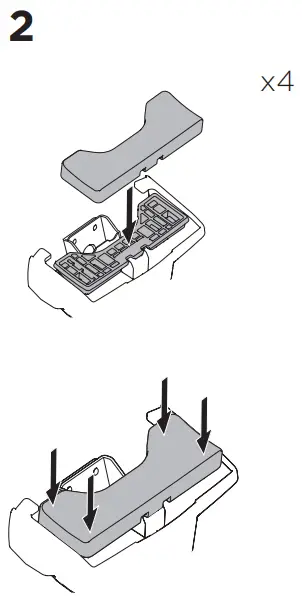

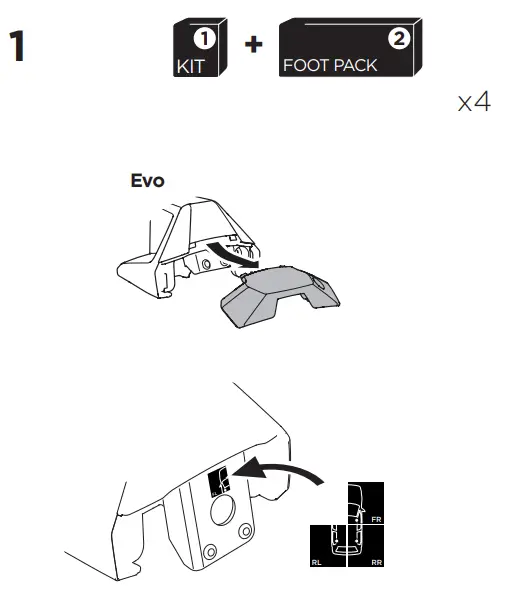

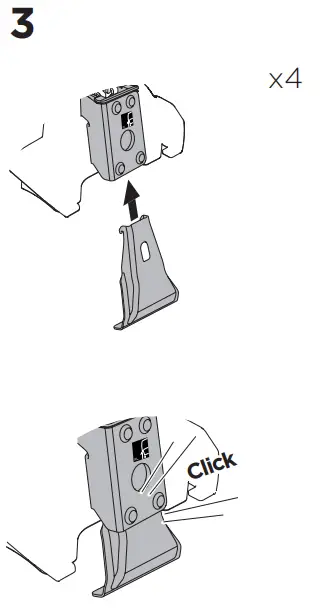

Installation Instructions

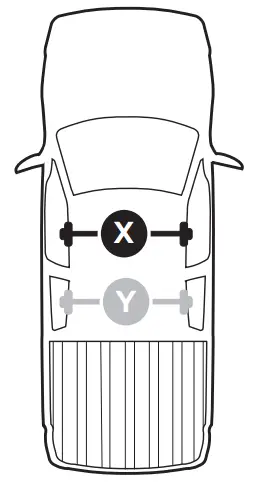

 | Evo X (scale) | Edge X (scale) |
| TOYOTA Tundra Double Cab, 4-dr Pickup, 22- | 58 | N/A |
| TOYOTA Tundra Crewmax, 4-dr Pickup, 22- | 58 | N/A |
 | X (mm/inch) |
| TOYOTA Tundra Double Cab, 4-dr Pickup, 22- | 1232 mm / 48 1/2“ |
| TOYOTA Tundra Crewmax, 4-dr Pickup, 22- | 1232 mm / 48 1/2“ |

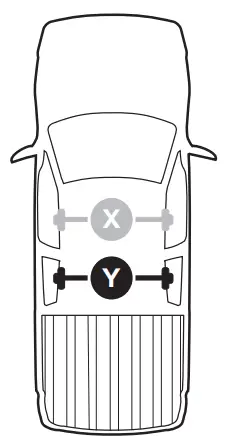

 | Evo Y (scale) | Edge Y (scale) |
| TOYOTA Tundra Double Cab, 4-dr Pickup, 22- | 57,5 | N/A |
| TOYOTA Tundra Crewmax, 4-dr Pickup, 22- | 57,5 | N/A |
 | Y (mm/inch) |
| TOYOTA Tundra Double Cab, 4-dr Pickup, 22- | 1226 mm / 48 1/4“ |
| TOYOTA Tundra Crewmax, 4-dr Pickup, 22- | 1226 mm / 48 1/4“ |

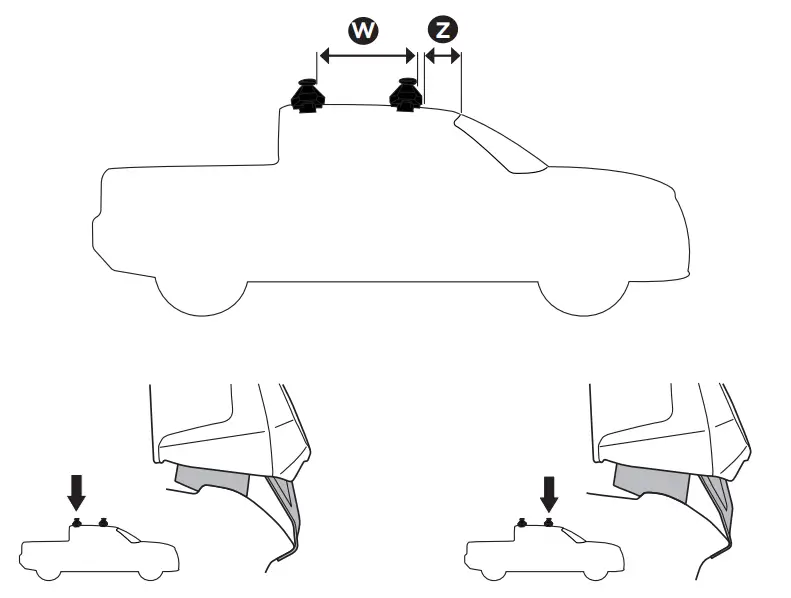

| W (mm/inch) | Z (mm/inch) | |
| TOYOTA Tundra Double Cab, 4-dr Pickup, 22- | 700 mm / 27 1/2“ | 330 mm / 13“ |
| TOYOTA Tundra Crewmax, 4-dr Pickup, 22- | 700 mm / 27 1/2“ | 330 mm / 13“ |
