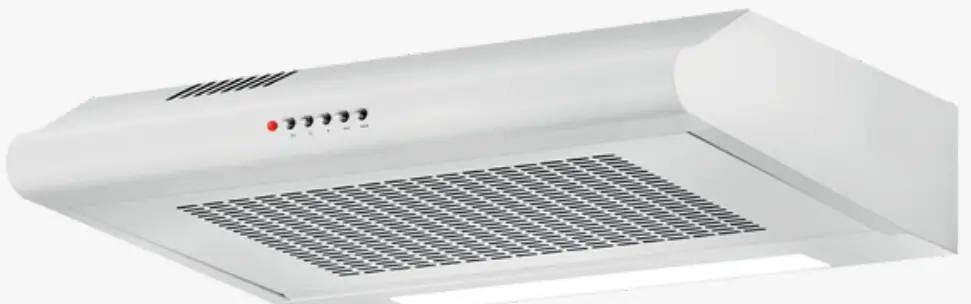

QUICK REFERENCE GUIDE > HF60LW4
Wall Rangehood, 60cm, Fixed
White
Simple and responsive extraction is always important in the kitchen. These rangehoods capture and remove cooking odours, vapour and steam.
DIMENSIONS
| Height | 120 mm |
| Width | 598 mm |
| Depth | 450 mm |
SPECIFICATIONS
Accessories
| Eave ducting kit | PD-RHK125E |
| Light bulb | 792507 |
| Recirculation carbon filter | 792506 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Maximum motor performance | 350m³/hr |
| Maximum pressured air movement | 185m³/hr |
| Maximum sound rating | 58dBA |
Installation and cleaning
| Air outlet size | 120mm |
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional – front extraction |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240VV |
Product dimensions
| Depth | 450 mm |
| Height | 120 mm |
| Width | 598 mm |
Product information
| Control type | Push button |
Ventilation features
| Light type | Incandescent 1 x 40W |
Warranty
| Parts and labour | 2 years |
| SKU | 500710 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
