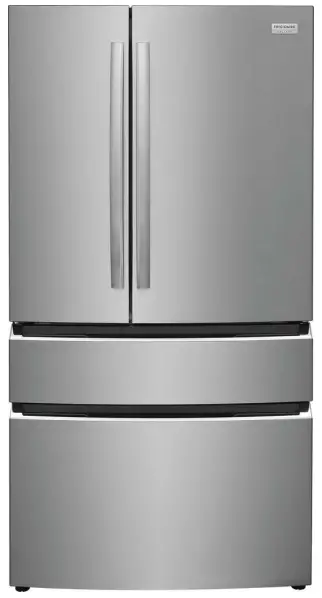

GRMN2872AF 27.2 Cu. Ft. 4 Door French Door Refrigerator
Instruction Manual
GRMN2872AF 27.2 Cu. Ft. 4 Door French Door Refrigerator
GRMN2872AF
27.2 Cu. Ft. 4-Door French Door Refrigerator
This Frigidaire Gallery 4-Door French Door refrigerator maintains the taste and texture of even your most delicate foods. Our freshness system is packed with technologies that keep food fresh and reduce food waste, such as our cooling system, advanced crispers, and our genuine air and water filtration.
Available Colors: Stainless Steel
Version: 04/23

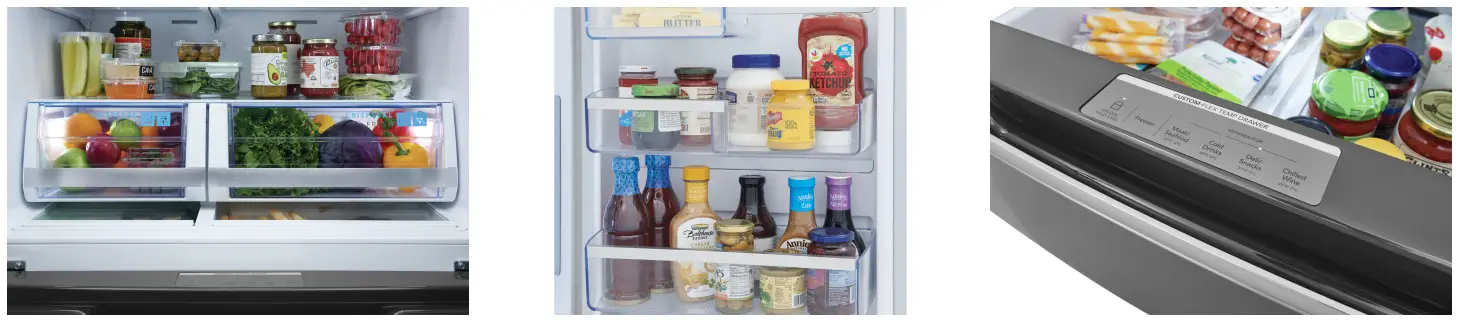

Consumer Benefits
 | ||
| Crisp Seal® Fresh Crispers Keep produce crisp and flavourful for longer. Our 3 advanced technologies block out dry air, automatically optimize humidity while removing excess moisture, and our built-in antioxidant filter reduces ethylene gas, odors and preserves produce color. | Space Wise® Organization System Get more storage out of your refrigerator with clever organization solutions that maximize usable space, including in-door condiment storage, a slide-under shelf, a Snack Zone, a flexible bin which can be used as crisper or an open compartment, and accessory railing system which works with our optional storage pan. | Custom-Flex® Temp Drawer Get extra space for all your most used items. Store yogurt, beer, or even frozen pizzas with the middle drawer that can be a refrigerator or a freezer. |
 | ||
| Reduce food waste & energy consumption Packed with technologies that reduce food waste and energy consumption, our refrigerator is a smart option for the environment and your wallet. | Pure Pour™ Water Filter Keep safer, great tasting water flowing and reduce up to 99% of contaminants while cutting back on plastic and the cost of bottled water with our water filter. For complete list of contaminants, please see Performance Data Sheet on Frigidaire.com | Twin Tech® Cooling System Our cooling system ensures temperature and airflow distribution is even in both the refrigerator and freezer. This minimizes common issues, such as freezer burn and warm spots. |

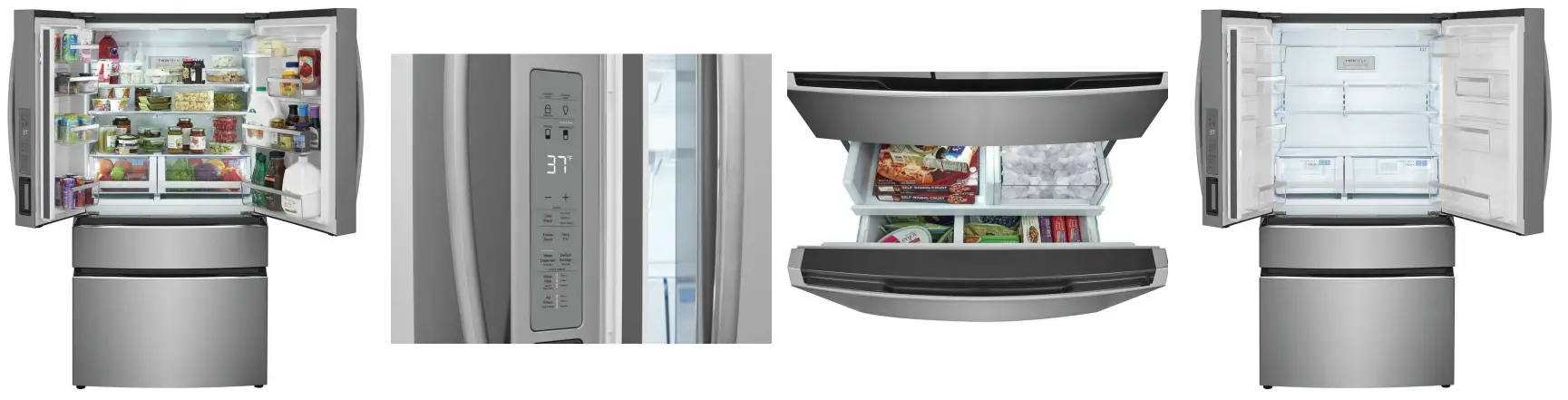

Product Photography
Product Specifications
Product Information
| Product Line | French Door Refrigerator |
| Power Type | Electric 120v |
| Connected Appliance | No |
| UPC | 12505648533 |
Refrigerator
| Air Filter | Yes |
| Crisper Color | Clear |
| Dairy Bin | Yes |
| Door Bin Color | Clear |
| Humidity Controls | Automatic |
| Interior Lighting | MultiLevel LED |
| Shelf Material | Glass |
| Water Filter | Yes |
| Number of Adjustable Gallon Door Bins | 2 |
| Number of Fixed Condiment Door Bins | 1 |
| Number of Fixed Gallon Door Bins | 2 |
| Number of Other Door Bins | 3 |
| Total Number of Door Bins | 8 |
| Number of Adjustable Shelves | 2 |
| Number of Fixed Shelves | 1 |
| Number of Crispers | 2 |
Ice Maker
| Ice Maker | Yes |
| Ice Maker Location | Frozen Section |
Controls
| Air Filter Indicator | Yes |
| Control Location | Side of Door |
| Digital Display | Yes |
| Door Ajar Alarm | Yes |
| Control Lock | Yes |
| Ice Maker On/Off | Yes |
| Power Failure Alarm | Yes |
| Sabbath Mode | Yes |
| Water Filter Indicator | Yes |
Dispenser
| Water | Yes |
Freezer
| Auto Close Drawer | Yes |
| Automatic Defrost | Yes |
| Basket Divider | Yes |
| Baskets / Bins Color | White |
| Drawer Color | White |
| Interior Lighting | LED |
| Shelf Material | Glass |
| Number of Baskets / Bins | 1 |
| Number of Pull Out Shelves | 1 |
| Total Number of Shelves | 1 |
Convertible Compartment
| Adjustable Drawer Divider | Yes |
| Control Location | Drawer |
| Convertible Drawer | Yes |
| Interior Lighting | LED |
| Temperature Range | -6° to 45°F |
Exterior
| Door Finish | Smooth |
| Door Stops | Yes |
| Exterior Finish | Smudge-Proof® Stainless Steel |
| Front Rollers | Yes |
Electrical Specifications
| Minimum Circuit Required | 15 Amps |
Performance Certifications and Approvals
| ENERGY STAR Certified | Yes |
Dimensions and Volume
| Height With Hinge | 70 2/10″ |
| Height Without Hinge | 68.1″ |
| Width | 36″ |
| Width of Cabinet | 35 7/10″ |
| Depth of Cabinet | 29 7/10″ |
| Depth With Door | 34 6/10″ |
| Depth With Door and Handle | 36 8/10″ |
| Convertible Zone Capacity | 3.2 Cu. Ft. |
| Freezer Capacity | 7.3 Cu. Ft. |
| Fresh Food Capacity | 16.7 Cu. Ft. |
| Total Capacity | 27.2 Cu. Ft. |
General Specifications
| Annual Energy | 649 kWh |
| Condenser Type | Dynamic |
| Cooling System | Dual Evaporator |
| Leveling Legs | Yes |
| Product Weight | 313 lbs |
| Prop 65 Label | Yes |
| Refrigerant Type | R-600A |
| Warranty – Labor | 1 Year |
| Warranty – Parts | 1 Year |
Safety Certifications and Approvals
| CSA Listed | Yes |
Consumables, Accessories and Installation Parts

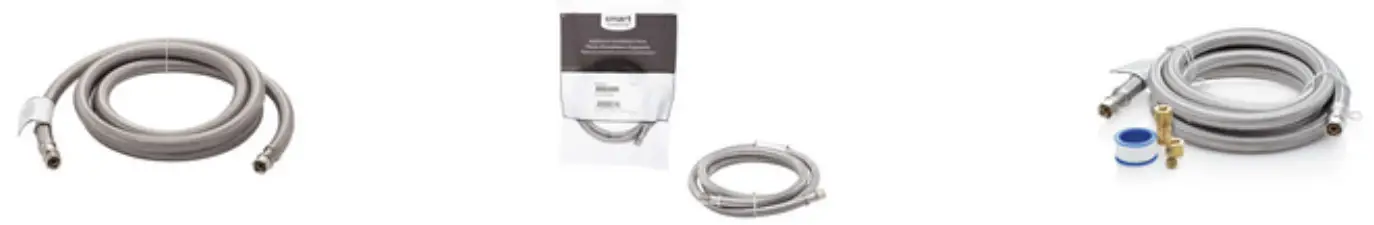

Required Installation Part – Best
 | ||
| 5308815072 6′ Long Stainless Steel Braided Refrigerator Water Supply Line | 5304520428 5′ Braided Stainless Steel Waterline | 5304490728 6′ Stainless Steel Refrigerator Waterline Kit |
Water Filter
FPPWFU02
PurePour Connect™
PWF-2™ Water and Ice
Refrigerator Filter
Air Filter
FRGPAAF2
PureAir® Replacement
Refrigerator Air Filter
RAF-2™

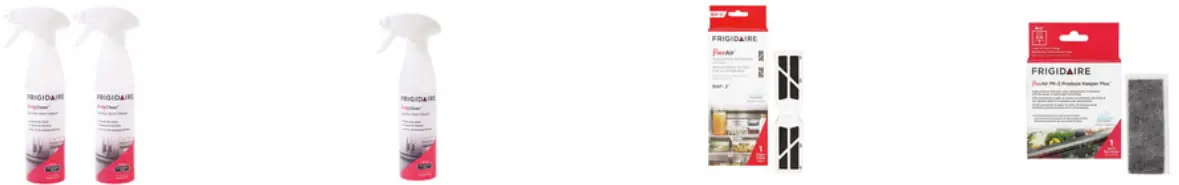

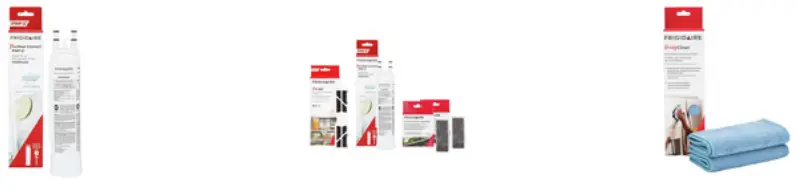

Consumables
 | |||
| 10FFSSCL02 ReadyClean™ Stainless Steel Cleaner – 2 Pack | 5304508691 ReadyClean™ Stainless Steel Cleaner | FRGPAAF2 PureAir® Replacement Refrigerator Air Filter RAF-2™ | FRPAPK2RF PureAir PK-2 Produce Keeper Plus |
 | ||
| FPPWFU02 PurePour Connect™ PWF-2™ Water and Ice Refrigerator Filter | FRIGCOMBO8 PurePour™ PWF-2™, PureAir® RAF-2™, and PureAir® PK-2™ Produce Keeper Plus Complete Care Bundle | 10FFMICF01 ReadyClean™ Microfiber Cleaning Cloths |
Electrolux Major Appliances, N.A.
We reserve the right to change specifications or discontinue models without notice.
USA • 10200 David Taylor Drive •Charlotte, NC 28262 • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • frigidaire.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
