Forest Blind Series BS Blind System AluDeco Rails Roman

Product Information

The Forest Roman Blind Series is an elegantly shaped aluminium profile with an integrated Velcro tape. It is designed for use in hotels, offices, residences, boats, campers, planes or anywhere an efficient Velcro track system for roman shades is required.

Control Options

The Forest Roman Blind Series comes with various control options depending on the profile:

• 33.3 mm or 36.7 mm profile: 1 BS Max Endcap, 2 BS Max Ceiling/Wall Bracket, 3 Counterweight bar 6 x 20 mm, 4 BS Max Track incl. Velcro Hook Tape, 5 BS Rod 5x5mm, 6 BS Max Cord Drum, 7 BS Max Hidden Ceiling Bracket, 8 BS Max Control Unit 1:4, and 9 Chain.
• 53.2 mm or 53.5 mm profile: same control options as above except for a different profile size.
• 63 mm or 74 mm profile: Strength Speed Weight load Noise level Internal Control options Receiver.

Specifications

The motorized blind system has a type, strength, speed, weight load, noise level, internal control options, and receiver:

• Type: 6/28/S 6 Nm, 6/20/SQ 6 Nm, 13/14/S 13 Nm, 6/28/E 6 Nm, 6/20/EQ 6 Nm, or 13/14/E 13 Nm.
• Strength: 28 rpm (for type 6/28/S and 6/28/E), 20 rpm (for type 6/20/SQ and 6/20/EQ), or 14 rpm (for type 13/14/S and 13/14/E).
• Weight load: 13 kg (for all types).
• Noise level: <44 dB(A) (for all types except type 6/20/SQ, 6/20/EQ, and 13/14/E which have a noise level of <40 dB(A)).
• Internal Control options: No (for all types except type 6/28/E, 6/20/EQ, and 13/14/E which have a Yes option).
• Receiver: Home Automation/Forest Multi Receiver Wall Switch, Forest Remote/Wireless Wall Switch/Forest Wireless Connector, or Smart Plug Wireless Control through services such as Apple Home Kit or Google Assistant or Forest Connect app.

Mounting

The Forest Roman Blind Series can be mounted on walls or ceilings.

Adjusting Motor

The Forest Roman Blind Series can be adjusted using a Forest Remote or RF Wall Switch.

Smart Functions

The Forest Wireless Connector is an easy way to make the motorized Blind Systems `smart’. This wireless remote solution works in combination with an analogue timer or a smart plug with which services as Apple Home Kit or Google Assistant become available. With the Forest Smart Plug it is possible to control by the Forest Connect app. The Wireless Connector is also easily incorporated into most popular building management systems,
including dry contact controls.

Compatible With

The Forest Roman Blind Series is compatible with various partners such as AMX, KNX, Z-Wave, Crestron, and Smart Homes.

Product Usage Instructions

• Step 1: Mount the Forest Roman Blind Series on your desired location using the appropriate brackets.
• Step 2: Adjust the motor using a Forest Remote or RF Wall Switch.
• Step 3: Use the various control options to adjust the blinds according to your desired position.
• Step 4: Use the Forest Wireless Connector to make the motorized Blind Systems `smart’ and incorporate it into your building management system.

FOREST ROMAN BLIND Series

Elegantly shaped aluminium profile with integrated Velcro Tape

FOREST BS®
FOREST BS® MAX
FOREST BCS®

THE WORLD BEHIND YOUR CURTAINS

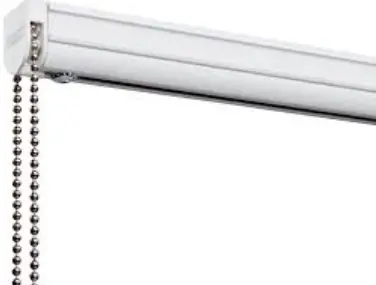

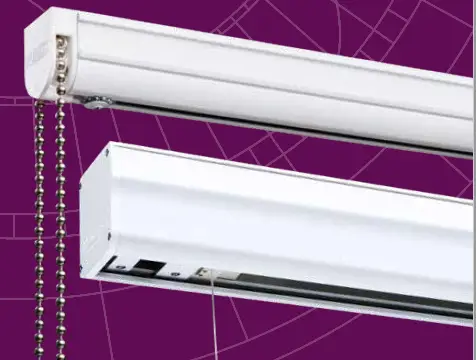

FOREST BLIND SYSTEM – BS®

For a more streamlined look or when space is at a premium, roman blinds that stack neatly at the top of the window when retracted are the perfect
solution. With the Blind System – BS® of Forest a sleek natural look is provided for your interior. Various control options guarantee an easy and
consistent operation of the roman blinds. The Blind System BS® is the most widely used and recognized roman blind in the industry. It comes with integrated Velcro tape so that the fabric can be easily attached & removed. The system is always correctly aligned due to the twist lock on the cord roll support. For the ultimate convenience a motorized control option is possible. Operate the Blind System at the press of a button or by your smartphone.

PRODUCT INFORMATION

• Hand drawn and motorized control options.
• For all types of light and medium weight draperies.
• Elegant shaped aluminium profile, with integrated Velcro hook tape.
• Available height: 3,50 meter (11,5”).
• Available width: 5.80 meter (19”).
• Simple face-fix and top fix installation.
• Conic shaped drums; thus smooth and straight operation of the system is guaranteed.
• Self-braking endless chain control units.
  •  (fabric weight up to 3,5 kg)
  • (fabric weight up to 7,5 kg)
• Total maximum fabric weight up to 7,5 kg.
• Motorized: Total maximum fabric weight up to 4 kg.
• Colour available: white.

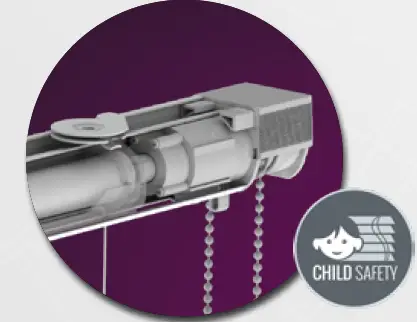

• Special Child Safety solution possible.
• Track finish: chromatid powder coated.
• Warranty Manual System: 10 year.
• Warranty Motorized System: 5 year.

FOR USE IN
Hotels, offices, residences, boats, campers, planes or anywhere an efficient Velcro track system for roman shades is required.

CONTROL OPTIONS

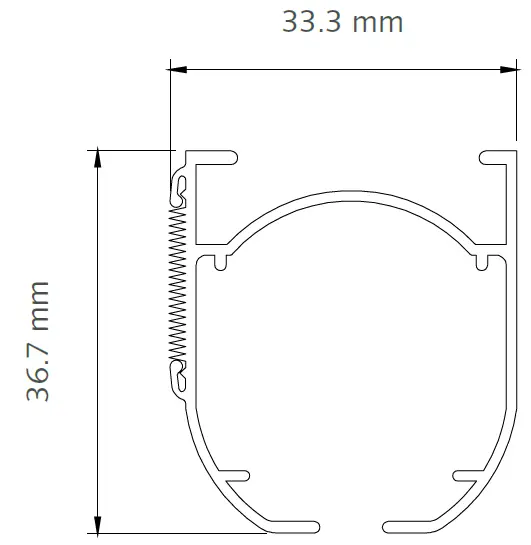

PROFILE

• Weight 409 gr/mar
• Aluminium extrusion 6063 T5
• Size 33.3 x 36.7 mm (1.3” x 1.4”)
• Colour available: white

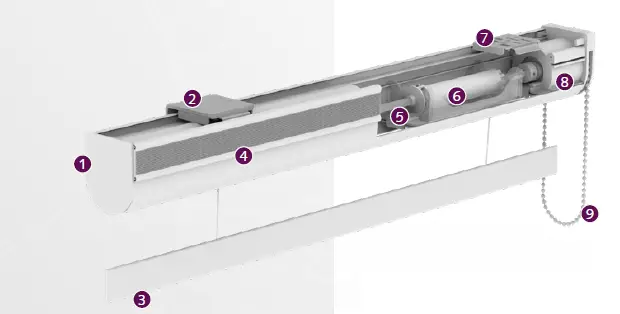

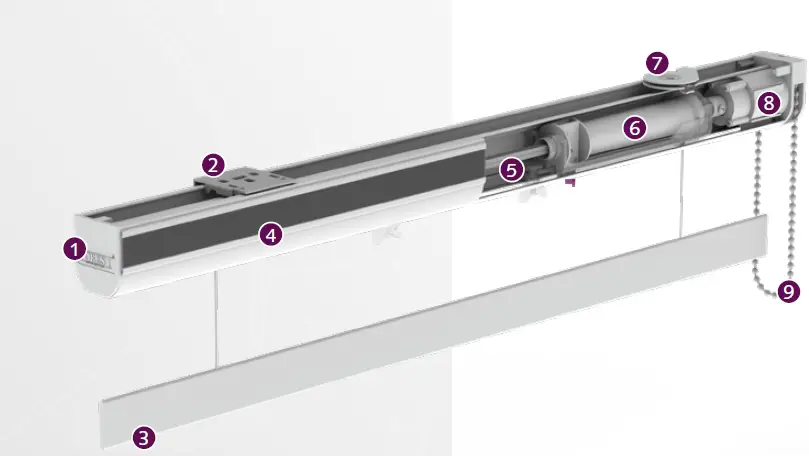

1. BS Endcap
2. BS Smart Klick® Ceiling / Wall Bracket
3. Counterweight bar 6 x 20 mm.

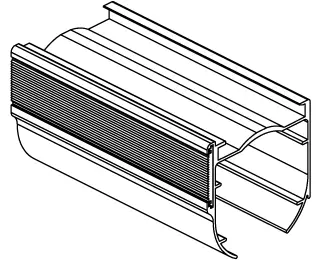

4. BS Track incl. Velcro Hook Tape
5. BS Rod 5x5mm
6. BS Quick lock Cord Roll
7. BS Ceiling bracket, swivel
8. BS Control Unit 1:4
9. Chain

FOREST BLIND SYSTEM MAX – BS MAX®

To complement the manual range of the roman blind systems for heavier duty drapery, Forest introduces the Blind System Max®. The Forest BS Max® is developed for taller windows and heavier fabrics. This roman blind system can go up to a height of 4.80 meter with a total weight of 13 kg. It comes with integrated Velcro tape so that the fabric can be easily attached & removed.

PRODUCT INFORMATION

• Hand drawn roman blind system.
• For all types of medium and heavy weight draperies.
• Elegant shaped aluminium profile, with integrated Velcro hook tape.
• Available width: 5.80 meter (19”).
• Available height: 4.80 meter (15,75”).
• Simple face-fix and top fix installation.
• Cords are easy to remove; very useful when washing or dry cleaning the fabric.
• Self-braking endless chain control units.
• Maximum fabric weight per cord roll:
• kg and total system 13 kg.
• Colour available: white.
• Track finish: chromatid powder coated.
• 10 year warranty

FOR USE IN
Hotels, offices, residences, boats, campers, planes or anywhere an efficient Velcro track system for roman shades is required.

CONTROL OPTION

PROFILE

• Weight 694 gr/mtr
• Aluminium extrusion 6063 T5

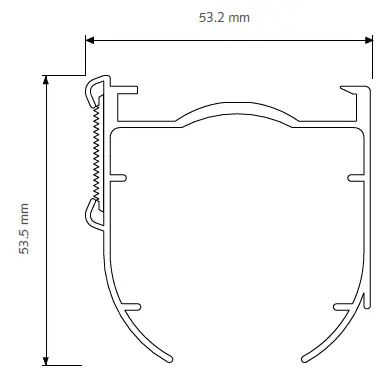

• Size 53.2 x 53.5 mm (2.0” x 2.1”)
• Colour available: white

1. BS Max Endcap
2. BS Max Ceiling / Wall Bracket
3. Counterweight bar 6 x 20 mm.
4. BS Max Track incl. Velcro Hook
5. Tape 5 BS Rod 5x5mm
6. BS Max Cord Drum
7. BS Max Hidden Ceiling Bracket
8. BS Max Control Unit 1:4
9. Chain

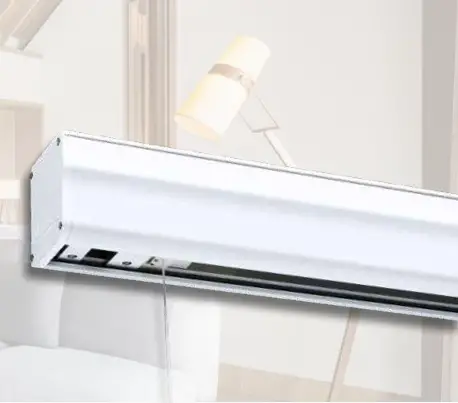

FOREST BLIND CONTRACT SYSTEM – BCS®

Another solution of Forest is the motorized roman blind ‘BCS®-system’, developed especially for taller window frames and heavier fabrics. The tubular motor in the system is 220 Volt and available in variable voltages as required. A powerful 121 Watt motor is standard, capable of lifting blinds of up to 13 kg; other motor types – capable of up to 26 kg – are available upon request. The cord coils can hold 5.5 meter of cord. The Forest roman blind BCS® system is suitable for all current control systems and incorporates a unique, patented cord braking system. If, for any reason, the roll down action of a blind is obstructed, the motor automatically trips out to prevent the blind leaning and the cord breaking.

PRODUCT INFORMATION

• Motorised roman blind system.
• For all types of medium and heavy weight draperies.
• Elegantly shaped aluminium profile, with Velcro Hook Tape
• Available width: 5.80 meter (19”).
• Available height: 5.50 meter (18”).
• Simple and quick installation with Smart Klick® bracket.
• Cords are easy to remove; very useful when you want to wash or dry cleaning the fabric.
• Can be controlled by wall switch, remote control (high frequency).
• Easy to connect to building automation systems.
• Easy to connect with third party Apps (Apple HomeRight or Google Assistant) by the Forest Wireless Connector.
• Cord Drums can be placed on every position in the profile.
• Maximum fabric weight per cord roll: 4 kg.
• Tubular motor also available with internal
• Multi receiver and electronic limit setting.
• Track finish: aluminium, chromatid, powder coated.
• Warranty Manual System: 10 year.
• Warranty Motorized System: 5 year.

CONTROL OPTIONS

FOR USE IN
Domestic and/or project market, or at any location where a high quality and smooth operated motorized blind system is requested.

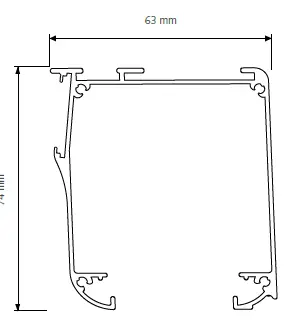

PROFILE

• Weight 1092 gr/mtr
• Aluminium extrusion 6063 TS
• Size 63 x 74 mm (2.4” x 2.9”)
• Colour available: white

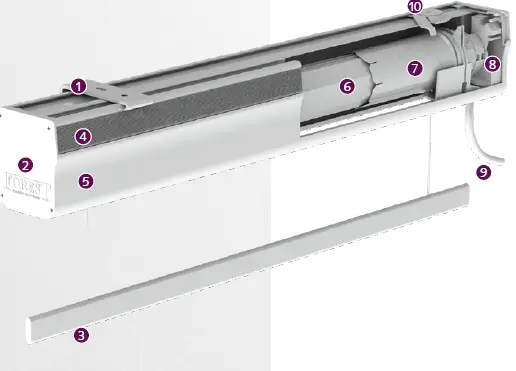

1. BCS Klick® Bracket with allen screw
2. BCS Endcap
3. Counterweight bar 20 x 6 mm.
4. BCS Velcro Hook Tape
5. BCS Track
6. BCS Tube 8-angular
7. BCS Cord Roll House Complete
8. BCS Centre Support
9. Forest Tubular Motor
10. Ceiling Swivel Bracket

FOREST BLIND CONTRACT SYSTEM – BCS®

 UESR SPECIFICATIONS

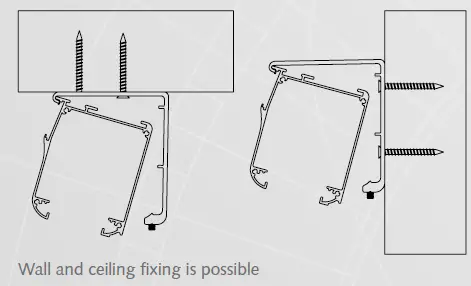

MOUNTING

ADJUSTING MOTOR

The limit settings for the tubular motors can be done as follows:

• S motors, mechanically by means of an Allen key.
• E motors, electronically by means of a Forest Remote or RF Wall Switch.

SMART FUNCTIONS

Suited for all Forest motorized Blind Systems, the Forest Wireless Connector is an easy way to make roman blinds ‘smart’. It simply opens and closes the blinds in combination with an analogue timer. By using a smart plug wireless control through services such as Apple Home Kit or Google Assistant or Forest Connect app now becomes available. This RF Device can also be easily incorporated into most popular building management systems, including dry contact systems.

Scan the QR code with you smart-phone and watch the video how the Wireless Connector works.

COMPATIBLE WITH

www.amx.com In Concert Partner

www.knx.nl KNX partner

www.z-wave.com Z Wave alliance partner

www.crestron.com I2P partner

www.smart-homes.nl Smart homes partner

Forest BCS® system is compatible with many other Building Automation systems, thanks to its modular construction. A competitive advantage over the motorized drapery systems in the world!

CONTROL OPTIONS
Our broad range of controls make finding a fit for your home even easier; controlling the blinds by hand, remote or even by building automation system. With the remote you can control the blinds in any position you like. Controlling the motorized blind system by your smartphone or tablet, you can create and schedule customized room scenes that allow your blinds to operate on their own throughout the day.FOREST WIRELESS CONNECTOR
The Forest Wireless Connector is an easy way to make the motorized Blind Systems ‘smart’. This wireless remote solution works in combination with an analogue timer or a smart plug with which services as Apple Home Kit or Google Assistant become available. With the Forest Smart Plug it is possible to control by the Forest Connect app. The Wireless Connector is also easily incorporated into most popular building managent systems, including dry contact controls.

FOREST DIAMOND SENSE REMOTE
15 Channel remote control, possibility to control up to 15 systems individually and in group by integrated timer function or manual. Auto-On mode, when holding hand above it, the integrated LED light will automatically come on. Radio control, range up to 30 meters. Including magnetic wall support.

BUILDING AUTOMATION
The BCS® system can be connected to any Building Automation system, by relay control.

HOTEL CONTROL
The BCS® system can be connected to any Hotel Automation system, by relay control.

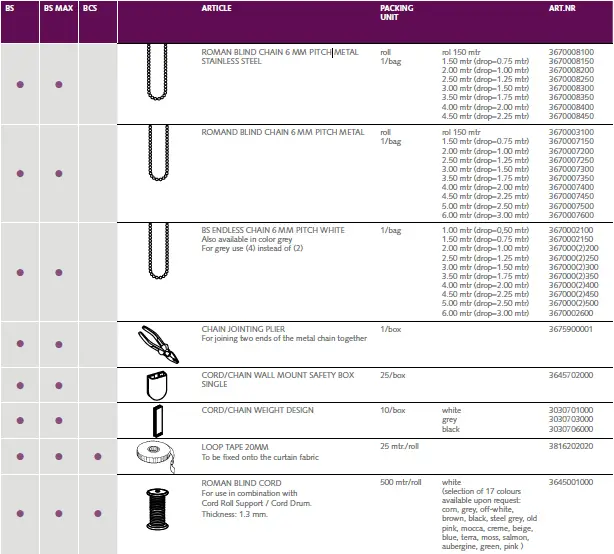

BS	BS-MAX	BCS	ARTICLE	PACKING UNIT		ART.NR
•			BS TRACK Extruded aluminium chromated white powder coated, with Velcro hook tape on front of the track. Available length: 5,8 mtr. (19 Ft.)	58 mtr./bundle	white	3601001580
•			BS CONTROL UNIT 1:4	100/box	white	3611001014-L
			Incl. endcap
			Heavy duty, Self-braking. Operation by chain.
			BS CONTROL UNIT 1:1 Incl. endcap			3611001011-L
•			CHILD SAFETY CONTROL UNIT 1.4 incl. endcap	100/box	white	3611001000
•			QUICKLOCK CORD ROLL	100/box	white/transparent	3642401350
			incl. 3.5 mtr. cord (different color types cord
			available upon request, see for colour options BS/
			BCS Cord)
			without cord			3642400000
•			BS WALL BRACKET, SWIVEL Metal	100/box	white	3663001000
•			BS CEILING BRACKET, SWIVEL	100/box	white	3661000000
			BS SMART CLICK WALL / CEILING BRACKET	100/box	white	3662000000
•			Metal

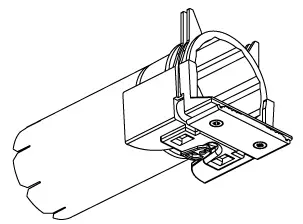

•			BS MOTOR 24V	1/box		3648000000

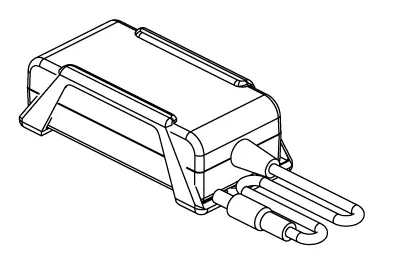

			FOREST ADAPTOR FOR BS MOTOR	1/box	white	5232003002
			Forest adaptor with support bracket
•			for BS motor (without cable) Cable with plug available in versions	1/box	EU UK	5201001101 5201001131
					AUS	5201001141
					USA	5201001121
	•		BS MAX TRACK Extruded aluminium chromated white powder coated, with Velcro hook tape on front of the track Available lenght: 5,8 mtr (19 Ft.)	46,4 mtr./ bundle	white	3710001580
	•		BS MAX CONTROL UNIT 1:4 with endcap	50/box	white	3711001014
	•		BS MAX CORD DRUM incl. 4,8 mtr. cord	50/box	white/transparent	3711000480
	•		BS MAX HIDDEN CEILING BRACKET	50/box	white	3711000000
	•		BS MAX L-CEILING /WALL BRACKET	100/box	white	3711000001

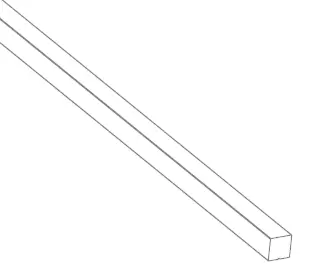

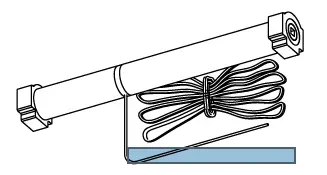

•	•		BS ROD 5X5 MM ALUMINIUM Aluminium 5 x5 mm (0,20” x 0,20”) Available length: 5,8 mtr (19 Ft.)	10/bundle		3630000580

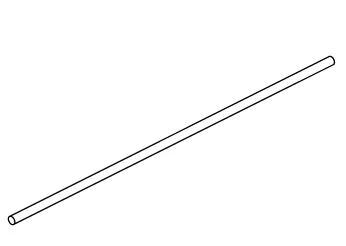

•	•	•	FIBEROD 6 meter length 4mm diameter	600 mtr. / bundle		3535301600

BS : BS MAX : BCS ARTICLE : PACKING UNIT : ART.NR
