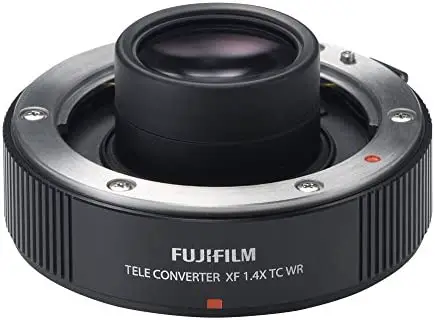

Fujifilm Fujinon XF1-4X TC WR TELECONVERTER
INTRODUCTION
Safety Notes
- While every care has been taken to ensure that this product is safe, read the instructions provided below to ensure that you use the product correctly.
- After reading these instructions, be sure to keep them handy for future reference.
Attaching
- Turn off the camera.

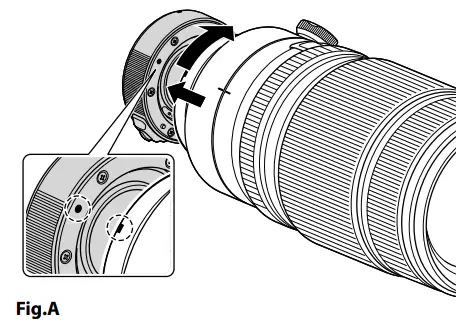

- Align the mounting index on the teleconverter with the one on the lens and rotate the teleconverter in the direction of the arrow until it clicks to attach it to the lens.

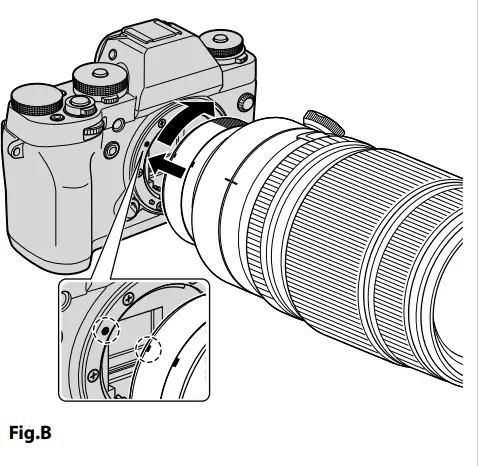

- Align the mounting index on the teleconverter with the one on the camera and rotate the lens and teleconverter in the direction of the arrow until they click to attach them to the camera.
- Be careful not to press the lens removal lever on the teleconverter.
Removing
- Turn off the camera.

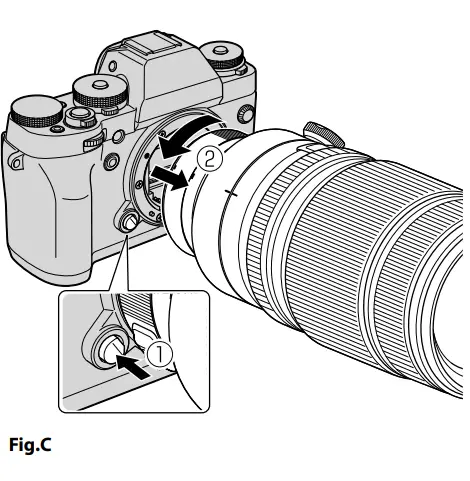

- While holding down the lens attachment/removal button on the camera, rotate the teleconverter and lens in the direction of the arrow to remove them.

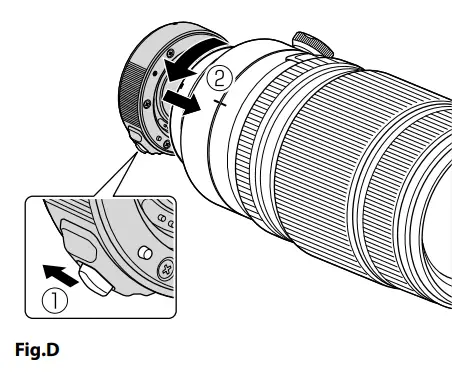

- While holding down the lens removal lever on the teleconverter, rotate the lens in the direction of the arrow to remove it.
Product Care
- Keep the lens signal contacts clean.
- Use a blower to remove dust and lint from the glass surfaces of the lens or filter. To remove smudges and fingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
- Never use organic solvents such as paint thinner or benzene to clean the lens.
- Attach the front and rear caps when the teleconverter is not in use
- Store the teleconverter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
- Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
- Leaving the lens in extremely hot locations could cause damage or warping.
Specifications
- XF1.4X TC WR
- Lens construction : 7 elements in 3 groups
- External dimensions : ø 58.0 mm (2.2 in.) × 15.0 mm (0.5 in.) (distance from camera lens mount flange)
- Weight : Approx.130 g (4.5 oz.) (excluding caps)
- Supplied accessories : Front lens cap, Rear lens cap, Lens pouch
Never touch the protruding portion, because the shape is very precise.
- The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any FUJIFILM service center.
- Using the teleconverter with a macro extension tube may cause a malfunction.
For Customers in Canada
CAN ICES-3 (B)/NMB-3(B)
CAUTION: This Class B digital apparatus complies with Canadian ICES-003.
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water (excluding waterproof products).
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Disposal of Electrical and Electronic Equipment in Private Households
In the European Union, Norway, Iceland and Liechtenstein:
This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product
In Countries Outside the European Union, Norway,
Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment.
Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifilm-specified ferrite-core A/V cable, USB cable, and DC supply cord.
FAQS
Will this work with the fujifilm 55-200?
Straight from Fujifilm Global your answer is as follows;
Compatible lens XF50-140mmF2.8 R LM OIS WR 70mm-196mm (107mm-299mm in 35mm format equivalent) F4 XF100-400mmF4.5-5.6 R LM OIS WR 140mm-560mm (213mm-853mm in 35mm format equivalent) F6.3-8. So armed with this information the answer would be no
The Fuji 1.4TC is an excellent piece of gear. It should work fine with the Fuji 100-400.
Yes you may have to update your firmware for camera and lens. Check your owners manual, it is to complicated to answer here
The new 70-300 Fuji zoom lens will accept both 1.5 and 2.0 teleconverters! Although I personally do not own the 70-300 lens!
Somewhere that it works only with the 50-140 and 100-400. My impression is that a good sharp image is maintained with the 50-140 but using the teleconverter with the 100-400 seems to cause some loss of sharpness which can be seen when photographing birds. However, still get some sharp photos in that situation
Weather resistant” and it has a rubber O-ring on the side that will connect to the camera. The lens side weather sealing will depend on the lens. The 100-400mm lens does have a rubber O-ring on its mount, so the combination should be relatively water sealed. I don’t have the 50-140mm, but I imagine it is the same.
The 140mm would equivalent to 140 x 1.4 (from the converter) x 1.5 (crop factor of the APSC to 35mm sensor size) = 294mm or almost 300mm full frame equivalent. Yes that’s about the beginning of the long end..
The Fujifilm XF 2x TC WR Teleconverter works great with the FUJIFILM XF 100-400mm f/4.5-5.6 R LM OIS WR Lens.
Fujinon is a brand of optical lenses made by Fuji Photo Film Co., Ltd, now known as Fujifilm. Fujifilm’s Fujinon lenses have been used by professional photographers and broadcast stations as well as cinematography.
The “FUJINON TELECONVERTER XF2X TC WR” is a high-performance teleconverter capable of multiplying the focal length of mounted lenses*1 by two. It features excellent optical design with a construction of 9 elements in 5 groups to maintain the optical performance of the original lens.
The main difference between the two are that XF lenses are made of metal with a metal lens mount whereas an XC lens is mostly plastic construction. Being made of plastic does mean that the lenses are lighter however they are not quite as robust as the metal construction of the XF lenses
A 2x teleconverter (such as the Nikon TC-20EII AF-S teleconverter) will double the apparent focal length at the expense of two stops of light. For example, when used on the AF-S Nikkor 300mm f/2.8 ED-IF AF-S VR lens the Nikon TC-20EII will give the same angle of view as a 600mm f/5.6 lens
Fuji’s 50-140mm f2. 8 lens is one such Red Badge zoom
R stands for aperture ring, LM for linear motor, OIS for optical image stabilizer, PZ for power zoom, and WR for Weather Resistant
XF. The XF class of X-Mount lenses are the highest quality X-Mount lenses currently available. XF lenses feature fast apertures and high quality ED, and ASP elements. XF lenses also often feature rugged metal barrels often with weather resistant construction.
