Fujifilm 16463668 XF-90mmF2 R LM WR
For Your Safety
Safety Notes Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer. Make sure that you use the lens correctly. Read these safety notes and the camera Owner’s Manual carefully before use. After reading these safety notes, store them in a safe place. About the Icons The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result. WARNING
- This icon indicates that death or serious injury can result if the information is ignored.
- This icon indicates that personal injury or material damage can result if the information is ignored
- The icons shown below are used to indicate the nature of the instructions which are to be observed.
- Triangular icons tell you that this information requires attention (“Important”).
- Circular icons with a diagonal bar tell you that the action indicated is prohibited (“Prohibited”).
- Filled circles with an exclamation mark indicate an action that must be performed (“Required”).
- Do not immerse in or expose to water.
- Failure to observe this precaution can cause a fire or electric shock.
- Do not disassemble (do not open the case).
- Failure to observe this precaution can cause fire, electric shock, or injury due to product malfunction.
- Should the case break open as the result of a fall or other accident, do not touch the exposed parts.
- Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.
- Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
- Do not place on unstable surfaces. The product may fall, causing injury.
- Do not view the sun through the lens or camera view finders. Failure to observe this precaution can cause permanent visual impairment
- Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty.
- Failure to observe this precaution can cause fire or electric shock.
- Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.
- Failure to observe this precaution can cause fire. Keep out of the reach of small children.
- This product could cause injury in the hands of a child.
- Do not handle with wet hands. Failure to observe this precaution can cause electric shock.
- Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fi re or burns
- When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
- Do not carry the camera or lens while they are attached to a tripod.
- The product can fall or strike other objects, causing injury.
- Do not rapidly rotate the camera while holding the grip.
- Your hand could strike the tripod or tripod collar foot, causing injury.
- Before handling the camera, fully tighten or loosen the tripod collar lock screw according to whether the camera will be used in a fixed orientation or rotated.
- If the screw is only partially tightened, the camera may move unexpectedly, causing injury.
Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifilm lm-specific ed ferrite-core A/V cable, USB cable, and DC supply cord. For Customers in Canada CAN ICES-3 (B)/NMB-3(B) CAUTION: This Class B digital apparatus complies with Canadian ICES-003.
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water (excluding waterproof products).
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiatorsheat registers, stoves, or other apparatus (including amplifi ers) that produce heat.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specifi ed by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualifi ed service personal.
- Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped
Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.
Before Using This Product
Some lens features are not available with older versions of the camera firmware. Be sure to update the camera firmware to the latest version. Instructions on viewing the camera firmware version and updating camera firmware are available from the following website: http://www.fujifilm.com/support/digital_cameras/software/#firmware If you do not have access to a computer, support is available from the local distributor listed in the “FUJIFILM Worldwide Network” material provided with your camera Product Care
- When using a lens hood, do not pick up or hold the camera using only the hood.
- Keep the lens signal contacts clean.
- Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ngerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.
- Never use organic solvents such as paint thinner or benzene to clean the lens.
- Attach the front and rear caps when the lens is not in use.
- Store the lens and fi lter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
- Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
- Leaving the lens in extremely hot locations could cause damage or warping.

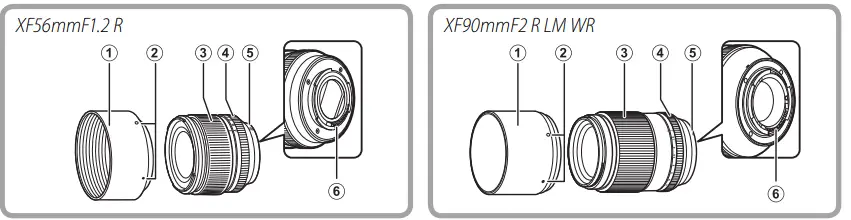

Parts of the Lens
- Lens hood *
- Mounting marks
- Focus ring
- Aperture ring
- Lens signal contacts
- Hood cap
- Front lens cap
- Rear lens cap

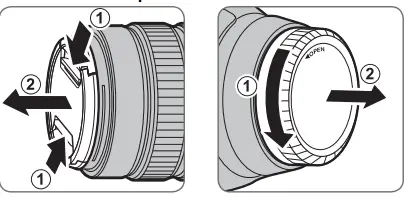

Attaching the Lens See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras. Removing the Caps Remove the caps as shown

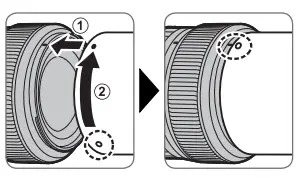

Attaching the Hood When attached, lens hoods reduce glare and protect the front lens element.
Aperture ring At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).
Specifications
- Improvements may result in unannounced changes to specifications and appearance.
- Owing to how this lens is constructed, the “Distance indicator” displayed by the camera may in some cases differ from the actual focus distance. Use the “Distance indicator” as a guide only.
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment.
FAQS
Hello, This lens is fully functional on the X-T10.
Yes. It’s the magnets moving and it’s perfectly normal.
Amazon is starting to indicate “frustration free” as non blister pack in general. Both of mine were normal and I purchased another lens from Amazon Warehouse recently that said “frustration free” but it was oem packaging but in a clear plastic bag for protection
This is a telephoto lense and is used for telephoto portraits. Now of course if you have plenty of room to back yourself away from your subject it can be used for some wide portraits.
Cameta Camera sells the Fujifilm 90mm f/2 XF R LM WR Lens that was made in Japan
It doesn’t, however, you shouldn’t let that prevent you from getting it. As a 135mm (35mm equivalent) and one of, if not fuji’s fastest prime, this is a spectacular piece of glass.
it suits the purpose of getting closer to your subject very well if you are looking to do a waist up type of portrait photography compared to the 56mm. It’s just as sharp as the 56mm also
When the lens is not mounted on a camera or the camera is turned off, there is a loose AF group which rattles when “shaking” the lens. This is due to its linear quad AF motor that use 4 magnets to drive the AF group and it is absolutely normal
Yes, this will work on the Fuji X-T100. The lens and the camera use the X-mount.
Yes It had multiple copies, they all do, it is normal operation. The rattle stops when lens is mounted and power is on
Does this Lens come with a Hood?
Yes, it comes with a detachable hood that can be fitted in reverse in order to pack it in a lens case. The interesting thing is that the hood comes with a little window on the side that opens and closes to let you adjust your polarizing filter.
No. The x100F is a fixed lens camera. You’ll need a body such as the XT2 that uses interchangeable lenses.
There will be image quality degradation using the X2. The x1.4 is better at keeping image quality compared to no extender.
This does not occur on my X-Pro2. The question is do the lens and body electronic contacts align so that the lens operates correctly? If so, then there is no problem, if not, there is a defect.
Very good autofocus speed with xpro2 and fairly decent light. Have obtained photos easily equal to the Nikon 100-400 (newer version). Seemed to focus quickly on hawk in a dark tree but I haven ‘t evaluated that too carefully. Focus has been accurate. Good sharp pictures.
