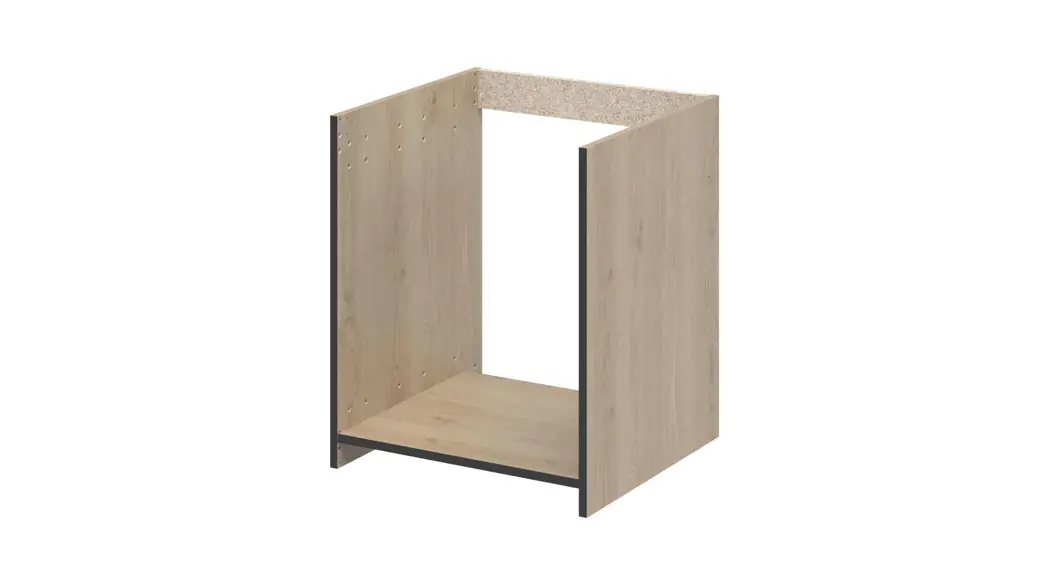

600 Built Under Oven Unit Assembly

Note: If fitting a “True Handleless” kitchen, some components will differ from those shown in this instruction and will also be packaged separately. Please refer to your True Handleless guide to Receiving for further details on the different components and differences in installation.

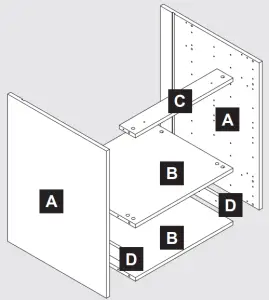

Components

Important Information – True Handleless Kitchens Installers: See Note Above TH

Caution: Some pieces of hardware could be hazardous to small children. Keep all these items out of reach and do not leave children unattended in the assembly area.
Please read these instructions carefully before proceeding. Refer to the Guide to Receiving and Installing your Kitchen booklet for further information.
Note: Due to variation in wall conditions no screws are supplied for fixing the units to the wall. If in doubt consult an expert. Assemble the unit on a clean solid work surface.
In the interest of continuous improvements, we reserve the right to amend or adjust the specifications without prior notice. Errors and omissions excepted.
These units may be fitted with a drawer system. The drawers are supplied separately. These instructions show the runner positions for the drawer system.
Follow the instructions supplied with the drawers for drawer box assembly.
Every effort has been made to ensure that this product leaves the factory in perfect condition. In the unlikely event that an item is damaged or incorrect, please contact the customer services department.
Note – Fitting Handles: (1) Decide where you are going to position each handle to maintain symmetry around your kitchen. (2) Measure the handle centers and mark off each door/drawer position. (3) Drill through the door/drawer
using a fine drill (<2.5mm), then drill back from the rear face using a 4.5mm drill. (4) Attach with the fixings provided with your handle.

Ref. No.	Item	Quantity
150101		4
150202		14
150201		22
150124		8
154082		10
154085		10
154004		10
154068		6
154047		2
154014		2
154015		2
151999		2
152401		4
152418		4
152402		2
150308		2
150309		2

Tools Required

	Drill
	Medium Crosshead Screwdriver
	Large Flathead Screwdriver
	Spirit Level
	G-Clamp (pair)
	Hammer
	Tape Measure
	Bradawl

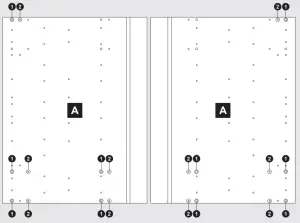

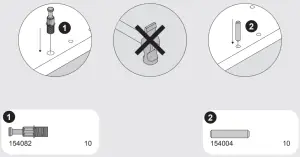

1-2. Assembly Instructions

Modification required at this stage, see True Handleless guide for further details.

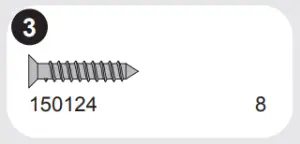

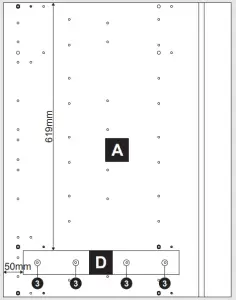

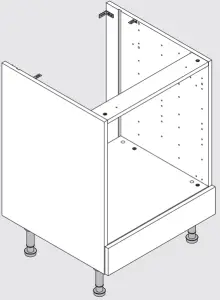

3. Without Drawer

Note: Left-hand panel shown only, mirror for the right-hand panel.

Note: For ease of fitting, Step 17 can be completed at this point.

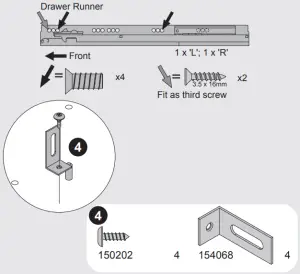

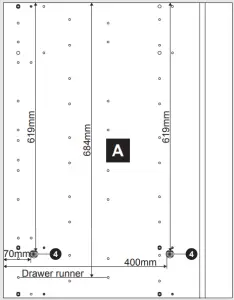

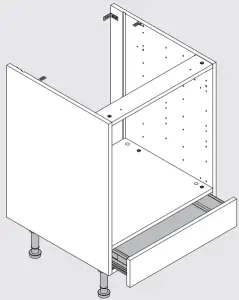

4. With Drawer

Note: Left-hand panel shown only, mirror for the right-hand panel.

5.

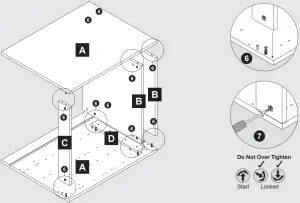

6-7.
Modification required at this stage, see True Handleless guide for further details.

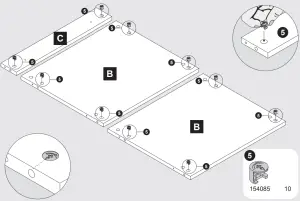

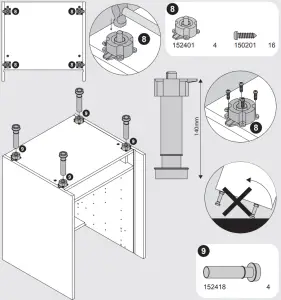

8- 9.

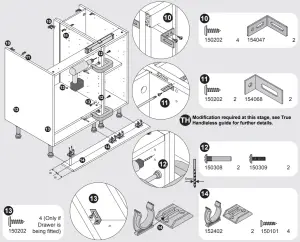

10-14. Installation Instructions

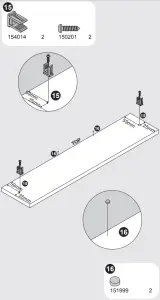

15 16. Without Drawer

Note: Do not over tighten screws or use a power screwdriver.

17-18. Without Drawer

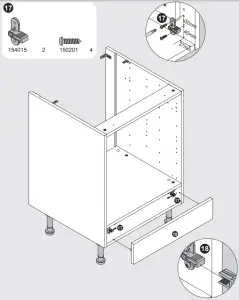

Note: For ease of fitting, Step 17 can be completed at the same time as Step 3.

19-20. With Drawer

Ref. 170805 (05)
