Wiltec 51704 120cm Scarifier Lawn-raker Moss-remover User Manual

Operation Manual
Scarifier

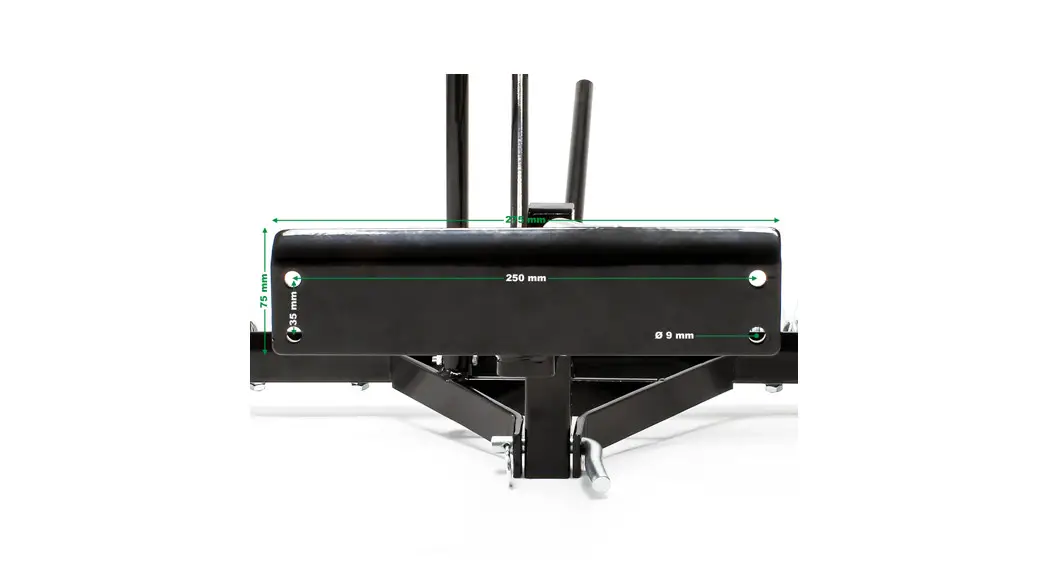

51704 Illustration similar, may vary depending on model

Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
The information contained in this document may alter at any time without previous notice. It is prohibited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown. Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided. If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is: WilTec Wildanger Technik GmbH Königsbenden 12 52249 Eschweiler Germany
Do you wish to pick goods up?
Our pick-up address is: WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15
To return orders for exchange, repair or for other purposes, please use the following address. Atten tion! To allow for smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content. Keep these operation instructions safe.

Montage

1. Attach the spring tine (17) to the frame (8) by using the round head bolt M8×20 (16), the hexagonal nut M8 (6) and the lock washer Ø8 (7), then tighten.
2. Attach the lift handle (1) to the frame (8) by using the hexagonal bolt M5×30 (5) and the hexagonal nut M5 (15), then tighten.
3. Attach the adjusting rod (4) to the frame (8) by using the hexagonal bolt M8×25 (3), the hexagonal nut M8 (6) and the lock washer Ø8 (7), then tighten.
4.  Attach the adjusting frame (14) to the frame (8) by using a pin (9) and a hair cotter pin Ø3 (10).
5. Insert the plastic cap (18) to the adjusting frame (14).
6. Attach the connector (11) to the bracket (12) by using the hexagonal bolt M8×45 (13), the hexagonal nut M8 (6) and the lock washer Ø8 (7), then tighten.
7. Attach the connector (11) to the bracket (12) by using a pin (9) and a hair cotter pin Ø3 (10).
8. Connect the adjusting steel block (2) with the adjusting rod (4), adjust them for working depth.
9. The hexagonal bolt M8×25 (3), the hexagonal nut M8 (6) and the lock washer Ø8 (7) will serve to connect the rake.

Parts list

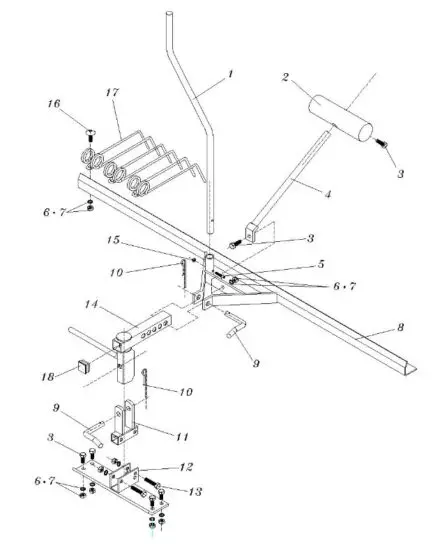

Explosion view

Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions manual require the written permission of WilTec Wildanger Technik GmbH.

© by WilTec Wildanger Technik GmbH
