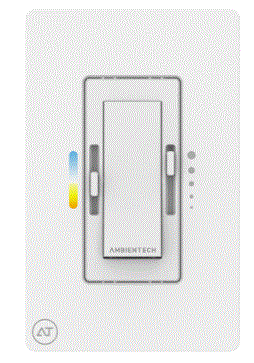

AMBIENTECH ZEROX2-NSW-SA In Wall Dimmer
Installation Instructions
P/N: ZEROX2-NSW-SA

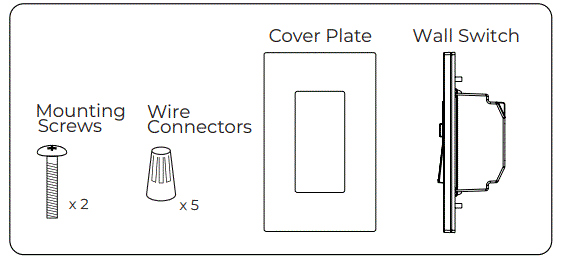

Item Identification

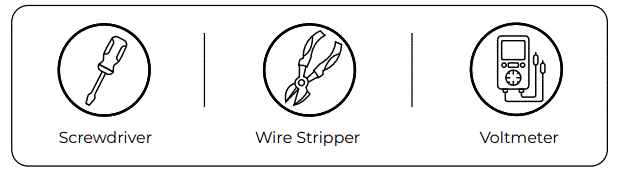

Tools Needed

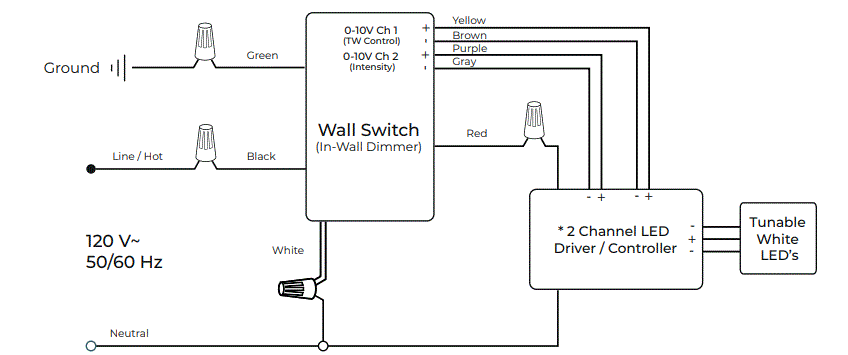

Overview of System Wiring

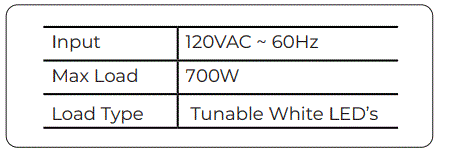

Quick Specs
Important Notes
Please Read Before Installation!
- Neutral Wire required. If you don’t have Neutral wire in the wallbox, please consult an electrician.
- The system’ is to be installed in accordance with the National Electrical Code or local code.
- The systemi is to be installed and serviced by a qua lified, licensed electrician.
- Wall switch must be grounded in accordance with the NEC or local codes.
Connect to the SmartAir App
Scan the QR code to download the App. Follovvthe instructions to connect to the SmartAir App

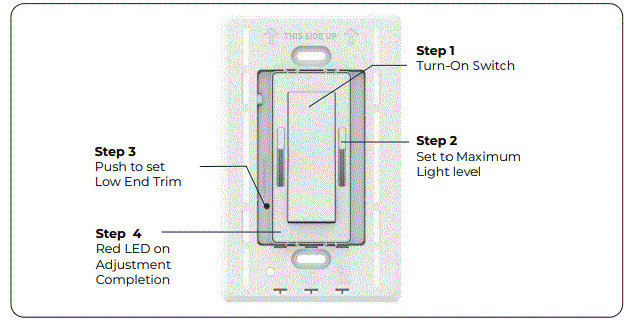

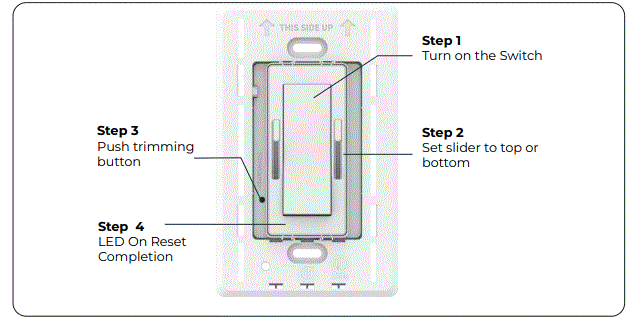

Low End Trim Adjustment

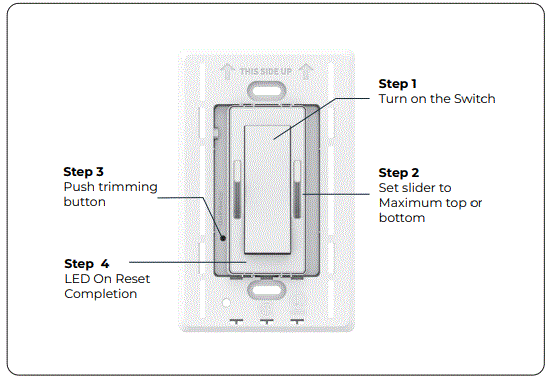

High End Trim Adjustment
To switch between Dimming and Color Mixing:
- Turn Off the switch
- Push the Reset button.
- Turn the switch back On and follow the trimming steps.
User Interface
Reset Trimming to Default
Caution
To reduce the risk of overheating and possible damage to other equipment, do not install to control a receptacle, A motor-operated appliance, or a transformer-supplied appliance.
“CRADATEURS COMMANDANT UN BALLAST – AFIN DE REDUIRE LE RISQUE DE SURCHAUFFE ET LA POSSIBILITE D’ENDOMMACEMENT A DAUTRES MATERIELS, NE PAS INSTALLER POUR COMMANDER UNE PRISE, UN APPAREIL A MOTE-UR,”
FCC/IC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may ca use undesired operation.
Customer Assitance
For technical questions regarding the installation or operation of this product, please contact our customer support team:
347-33′. 6368 ext3
www.ambientechinc.com
