MW07TS
DIVERTER MIXER
AVAILABLE FINISHES

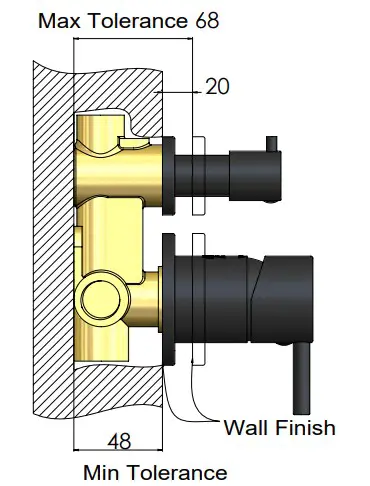

TOLERANCES
FEATURES
- 10 year warranty
- In-built diverter switch
- Flow rate 18L p/m
- European components and cartridge
- Solid brass construction
- Box Weight 1.7Kg
CARE
- Do not install tapware using any form of acetone silicones.
- Do not apply physical items (such as tools) directly to the product.
- Never use household or commercial detergents, citrus-based cleaners, or abrasive cleaners.
- Clean using a mild washing soap solution rinsed, and dry with a soft cloth.
- Check for any product defects before installation.
- Refer to the installation manual for correct installation.

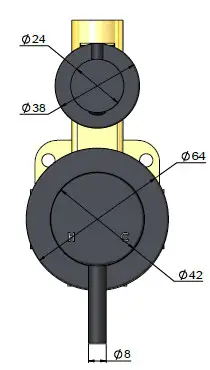

SPECIFICATIONS

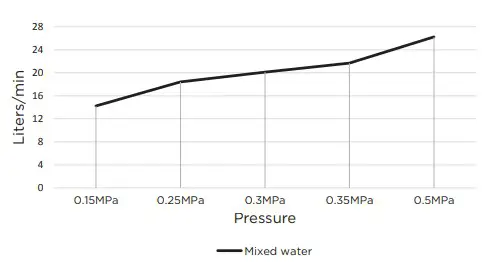

FLOW RATE GRAPH
CREDENTIALS
- Watermark AS/NZS 3718 WMKA25013

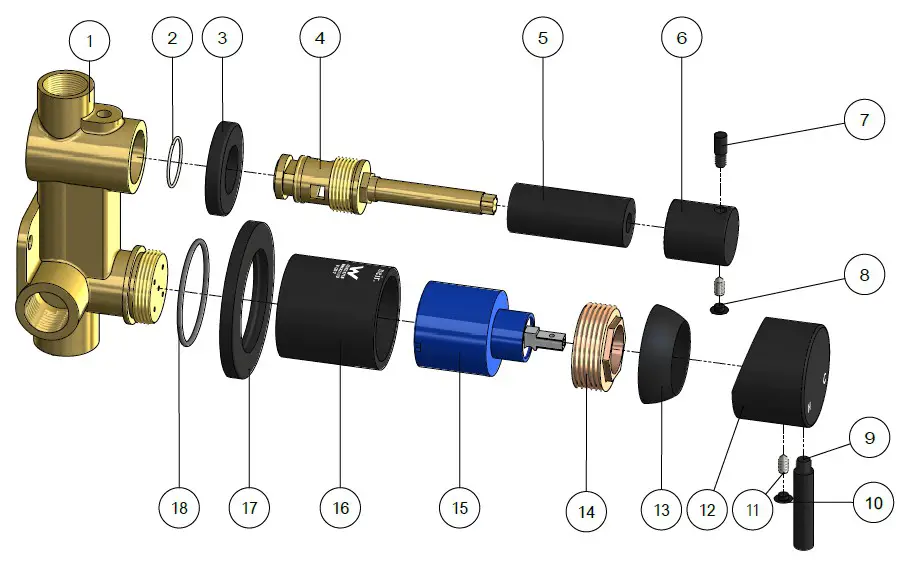

No. PART NAME 1 Body 2 0-ring 3 Back Plate 4 Diverter Cartridge 5 Decor Cover 6 Handle 7 Pin Lever 8 Decor Knob 9 Pin Lever 10 Decor Knob 11 Screw 12 Handle 13 Decor Cover 14 Nut 15 D35 Cartridge 16 Decor Cover 17 Back Plate 18 0-ring
