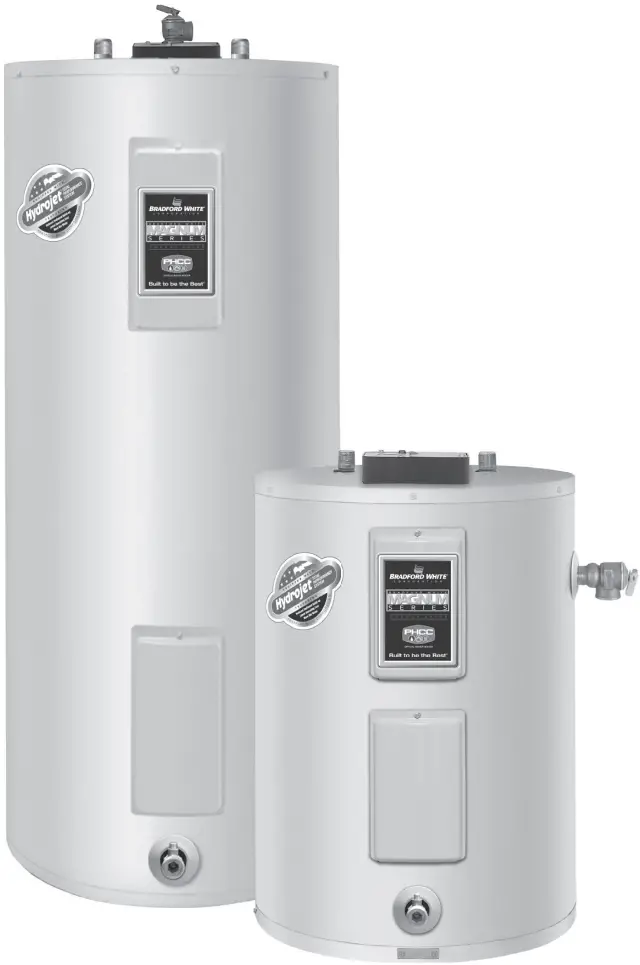

LE2 Duty Commercial Upright Electric Water Heater
Owner’s Manual
Models Covered:
LE2(30,40,50)S*
LE3(30,40,50)S*
LE1(20,30,40,50)L*
LE2(30,40,50)LN*
LE2(55,65,80)T*
LE2120T*
*Denotes warranty year includes Hydrojet® Total Performance System
Effective: September 2021 ECO 8458
NOTE: BOTH MODEL AND SERIAL NUMBERS ARE REQUIRED FOR ORDERING REPLACEMENT PARTS
Dimensions and specifications are subject to change without notice.
WARNING
CANCER AND REPRODUCTIVE HARM WWW.P65WARNINGS.CA.GOV
As required by the state of California Proposition 65.
Duty Commercial Upright Electric Water Heater

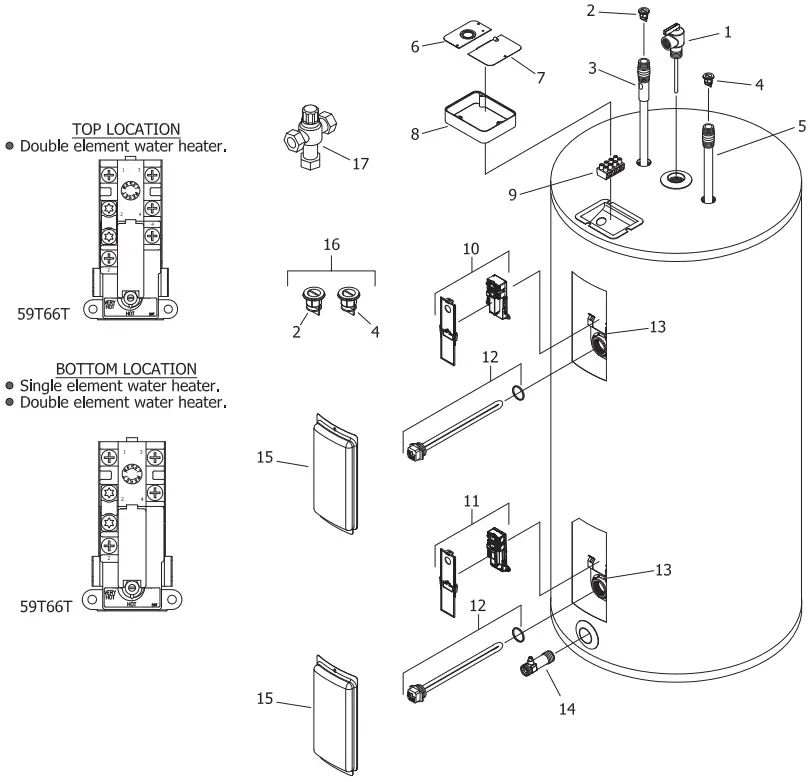

| Item | Description | Model LE(2,3) the 30S | Model LE(2,3) the 40S | Model LE(2,3) the 50S |
| 1 | T&P Relief Valve | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| 2 | Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 | Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 | |
| A420 (Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 | |
| 4 | Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 | Cold Water Inlet Tube Pex ♦♦ | 229-51230-21 | 229-51230-21 | 229-51230-21 |
| 6 | Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 7 | Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 8 | Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 | Terminal Block (4 poles) | 243-49908-00 | 243-49908-00 | 243-49908-00 |
| 10 | Upper Thermostat with High Limit (59T66T) & Protector ▲▲ ∩ | 415-51046-00 | 415-51046-00 | 415-51046-00 |
| Upper and Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53586-00 | 415-53586-00 | 415-53586-00 | |
| 11 | Lower Thermostat (59T66T) & Protector ▲▲ ∩ | 415-50691-00 | 415-50691-00 | 415-50691-00 |
| Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53388-00 | 415-53388-00 | 415-53388-00 | |
| 12 | Heating Element 240V 4500W with Gasket* | 415-48642-00 | 415-48642-00 | 415-48642-00 |
| 13 | Thermostat Mounting Bracket | 415-50689-00 | 415-50689-00 | 415-50689-00 |
| 14 | Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 15 | Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 16 | Heat Trap Insert Kit | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 17 | ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ The thermostat protector is provided in a kit with a thermostat.
▲▲Thermostat protector and mounting bracket (Item# 13) provided in a kit with thermostat.
Φ Mounting bracket (Item #13) not provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 15 & 16.
#Anode may need to be cut to length, please see page 17 for a reference chart of anode length by model.
∩ Design certified for products with serial numbers PRIOR to TD43243484.
∩∩ Design certified for products with serial numbers AFTER and including TD43243484.

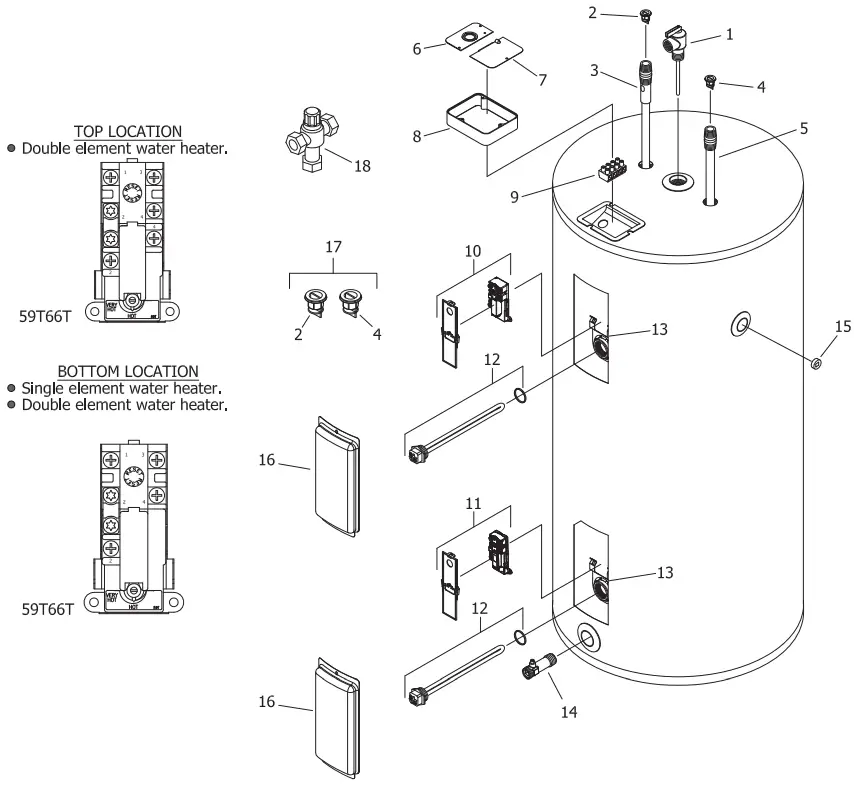

| Item | Description | Model LE120L | Model LE130L | Model LE140L | Model LE150L |
| 1 | T&P Relief Valve | 230-40594-02 | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| 2 | Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 | Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 | 224-32999-28 | |
| A420(Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 | 224-49560-08 | |
| 4 | Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 | Cold Water Inlet Tube PEX ♦♦ | 229-51230-01 | 229-51718-04 | 229-51230-27 | 229-51230-27 |
| 6 | Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 7 | Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 8 | Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 | Terminal Block (4 pole) | 243-49908-00 | 243-49908-00 | 243-49908-00 | 243-49908-00 |
| 10 | Upper Thermostat with High Limit (59T66T) & Protector ▲▲ ∩ | 415-51046-00 | 415-51046-00 | 415-51046-00 | 415-51046-00 |
| Upper and Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53586-00 | 415-53586-00 | 415-53586-00 | 415-53586-00 | |
| 11 | Lower Thermostat (59T66T) & Protector ▲▲ ∩ | 415-50691-00 | 415-50691-00 | 415-50691-00 | 415-50691-00 |
| Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53388-00 | 415-53388-00 | 415-53388-00 | 415-53388-00 | |
| 12 | Heating Element 240V 4500W with Gasket* | 415-48642-00 | 415-48642-00 | 415-48642-00 | 415-48642-00 |
| 13 | Thermostat Mounting Bracket | 415-50689-00 | 415-50689-00 | 415-50689-00 | 415-50689-00 |
| 14 | Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 15 | Plug-3/4″ NPT | 239-11638-00 | 239-11638-00 | 239-11638-00 | 239-11638-00 |
| 16 | Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 17 | Heat Trap Insert Kit | 265-51572-00 | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 18 | ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ The thermostat protector is provided in a kit with a thermostat.
▲▲Thermostat protector and mounting bracket (Item# 13) provided in a kit with thermostat.
Φ Mounting bracket (Item #13) not provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 15 & 16.
#Anode may need to be cut to length, please see page 17 for a reference chart of anode length by model.
∩ Design certified for products with serial numbers PRIOR to TD43243484.
∩∩ Design certified for products with serial numbers AFTER and including TD43243484.

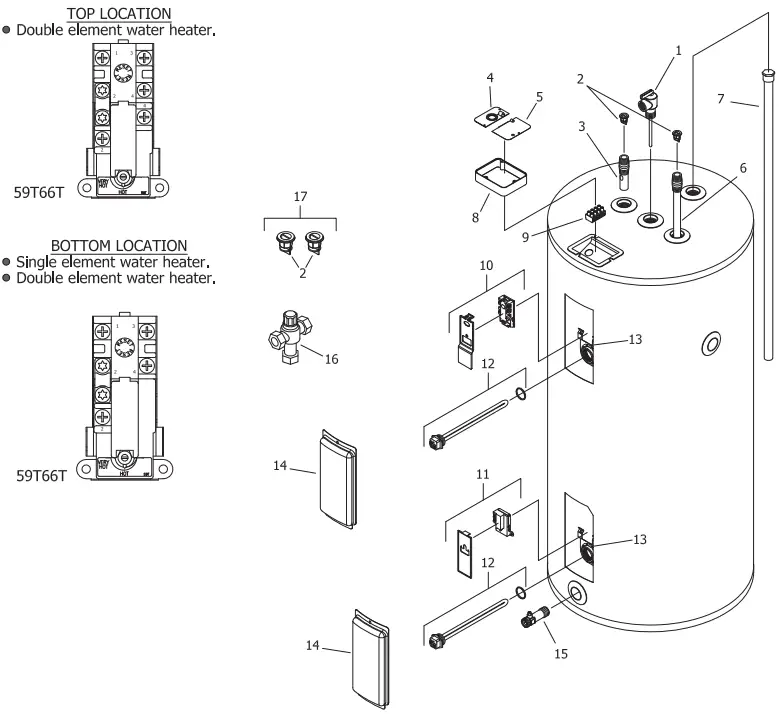

| Item | Description | Model LE230LN | Model LE240LN | Model LE250LN |
| 1 | T&P Relief Valve | 230-40594-04 | 230-40594-04 | 230-40594-04 |
| 2 | Heat Trap Insert | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 3 | Hot Water Outlet Device♦ | 229-51995-00 | 229-51858-00 | 229-51858-00 |
| 4 | Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 5 | Cover Junction Box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 6 | Cold Water Inlet Tube PEX ♦ | 229-51718-03 | 229-52007-01 | 229-51718-02 |
| 7 | Hex Head Anode Magnesium # | 224-47782-08 | 224-47782-08 | 224-47782-08 |
| Aluminum # | 224-38508-10 | 224-38508-10 | 224-38508-10 | |
| A420 (Aluminum)# | 224-49559-04 | 224-49559-04 | 224-49559-04 | |
| 8 | Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 | Terminal Block (4 pole) | 243-49908-00 | 243-49908-00 | 243-49908-00 |
| 10 | Upper Thermostat with High Limit (59T66T) & Protector ▲▲ ∩ | 415-51046-00 | 415-51046-00 | 415-51046-00 |
| Upper and Lower Thermostat (59T66T) & Protector ▲Φ ∩∩ | 415-53586-00 | 415-53586-00 | 415-53586-00 | |
| 11 | Lower Thermostat (59T66T) & Protector ▲▲ ∩ | 415-50691-00 | 415-50691-00 | 415-50691-00 |
| Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53388-00 | 415-53388-00 | 415-53388-00 | |
| 12 | Heating Element 240V 4500W with Gasket* | 415-48642-00 | 415-48642-00 | 415-48642-00 |
| 13 | Thermostat Mounting Bracket | 415-50689-00 | 415-50689-00 | 415-50689-00 |
| 14 | Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 15 | Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 16 | ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
| 17 | Heat Trap Insert Kit (PEX) | 265-51572-00 | 265-51572-00 | 265-51572-00 |
♦ Order with item 2.
▲ The thermostat protector is provided in a kit with a thermostat.
▲▲Thermostat protector and mounting bracket (Item# 13) provided in a kit with thermostat.
Φ Mounting bracket (Item #13) not provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 13 & 14.
# Anode may need to be cut to length, please see page 15 for a reference chart of anode length by model.
∩ Design certified for products with serial numbers PRIOR to TD43243484.
∩∩ Design certified for products with serial numbers AFTER and including TD43243484.
| Item | Description | Model LE265T | Model LE280T | Model LE2120T |
| 1 | T&P Relief Valve | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| 2 | Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 | Hot Water Outlet Anode Magnesium ♦ # | 224-47776-19 | 224-47776-27 | 224-47780-01 |
| Aluminum ♦ # | 224-32999-28 | 224-32999-28 | 224-45036-01 | |
| A420 (Aluminum)# | 224-49560-08 | 224-49560-08 | — | |
| 4 | Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 | Cold Water Inlet Tube PEX ♦♦ | 229-51230-22 | 229-51230-33 | — |
| Cold Water Inlet Tube Polysulfone ♦♦ | — | — | 229-45032-01 | |
| 6 | Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 7 | Cover Junction Box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 8 | Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 | Terminal Block (4 pole) | 243-49908-00 | 243-49908-00 | 243-49908-00 |
| 10 | Upper Thermostat with High Limit (59T66T) & Protector ▲▲ ∩ | 415-51046-00 | 415-51046-00 | 415-51046-00 |
| Upper and Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53586-00 | 415-53586-00 | 415-53586-00 | |
| 11 | Lower Thermostat (59T66T) & Protector ▲▲ ∩ | 415-50691-00 | 415-50691-00 | 415-50691-00 |
| Lower Thermostat (59T66T) & Protector ▲ Φ ∩∩ | 415-53388-00 | 415-53388-00 | 415-53388-00 | |
| 12 | Heating Element 240V 4500W with Gasket* | 415-48642-00 | 415-48642-00 | 415-48642-00 |
| 13 | Thermostat Mounting Bracket | 415-50689-00 | 415-50689-00 | 415-50689-00 |
| 14 | Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 15 | Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 16 | Heat Trap Insert Kit (PEX) | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 17 | ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ The thermostat protector is provided in a kit with a thermostat.
▲▲Thermostat protector and mounting bracket (Item #13) provided in a kit with thermostat.
Φ Mounting bracket (Item #13) not provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 15 & 16.
# Anode may need to be cut to length, please see page 17 for a reference chart of anode length by model.
∩ Design certified for products with serial numbers PRIOR to TD43243484.
∩∩ Design certified for products with serial numbers AFTER and including TD43243484.

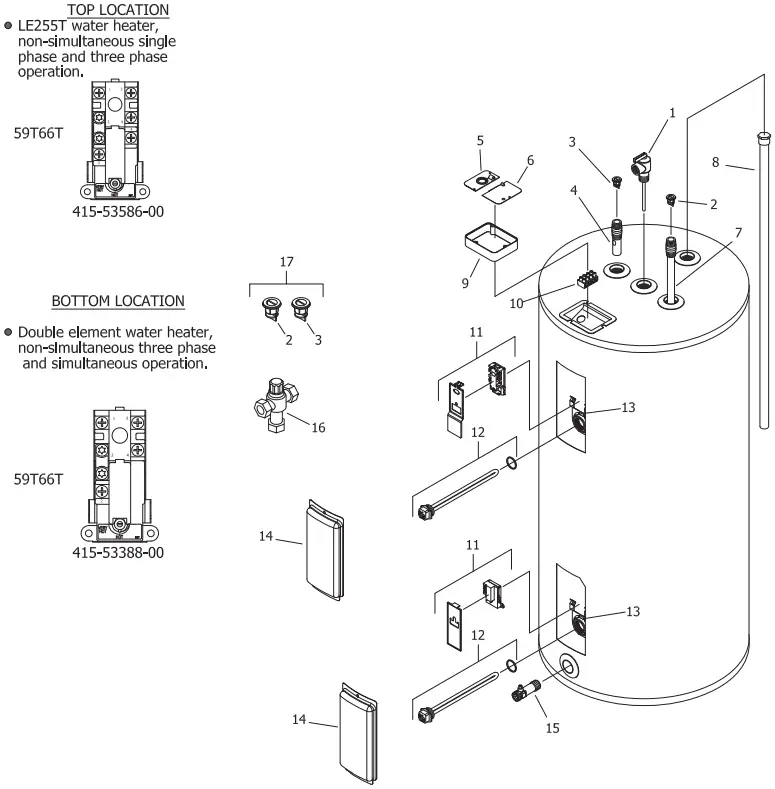

| Item | Description | Model LE255T |
| 1 | T&P Relief Valve | 230-40594-04 |
| 2 | Heat Trap Insert (Inlet) | 239-51556-00 |
| 3 | Heat Trap Insert (Outlet) | 239-45167-00 |
| 4 | Hot Water Outlet Device♦ | 229-50053-06 |
| 5 | Cover Conduit/Ground | 243-39451-00 |
| 6 | Cover Junction Box | 243-39452-00 |
| 7 | Cold Water Inlet Tube PEX ♦♦ | 229-51718-05 |
| 8 | Hex Head Anode Magnesium # | 224-47782-08 |
| Aluminum # | 224-38508-10 | |
| A420 (Aluminum)# | 224-49559-04 | |
| 9 | Junction Box Extender | 239-40587-00 |
| 10 | Terminal Block (4 pole) | 243-49908-00 |
| 11 | Upper and Lower Thermostat (59T66T) & Protector ▲ | 415-53586-00 |
| 12 | Lower Thermostat (59T66T) & Protector ▲ | 415-53388-00 |
| 13 | Heating Element 240V 4500W with Gasket* | 415-48642-00 |
| 14 | Thermostat Mounting Bracket | 415-50689-00 |
| 15 | Access Cover | 243-36618-02 |
| 16 | Brass Drain Valve | 265-42351-02 |
| 17 | ASSE Approved Mixing Valve | 239-51778-00 |
| 18 | Heat Trap Insert Kit (PEX) | 265-51572-00 |
♦ Order with item 3.
♦♦ Order with item 2.
▲ The thermostat protector is provided in a kit with a thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 15 & 16.
# Anode may need to be cut to length, please see page 17 for a reference chart of anode length by model.
Voltage & Wattage Conversion Kits
| Element Wattage | Non- Simultaneous | Simultaneous Max Wattage | Voltage | |||
| 120 | 208 | 240 | 277 | |||
| 1500 | 1500 | 3000 | 415-46409-01 | 415-46409-05 | 415-46409-13 | 415-46409-16 |
| 2000 | 2000 | 4000 | 415-46409-02 * | 415-46409-06 | 415-46409-05 | 415-46409-17 |
| 2500 | 2500 | 5000 | 415-46409-03 * | 415-46409-07 | 415-46409-06 | 415-46409-18 |
| 3000 | 3000 | 6000 | 415-46409-04 * | 415-46409-08 | 415-46409-14 | 415-46409-19 |
| 3500 | 3500 | 7000 | N/A | 415-46409-09 | 415-46409-07 | N/A |
| 4000 | 4000 | 8000 | N/A | 415-46409-49 | 415-46409-08 | 415-46409-20 |
| 4500 | 4500 | 9000 | N/A | 415-46409-11 | 415-46409-09 | 415-46409-51 |
| 5000 | 5000 | 10000 | N/A | 415-46409-50 | 415-46409-15 | 415-46409-52 |
| 5500 | 5500 | 11000 | N/A | 415-46409-65* 415-46409-49 | 415-46409-61 | 415-46409-67 |
| 6000 | 6000 | 12000 | N/A | 415-46409-66* 415-46409-68 | 415-46409-48 * | 415-46409-53 |
| 380 | 415 | 480 | ||||
| 1500 | 1500 | 3000 | 415-46409-24 | 415-46409-41 | 415-46409-32 | |
| 2000 | 2000 | 4000 | 415-46409-43 | 415-46409-24 | 415-46409-33 | |
| 2500 | 2500 | 5000 | 415-46409-25 | 415-46409-43 | 415-46409-34 | |
| 3000 | 3000 | 6000 | 415-46409-26 | 415-46409-25 | 415-46409-35 | |
| 3500 | 3500 | 7000 | 415-46409-54 | 415-46409-26 | N/A | |
| 4000 | 4000 | 8000 | 415-46409-56 | 415-46409-54 | 415-46409-36 | |
| 4500 | 4500 | 9000 | 415-46409-57 | 415-46409-55 | 415-46409-59 | |
| 5000 | 5000 | 10000 | 415-46409-58 | 415-46409-56 | 415-46409-38 | |
| 5500 | 5500 | 11000 | 415-46409-63 | 415-46409-57 | 415-46409-62 | |
| 6000 | 6000 | 12000 | 415-46409-64 | 415-46409-58 | 415-46409-60 | |
* These kits contain only one element for single-element water heaters only.
Heating Elements (Copper) for:
Residential Series (RE)
Light Duty (LE) Commercial Series
Medium Duty (E32) Commercial Series
Commercial (MII) Series
| Wattage | 120 Volt | 208 Volt | 240 Volt | 277 Volt | 380 Volt |
| 1000W ▲ | 415-42540-01 | 415-42544-01 | 415-42546-01 | N/A | N/A |
| 1250W ▲ | N/A | N/A | 415-42544-13 | N/A | N/A |
| 1500W ▲ | 415-42540-02 | 415-42544-03 | 415-42544-01 | N/A | N/A |
| 1500W (LWD)▲ | 415-42540-03 | N/A | 415-42544-02 | N/A | N/A |
| 2000W ▲ | 415-42540-04 | 415-42544-04 | 415-42544-03 | N/A | N/A |
| 2500W ▲ | 415-42540-05 | 415-42544-06 | 415-42544-04 | N/A | N/A |
| 3000W ▲ | 415-42540-07 | 415-42544-14 | 415-42544-05 | N/A | N/A |
| 3500W ▲▲ | N/A | 220-51333-08 | 415-42544-06 | N/A | N/A |
| 3800W ▲▲ | N/A | N/A | 415-42546-10 | N/A | N/A |
| 4000W ▲▲ | N/A | 415-42544-16 | 415-42544-14 | N/A | N/A |
| 4500W ▲▲ | N/A | 415-42544-12 | 415-48642-00 | N/A | N/A |
| 4500W (LWD) ▲▲ | N/A | N/A | 415-51333-09 | N/A | N/A |
| 5000W ▲▲ | N/A | N/A | 415-42544-10 | N/A | N/A |
| 5500W ▲▲ | N/A | N/A | 415-42544-16 | N/A | N/A |
| 6000W ▲▲ | N/A | N/A | 415-42544-12 | N/A | N/A |
| Element gasket ^ | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 |
| Element plug | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 |
(LWD) = Low Watt Density
▲ For 12″ Diameter tanks and above.
▲▲ For 14″ Diameter tanks and above.
^ Element gaskets should be ordered with elements.
Heating Elements (Incoloy) for:
Residential Series (RE)
Light Duty (LE) Commercial Series
Medium Duty (E32) Commercial Series
Commercial (MII) Series
| Wattage | 120 Volt | 208 Volt | 240 Volt | 277 Volt | 380 Volt | 415 Volt | 480 Volt | 600 Volt |
| 1000W ▲ | N/A | 415-42545-13 | 415-42547-10 | N/A | N/A | N/A | N/A | N/A |
| 1250W ▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 1500W ▲ | 415-42541-02 | 415-42545-02 | 415-42545-13 | 415-42547-10 | 415-42551-12 | 415-42551-11 | 415-42553-09 | N/A |
| 1500W (LWD)▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 2000W ▲ | N/A | 415-42545-14 | 415-42545-02 | 415-42547-07 | 415-42549-04 | 415-42551-12 | 415-42553-01 | N/A |
| 2500W ▲ | N/A | 415-42545-11 | 415-42545-14 | 415-42547-11 | 415-42551-13 | 415-42549-04 | 415-42553-10 | N/A |
| 3000W ▲ | N/A | 415-42545-12 | 415-42545-15 | 415-42547-08 | 415-42551-10 | 415-42551-13 | 415-42553-08 | N/A |
| 3500W ▲▲ | N/A | 415-51328-07 | 415-42545-11 | N/A | 415-42551-14 | 415-42551-10 | N/A | N/A |
| 3800W ▲▲ | N/A | N/A | 415-42547-15 | N/A | N/A | N/A | N/A | N/A |
| 4000W ▲▲ | N/A | 415-42545-17 | 415-42545-12 | 415-42547-03 | 415-42551-16 | 415-42551-14 | 415-42553-03 | N/A |
| 4500W ▲▲ | N/A | 415-42545-19 | 415-51328-07 | 415-42547-12 | 415-42551-17 | 415-42551-15 | 415-42553-11 | N/A |
| 4500W (LWD) ▲▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 5000W ▲▲ | N/A | 415-42543-04 | 415-42545-18 | 415-42547-15 | 415-42551-18 | 415-42551-16 | 415-42553-12 | N/A |
| 5500W ▲▲ | N/A | 415-42543-05 | 415-42545-17 | 415-42547-13 | 415-42549-06 | 415-42551-17 | 415-42553-13 | N/A |
| 6000W ▲▲ | N/A | 415-42543-06 | 415-42545-19 | 415-42547-14 | 415-42549-05 | 415-42551-18 | 415-42553-14 | N/A |
| Element gasket ^ | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 |
| Element plug | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 |
(LWD) = Low Watt Density
Element wrench ***
415-35897-12
*** For use with residential, LE, LD, E32, and MII series heating elements only. Not for use with commercial “A” series heating elements.
▲ For 12″ diameter tanks and above.
▲▲ For 14″ diameter tanks and above.
^ Element gaskets should be ordered with elements.
Reference Chart of Anode Length by Model
| Model | AOD Anode Cut Length (End to end) | Hex Head Anode Cut Length (End to end) | ||
| Inches | Millimeters | Inches | Millimeters | |
| LE230S | 39.13 | 994 | — | — |
| LE240S | 39.13 | 994 | — | — |
| LE250S | 39.13 | 994 | — | — |
| LE330S | 39.13 | 994 | — | — |
| LE340S | 39.13 | 994 | — | — |
| LE350S | 39.13 | 994 | — | — |
| LE230LN | — | — | 23 | 584 |
| LE240LN | — | — | 23 | 584 |
| LE250LN | — | — | 23 | 584 |
| LE120L | 20.63 | 524 | — | — |
| LE130L | 27.13 | 690 | — | — |
| LE140L | 27.13 | 690 | — | — |
| LE150L | 27.13 | 690 | — | — |
| LE255T | — | — | 47 | 1194 |
| LE265T | 51.13 | 1303 | — | — |
| LE280T | 51.13 | 1303 | — | — |
| LE2120T | 50.81 | 1291 | — | — |
| United States | |
| General Contact | 800-523-2931 |
| Technical Support | 800-334-3393 |
| [email protected] | |
| Warranty | 800-531-2111 |
| [email protected] | |
| Service Parts | 800-538-2020 |
| [email protected] | |
| Canada | |
| General Contact | 866-690-0961 |
| Technical Support | 800-334-3393 |
| [email protected] | |
| Warranty | 800-531-2111 |
| [email protected] | |
| Orders | [email protected] |
| International | |
| General Contact | [email protected] |
| Orders | [email protected] |
For field service, please contact your professional installer or local Bradford White sales representative.
©2021, Bradford White Corporation, USA. All rights reserved.
www.bradfordwhite.com
Water Heaters for Residential, Commercial & Industrial Applications | Bradford White
