LIGHT DUTY COMMERCIAL ELECTRIC
REPLACEMENT PARTS LIST
Light Duty Energy Saver Upright Models
Light Duty Energy Saver Lowboy Models

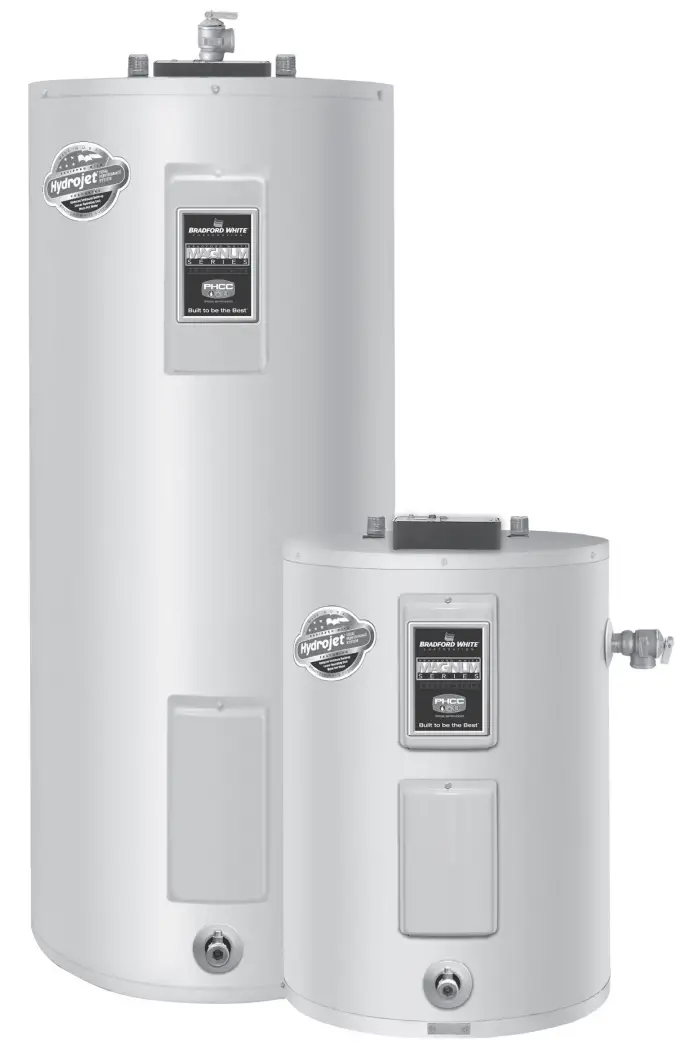

LE230S Light Duty Commercial Electric Water Heater
Effective: November 2018
ECO 8228
NOTE: BOTH MODEL AND SERIAL NUMBERS ARE REQUIRED FOR ORDERING REPLACEMENT PARTS
Dimensions and specifications are subject to change without notice.

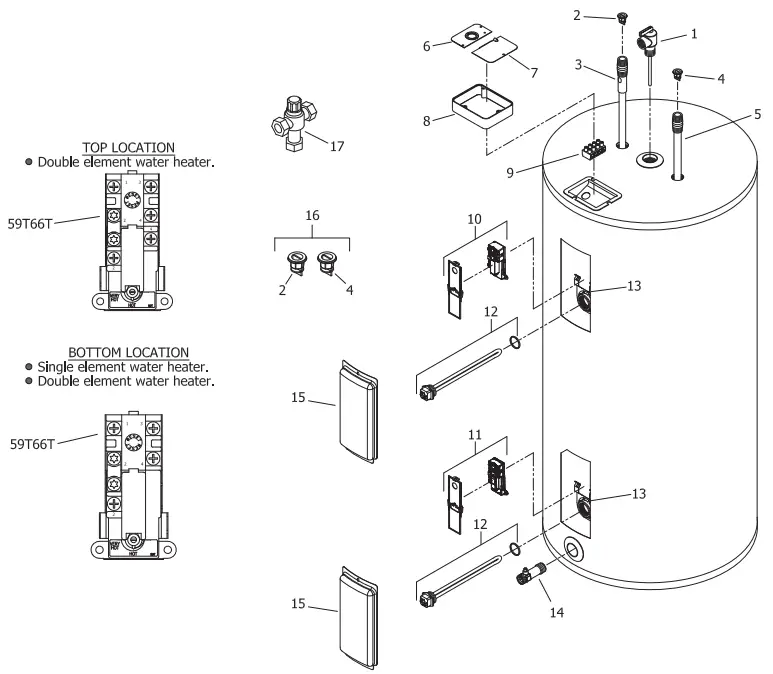

| Item Description | Model LE230S | Model LE240S | Model LE250S |
| 1 T&P Relief Valve | 230-32920-01 | 230-32920-01 | 230-32920-01 |
| 2 Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 |
| A420 (Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 |
| 4 Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 Cold Water Inlet Tube Pex ♦♦ | 229-51230-21 | 229-51230-21 | 229-51230-21 |
| 6 Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 7 Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 8 Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 Terminal Block (4 poles) | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| 10 Upper Thermostat with High Limit (59T66T) & Protector ▲ | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| 11 Lower Thermostat with High Limit (59T66T) & Protector ▲ | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| 12 Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| 13 Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| 14 Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 15 Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 16 Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 17 ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ Thermostat protector and mounting bracket (Item #13) provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 6 & 7. # Anode may need to be cut to length

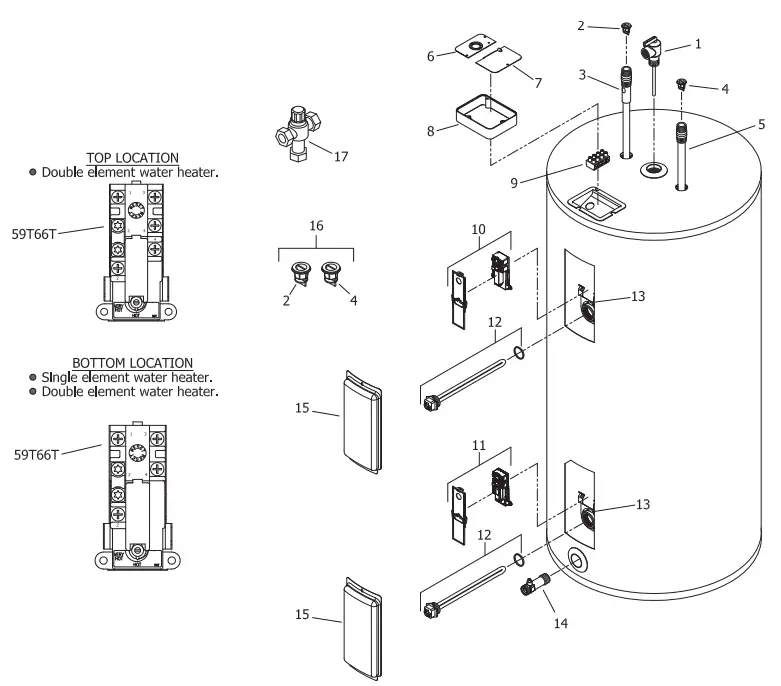

| Item Description | Model LE120L | Model LE130L | Model LE140L | Model LE150L |
| 1 T&P Relief Valve | 230-32920-01 | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| 2 Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 | 224-32999-28 |
| A420(Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 | 224-49560-08 |
| 4 Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 Cold Water Inlet Tube PEX ♦♦ | 229-51230-01 | 229-51718-04 | 229-51230-27 | 229-51230-27 |
| 6 Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 7 Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 8 Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 9 Terminal Block (4 poles) | 239-47294-00 | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| 10 Upper Thermostat with High Limit (59T66T) & Protector ▲ | 415-53389-00 | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| 11 Lower Thermostat with High Limit (59T66T) & Protector ▲ | 415-53388-00 | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| 12 Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| 13 Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| 14 Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 15 Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 16 Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 17 ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ Thermostat protector and mounting bracket (Item #13) provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 6 & 7. # Anode may need to be cut to length

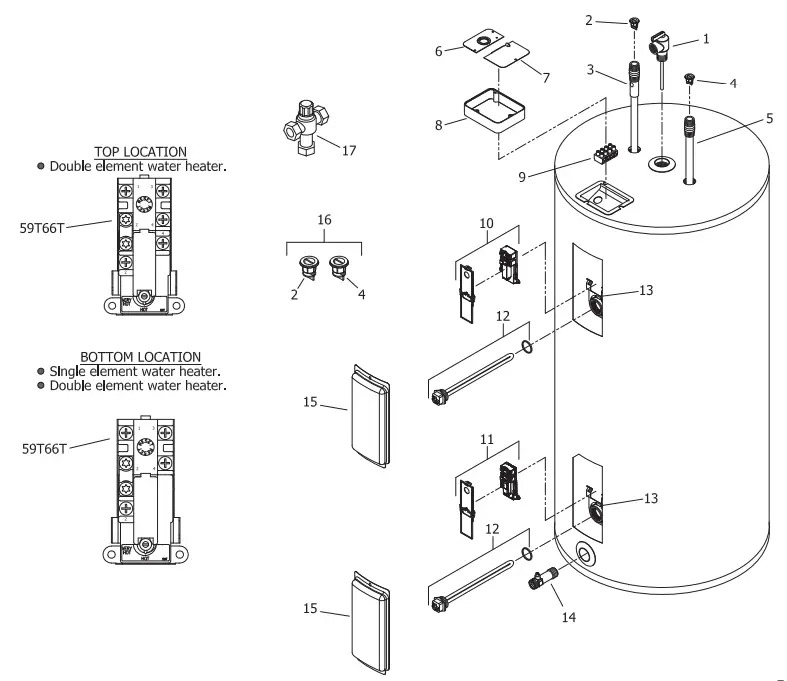

| Item Description | Model LE265T | Model LE280T | Model LE2120T |
| 1 T&P Relief Valve | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| 2 Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| 3 Hot Water Outlet Anode Magnesium ♦ # | 224-47776-19 | 224-47776-19 | 224-47780-01 |
| Aluminum ♦ # | 224-32999-28 | 224-32999-28 | 224-45036-01 |
| A420 (Aluminum)# | 224-49560-08 | 224-49560-08 | 224-49561-01 |
| 4 Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| 5 Cold Water Inlet Tube PEX ♦♦ | 229-51230-22 | 229-51230-22 | — |
| 6 Cold Water Inlet Tube Polysulfone ♦♦ | — | — | 229-45032-01 |
| 7 Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| 8 Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| 9 Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| 10 Terminal Block (4 poles) | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| 11 Upper Thermostat with High Limit (59T66T) & Protector ▲ | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| 12 Lower Thermostat with High Limit (59T66T) & Protector ▲ | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| 13 Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| 14 Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| 15 Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| 16 Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| 17 Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| 18 ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
♦ Order with item 2.
♦♦ Order with item 4.
▲ Thermostat protector and mounting bracket (Item #13) provided in a kit with thermostat.
* For other voltage and wattage combinations, refer to the heating element on pages 6 & 7. # Anode may need to be cut to length
Voltage & Wattage Conversion Kits
| Element Wattage | Non-Simultaneous Max Wattage | Simultaneous Max Wattage | 120 | Volt 208 | age 240 | 277 |
| 1500 | 1500 | 3000 | 265-46409-01 | 265-46409-05 | 265-46409-13 | 265-45409-16 |
| 2000 | 2000 | 4000 | 265-46409-02 * | 265-46409-06 | 265-46409-05 | 265-45409-17 |
| 2500 | 2500 | 5000 | 265-46409-03 * | 265-46409-07 | 265-46409-06 | 265-45409-18 |
| 3000 | 3000 | 6000 | 265-46409-04 * | 265-46409-08 | 265-46409-14 | 265-45409-19 |
| 3500 | 3500 | 7000 | N/A | 265-46409-09 | 265-46409-07 | N/A |
| 4000 | 4000 | 8000 | N/A | 265-46409-10 | 265-46409-08 | 265-45409-20 |
| 4500 | 4500 | 9000 | N/A | 265-46409-11 | 265-46409-09 | 265-45409-21 |
| 5000 | 5000 | 10000 | N/A | 265-46409-12 | 265-46409-15 | 265-45409-22 |
| 5500 | 5500 | 11000 | N/A | 265-46409-46 * | 265-46409-10 | 265-46409-40 |
| 6000 | 6000 | 12000 | N/A | 265-46409-47 * | 265-46409-48 * | 265-45409-23 |
| 380 | 415 | 480 | |||
| 1500 | 1500 | 3000 | 265-46409-24 | 265-46409-41 | 265-46409-32 |
| 2000 | 2000 | 4000 | 265-46409-43 | 265-46409-24 | 265-46409-33 |
| 2500 | 2500 | 5000 | 265-46409-25 | 265-46409-43 | 265-46409-34 |
| 3000 | 3000 | 6000 | 265-46409-26 | 265-46409-25 | 265-46409-35 |
| 3500 | 3500 | 7000 | 265-46409-27 | 265-46409-26 | N/A |
| 4000 | 4000 | 8000 | 265-46409-29 | 265-46409-27 | 265-46409-36 |
| 4500 | 4500 | 9000 | 265-46409-30 | 265-46409-28 | 265-46409-37 |
| 5000 | 5000 | 10000 | 265-46409-31 | 265-46409-29 | 265-46409-38 |
| 5500 | 5500 | 11000 | 265-46409-44 | 265-46409-30 | 265-46409-42 |
| 6000 | 6000 | 12000 | 265-46409-45 | 265-46409-31 | 265-46409-39 |
* These kits contain only one element for single-element water heaters only.
Heating Elements (Copper) for:
Residential Series (RE)
Light Duty (LE) Commercial Series
Medium Duty (E32) Commercial Series
Commercial (MII) Series
| Wattage | 120 Volt | 208 Volt | 240 Volt | 277 Volt | 380 Volt |
| 1000W ▲ | 220-42540-01 | 220-42544-01 | 220-42546-01 | N/A | N/A |
| 1250W ▲ | N/A | N/A | 220-42544-13 | N/A | N/A |
| 1500W ▲ | 220-42540-02 | 220-42544-03 | 220-42544-01 | N/A | N/A |
| 1500W (LWD)▲ | 220-42540-03 | N/A | 220-42544-02 | N/A | N/A |
| 2000W ▲ | 220-42540-04 | 220-42544-04 | 220-42544-03 | N/A | N/A |
| 2500W ▲ | 220-42540-05 | 220-42544-06 | 220-42544-04 | N/A | N/A |
| 3000W ▲ | 220-42540-07 | 220-42544-14 | 220-42544-05 | N/A | N/A |
| 3500W ▲▲ | N/A | 220-51333-08 | 220-42544-06 | N/A | N/A |
| 3800W ▲▲ | N/A | N/A | 220-42546-10 | N/A | N/A |
| 4000W ▲▲ | N/A | 220-42544-16 | 220-42544-14 | N/A | N/A |
| 4500W ▲▲ | N/A | 220-42544-12 | 220-51333-08 | N/A | N/A |
| 4500W (LWD) ▲▲ | N/A | N/A | 220-51333-09 | N/A | N/A |
| 5000W ▲▲ | N/A | N/A | 220-42544-10 | N/A | N/A |
| 5500W ▲▲ | N/A | N/A | 220-42544-16 | N/A | N/A |
| 6000W ▲▲ | N/A | N/A | 220-42544-12 | N/A | N/A |
| Element gasket ^ | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 |
| Element plug | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 |
| (LWD) = Low Watt Density |
▲ For 12″ Diameter tanks and above.
▲▲ For 14″ Diameter tanks and above.
^ Element gaskets should be ordered with elements.
| Wattage | 120 Volt | 208 Volt | 240 Volt | 277 Volt | 380 Volt | 415 Volt | 480 Volt | 600 Volt |
| 1000W ▲ | N/A | 220-42545-13 | 220-42547-10 | N/A | N/A | N/A | N/A | N/A |
| 1250W ▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 1500W ▲ | 220-42541-02 | 220-42545-02 | 220-42545-13 | 220-42547-10 | 220-42551-12 | 220-42551-11 | 220-42553-09 | N/A |
| 1500W (LWD)▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 2000W ▲ | N/A | 220-42545-14 | 220-42545-02 | 220-42547-07 | 220-42549-04 | 220-42551-12 | 220-42553-01 | N/A |
| 2500W ▲ | N/A | 220-42545-11 | 220-42545-14 | 220-42547-11 | 220-42551-13 | 220-42549-04 | 220-42553-10 | N/A |
| 3000W ▲ | N/A | 220-42545-12 | 220-42545-15 | 220-42547-08 | 220-42551-10 | 220-42551-13 | 220-42553-08 | N/A |
| 3500W ▲▲ | N/A | 220-51328-07 | 220-42545-11 | N/A | 220-42551-14 | 220-42551-10 | N/A | N/A |
| 3800W ▲▲ | N/A | N/A | 220-42547-15 | N/A | N/A | N/A | N/A | N/A |
| 4000W ▲▲ | N/A | 220-42545-17 | 220-42545-12 | 220-42547-03 | 220-42551-16 | 220-42551-14 | 220-42553-03 | N/A |
| 4500W ▲▲ | N/A | 220-42545-19 | 220-51328-07 | 220-42547-12 | 220-42551-17 | 220-42551-15 | 220-42553-11 | N/A |
| 4500W (LWD) ▲▲ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 5000W ▲▲ | N/A | 220-42543-04 | 220-42545-18 | 220-42547-15 | 220-42551-18 | 220-42551-16 | 220-42553-12 | N/A |
| 5500W ▲▲ | N/A | 220-42543-05 | 220-42545-17 | 220-42547-13 | 220-42549-06 | 220-42551-17 | 220-42553-13 | N/A |
| 6000W ▲▲ | N/A | 220-42543-06 | 220-42545-19 | 220-42547-14 | 220-42549-05 | 220-42551-18 | 220-42553-14 | N/A |
| Element gasket ^ | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 | 223-34019-00 |
| Element plug | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 | 223-34020-00 |
(LWD) = Low Watt Density
For bagged elements that include gasket, change the part number prefix to 265- (example: 265-42541-02). Element wrench *** 265-35897-12
*** For use with residential, LE, LD, E32, and MII series heating elements only. Not for use with commercial “A” series heating elements.
▲ For 12″ diameter tanks and above.
▲▲ For 14″ diameter tanks and above.
^ Element gaskets should be ordered with elements.
