Aurora Au-a1zb2wdm2p Zigbee Dimmer Installation Guide

AURORA AU-A1ZB2WDM2P Zigbee Dimmer Installation Guide

• Installation must be carried out in accordance with the latest edition of the Wiring Rules by a qualified/competent electrician.
• Hereby, Aurora Limited declares that the radio equipment type AU-A1ZB2WDM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
  www.auroralighting.com/ProductDetail/AU-A1ZB2WDM

Using the APP to Connect the Smart Rotary Dimmer to the HUB

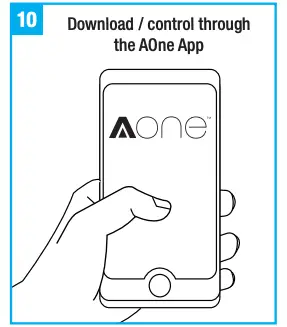

1. Download the AOne App from the App Store.
2. Follow instructions on the AOne App to send the hub into pairing mode and pair your devices (further details below).
3. The dimmer will enter pairing mode once it has power. To re-pair the dimmer manually, push and hold the knob for 6 seconds.

The connected load, and the red LED indicator behind the dimmer knob will flash twice to indicate it has entered pairing mode.

The connected load, and the red LED indicator behind the dimmer knob will flash a third time to indicate that it has paired with the hub.

The dimmer can then be controlled using the AOne App.

IMPORTANT INFORMATION:

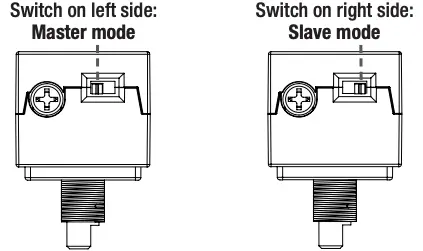

• Do NOT operate the master/slave switch when power to the product is on
• Read and remove the warning label to access the master/slave switch
• The blue LED backlight may be switched off in the app if required

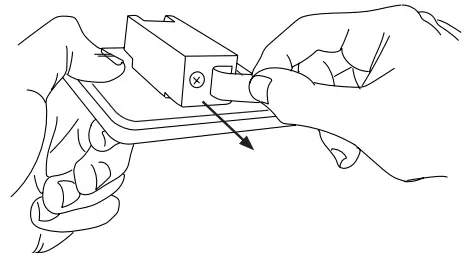

Read and remove the warning label to access the Master/Slave switch.

Warning: DO NOT operate the Master/Slave switch while the device is powered. If you ignore this warning your device will be irreparably damaged.

www.auroralighting.com Document Version: AU-A1ZB2WDM_1P_2P_V1_18

Environmental Protection (W.E.E.E.) – Aurora’s WEEE Reg.No. WEE/BG0130YX (UK Only)

Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be disposed of with other household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such product from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any Aurora product, your supplier included a WEEE disposal fee, you should then contact your supplier for advice on his take back of the product for the correct disposal.

Warranty

See www.auroralighting.com/warranty for full details of warranties and Extended Warranty Terms and Conditions. The warranty is invalid in the case of improper use, tampering, and removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this product fail during the warranty period it will be replaced free of charge, this is subject to correct installation and return of the faulty product. Aurora does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice.
