Specifications

MODEL	AU-HZB5A
DESCRIPTION	Aone™ Smart Hub
POWER SUPPLY	5V DC, 2A
POWER CONSUMPTION	2.5W
RF FREQUENCY	2.4GHz, IEEE 802.15.4
MAX OUTPUT RF POWER	8 dBm
MAX. NUMBER OF DEVICES	80
OPERATING TEMPERATURE	0°C to 50°C
IP RATING	IP20 (Use in dry locations only)

Operation Instructions

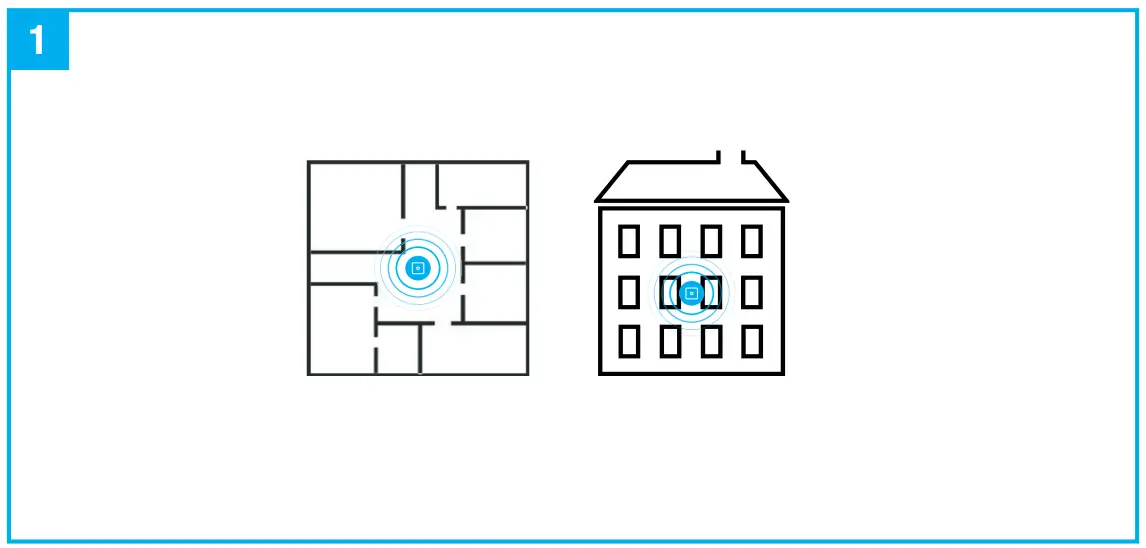

Ensure your hub is in a central location, with your devices no more than three device hops to the hub.

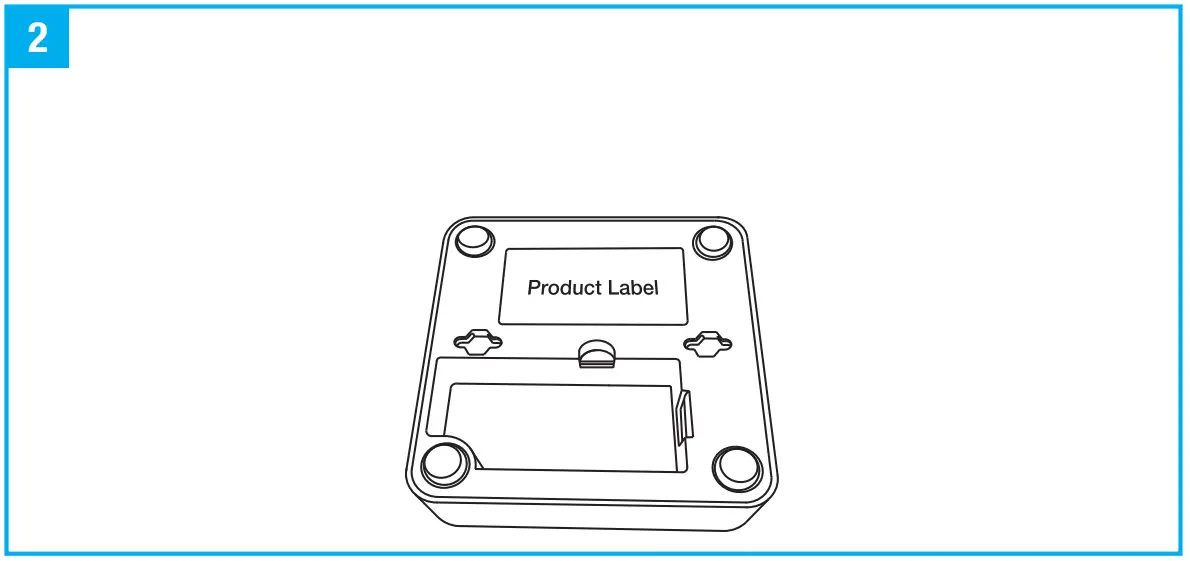

Do not remove the product label as it contains important information.

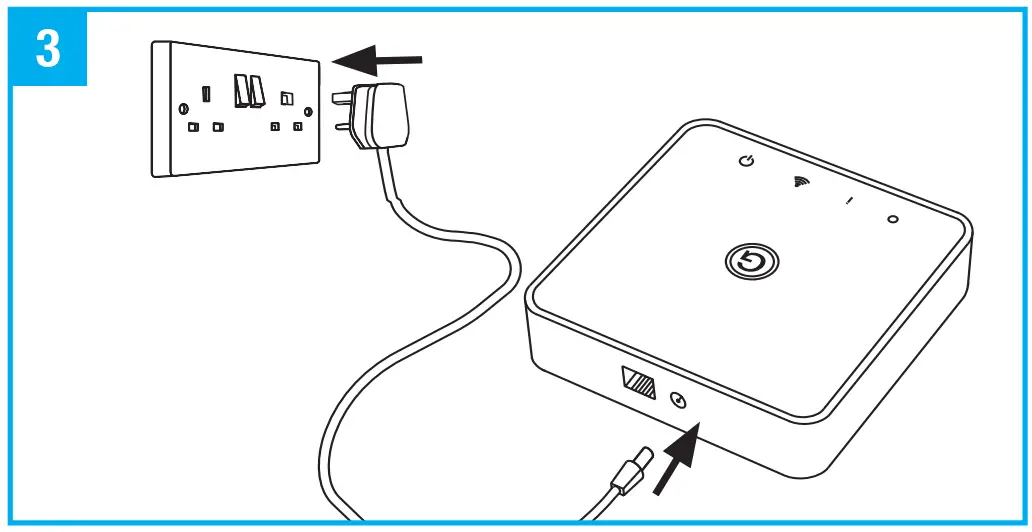

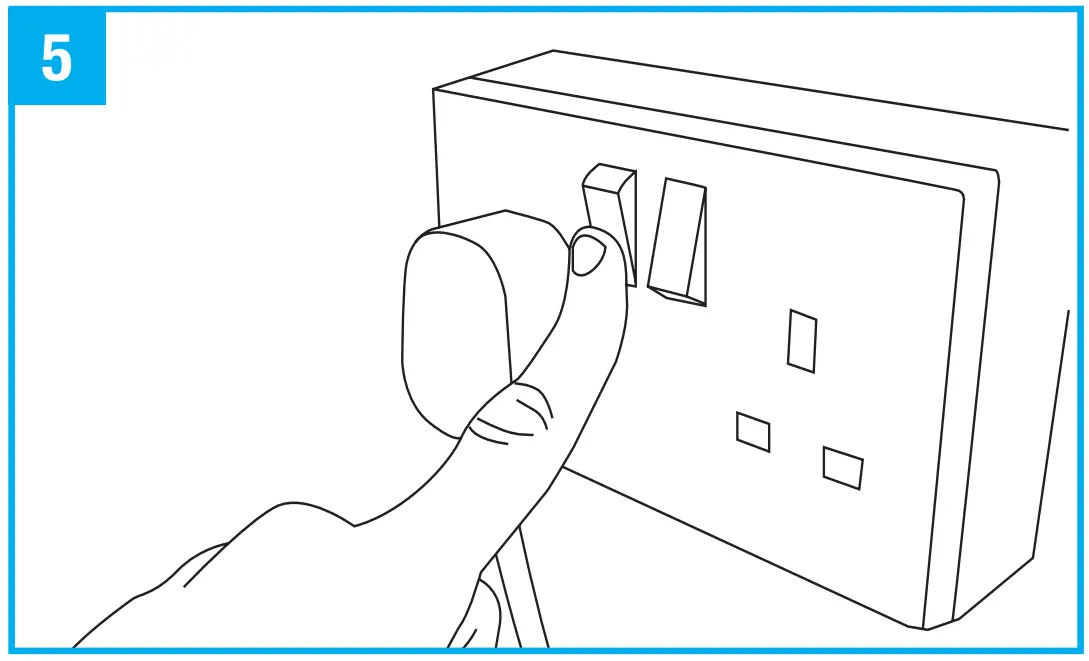

The LEDs on the front of the hub will turn on when the system is booting. During the first 5-10 minutes the front LEDs will turn off but you will see data is being transmitted through the ethernet port which will be flashing green.

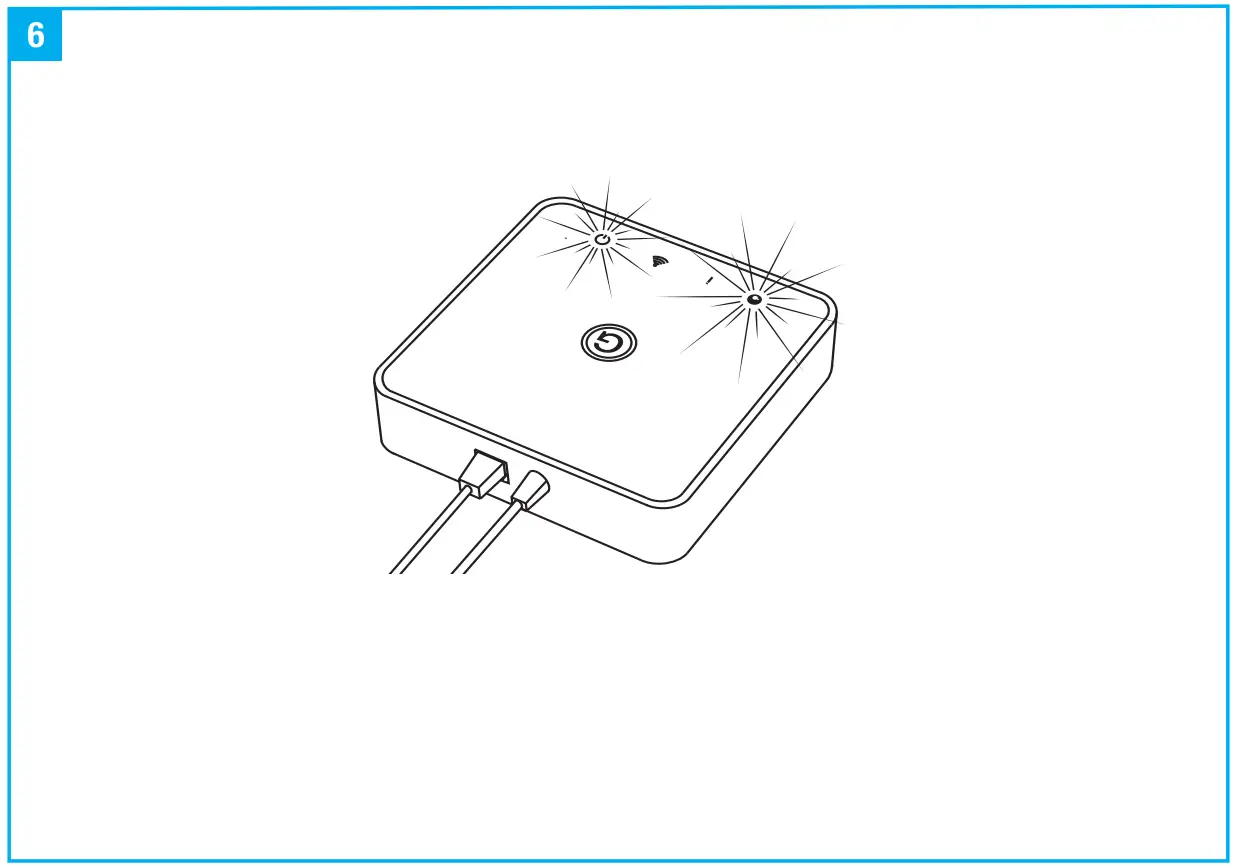

After approximately 10 minutes the system is ready for use and the LED indicators will turn solid green as shown below.

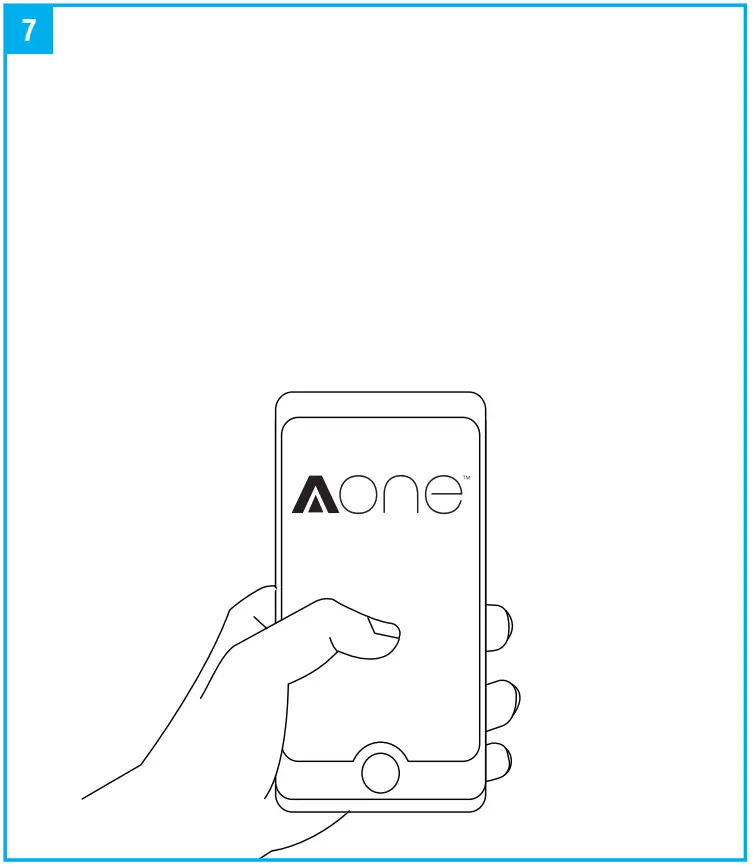

Download the AOne App and follow the instructions on the App to set your Hub up and begin adding your AOne compatible smart devices.

IMPORTANT INFORMATION

Do not attempt to access your Hub through the app until both lights are solid green.
Hereby, Aurora Limited declares that the radio equipment type AU-HZB5A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.auroralighting.com/ ProductDetail/AU-HZB5A

TECHNICAL SUPPORT

For any technical questions relating to the set up process please contact the technical helpline for further assistance:

01707 351 859
[email protected]

FOR COMMERCIAL INSTALLATIONS

Please make sure the following ports are open:
UDP ports 5560 – 5566
TCP port 5568

Please allow inbound and outbound traffic.

Environmental Protection (W.E.E.E.) – Aurora’s WEEE Reg.No. WEE/BG0130YX (UK Only)

Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be disposed of with other household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE related products.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such product from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any Aurora product, your supplier included a WEEE disposal fee, you should then contact your supplier for advice on his take back of the product for the correct disposal.

Warranty

See www.auroralighting.com/warranty for full details of warranties and Extended Warranty Terms and Conditions. The warranty is invalid in the case of improper use, tampering, and removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Wiring Regulations. Should this product fail during the warranty period it will be replaced free of charge, this is subject to correct installation and return of the faulty product. Aurora does not accept responsibility for any installation costs associated with the replacement of this product.
This warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice.
