Neff C17fs32h0b N 90 Built-in Compact Oven Instructions

C17FS32H0B N 90 Built-In Compact Oven
Instructions

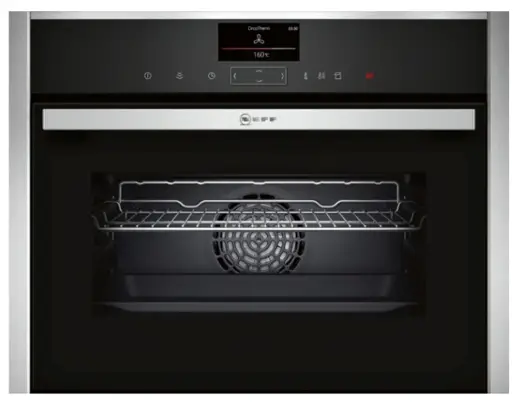

N 90, Built-in compact oven with steam function, 60 x 45 cm,
Stainless steel C17FS32H0B

Optional accessories

Compact built-in oven with FullSteam – combining all heating types and steam cooking in a single oven in a very small space
√ Eco Clean with Base Clean – the duo that makes oven cleaning easier
√ Shift Control – fast navigation through menus and simple operation with the TFT display.
√ Home Connect – rediscover your kitchen with our connected home appliances, from wherever you are.
√ Baking and Roasting Assistant with Automatic Programmes – the duo for optimal baking at your command
√ LED lights – Bright illumination exactly where you need it.

Features

Technical Data
Color / Material Front : Stainless steel
Construction type : Built-in
Door opening : Drop down
Required niche size for installation (HxWxD) : 450-455 x 560-568 x 550  mm
Dimensions of the packed product (HxWxD) : 540 x 660 x 690  mm
Control Panel Material : Stainless steel
Door Material : Glass
Net weight : 33.7  kg
Approval certificates : CE, VDE
Length of electrical supply cord : 150  cm
EAN code : 4242004236108
Fuse protection : 16  A
Voltage : 220-240  V
Frequency : 50; 60  Hz
Plug type : no plug
Approval certificates : CE, VDE
Number of cavities (2010/30/EC) : 1
Usable volume (of cavity) – NEW (2010/30/EC) : 47  l
Energy efficiency rating : A+
Energy consumption per cycle conventional (2010/30/EC) : 0.73  kWh/cycle
Energy consumption per cycle forced air convection (2010/30/EC) : 0.61  kWh/cycle
Energy efficiency index (2010/30/EC) : 81.3  %
Design

• 4.1″ TFT colour and graphics display with ShiftControl
• Cavity inner surface: enamel anthracite
• Drop down door, SoftClose, soft opening
• Illuminated Shift Control
• Bar handle
• We recommend you to choose complementary products within N90, in order to assure an optimal design combination of your Built-In appliances.
• HomeConnect ready on WLAN
• Control panel lock Automatic safety switch off Residual heat indicator Start button Door contact switch
• Temperature proposal Actual temperature display Heating up indicator automatic programmes:
• Baking and roasting assistant, Automatic programmes
• Water tank empty indicator
• LED light, On/off button
• Electronic clock timer
• 3 shelf positions

Cleaning

• EcoClean Direct : ceiling, back panel, side liners
• EcoClean programme, Base Clean programme
• Full glass inner door

Programmes/functions

• Compact steam oven with 12 main functions heating methods:
  CircoTherm®, CircoTherm® Gentle, Top/bottom heat, Conventional heat Gentle, Circo-roasting, Full surface grill, Centre surface grill, CircoTherm® intensive, Bread baking, Bottom heat, Low temperature cooking, Keep warm
• Additional heating methods with steam: Steaming, Reheat with steam, Dough proving, Defrost
• Additional functions:
  De-scaling programme
  Drying function
  Automatic boiling point detection
• Number of automatic programmes: 30 PC
• Rapid heat

Accessories

• 1 x steam container, punched, size S, 1 x steam container, punched, size XL, 1 x steam container, unpunched, size S, 1 x grid, 1 x universal pan

Performance/technical information

• Energy efficiency rating (acc. EU Nr. 65/2014): A+
  Energy consumption per cycle in conventional mode: 0.73 kWh
  Energy consumption per cycle in fan-forced convection mode: 0.61 kWh
  Number of cavities: Main cavity
  Heat source: electrical
  Cavity volume: 47 litre
• Temperature range 40 °C – 250 °C
• 1 l Water tank capacity
• Location of water tank: Outside cavity
• Power cord length 150 cm Cable length
• Nominal voltage: 220 – 240 V
• Appliance dimension (hxwxd): 455 mm x 596 mm x 548 mm
• Please refer to the dimensions provided in the installation manual

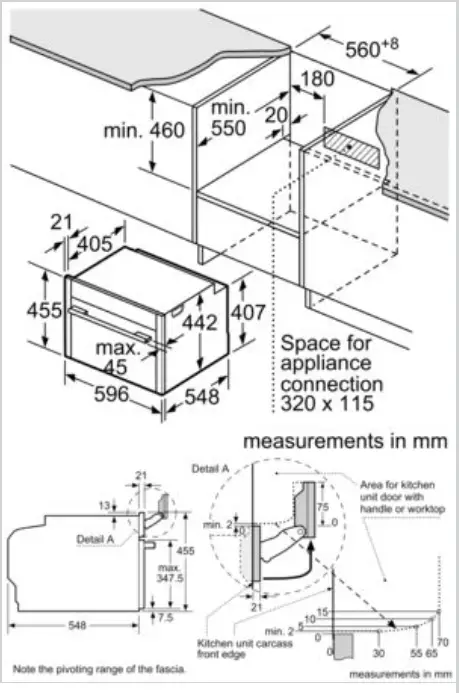

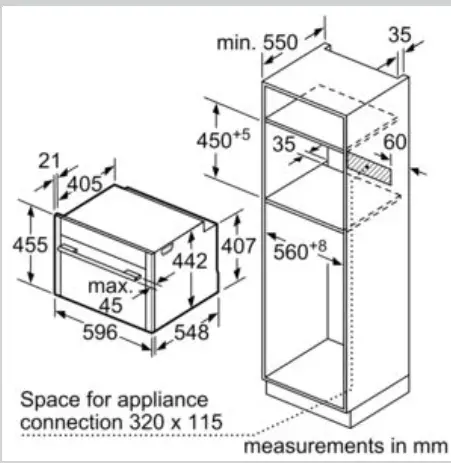

Dimensioned drawings

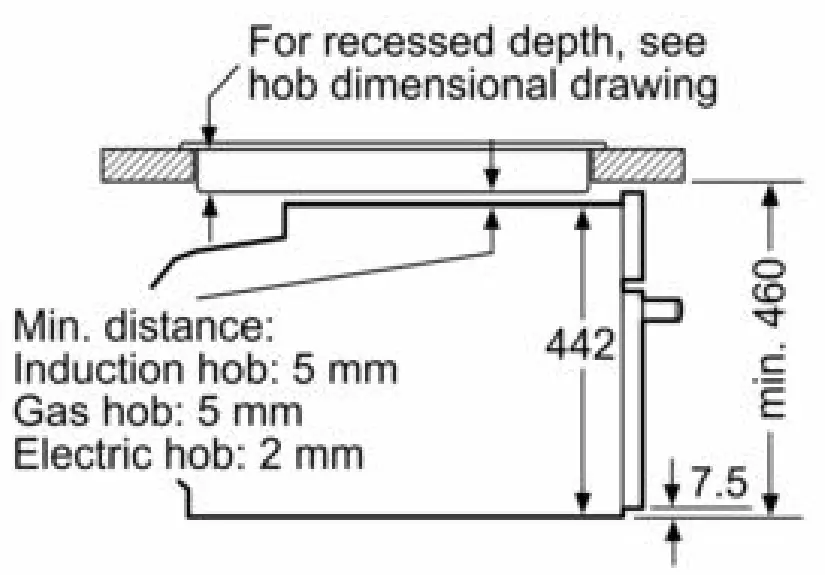

Installation with a hob.
measurements in mm

If the compact appliance will be installed underneath a hob, the following worktop thicknesses (including substructure if necessary) must be taken into acccount.
