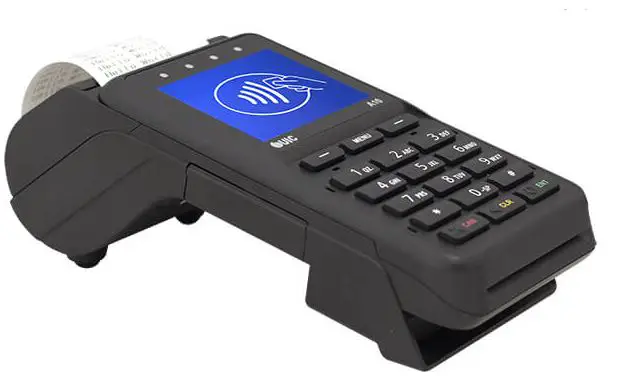

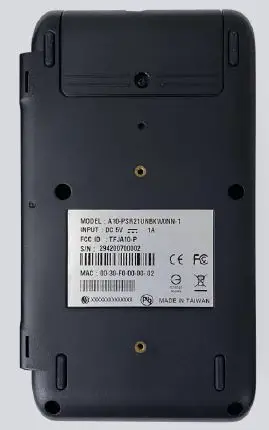

UIC A10-P Countertop Compact PIN Pad Payment Device
The A10-P is a compact PIN pad, designed to support financial inclusion scenarios as well as innovative payment schemes in mature markets. Another optional feature is fingerprint reader, the spec is TBD.
Quick Features
- 4-in-1 PIN pad: MSR, Chip, NFC and PIN entry
- USB or RS-232 interface connectivity pure PIN pad
- POS-A transmission type
- Colorful LCD display
- High performance and security
- PCI & EMV Level 1 & Level 2 certification approved, typical payment brand schemes supported
Specification
| Processor | Microchip SAMA5D28 |
| Memory | DDR2 64MB |
| Storage | Flash 256MB |
| Display | 2.8” IPS 320×240 |
| OS | Linux |
|
Audio | Buzzer (Default) Speaker x1 (PCBA Reserved) Buzzer Sound Pressure Level:70 dB/10cm(2.5KHz) |
| Reader | |
|
Magnetic Card Reader | Bi-directional, support triple tracks ISO7811 Speed 5 to 40 IPS 1,000,000. swipe times |
| Smart Card Reader | ISO7816, T=0 , T=1 EMV Level 1, Support 5V/3V 500,000. inserted times |
|
Contactless | ISO14443A&B, MIFARE HW Ready for NFC |
| I/O Connector | |
| RJ45 | Wafer to RJ45 (optional) |
|
Pig-tail cable | Wafer to USB/RS232 (Cable selection) (USB port A for SAMBA) |
| DC Jack | On cable |
| SAM | X0, x2(optional) |
| Debug console | 2.54mm Head X1(2pin) |
| LED indicator | Mono, Green X4 for EMV |
| Keypad | Rubber Keys *18 (Func. keys*3, STD Keys *15) |
| Environment | |
| Operating | 0°C to +50°C |
| Temperature | |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 90% |
| Reliability Requirements | |
| MTBF | 100,000 hours |
| Drop test | 76 cm without damage |
| ESD | Air：+/-15KV Contact：+/- 8KV |
