Cooh Rite ATCB-48 Countertop Charbroilers
Countertop Charbroilers
Standard Features
- Stainless steel exterior and interior
- 35,000 BTU stainless steel burners with standby pilot
- Independent manual controls every 12”

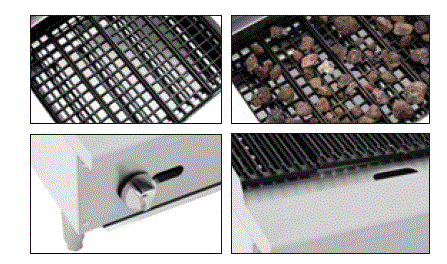

- Heavy-duty, reversible cast iron grates
- Top grates are adjustable multi-level
- Units include lava briquettes standard
- Adjustable, stainless steel legs standard
- 3/4” NPT rear gas connection and regulator standard
SPECIFICATIONS
| Models | Burners and control method | Gas type | Intake-tube pressure (in.W.C.) | Per BTU B.T.U./h | Total BTU B.T.U./h | Regulator | Work area (inch) | Net weight (lbs.) | Gross weight (lbs.) |
| ATCB-24 | 2 Burners Independent Manual Control | NG | 4 | 35,000 | 70,000 | 4’’w.c. | 239/10 ×201/5 | 136.9 | 168.2 |
| LP | 10 | 35,000 | 70,000 | 10’’w.c. | |||||
| ATCB-36 | 3 Burners Independent Manual Control | NG | 4 | 35,000 | 105,000 | 4’’w.c. | 357/10 ×201/5 | 190.9 | 238.1 |
| LP | 10 | 35,000 | 105,000 | 10’’w.c. | |||||
| ATCB-48 | 4 Burners Independent Manual Control | NG | 4 | 35,000 | 140,000 | 4’’w.c. | 479/10 ×201/5 | 247.8 | 313.7 |
| LP | 10 | 35,000 | 140,000 | 10’’w.c. |

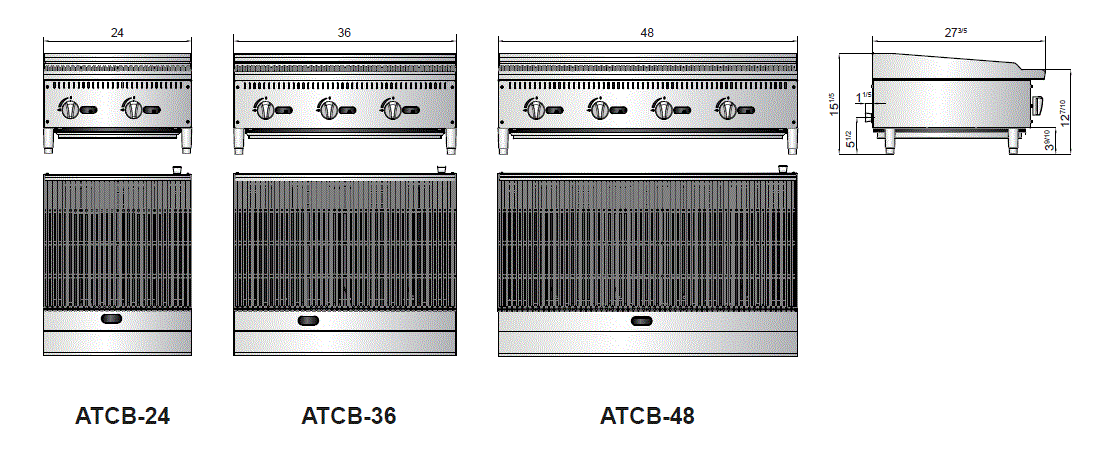

PLAN VIEW
