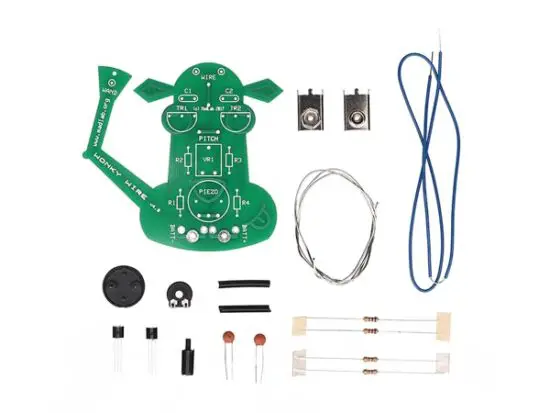

Velleman WSG110 MadLab Electronic Kit

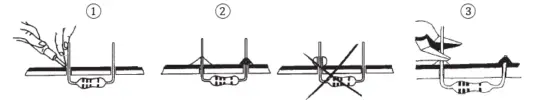

Soldering
component side

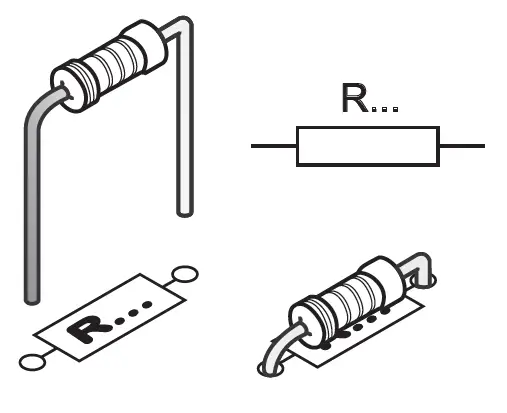

Resistor
- R1, R4: 1K
- (brown, black, red)
- R2, R3: 47K
- (yellow, purple, orange)

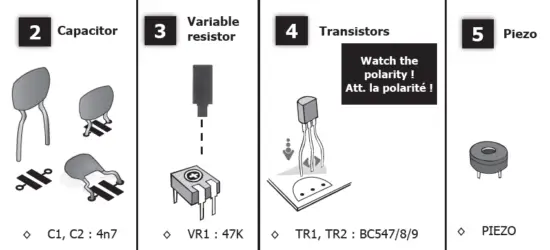

Capacitor-Variable resistor-Transistors-Piezo

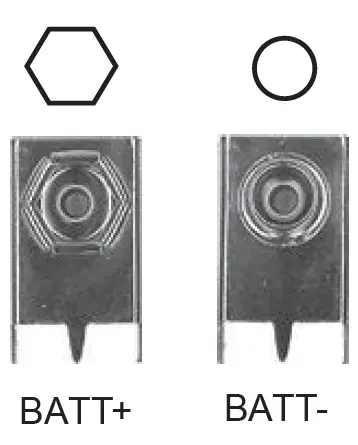

Battery
Place on the solder side

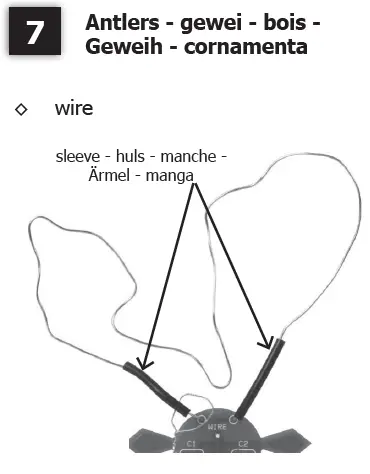

Antlers

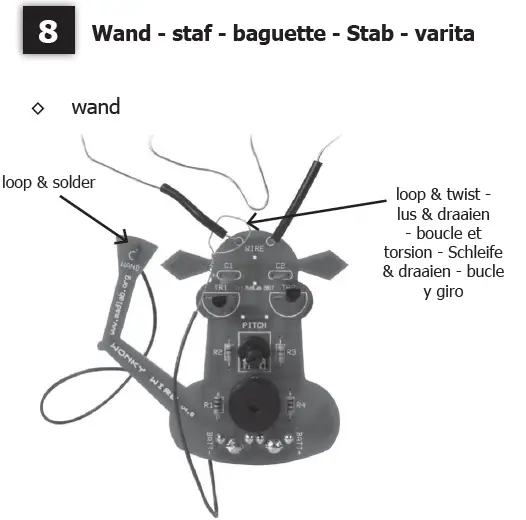

Wand
