Altus Hx8300 Hadron Xtorm Series Installation Guide

ALTUS HX8300 Hadron Xtorm Series
Installation Guide

www.altus.com.br

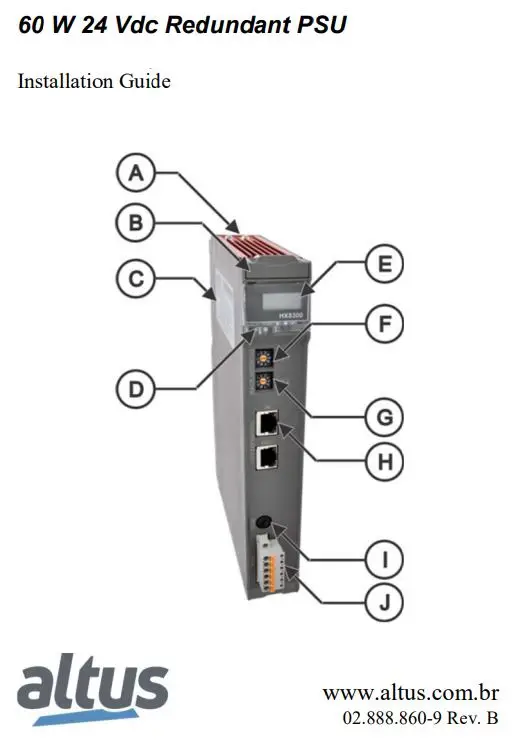

Legend

1. Fixing locks
2. Module Slot locking slider Cursor
3.  Label for module identification
4. Diagnostic LED and switch
5. Status and diagnostic display
6. Rack address switch (x1)
7. Rack address switch (x10)
8. RJ45 connectors for rack expansion
9. Fuse holder
10. Power supply connector

Features:

Power Supply Minimum / Maximum Voltage: 19.2 Vdc / 30 Vdc Maximum Input Current: 4 A
Maximum Output Power: 60 W
Maximum Output Current: 12 A

Installation:

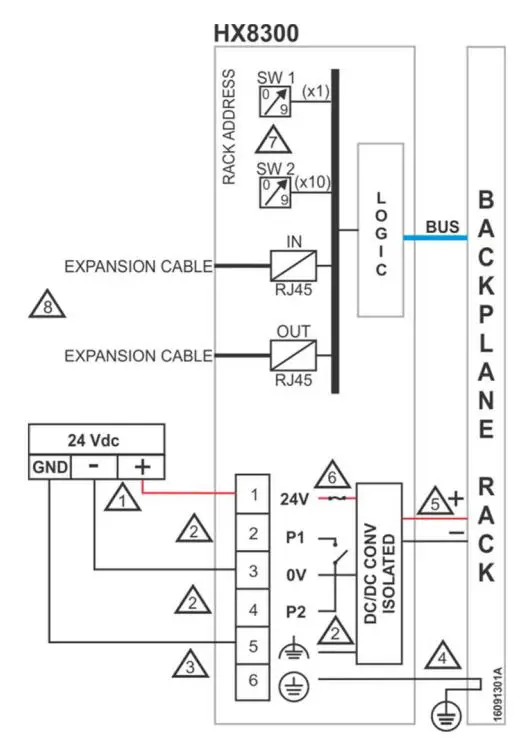

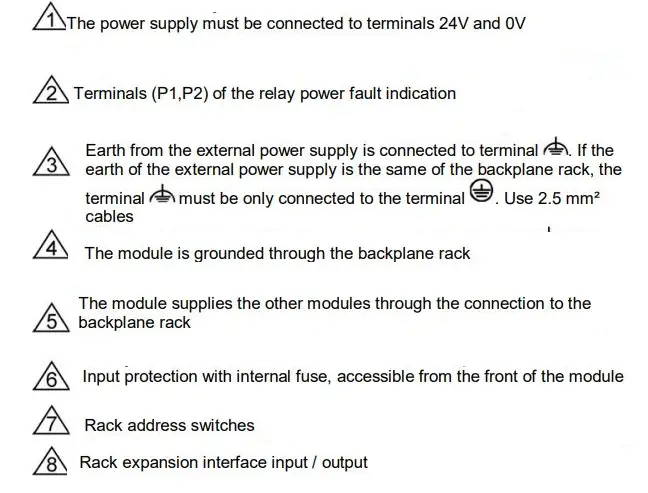

Input Power Supply Terminal: 24V and 0V. Use 2.5 mm² cables The module is grounded by the Hadron Xtorm Series backplane rack.

Main Related Products:

NX9002 -­ RJ45-RJ45 2m Cable
NX9005 ­- RJ45-RJ45 5m Cable
NX9010 ­- RJ45-RJ45 10m Cable
HX9401 -­ 06 pin terminal block

Warning: Products with broken warranty seal are not covered in warranty.

Cautions:

For further information about programming or installation, see the Product Datasheet (CE123200) or the Utilization Manual (MU223600) available on Altus website.
