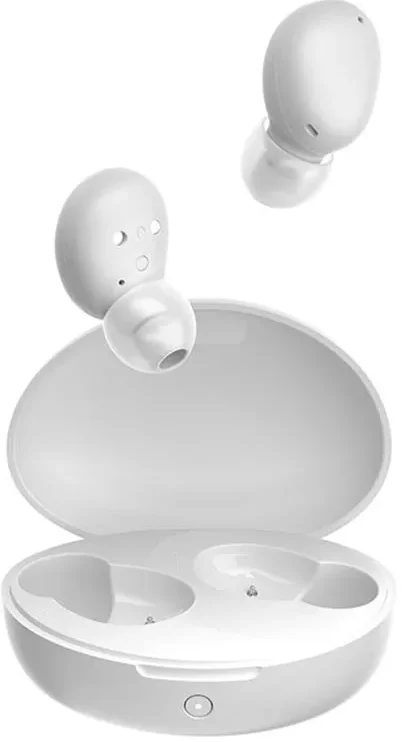

QCY T16 True Wireless Earbuds

QCY T16 True Wireless Earbuds-fig1

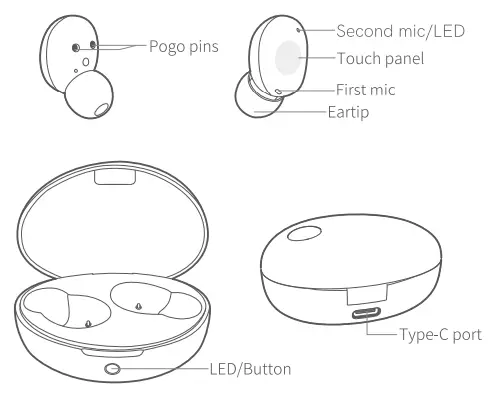

Overview

QCY T16 True Wireless Earbuds-fig2

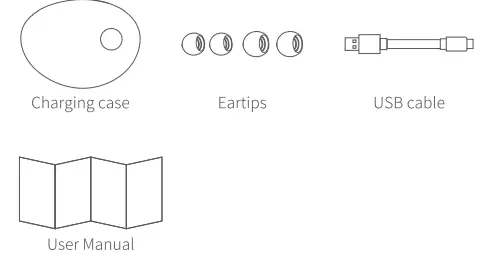

What’s in the box

QCY T16 True Wireless Earbuds-fig3

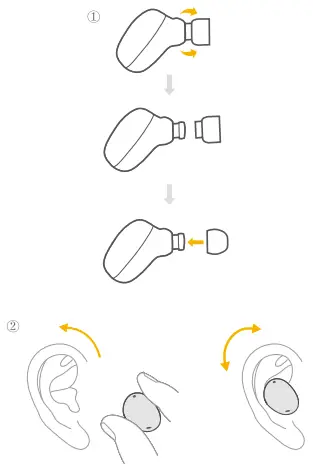

Wearing

QCY T16 True Wireless Earbuds-fig4

Choose the EarTips that fit your ears best.

  • Step 1: Ensure sounds hole downward, then place earbuds Into ear.
  • Step 2: Rotate earbud back to auricle side to fit snugly.

Pairing

QCY T16 True Wireless Earbuds-fig5

PAIRING
  1. Keep the earbuds in the charging case, open the cover
  2. Select “acY-T16” on your device’s Bluetooth list to connect.
    When successfully connected, the LED indicators will pulse red.
One-key Pairing
  1. Place the earbuds in the charging case and leave the case open.
  2. Press and hold the button on the charging case for 5 seconds until the LED indicators inside the charging case flash RED.

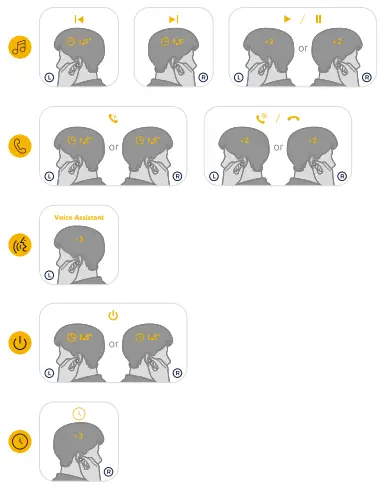

BUTTON CONTROLS

QCY T16 True Wireless Earbuds-fig6

X2: Tap Twice X3: Tap Triple 1.59: Press and hold for 1.5 seconds

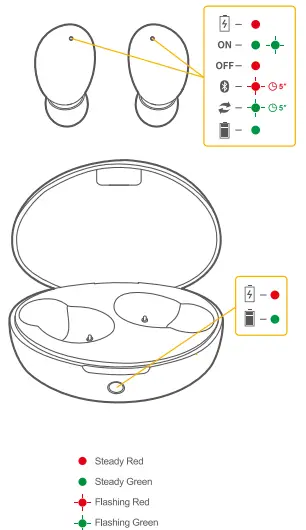

LED Light Guide

QCY T16 True Wireless Earbuds-fig7

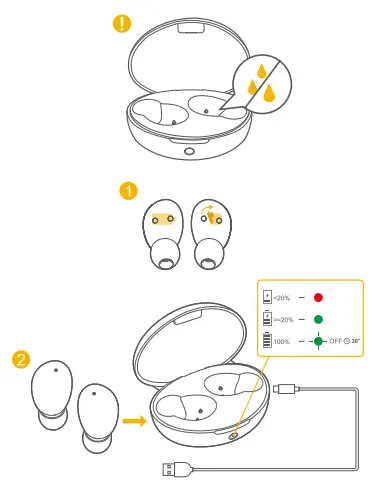

Charging

QCY T16 True Wireless Earbuds-fig8

  • Fully dry off the earbuds and the USB port before charging.
  • Remove the protective film before charging.
  • To prevent damage, use the provided USB-C cable.

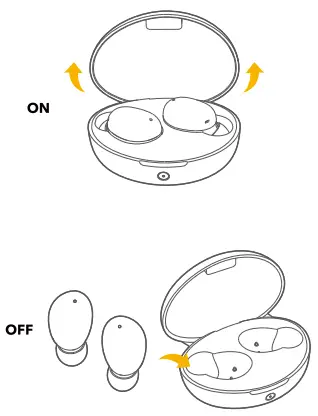

POWERING ON/OFF

QCY T16 True Wireless Earbuds-fig9

  • Open the charging case, the earbuds will automatically power on.
  • To power off, place the earbuds in the charging case and close it.

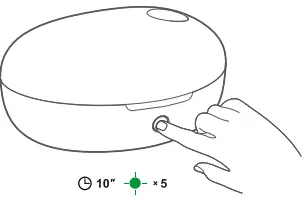

Factory Resetting

QCY T16 True Wireless Earbuds-fig10

Reset If the earbuds cannot properly pair with each other or with other devices.

  1. Place the earbuds into the charging case and leave the case open.
  2. Press and hold the button on the case for 1 O seconds until the LED indicators inside the charging case rapidly flash green 5 times. This confirms that the reset was successful and your earbuds can be connected normally.

Customer Service

  • 12 month limited warranty
  • Lifetime technical support
  • Our warranty is additional to the legal rights consumers have buying this product.

FAQ

View the FAQs on QCY-T16-FAQ

How to care for your earbuds

  1. Do not disassemble. Avoid Dropping.
  2. Use original or certified cables.
  3. Keep away from children or pets. Small parts included may be a choking hazard.
  4. The earbuds need to be fully charged prior to first-time use.If you do not use it for more than 2 months, please charge and maintain it regularly for safe operation.
  5. Do not put it under extreme temperatures, such as below 1 O degrees Celsius or above 60 degrees Celsius.
  6. Do not expose the product to strong sunlight fire or throw it into the fire to avoid an explosion
  7. Do not use the product outdoors during thunderstonns to avoid malfuntion or electric shock.
  8. Do not use chemicals or strong detergents to clean the earbudsQCY T16 True Wireless Earbuds-fig11
  • Manufacturer : Hele Electronics Co., Ltd.
  • Add: No. 325, Yuehui Road, Daojiao Town, Dongguan City, Guangdong Province, China Thank you for purchasing the QCY authentic product. For any assistance, please contact us freely:
