HT330 Single Slot Cradle
Quick Start Guide
V1.0
How to Use HT330 Single Slot Cradle
There are two options to charge the HT330 terminal:
- Charge HT330 without the boot case after installing the detachable part.
- Please remove the detachable part before charging under the following conditions:

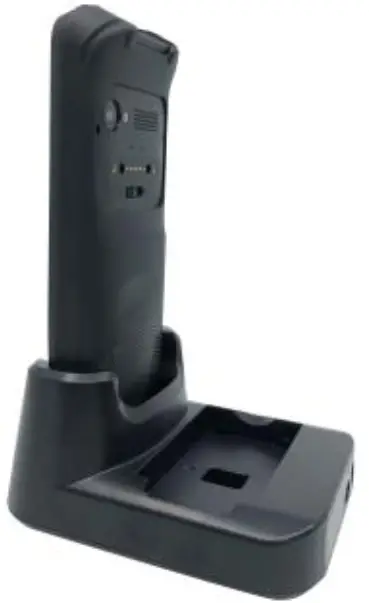

Charge HT330 with Boot Case on

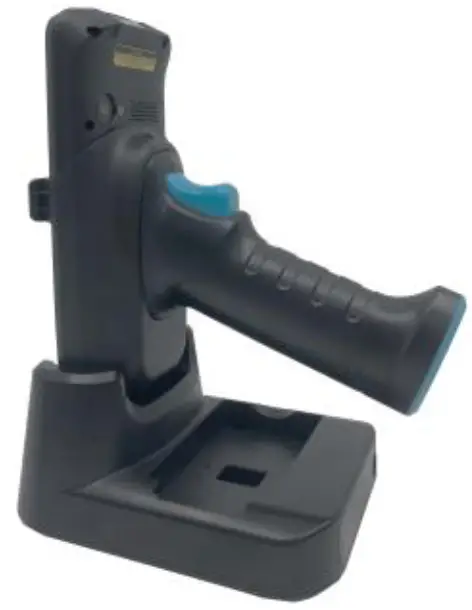

Charge HT330 with Gun Grip
Package
Please make sure the following contents are in the HT330 gift box.
If something is missing or damaged, please contact your Unitech representative.
The Package Contents
- HT330 Single Slot Cradle (with detachable part)
- 12V/2A Adaptor for Cradle (P/N# 1010-900052G)
Optional Accessories
- 3 Pins Power Cord (US) for Cradle (P/N# 1010-601551G)
- 3 Pins Power Cord (EU) for Cradle (P/N# 1550-602333G)
- 3 Pins Power Cord (UK) for Cradle (P/N# 1550-602689G)

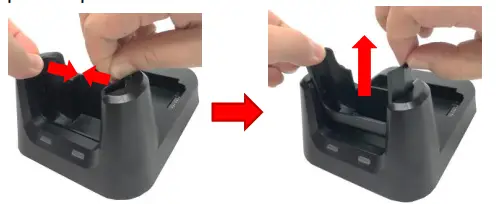

How to Remove the Detachable Part
Grab the two grooves on top of the detachable part and bent both edges inward, then hold and pull it up to remove.

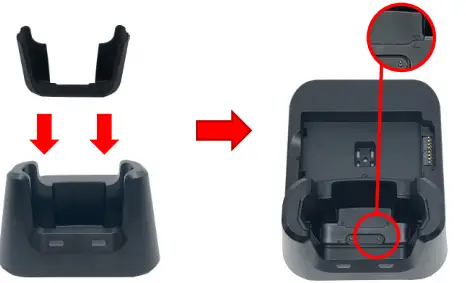

How to Install the Detachable Part
Insert the detachable part until you hear a clicking sound. Make sure the arrows of the detachable Part matches with the arrows of the cradle.
Product View

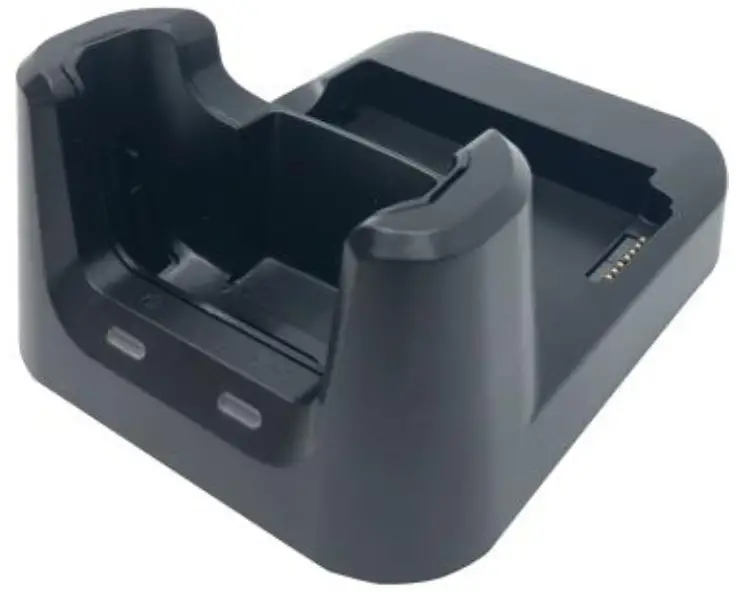

HT330 Single Slot Cradle
| HT330 Single Slot Charging Cradle (5000-900098G) | HT330 Single Slot USB Cradle (5000-900099G) |
 |  |
LED Indicator Status
| LED type | LED Status | description |
| Power LED | Blue light | Power on |
| LED off | Power off | |
| Battery Charging Status LED | Red light | Battery Charging |
| LED off | Battery fully charged |
HT330 single slot Charging/USB cradle Comparison
| P/N | Models | Description | Rear View |

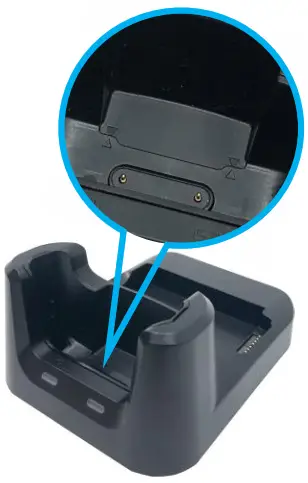

| 5000-900098G | HT330 1-Slot Charging Cradle with spare Battery Slot | ■ Charging terminal via DC jack |  |

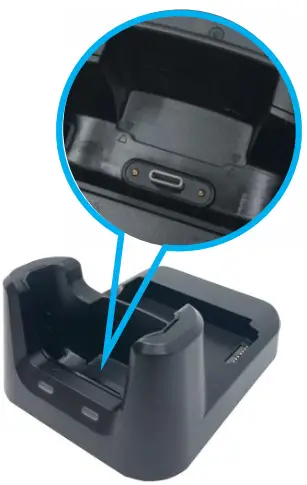

| 5000-900099G | HT330 1-Slot USB Cradle with spare Battery Slot | ■ Charging terminal via DC jack ■ Data transfer by USB type-C between terminal and PC | |
WARNING!
There is a risk of fire and burns if the battery is handled improperly. DO NOT disassemble, crush, puncture, short external contacts, or dispose of the battery pack in fire or water. DO NOT attempt to open or service the battery. Dispose of used batteries according to local recycling guidelines in your area.
CAUTION!
To ensure the unit working properly, please keep all connectors away from the contaminants staying inside of them such as dust, grease, mud, and water. The negligence may cause the unit to have no communication, be short-circuited, overheated, and so on. If the connector is damaged, please ensure the connector is fully repaired before using the unit to avoid causing short-circuited.
http://www.ute.com/
Copyright 2022 Unitech Electronics Co., Ltd. All rights reserved.
Unitech is a registered trademark of Unitech Electronics Co., Ltd.
