CON-SERV HC 024 Grab Rail Handset Cradle

INSTALLATION INSTRUCTIONS

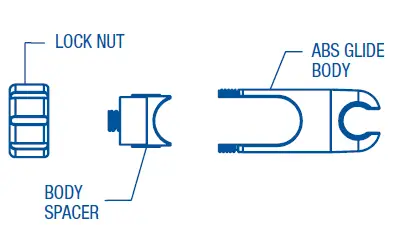

1. Separate the 3 components of the Grab Rail Handset Cradle ready for installation.

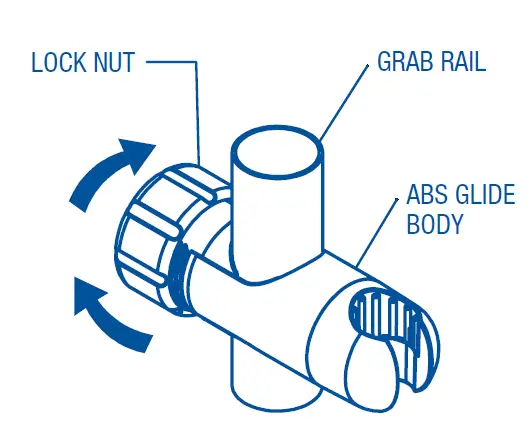

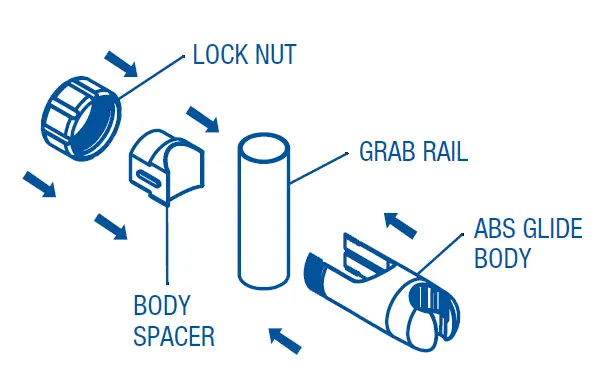

2. Place the ABS Glide Body over the grab rail. Insert the Body Spacer into the ABS Glide Slide body ensuring it aligns with the rail.
3. Screw the Lock Nut onto the ABS Glide Body so it is secure on the rail. Do not overtighten.

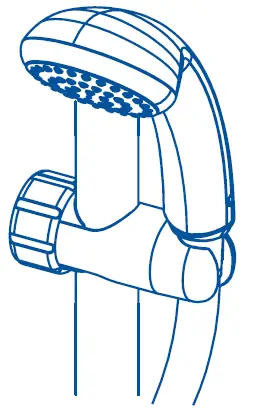

4. Place the handset into the ABS Glide Slider claw and position as desired.
