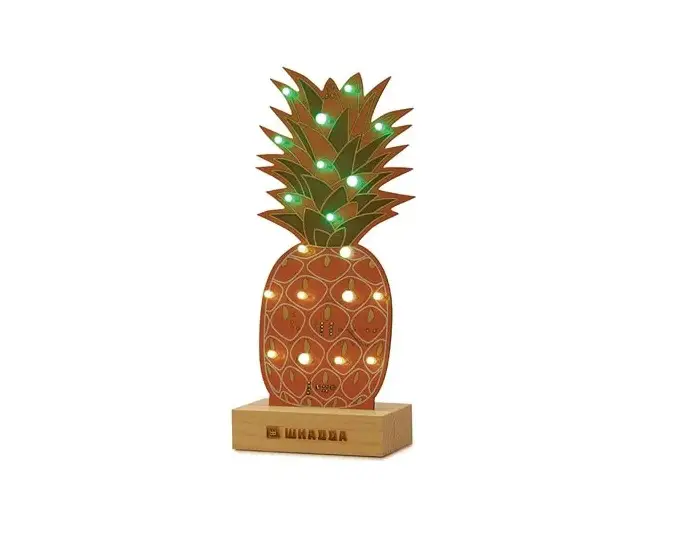

Velleman Rgb Led Pineapple Xl User Guide

velleman RGB LED Pineapple XL User Guide

Soldering

Follow the tutorial and learn how to solder on:

QR Code

www.whadda.com/start-to-solder

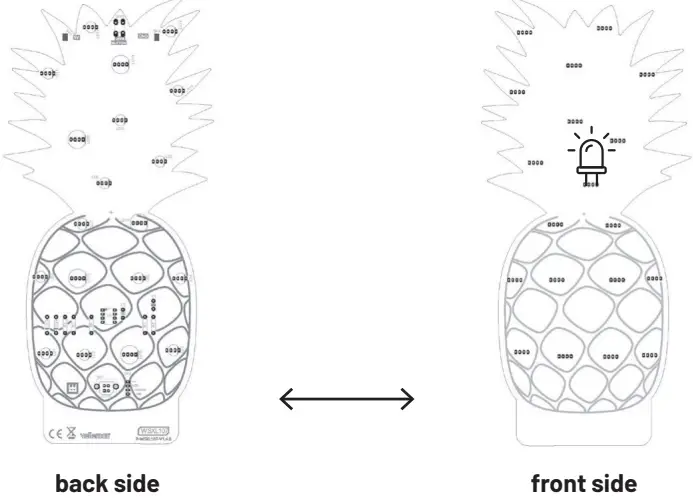

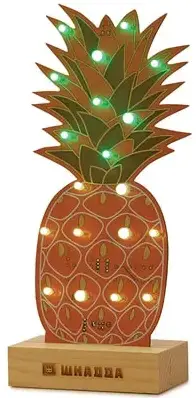

Product Overview

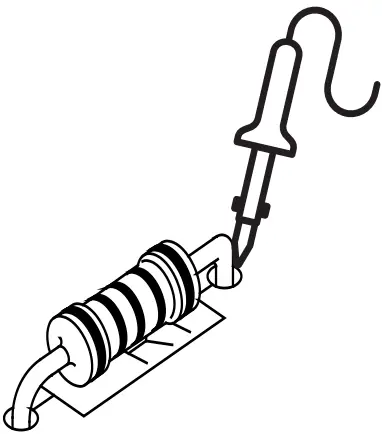

Resistor

• R1, R2: 68 ohm
• R3: 470 ohm
• R4: 10K
• R5: 1K5

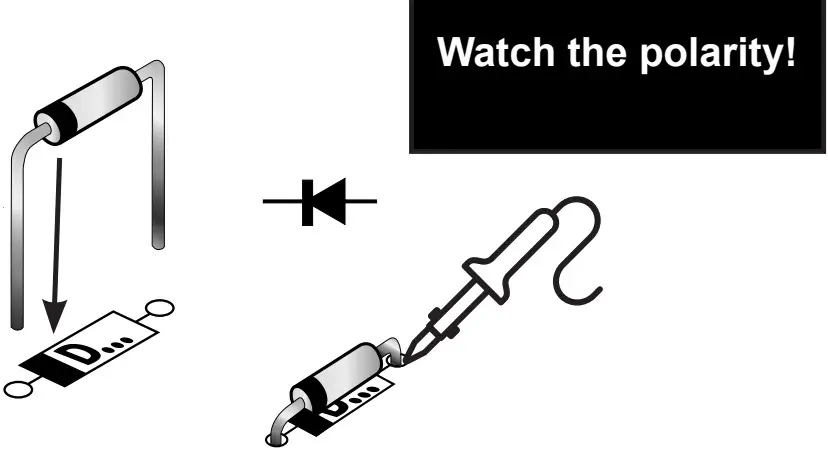

Zener diodes

• D1, D2: 3,6 V – 500 mW

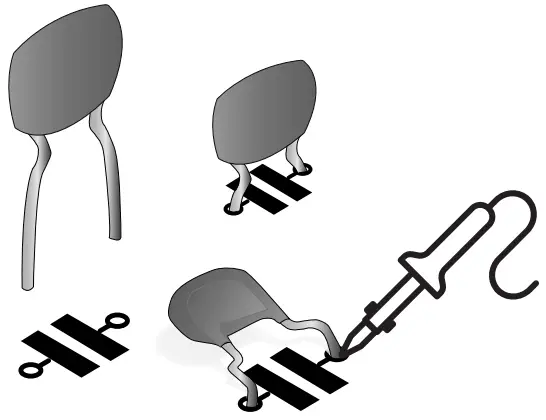

Capacitors

• C1, C2: 100nF

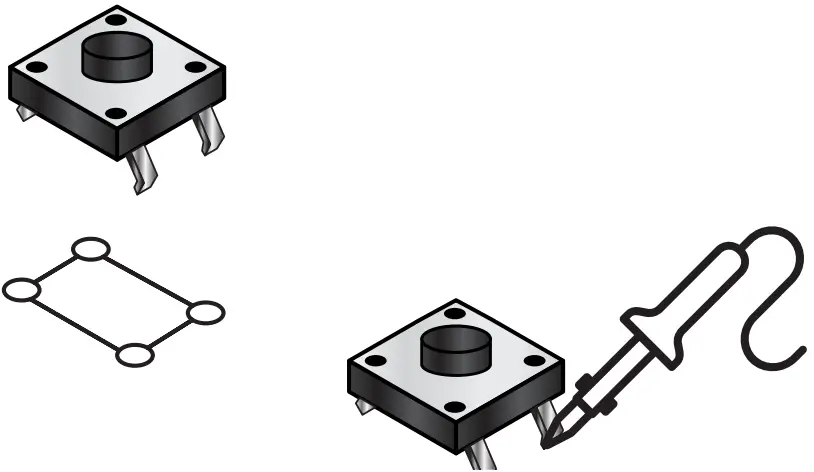

Button

• SW1

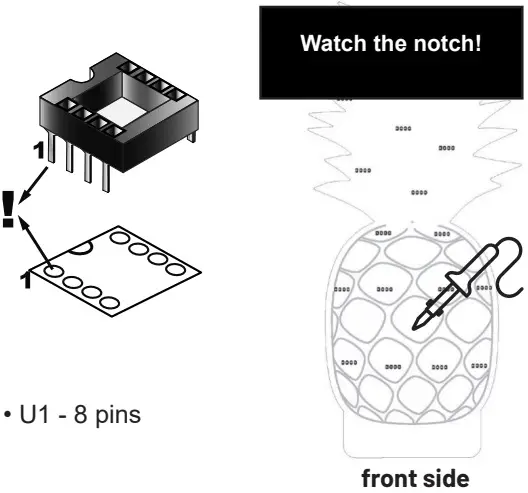

IC socket

• U1 – 8 pins

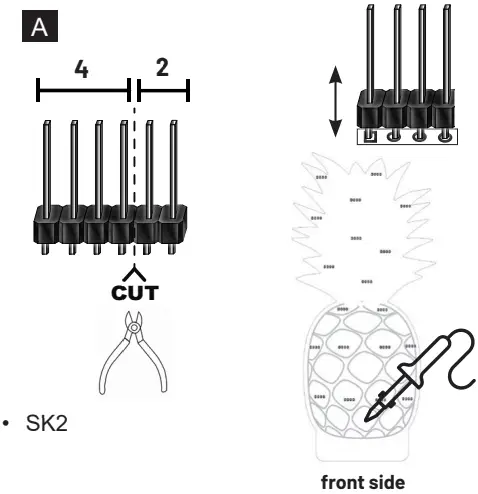

Pin header

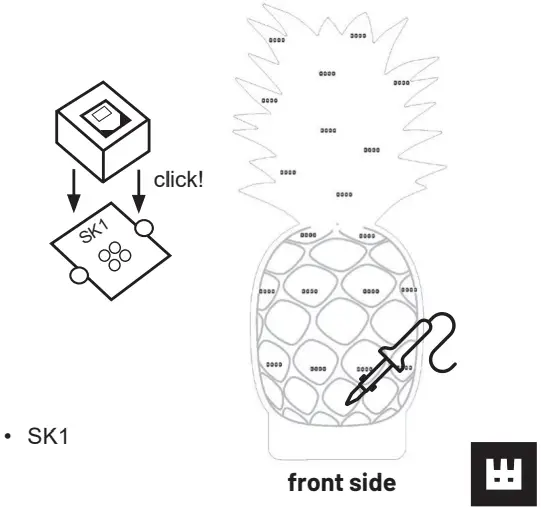

USB connector

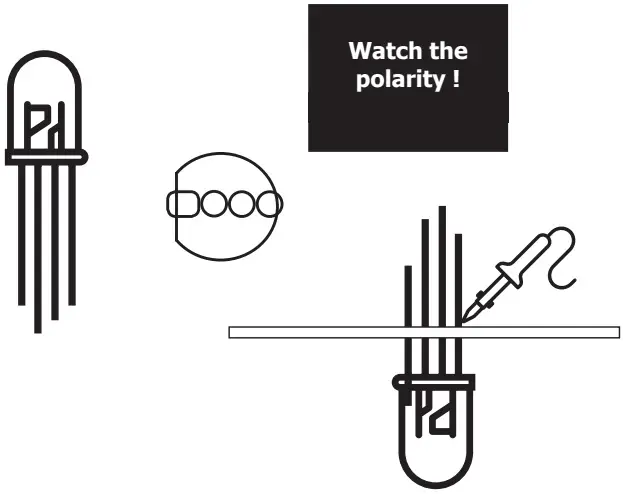

LEDs

• LD1 … LD14: diffused RGB LED – 5 mm
• LD15 … LD19: diffused RGB LED – 8 mm

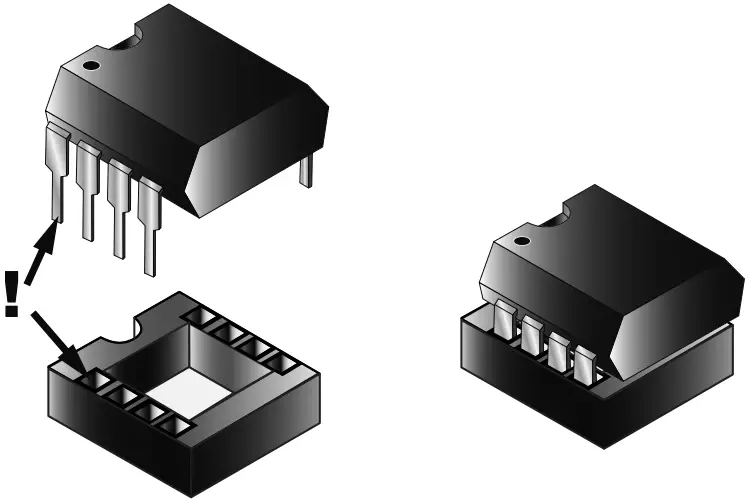

IC

• U1 – ATtiny 85 pre-programmed

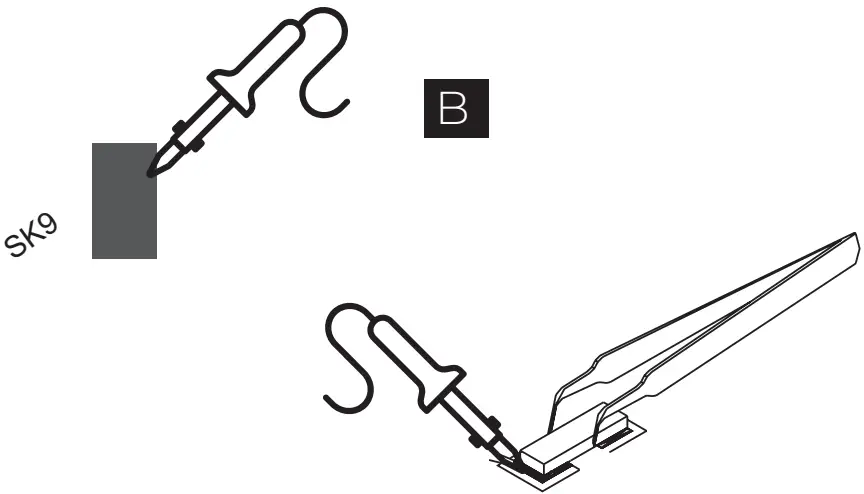

Hooks (optional)

• pre-solder
• SK9 & SK10
