PRECISION HIGH VOLTAGE
High Voltage Drive
Rev. 0 | Mar. 2022
USER GUIDE
PRECISION High Voltage High Voltage Drive

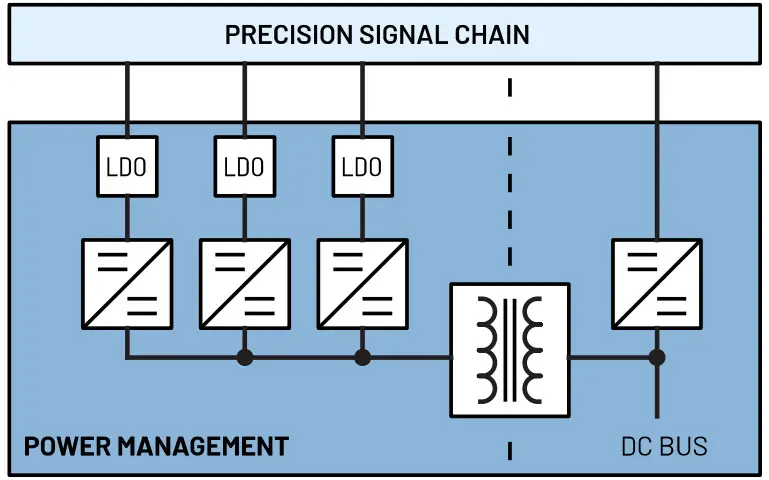

POWER SOLUTIONS FOR PRECISION TECHNOLOGY SIGNAL CHAINS
This document is interactive. You can click on any underlined text to navigate through the document.

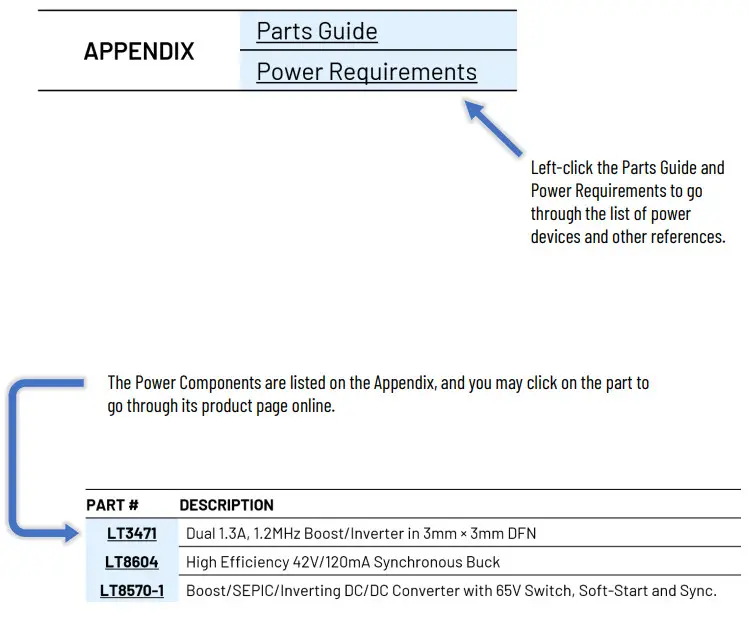

For the resources:

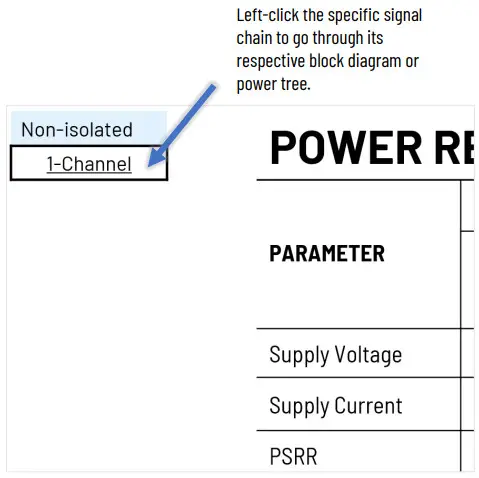

For the individual pages:
Precision High Voltage
High Voltage Drive
| APPENDIX | Parts Guide |
| Power Requirements |
Non-isolated; Multichannel

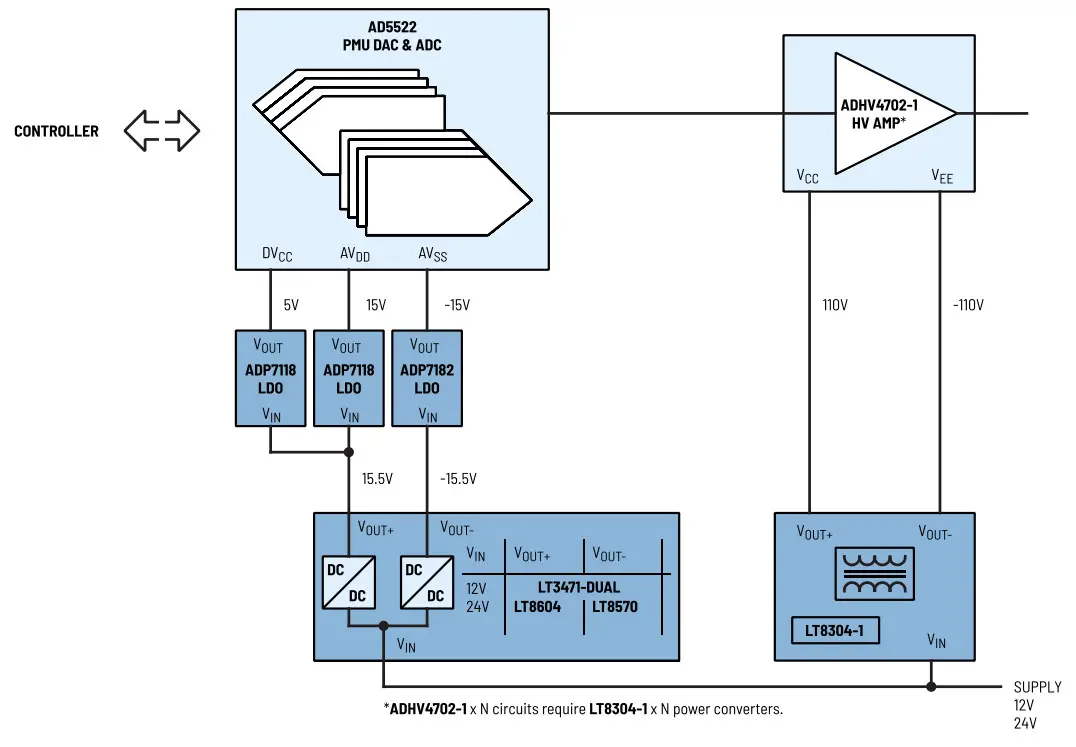

With ADHV4702-1 Driver

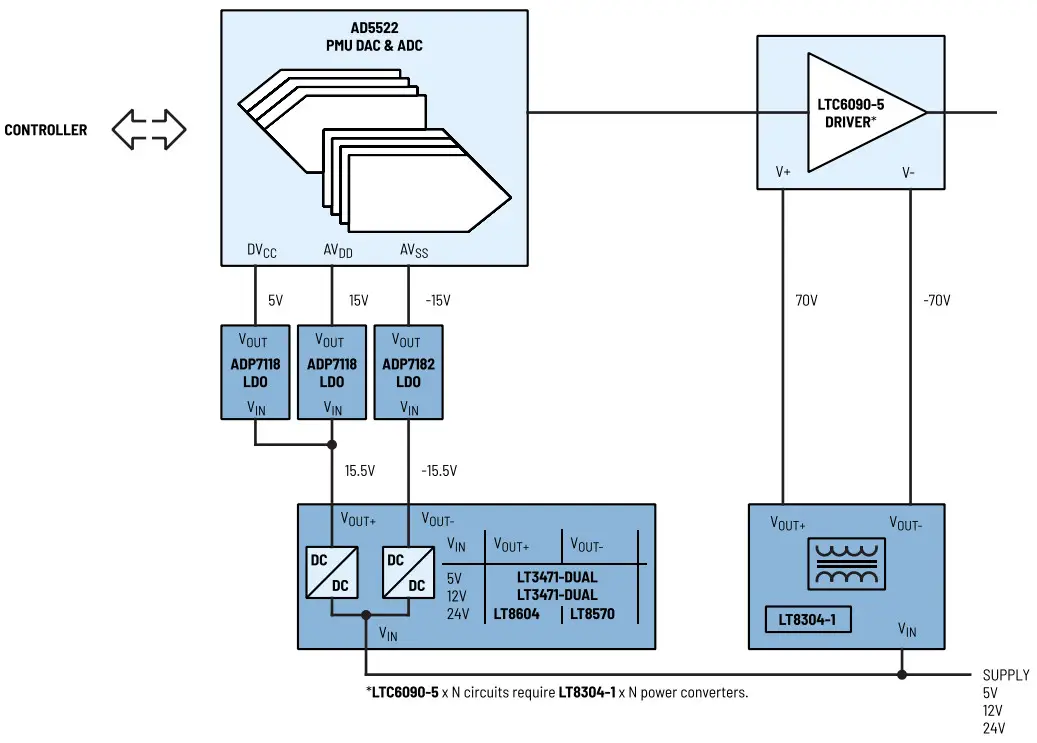

With LTC6090 Driver
With LTC6091 Driver
| PART # | DESCRIPTION |
| LT8304-1 | 100VIN Micropower No-Opto Isolated Flyback Converter with 150V/2A Switch |
| LT3471 | Dual 1.3A, 1.2MHz Boost/Inverter in 3mm ×3mm DFN |
| LT8570 | Boost/SEPIC/Inverting DC/DC Converter with 65V Switch, Soft-Start and Sync. |
| LT8604 | High Efficiency 42V/120mA Synchronous Buck |
| ADP7118 | 20V, 200mA, Low Noise, CMOS LDO Linear Regulator |
| ADP7182 | –28V, −200mA, Low Noise, Linear Regulator |
POWER REQUIREMENTS
| PARAMETER | STAGES | PMU DAC & ADC | Driver | |||
| Part # Pin | AD5522 | [1] ADHV4702-1 [2] LTC6090 [3] LTC6091 | ||||
| AVDD | AVSS | DVCC | VCC/V+ | VEE/V- | ||
| Supply Voltage | V | 15 | -15 | 5 | [1] 110 [2] 70 [3] 70 | -250 |
| Supply Current | mA | 36 | -36 | 1.5 | [1] 3.3 [2] 4.3 [3] 4.3 (per amp) | -3.3 -4.3 -4.3 (per amp) |
| PSRR | dB | 45 (100kHz) | 50 (100kHz) | 80 (100kHz) | [1] 35 (100kHz) [2] 80 (100kHz) [3] 75 (100kHz) | 83 (100kHz) 40 (100kHz) 40 (100kHz) |
Note 1: The supply currents indicated are the maximum quiescent current of the supply rails. For overall full load or short circuit current specifications, refer to the datasheets of the signal chain components.
Note 2: The supply voltages indicated are the values for typical applications.
Note 3: Consult the corresponding datasheets for details on power dissipation if needed.
Note 4: The actual supply current requirement shall be multiplied depending on the number of channels on the signal chain.
©2022 Analog Devices, Inc. All rights reserved.
Trademarks and registered trademarks are the property of their respective owners.
