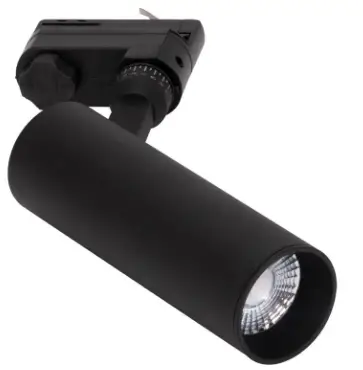

DOMUS Lighting THOR-25 LED 3 Circuit Slim Track Mounted Head Spot Light
Product Information
- Product Name: LED THOR-25
- Manufacturer: Domus Lighting
- Address: 29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
- Phone: 02 9554 9600
- Fax: 02 9554 9433
- Email: [email protected]
- Website: www.domuslighting.com.au
- Variant: THOR-25
- Item No.: [Item number not provided]
Description: LED light fixture
Specifications
- Voltage: 240V AC
- Power: 25W
- Beam Angle: Not specified
- IP Rating: IP20
- CCT: Not specified
- CRI: Not specified
- Lifespan: 50,000hrs
- Dimmable: Yes*
Fully dimmable with suitable dimmers
Product Usage Instructions
- Ensure the power supply is switched off before fitting this product.
- The lamp must be installed by a professional electrician.
- Do not touch the lamp when in use.
- Keep away from hot steam and corrosive gas.
Honeycomb Installation
- Unscrew the baffle anticlockwise and remove it from the fitting.
- Take out the lens holder.
- Place the honeycomb reflector into the baffle, followed by the lens holder.
- Screw the baffle back into the fitting in a clockwise direction.
Thank you for purchasing your new LED THOR-25, Please take the time to read and understand the instruction sheet below. Failure to do so may void the warranty.
| 22410 | 22414 | THOR-25-3-36D | LED Tracklight, 36° beam angle. 3000K warm white. |
| 22411 | 22415 | THOR-25-3-36D | LED Tracklight, 36° beam angle. 4000K neutral white. |
Specifications
| Voltage: | 240V AC | Lumen (±5%): | Warm White 3000K – 1751lm Neutral White 4000K – 2011lm | Dimmable: | Yes* |
| Power: | 25W | Beam Angle: | 36° | Operating Temp: | –20°C~50°C |
| IP Rating: | IP20 | CCT: | 3000K – 4000K | Lifespan: | 50,000hrs |
| CRI: | ≥90 | ||||
| *Fully dimmable with suitable dimmers | |||||

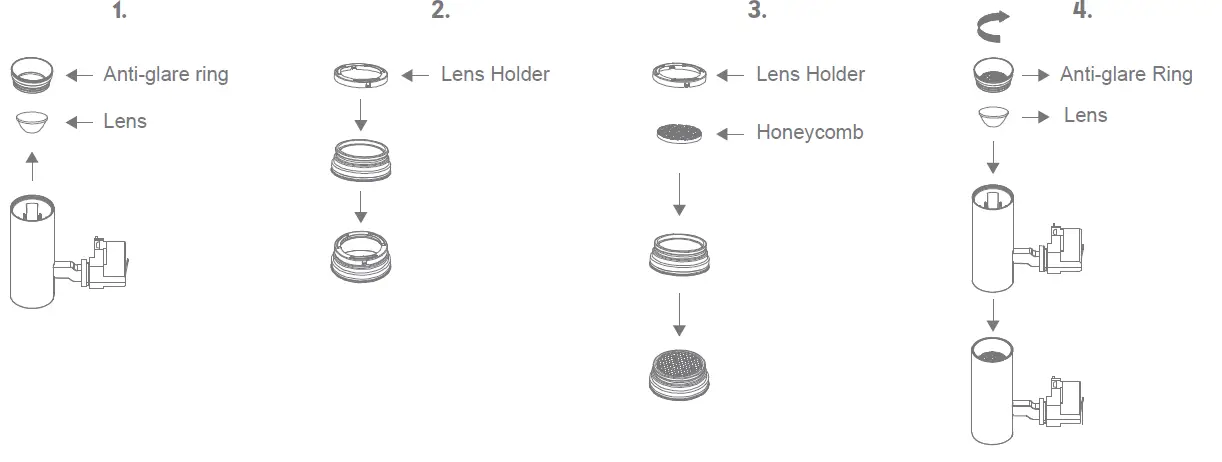

Honeycomb Installation
- Unscrew the baffle anticlockwise, and remove it from the fitting.
- Take out the lens holder.
- Place the honeycomb reflector into the baffle followed by the lens holder.
- Screw the baffle back into fitting in a clockwise direction.
Note
- The lamp must be installed by a professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive
