Victrola Vta-300b Sherwood Bluetooth Music Center User Manual (+ PDF)

Contents hide

1 Victrola VTA-300B Sherwood Bluetooth Music Center

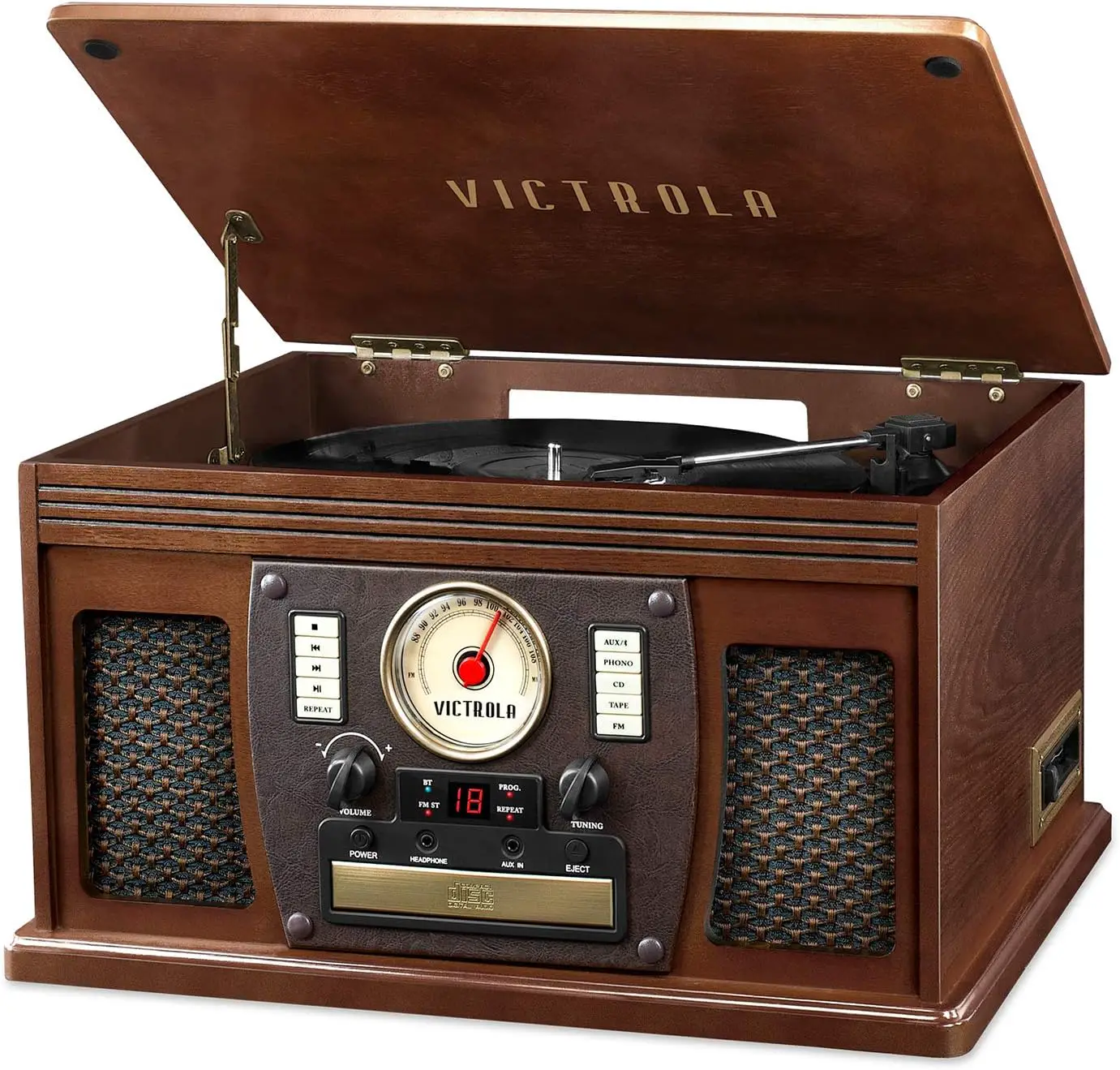

Victrola VTA-300B Sherwood Bluetooth Music Center

Introduction

The Victrola VTA-300B Sherwood Bluetooth Music Center is a versatile and stylish all-in-one music system that combines vintage aesthetics with modern technology. It’s designed to bring a nostalgic feel while offering a wide range of audio playback options, making it suitable for music enthusiasts of all ages. With its classic design and advanced features, the VTA-300B Sherwood is sure to be a centerpiece in any room while delivering exceptional audio performance

Specifications

GENERAL

Brand Victrola
Model Victrola VTA-300B
Power Requirements AC 120 V~ 60 Hz
Power Consumption 30W
Dimensions (W x H x D) 453 x 335 x 243mm | 17.8 x 13.2 x 9.6 in (approx.)
Weight 7.65 kg. | 16.86 lbs (approx.)

AMPLIFIER

Output Power 5 W + 5 W
Frequency Response 60 to 20,000 Hz

SPEAKER SYSTEM

Type 2-way
Impedance 8 ohms
Input Power Max. 7W

FM RADIO

Range 88 to 108 MHz

CD PLAYER

Frequency Response 60 to 20,000 Hz +/-4 dB
Signal-to-Noise Ratio 55 dB (IEC-A)

CASSETTE PLAYER

Track System 4 Track, 2-channel stereo
Tape Speed 4.8 cm/sec
Wow and Flutter 0.4% (WRMS)
Frequency Response 125 to 6300 Hz +/-6 dB

RECORD PLAYER

Motor DC servo motor
Drive System Belt Drive
Speeds 33-1/3 rpm, 45 rpm and 78 rpm
S/N Ratio More than 50 dB
Cartridge Type Ceramic Stereo Cartridge
Stylus ITNP-LC1

BLUETOOTH

Bluetooth Version Bluetooth V2.1+EDR
Bluetooth Profiles A2DP, AVRCP
Bluetooth Frequency range 2.402GHz-2.480GHz
Operating Distance 10 meters (33 ft.)

USB

Type USB series B connector
Recording USB to PC recording for vinyl record
Full-Speed USB 2.0 full speed

Features

Vinyl Record Player: The VTA-300B Sherwood features a high-quality turntable capable of playing 33 1/3, 45, and 78 RPM vinyl records.
Bluetooth Connectivity: Easily connect your smartphone, tablet, or other Bluetooth-enabled devices to wirelessly stream music.
CD Player: Enjoy your favorite CDs with the built-in CD player.
USB Playback: Play digital audio files directly from a USB drive for added convenience.
FM Radio: Tune in to your favorite FM radio stations with the built-in rotary analog tuner.
Built-in Stereo Speakers: The music center comes with powerful built-in stereo speakers that provide excellent sound quality.
Vintage Design: Its vintage-inspired design adds a touch of nostalgia and elegance to any living space.
Wood Cabinet Construction: The wooden cabinet construction enhances audio performance and gives a classic look.
LED Lighting: The LED lighting on the turntable adds a charming glow while playing records.
Remote Control: Conveniently control the music center from a distance with the included remote.
Headphone Jack: Connect your headphones for private listening.
Diamond Stylus Needle: The record player uses a diamond stylus needle for precise tracking and improved audio fidelity.

User Manual

View Fullscreen

FAQ’s

Can I play 78 RPM records on this music center?

Yes, the Victrola VTA-300B Sherwood supports 78 RPM records along with 33 1/3 and 45 RPM.

Does the music center have built-in speakers?

Yes, it comes with powerful built-in stereo speakers, so you don't need external speakers.

Can I connect my smartphone via Bluetooth to play music?

Absolutely, the music center has Bluetooth connectivity for wireless audio streaming from compatible devices.

Is there a headphone jack for private listening?

Yes, the VTA-300B Sherwood has a headphone jack for private listening.

Can I use this system to convert vinyl records into digital files?

No, this music center does not have a built-in feature for vinyl-to-digital conversion.

How do I clean the diamond stylus needle?

Use a soft brush or stylus cleaning brush to gently remove dust and debris from the diamond needle.

Does the music center come with a warranty?

Yes, Victrola typically offers a limited warranty with their products. Please check the warranty details before purchase.

Can I use the USB port to charge my devices?

No, the USB port on this model is only for playback purposes and cannot be used for charging.

How do I switch between different audio sources (vinyl, Bluetooth, CD, etc.)?

The music center usually has a mode selector or input switch button on the front panel or remote control to switch between sources.

Are replacement needles available for the turntable?

Yes, you can usually find replacement needles compatible with the VTA-300B Sherwood online or through authorized dealers.

Does the FM radio support digital tuning?

No, the FM radio on this music center typically uses a rotary analog tuner for tuning stations.

Can I adjust the volume and tone of the audio?

Yes, the music center allows you to adjust the volume and often has tone control knobs for bass and treble adjustments.
