ULINE Manual Stretch Wrap Machine User Manual
Manual Stretch Wrap Machine

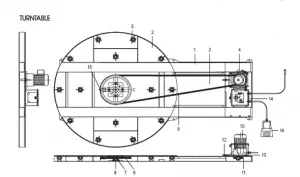

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Frame Weldment | 1 | ———– | 600171 |
| 2 | Turntable Top | 1 | ———– | 503451 |
| 3 | Frame Cover | 1 | ———– | 503452 |
| 4 | Reducer Bolt Strip | 2 | ———– | 503453 |
| 5 | Cam Follower Assembly | 14 | H-2304-5CFA | 702307 |
| 6 | Sprocket Weldment – 72T | 1 | H-2304-06 | 602386 |
| 7 | Thrust Bearing | 1 | H-2304-THRUS | 303703 |
| 8 | King Post Assembly | 1 | H-2304-KING | 700058 |
| 9a | Chain, #50-1 | 13 FT. | H-2304-13CHN | 305029 |
| 9b | Masterlink, #50-1 | 1 | H-2304-CHLNK | 305175 |
| 10 | Gear Motor, 1/2 HP, 40:1 | 1 | H-1287-GEAR | 305357 |
| 11 | Sprocket, 50Btl26h | 1 | ———– | 305943 |
| 12 | 5/16-18 x 3 HH Tap Bolt | 1 | ———– | 203524 |
| 13 | Thick Gear Motor Spacer | 1 | ———– | 503450 |
| 14 | Electrical Controls Assembly | 1 | H-2304-CA | 700503 |
| 15 | Prox Target | 1 | ———– | 503590 |
| 16 | Step Key | 1 | ———– | 503588 |
| Rub Strip (Not Shown) | 2 | ———– | 503589 | |
| 2012-28 MM Bushing (Not Shown) | 1 | ———– | 303911 | |
| Cord Grip (Not Shown) | 1 | H-2304-CORDG | 403384 |
MANUAL STRETCH WRAP MACHINE

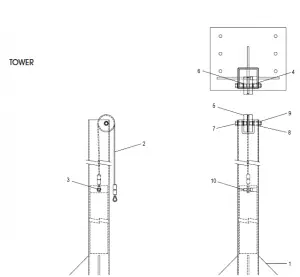

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | 80″ Tower Weldment | 1 | ———– | 646125 |
| 2 | Spiral Cable Assembly | 1 | H-2304-2SCA | 745908 |
| 3 | Counter Weight | 1 | ———– | 526542 |
| 4 | Pulley Spacer | 2 | H-2304-TPULL | 526543 |
| 5 | Pulley | 1 | H-2304-PLLY | 520151 |
| 6 | Bushing | 2 | H-2304-BUSH | 305369 |
| 7 | 3/8-16 x 3.5 HHCS | 1 | ———– | 202629 |
| 8 | 3/8 Flat Washer | 4 | ———– | 204560 |
| 9 | 3/8-16 Nylon Jam Nut | 2 | ———– | 201121 |
| 10 | 5/16-18 x 1.00 SHCS | 1 | ———– | 203660 |
MANUAL STRETCH WRAP MACHINE

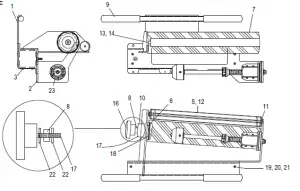

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Handle | 1 | H-2304-HNDL | 602283 |
| 2 | Spiral Carriage Mandrel Weldment | 1 | H-2304-SPRL | 645894 |
| 3 | Nylon Stem Button | 16 | H-2304-STEM | 302969 |
| 5 | Idler Roller Tube | 1 | H-2304-IDTB | 503816 |
| 6 | Coated Roller Friction Pad | 1 | H-2304-PAD | 520029 |
| 7 | Coated Roller | 1 | H-2304-CTDRL | 645906.4 |
| 8 | Urethane Brake Sleeve | 1 | H-2304-RING | 520153 |
| 9 | Handle Grip | 2 | H-295-2 | 309002 |
| 10 | Bearing | 2 | H-2304-78BR | 305607 |
| 11 | Idler Roller Shaft | 1 | H-2304-IDST | 503815 |
| 12 | Bearing | 2 | H-2304-12BR | 304207 |
| 13 | HHCS, 5/16-18 x 3/4 | 2 | H-2304-HHCS | 202317 |
| 14 | 5/16 Lock Washer | 2 | H-2304-14 | 204059 |
| 16 | Knob | 1 | H-2304-HANDL | 309222 |
| 17 | Set Screw, 3/8-24 x 2 | 1 | H-2319-SSCRW | 212054 |
| 18 | Roll Pin, 3/16 x 5/8 | 1 | H-2304-18 | 204161 |
| 19 | SHCS, 1/4-20 x 1″ | 8 | H-2304-SHCS | 203625 |
| 20 | Nut, Nyloc, 1/4-20 | 8 | H-2304-NUT | 201112 |
| 21 | Flat Washer, 1/4 | 16 | H-2304-WASH | 204558 |
| 22 | Fender Washer, 3/8 x 1.50 | 2 | H-2304-FWASH | 204800 |
| 23 | Film Mandrel, Complete | 1 | H-2304-MNDL | 702535 |
ELECTRICAL
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Enclosure | 1 | ———– | 404525 |
| 2 | Cord Set- 18 ft. | 1 | H-2303-PCORD | 403051 |
| 3 | Foot Switch Cable | 10 FT. | H-2303-10CBL | 403917 |
| 4 | Foot Switch, Maintained | 1 | H-1287-PEDAL | 403383 |
| 5 | Cord Grip M20 | 1 | ———– | 403389 |
| 6 | Motor Cable – 3 Conductor | 2 FT. | ———– | 402394 |
| 7 | Cord Grip, 1/2” NPT | 2 | ———– | 403790 |
| 8 | Cord Grip Nut, 1/2″ NPT | 3 | ———– | 403779 |
| 9 | Frequency Drive – 1 HP | 1 | H-2303-ACDRV | 408463 |
| 10 | Circuit Breaker – 15A | 1 | H-2303-CB | 404515 |
| 11 | Paddle Switch | 1 | H-2303-TS | 406096 |
| 12 | Cord Grip with Strain Relief | 1 | ———– | 406574 |
