Delonghi Trns0808m Trns Series Portable Oil Filled Radiator Instructions

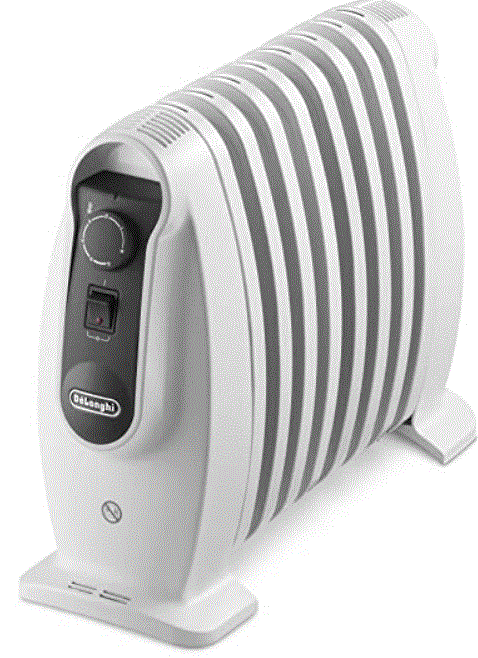

DeLonghi TRNS0808M TRNS Series Portable Oil Filled Radiator

WHAT IS IN THE BOX

ELECTRICAL CONNECTION

• If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

•  If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING – THIS APPLIANCE MUST BE EARTHED

IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:

• Green and yellow: Earth
• Blue: Neutral
• Brown: Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.
• The blue wire must be connected to the terminal marked with the letter N or coloured black.
• The brown wire must be connected to the terminal marked with the letter L or coloured red.

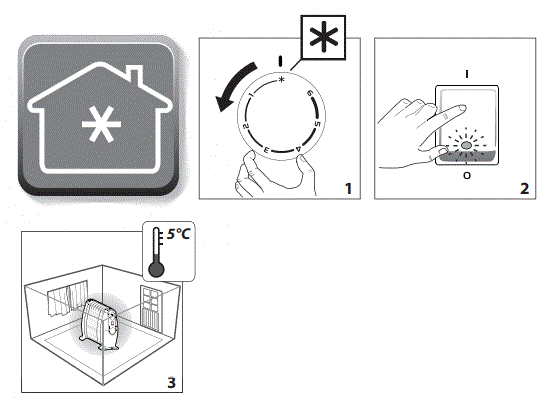

TEMPERATURE

CLEANING

HOW TO CONNECT

HOW TO USE
