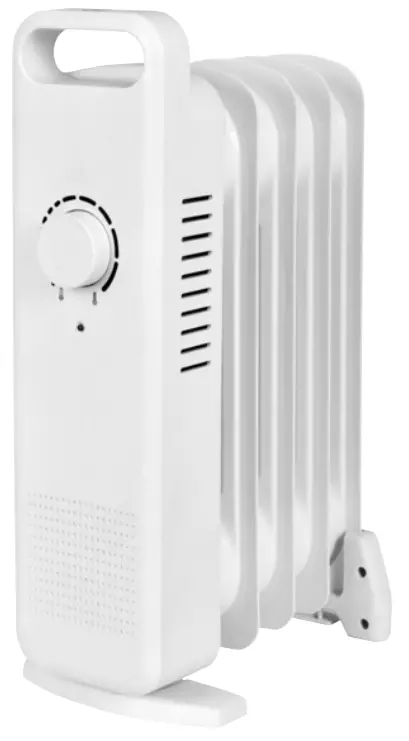

Jula 013886 Oil Filled Electric Radiator Instruction Manual

013886

OIL-FILLED ELECTRIC RADIATOR
OPERATING INSTRUCTIONS
Original instructions
This product is only intended for well-insulated areas, Or sporadic use.

SAFETY INSTRUCTIONS

Read these instructions carefully before use, and save them for future reference.
Always take basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock and/or personal injury.

• This product is only intended for well-insulated areas or sporadic use.
• The product is not suitable for use as a source of primary heating.
• Keep the product under careful supervision when it is used by, or near children.
• Keep children under supervision to make sure they do not play with the product.
• Keep the power cord away from heat, sharp edges, and moisture. Keep the power cord out of the reach of children.
• Do not use or place the product on, or near hot surfaces.
• Do not use the product if it is damaged or not working properly, or if the power cord or plug are damaged. If the power cord or plug are damaged they must be replaced by an authorized service center to ensure safe use.
• The product is only intended for indoor use. Do not use the product outdoors.
• Wipe off any residual oil from the product.
• Pull out the plug when the product is not in use.
• Do not place the product directly below a power outlet.
• Do not expose the product to moisture. Do not use the product near a bath, shower, or swimming pool.
• Never open the oil reservoir. Repairs must be carried out by an authorized service center. Contact the retailer immediately in the event of any oil leakage. Wipe off any residual oil from the product.
• Never remove the control panel.
• The timer knob must only be turned smoothly clockwise as shown by the arrow. The timer will be damaged if it is forcefully turned anticlockwise.
• This product can be used by children from 8 years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved with its use. Do not allow children to  play with the product. Do not allow children to clean or maintain the product without supervision.
• The product is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it,  unless they have received instructions concerning the use of the product from someone who is responsible for their safety.
• Do not dismantle the product or attempt to modify, or repair it.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches it on automatically, because there is a fire risk if the heater is covered over or incorrectly positioned.
• Recycle products that have reached the end of their useful life according to local regulations.
• This heater does not have a device to control the room temperature. Do not use this heater in small rooms where there are people who cannot leave the room on their  own unless they are under constant supervision.

WARNING!

• Do not cover the product with clothes or anything else, this can result in overheating — fire risk.
• Do not place the product closer than 90 cm to furniture, curtains or other flammable materials.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded products in accordance with local regulations.

TECHNICAL DATA

DESCRIPTION

• The oil is warmed up by the heater element and circulates through the radiator, where it emits heat to the air in the room.
• Convenient, silent, safe and elegant, and does not cause electromagnetic interference. Can be used as an extra source of heat when necessary

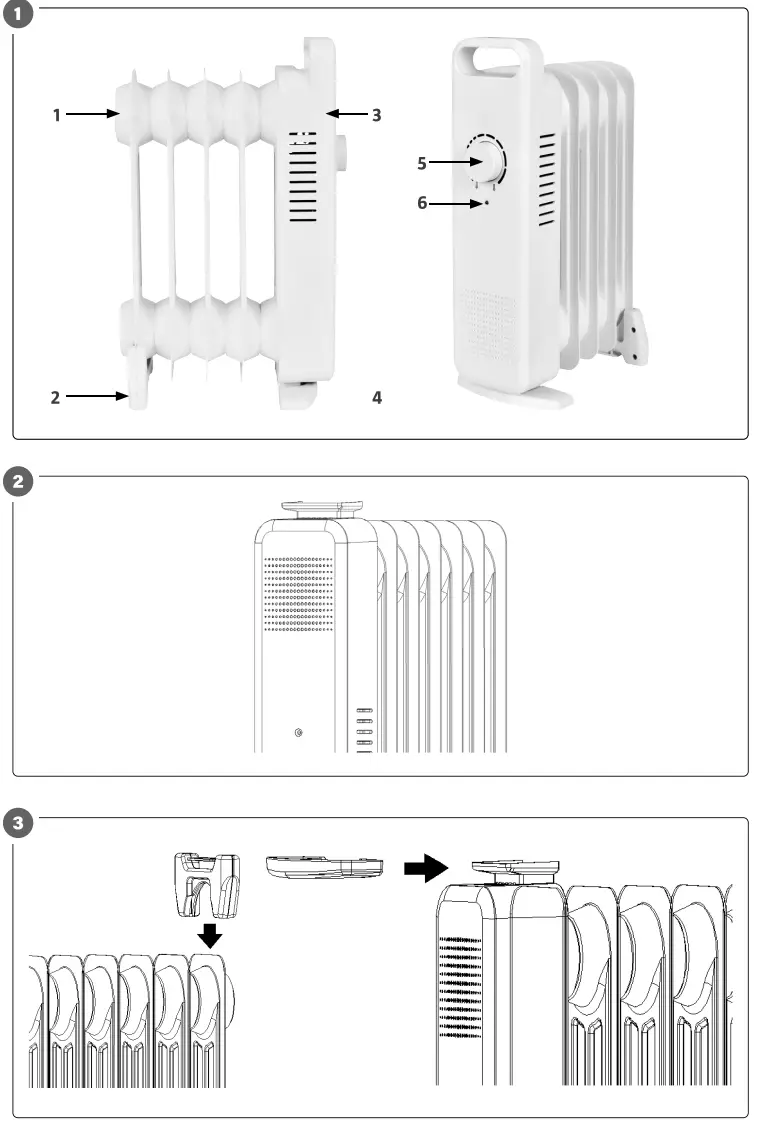

PARTS

1. Radiator segment
2. Back foot
3. Control unit
4. Front foot
5. Temperature control
6. Status light
   FIG. 1

ASSEMBLY

1. Remove all parts from the packaging.
2. Turn the product upside down. 2
3. Press the front foot on the bottom of the control unit.
4. Press the back foot on the radiator segment on the opposite end.
   FIG. 3

HOW TO USE

POSITIONING

1. Check that the temperature control is set to 0 and the switch is switched off. Plug in the plug.
2. Set the required temperature with the temperature control. Turn the temperature control clockwise for higher temperatures and anticlockwise for lower
3. After use, switch off the switch, turn the temperature control to 0 and pull out the plug.

NOTE:

• Do not place the product closer than 90 cm to furniture, curtains or other flammable materials.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
• Switch off the product, pull out the plug, and wait until the product has completely cooled before moving it. Use the handle to move the product.

MAINTENANCE

CLEANING

1. Pull out the plug before cleaning and when the product is not in use.
2. Wipe the product with a damp cloth and wipe dry with a dry cloth.

NOTE:
Do not use wax or polish, this can discolor the product.

Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. it is not allowed to modify or alter this documentation in any way  and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.

WWW.JULA.COM
© JULAAB 2022-06-17
JULA AB
BOX 363, 532 24 SKARA, SWEDEN
