TYMK86KB Mechanical Gaming Keyboard
Instruction Manual
Compatible with: Windows or later

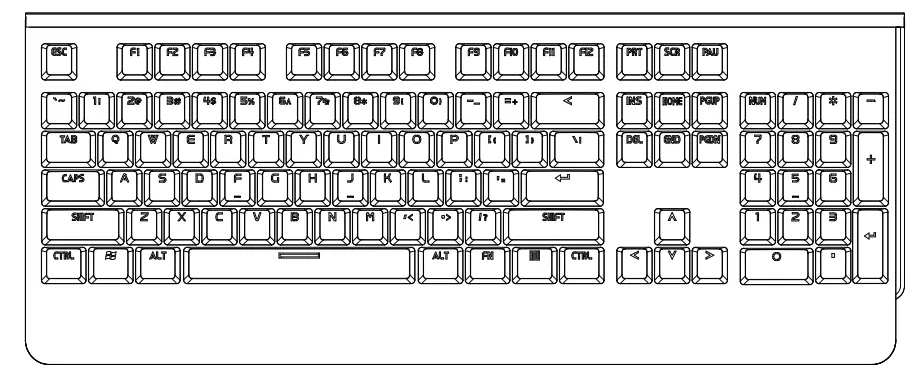

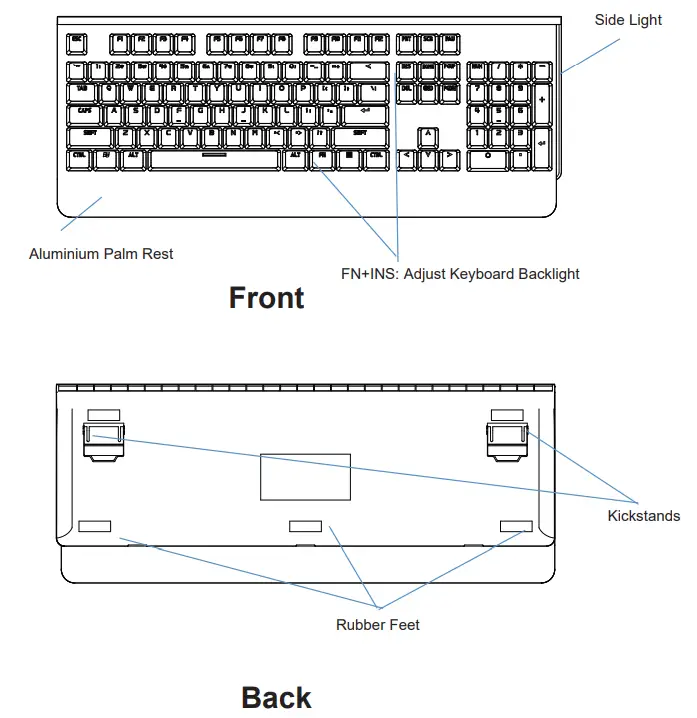

Product Functions
Usage Instructions
Installation
Plug USB cable into computer USB port, the keyboard lights will illuminate.
* FN+INS: Adjust keyboard backlight, total 9 light modes.
* Keyboard backlight brightness adjustment:
FN+ ( ↑↓ ) for backlight brightness adjustment under fixed light mode.
FN+ ( ←→ ) for backlight speed adjustment, total 3 levels under applicable light mode.
* Fn +[ F1 ~ F12]: Multimedia Functions:
| Key Combination | Function | Key Combination | Function |
| Fn+ Fl | Music | Fn+ F7 | Play/Pause |
| Fn+ F2 | Volume- | Fn+ F8 | Next Track |
| Fn+ F3 | Volume+ | Fn+ F9 | |
| Fn+ F4 | Mute | Fn+ F10 | Home |
| Fn+ F5 | Stop | Fn+ F11 | My Computer |
| Fn+ F6 | Previous Track | Fn+ F12 | Calculator |
Product Specifications
- Model: STRIKE MK11
- Officeworks Product Code: TYMK86KB
- Material: Metal top cover + ABS bottom
- Blue switch, 50 million clicks
- Double injection US layout
- 1.5m USB cable with magnet ring
- Working Voltage: USB 5V
- Plug and play
- Dimension: 445*178*41mm
- Weight: 890g ± 20g
Packaging Contents
- Mechanical Gaming Keyboard x 1
- Instruction Manual x 1
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet, refer to service agent or qualified engineer only.
Product Warranty Valid for Australian Customers Only
Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer.
If the product has any defects or does not work as specified during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
This warranty does not apply:
- to cosmetic damage;
- to damage caused by consumables used in connection with the product;
- where the product has not been used in accordance with all provided instructions;
- to damage arising from fair wear and tear;
- where the product has not been subject to reasonable use;
- where the product has been intentionally or negligently damaged; and/or
- if the customer has attempted to repair the product.
To make a claim under this warranty, please return your product with your receipt or proof of purchase to your nearest Officeworks store or contact 1300 633 423.
This warranty is provided in addition to any rights you may be entitled to under the Competition & Consumer Act 2010. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
OFFICEWORKS LTD
236-262 EAST BOUNDARY ROAD
EAST BENTLEIGH VIC 3165 AUSTRALIA
Windows is a trademark of the Microsoft or portion in the United States and other countries.
MADE IN CHINA
