RYOBI
Power Head
Item No. RY40007VNM
Mfg No. 315580101
Repair Sheet
TECHTRONIC INDUSTRIES POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622
Phone 1-800-860-4050
www.ryobitools.com
RYOBI POWER HEAD - ITEM NO. RY40007VNM
2
RYOBI POWER HEAD - ITEM NO. RY40007VNM
The item and manufacturing number will be found on a label attached to the boom assembly. Always mention the item and manufacturing number of your POWER HEAD when requesting service or ordering repair parts.

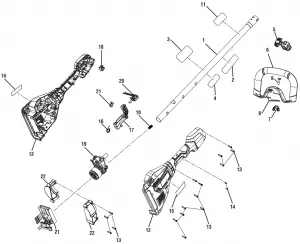

PARTS LIST
| KEY NO. | PART NUMBER | DESCRIPTION | QTY |
| 1 | 205322001 | Upper Boom Assembly (Inc. Key Nos. 2-4 & 11) | 1 |
| 2 | 941013005 | Warning Label (French/Spanish) | 1 |
| 3 | 941013004 | Warning Icon Label | 1 |
| 4 | 941588469 | Data Label | 1 |
| 5 | 315386001 | Boom Clamp Assembly | 1 |
| 6 | 308056009 | Front Handle Assembly (Inc. Key Nos. 7-9) | 1 |
| 7 | 518949001 | Wing Nut (1/4-20) | 1 |
| 8 | 639167001 | Assist Handle Clamp | 1 |
| 9 | 660857001 | Screw (1-1/4-20 x 1 in. Square Hd) | 1 |
| 10 | 690140011 | Compression Spring | 1 |
| 11 | 941851150 | Attachment Capable Label | 1 |
| 12 | 205323001 | Rear Handle Assembly (Inc. Key No. 15) | 1 |
| 13 | 661864007 | Screw (M4 x 18 mm, T15 Torx Pan Hd.) | 16 |
| 14 | 660203052 | Screw (M3 x 8 mm, Pan. Hd.) | 2 |
| 15 | 940705393 | Logo Label | 2 |
| 16 | 694572001 | Compression Spring (Trigger Lock) | 1 |
| 17 | 315841001 | Switch Trigger Assembly w/Lock-Out | 1 |
| 18 | 539255001 | Slide Switch Cover | 1 |
| 19 | 313244001 | Motor & Gear Box Assembly | 1 |
| 20 | 760649003 | Variable Speed Switch | 1 |
| 21 | 313240002 | Electric Controller and Switch Assembly | 1 |
| 22 | 313350001 | Motor Volute Assembly | 1 |
Not Shown
998000156 Operator’s Manual
1-13-20
(Rev:02)
3
RYOBI POWER HEAD - ITEM NO. RY40007VNM

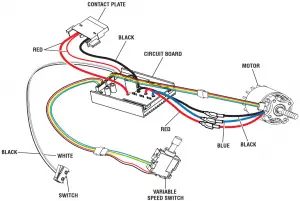

WIRING DIAGRAM
4
RYOBI
Straight Shaft Trimmer
Attachment with 3-in-1
Trimmer Head Accessories
Model Nos. RY15526, RY15526VNM
Mfg Nos. 311247005, 311247101
Repair Sheet
TECHTRONIC INDUSTRIES POWER EQUIPMENT
P.O. Box 1288, Anderson, SC 29622 USA
1-800-860-4050 · www.ryobitools.com
RY15526, RY15526VNM TRIMMER ATTACHMENT
2
RY15526, RY15526VNM TRIMMER ATTACHMENT
The model number will be found on a label attached to the motor housing. Always mention the model number of your STRING TRIMMER when requesting service or ordering repair parts.

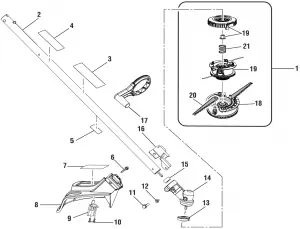

PARTS LIST
| KEY NO. | PART NUMBER | DESCRIPTION | QTY |
| 1 | 315614001 | Stringhead Reel Assembly (Inc. Key Nos. 18-21) | 1 |
| 2 | 311247008 311247009 | Straight Shaft Assembly (RY15526, Inc. Key Nos. 3-5) Straight Shaft Assembly (RY15526VNM, Inc. Key Nos. 3-5) | 1 1 |
| 3 | 940749005 | Warning Icon Label | 1 |
| 4 | 941851149 | Ryobi EXPAND-IT Label | 1 |
| 5 | 941588453 941588468 | Data Label (RY15526) Data Label (RY15526VNM) | 1 1 |
| 6 | 660738002 | Screw (1/4-20 x 1-1/4 in., Hex Washer Hd.) | 1 |
| 7 | 940705021 | Logo Label | 1 |
| 8 | 313285005 | Grass Deflector Assembly (Inc. Key Nos. 6-7 & 9-10) | 1 |
| 9 | 638016003 | Line Cut-off Blade | 1 |
| 10 | 662148001 | Screw (M4.5 mm x 1 mm, Pan Hd.) | 2 |
| 11 | 660642001 | Screw (1/4-20 x 1-1/4 in., Hex Washer Hd.) | 1 |
| 12 | 660641001 | Screw (10-24 x 5/8 in., Hex Washer Hd.) | 1 |
| 13 | 678011001 | Flanged Washer | 1 |
| 14 | 308210009 | Gear Head | 1 |
| 15 | 518367001 | Spacer | 1 |
| 16 | 638125001 | Grass Deflector Clamp | 1 |
| 17 | 532048001 | Crank Handle | 1 |
| 18 | 314795003 | Fixed Line (0.095 in.) and Blade Housing Assembly | 1 |
| 19 | 314608005 | Bump Feed Trimmer Head Assembly (Inc. Key No. 21) | 1 |
| 20 | 537603002 | Flail Blade | 2 |
| 21 | 679958001 | Compression Spring | 1 |
Not Shown:
995000924 Operator’s Manual
5-1-20
(Rev:02)
3
