INSTRUCTION MANUAL
1006402
Max. carry capacity for light goods: 8 cu. ft. / 0.22 cu. m.
Max. carry capacity for loading: 600 lb / 270 kg
Max. carry capacity for liquid: 158 qt/ 150l
CAUTION: Never inflate tire above 30 PSI (206 Kpa).
IMPORTANT INFORMATION:
Read all instructions prior to assembly.
For ease of assembly, it is recommended that 2 people assemble the wheelbarr ow.
Prior to assembly, lay out all parts on a flat, non-abrasive surface and verify that there are no pieces missing.
TOOLS REQUIRED (NOT INCLUDED)

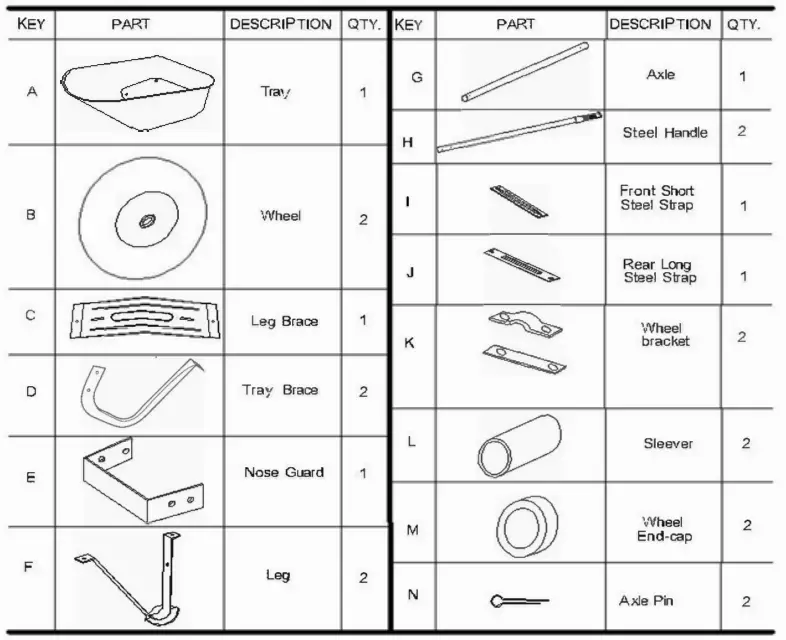

PART LIST

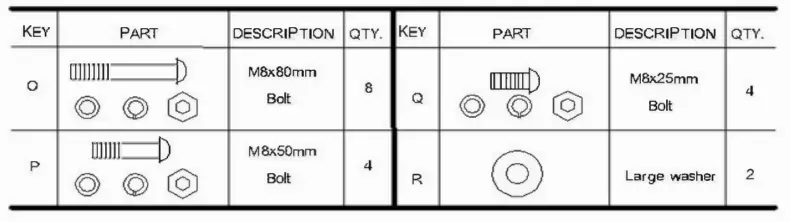

HARDWARE LIST
ASSEMBLY INSTRUCTIONS
Note: Do not completely tighten screws until assembly has been completed.

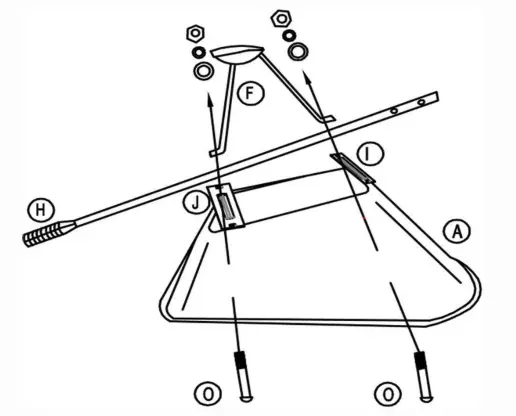

STEP 1
Repeat for second handle
STEP2
Nose guard & tray brace assembly
STEP3

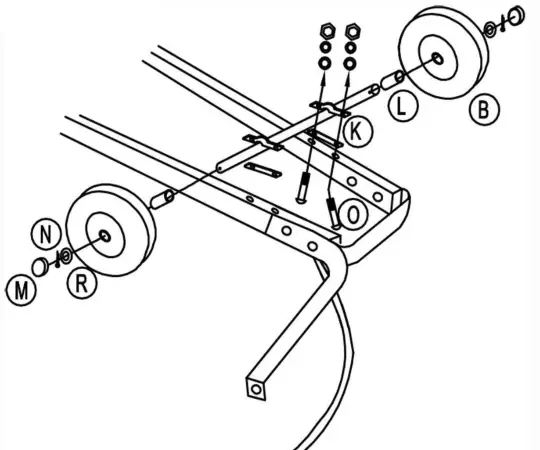

Wheel assembly- Repeat for second leg
STEP4

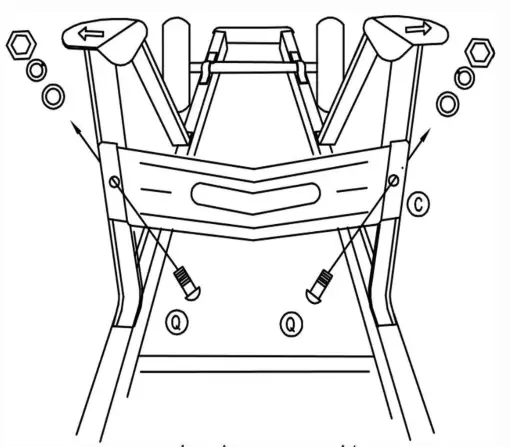

Leg brace assembly
STEP 5

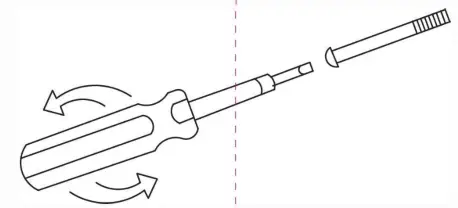

Align parts and tighten all bolts securely for safety
CARE INSTRUCTIONS:
After use, clean with a wet, soft cloth or sponge. Rinse thoroughly. When not in use, store in a dry or sheltered location. If stored outdoors, place upright, upside down, or sideways to ensure water does not collect in the tray to avoid rust formation.
 | ITEM NUMBER: 1006402 |
| DESCRIPTION: 8 cu ft Mega Load Wheel~arrow | |
| INSTRUCTION MANUAL SIZE: 445.5mm0W) x 21 0mm(H) | |
| COLOR: IC+ IC | |
 | MATERIAL: 80gsm Woodfiree Paper |
| FINISHING: – | |
| DATE: Dec 06, 2012 | |
| VERSION: 1.8 | |
| RELEASED DATE: Dec I7, 2012, |
Distributed by:
TRACTOR SUPPLY COMPANY
5401 VIRGINIA WAY
BRENTWOOD,TN 37027
For customer support,
Call:1-888-376-9601
www.TractorSupply.com
MADE IN CHINA
