User’s manual
Customer Service
US: 1-800-645-2986
Global Industrial™
Heavy Duty Wire Meter Counter,
1/16″-1″ Capacity & 1/16″ – 2″ Capacity

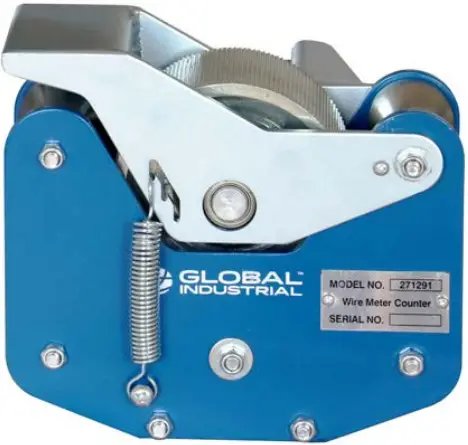

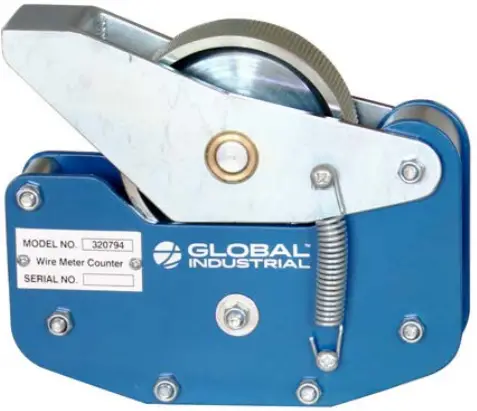

Model: 320794 Model: 271291
Product Details
Model | 320794 | 271291 |
| Assembly Required | Assembled | Assembled |
Material | Steel | Steel |
| Color Family | Blue | Blue |
Description | Meter, 1/16″ – 1″ capacity | Meter, 1/16″ – 2″ capacity |
Wire Meter Counter
| Operating Instructions | Precautions |

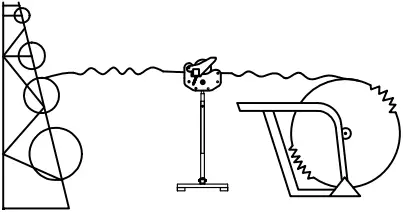

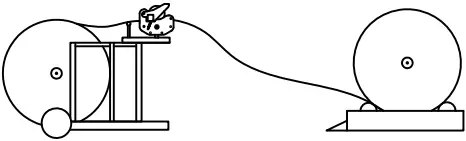

| Keep wire as horizontal as possible. | Do not pull in the wire from extreme highs or lows. |
 |  |

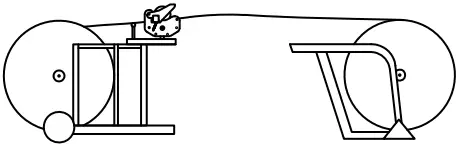

| Slowly pull wire as steadily as possible and pull it over back of payout unit | Make sure there is no vibration or any jerking motion and do not pull wire from front of payout unit |
 |  |

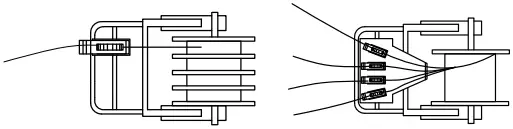

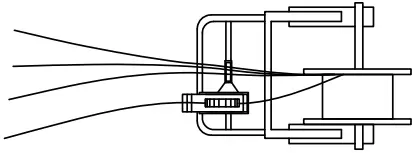

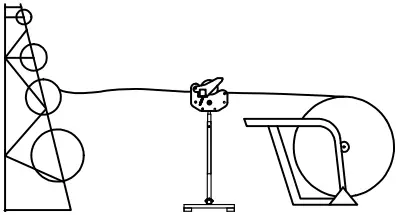

| Either measure each leg by single paralleling with a compartment reel or direct paralleling 4 legs with 4 meters | Do not measure one leg only and bypass all other legs. |
 |  |
WARNING:
- Please pull at consistent speed.
- Pull at speed no more than 1ft/s.
Model: 320794

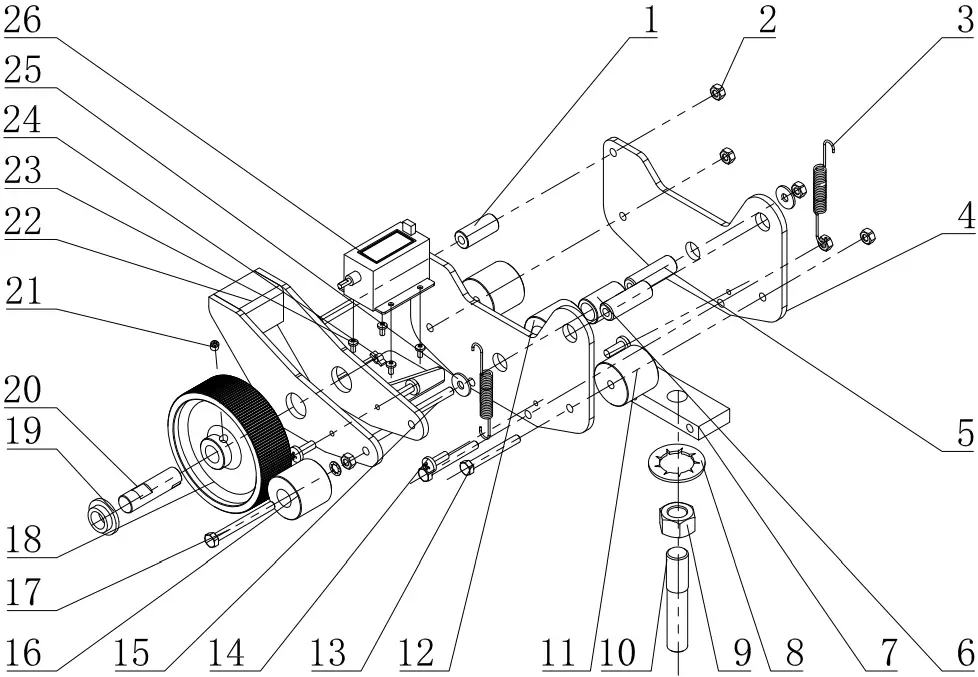

Exploded View
Part List
| No. | Description | Qty |
| 1 | Hollow Shaft A | 1 |
| 2 | Lock Nut M6 | 7 |
| 3 | Tension Spring | 2 |
| 4 | Side Plate | 2 |
| 5 | Hollow Shaft B | 2 |
| 6 | Hollow Shaft C | 1 |
| 7 | Bottom Plate | 1 |
| 8 | Lock Washer 16 | 1 |
| 9 | Nut M16 | 1 |
| 10 | Stud M16 | 1 |
| 11 | Wheel A | 2 |
| 12 | Wheel B | 1 |
| 13 | Hex Bolt M6x50 | 5 |
| 14 | Cross Screw M6x16 | 4 |
| 15 | Hex Bolt M6x55 | 1 |
| 16 | Wheel C | 1 |
| 17 | Hex Bolt M6x60 | 1 |
| 18 | Idler Wheel | 1 |
| 19 | Cap | 2 |
| 20 | Axel | 1 |
| 21 | Set Screw | 1 |
| 22 | Arm Frame | 1 |
| 23 | Cross Screw M3x7 | 4 |
| 24 | Coupling Piece | 1 |
| 25 | Big Washer 6 | 2 |
| 26 | Counter | 1 |
Model: 271291

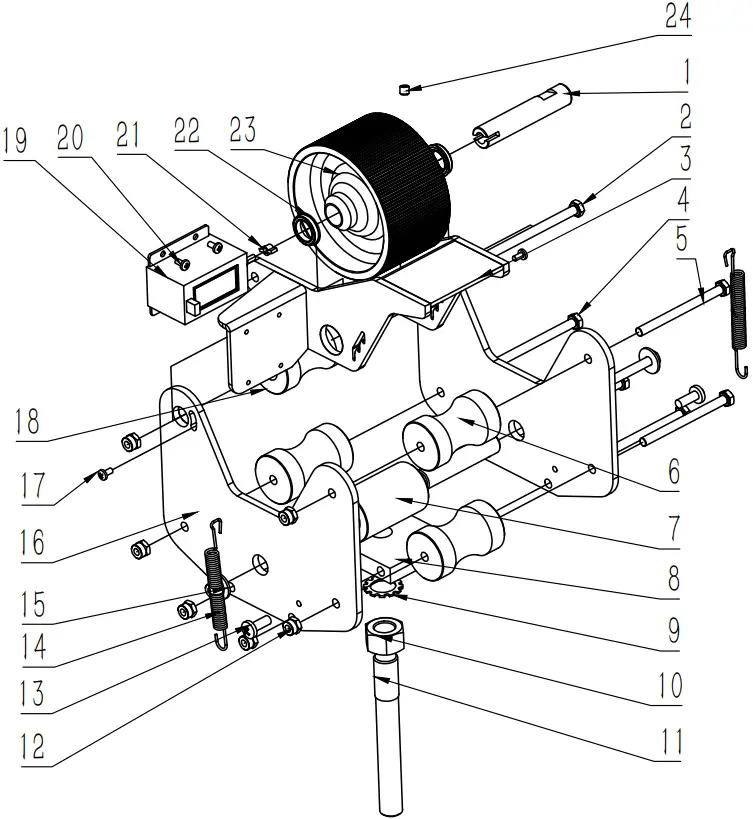

Exploded View
Part List
| No. | Description | Qty |
| 1 | Alxe | 1 |
| 2 | Hex Bolt M6x85 | 1 |
| 3 | Arm Frame | 1 |
| 4 | Hex Bolt M6x80 | 1 |
| 5 | Hex Bolt M6x75 | 5 |
| 6 | Hollow Shaft B | 3 |
| 7 | Hollow Shaft C | 1 |
| 8 | Bottom Plate | 1 |
| 9 | Lock Washer 12 | 1 |
| 10 | Nut M16 | 1 |
| 11 | Stud M16 | 1 |
| 12 | Lock Nut M6 | 7 |
| 13 | Cross Screw M6x16 | 2 |
| 14 | Tension Spring | 2 |
| 15 | Big Washer 6 | 2 |
| 16 | Side Plate | 2 |
| 17 | Cross Screw M4x8 | 2 |
| 18 | Wheel | 1 |
| 19 | Counter | 1 |
| 20 | Cross Screw M3x7 | 4 |
| 21 | Coupling Piece | 1 |
| 22 | Flange bearing | 2 |
| 23 | Idler Wheel | 1 |
| 24 | Set screw | 1 |
