CR101TE Modular Twilight Switch
Instruction Manual
INTERRUTTORE CREPUSCOLARE MODULARE CON SPEGNIMENTO TEMPORIZZATO
DIN RAIL MOUNT TWILIGHT SWITCH WITH DELAYED SWITCH-OFF

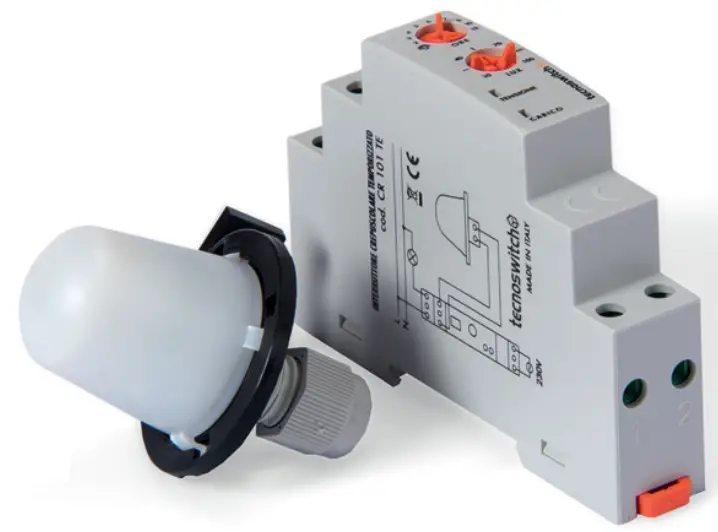

CR101TE Modular Twilight Switch
CONFORME ALLE NORME
IN CONFORMITY WITH NORMATIVES
EN 60669-1, EN 60669-2-1, RoHS
Power supply 230 Vac, 50-60 Hz
DIN rail mount – 1 DIN module
Led for instant signalling of calibration point Intervention threshold 10-100 Lux
1 NO relay output, 16A – 250Vac
IP rating IP20
Switch on delay 7s approx.
Timed shutdown adjust from 2 to 12 hours
Operative temperature 0…+50°C
Twilight probe specs:
IP rating IP65
Operative temperature -20…+50°C
Max distance between probe and central module 100 m
OPERATING MODE

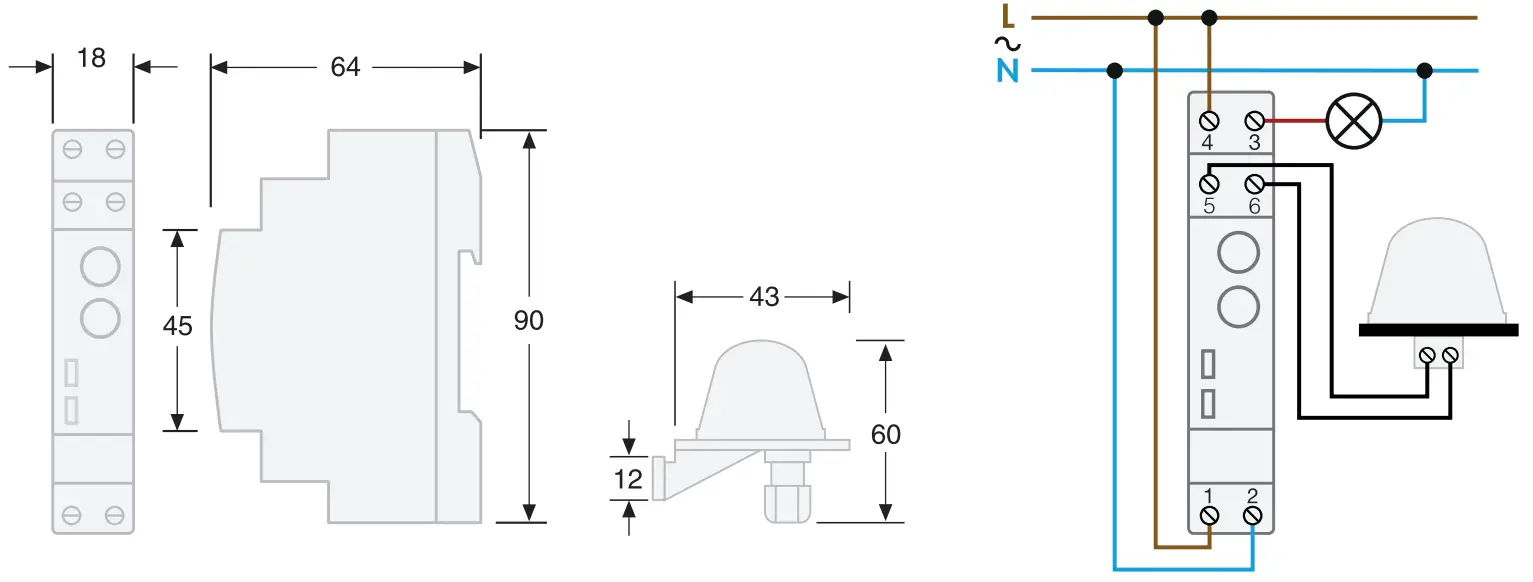

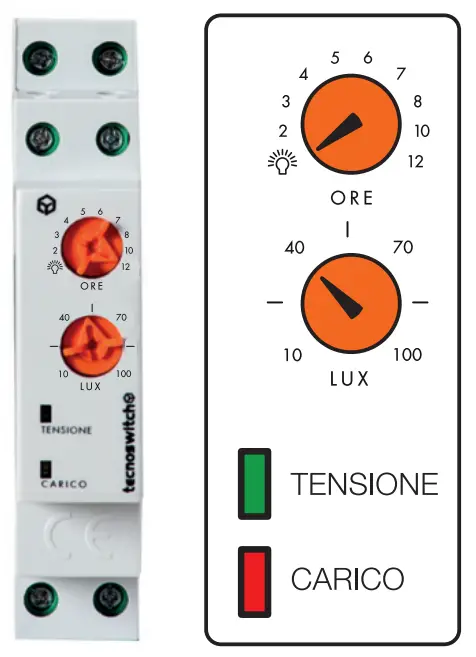

HOURS KNOB
Set the switch-off delay from 2 to 12 hours after load activation. On
position it keeps load always on.
LUX KNOB
Set light threshold for activation of twilight switch. Load only turns on if external light falls below set threshold.
Mains led indicator
Load status. If on, load powered
| CODE | INCANDESCENT | HALOGEN | FLUORESCENT | LED 230V | INTERVENTION THRESHOLD | WEIGHT |
| W | W | W | W | Lux | gr | |
| CR101TE | 2000 | 1000 | 400 | 300 | 1-100 | 110 |
| S0001CR | Replecement twilight probe | 20 | ||||
