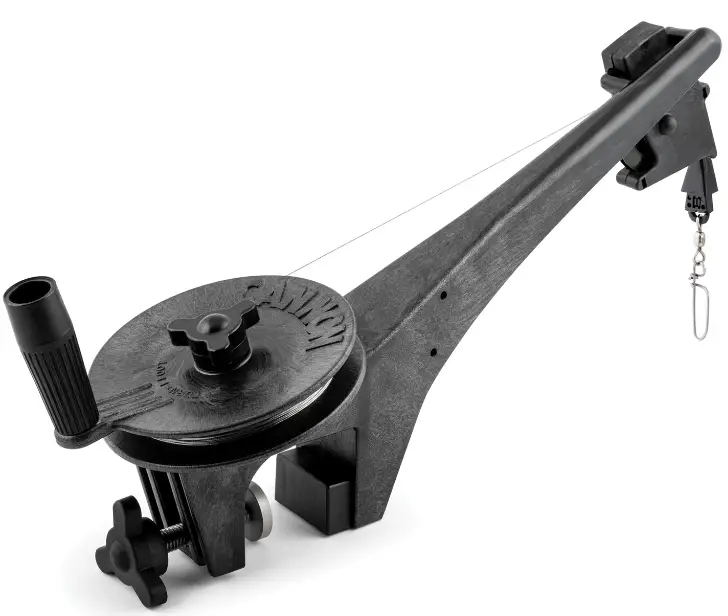

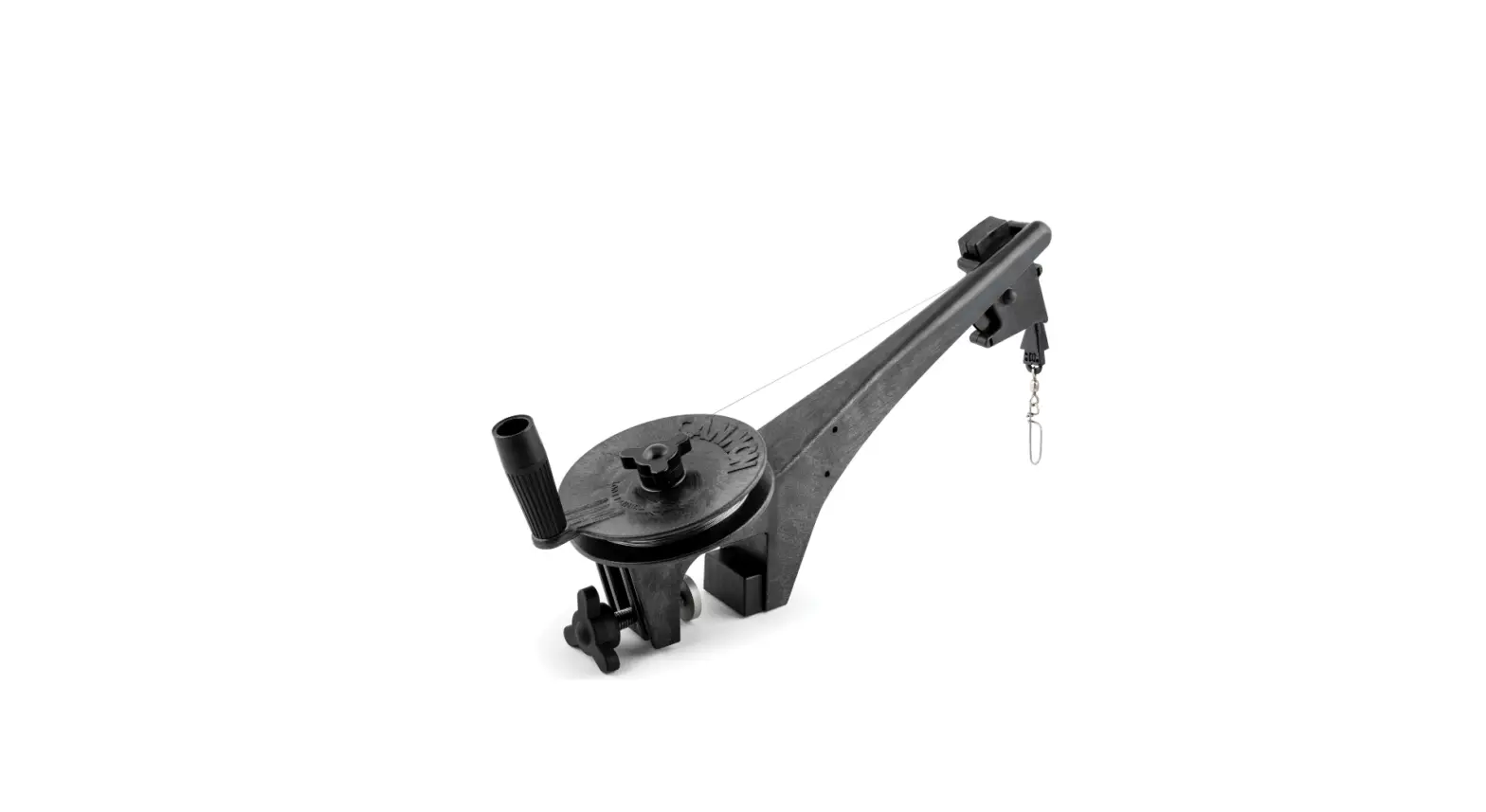

CANNON 1901200 Mini-Troll Manual Downrigger

MOUNTING TO YOUR BOAT

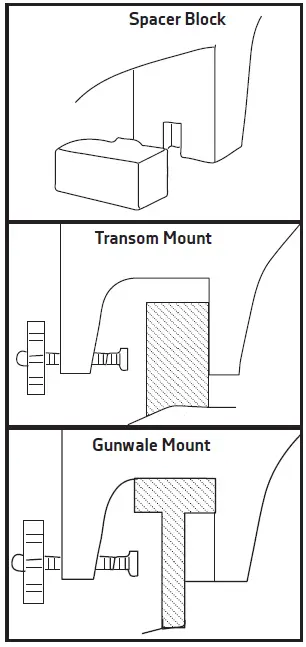

Depending on boat application, the spacer block (supplied) may be required. To attach the spacer block to the main frame, simply slide the dovetail shaped tab of the block into the matching recess in the frame. Make sure that the holes in the block face down.

Transom Mount
Depending on transom width, a wood block may be required to allow the rigger to clamp properly.

Gunwale Mount*
On thin-walled aluminum boats, it is recommended that a wood block be used on the inside of the boat. This will distribute the clamping force to a larger area to prevent possible boat damage. Depending on rail overhang, a wood block may also be required on the outside of the boat.

*We recommend you mount Mini-Troll off the transom of your boat (if possible), so that the weight is being pulled directly behind the downrigger. Mounting your Mini-Troll the gunwale is not recommended as lateral stress on the frame may cause cracking.

TERMINATING THE DOWNRIGGER CABLE

NOTE: Use only straight cable when routing through the terminator. Worn or kinked cable can be stressed and may break prematurely when retrieving trolling weights.
NOTE: A set of pliers with wire cutters is recommended for this part of setup.

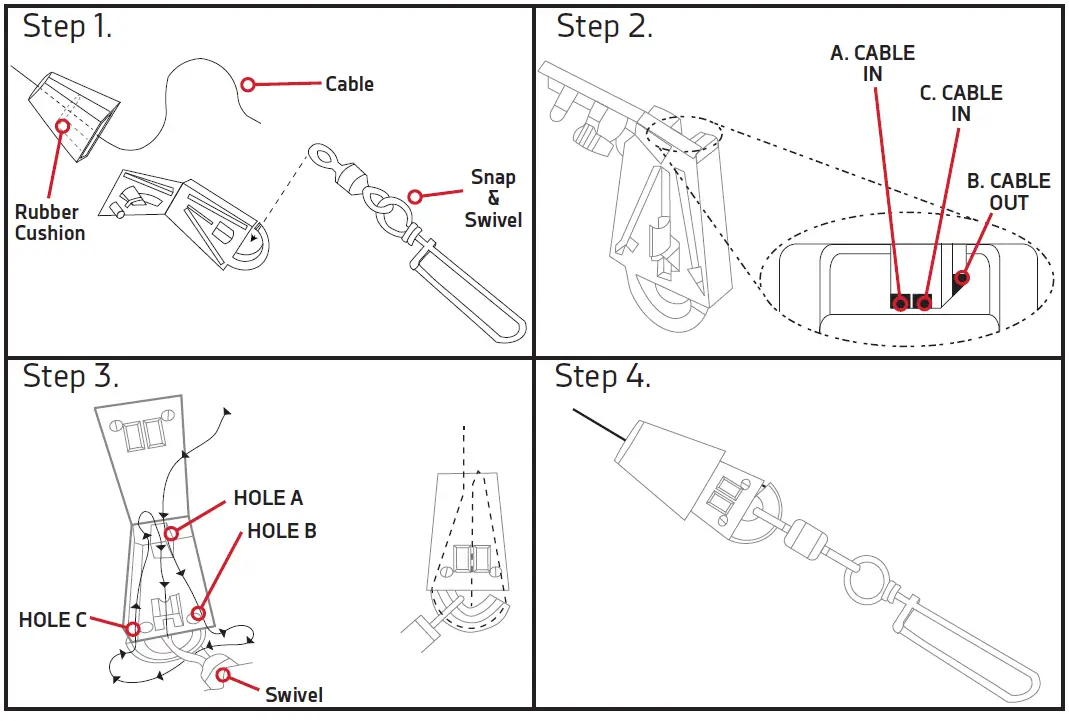

1. Unwind about 2 feet of cable and thread through the rubber cushion. Attach Swivel Snap to terminator.
2. Examine the top of the terminator and note the order shown in the detail to run cable.
3. Lead and pull six inches of cable through HOLE A. Thread cable through swivel, then up into bottom of the terminator. Lead cable out of HOLE B and into HOLE C. Push the cable until its end touches the inside of the terminator hook. Tighten cable by squeezing terminator until it snaps HOLE C shut. Then pull at top and bottom until drawn tight. Make sure that the cable threads the hook.
   NOTE: Use only straight cable, not kinked cable.
4. Slide the cushion over the top of the terminator and give it a test pull. The cable is now set to attach a Cannon Flash Weight™.

FISHING WITH THE MINI-TROLL DOWNRIGGER

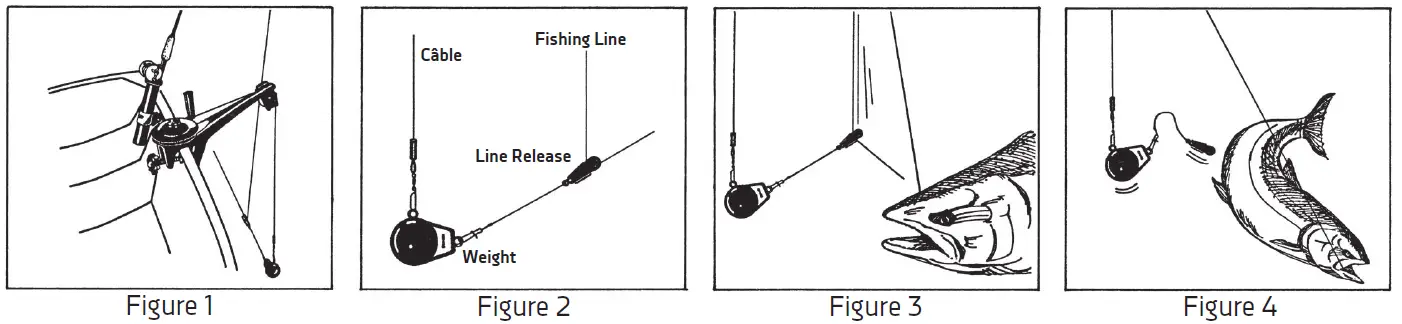

1. The downrigger should be clamped to a solid and secure position on the transom of the boat. (Figure 1)
2. Use the Mini-Troll with a 4-lb. weight and line release (Figure 2), and rod holder. All are available in the Mini-Troll Accessory Pack (Part #2250005, sold separately). Attach the weight to the downrigger cable, and the release to the weight. Put the rod in the holder and clip your fishing line between the release pads.
3. Put your fishing reel into free spool so that the fishing line will be released as the downrigger weight is lowered.
4. With one hand on the downrigger reel handle, loosen the adjustment knob at the top center of the reel and lower the weight by turning the reel handle clockwise. One rotation of the reel equals 1 foot of depth. Do not let go of the reel handle while lowering the weight.
5. Once the weight is at the desired depth, tighten the adjustment knob to hold the cable in place.
6. Retrieve enough of the fishing line to put a deep bend in the fishing rod.
7. Your lure will trail behind the downrigger weight at your set distance. When you have a strike, the force of the fish striking the lure will pull the fishing line out of the release, detaching it from the weight (Figures 3 & 4). This will cause your rod to spring up, indicating that there is a fish on the line.
8. While you play the fish on the free line, the downrigger weight should be raised using the cable reel to avoid tangles. To retrieve the weight, loosen the adjustment knob and turn the cable reel handle clockwise. Once retrieved, tighten the adjustment knob to hold the weight out of the water..

cannondownriggers.com

Cannon Consumer & Technical Service Johnson Outdoors Marine Electronics, Inc. PO Box 8129
Mankato, MN 56002-8129

121 Power Drive Mankato, MN 56001
Phone (800) 227-6433 Fax (800) 527-4464

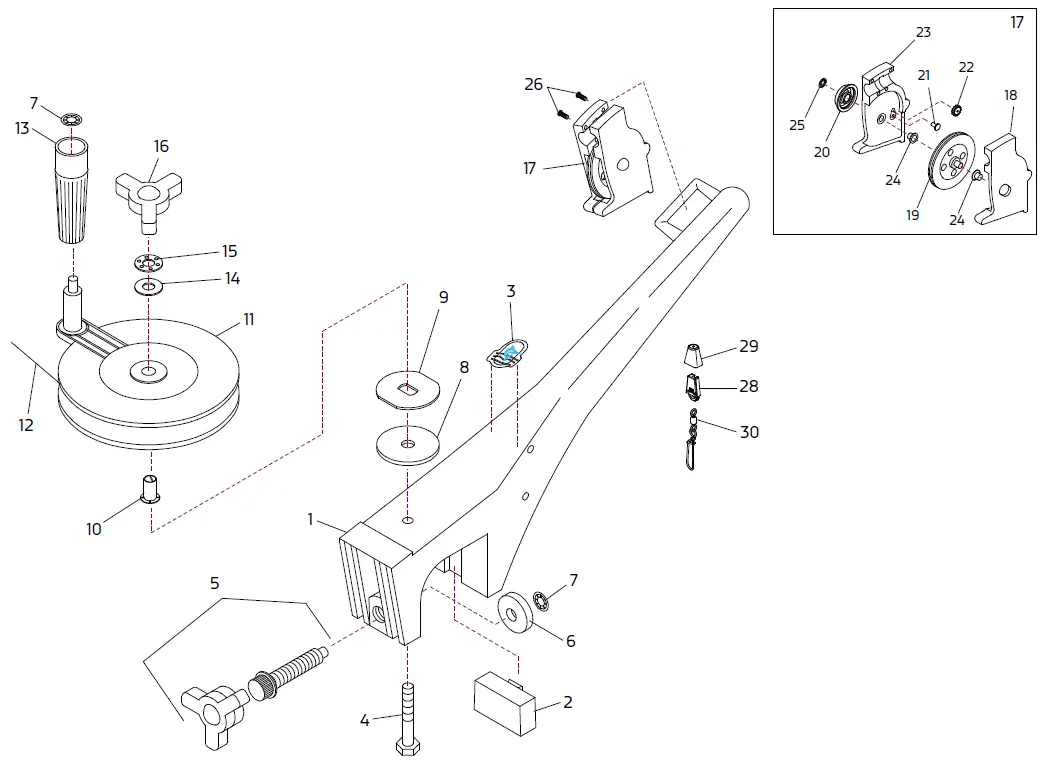

PARTS DIAGRAM & LIST

MINI-TROLL MANUAL DOWNRIGGER
This page provides Cannon® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
Tools required, but not limited to:flat head screw driver, Phillips screw driver, socket set, pliers, wire cutters.

CANNON LIMITED WARRANTY

Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not transferable.

CANNON® LIMITED LIFETIME WARRANTY

JOME warrants to the original purchaser that if the accompanying product (see exclusions below) proves to be defective in material or workmanship within the following warranty periods, JOME will, at its option, either repair or replace same without charge (but no cash refunds will be made):
The boom, motor (if applicable), and reels, plus all plastic parts, including but not limited to frames and bases, will be free from defects in materials and workmanship, subject to normal wear and tear, for the original purchaser’s lifetime. All other items will have 1-year limited warranties from the date of original retail purchase, except THE FOLLOWING ITEMS THAT HAVE NO WARRANTY: swivel lock pin, weights, and wire cable.

LIMITATION AND EXCLUSION OF IMPLIED WARRANTIES AND CERTAIN DAMAGES

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. JOME DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES, AND IN NO EVENT SHALL ANY IMPLIED WARRANTIES (EXCEPT ON THE BOOM, MOTOR, REELS, AND ALL PLASTIC PARTS), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND ONE YEAR FROM THE DATE OF PURCHASE (AND IN THE CASE OF THE SWIVEL LOCK PIN, WEIGHTS, AND WIRE CABLE, JOME DISCLAIMS ALL IMPLIED WARRANTIES). THIS WRITING CONSTITUTES THE ENTIRE AGREEMENT OF THE PARTIES WITH RESPECT TO THE SUBJECT MATTER HEREOF; NO WAIVER OR AMENDMENT SHALL BE VALID UNLESS IN WRITING SIGNED BY JOME.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

CANNON® SERVICE POLICY

AFTER THE APPLICABLE WARRANTY PERIOD

After the applicable warranty period, or, if one of the above exclusions applies, Cannon® products will be repaired for a charge of parts plus labor. All factory repairs, after the applicable warranty period, carry a 90-Day Limited Warranty, subject to the exclusions and limitations stated above.

TO ENFORCE WARRANTY OR TO OBTAIN REPAIRS AFTER WARRANTY

To obtain warranty service in the U.S., the downrigger believed to be defective and the proof of original purchase (including the date of purchase) must be presented to a Cannon® Authorized Service Center or to Cannon®’s factory service center in Mankato, MN. Except as noted below, any charges incurred for service calls, transportation or shipping/freight to/from the Cannon® Authorized Service Center or Cannon®’s factory, labor to haul out, remove, re-install or re-rig products for warranty service, or any similar items are the sole and exclusive responsibility of the purchaser. Warranty service can be arranged by contacting a Cannon® Authorized Service Center or by contacting the factory at 1-800-227-6433 or by email to [email protected]. If the necessary repairs are covered by the warranty, we will pay the return shipping charges to any destination within the United States. Downriggers purchased outside of the U.S. (or parts of such downriggers) must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Cannon® Service Center in the country of purchase.
NOTE: Do not return your Cannon® downrigger or parts to your retailer. Your retailer is not authorized to repair or replace them.
Major parts, such as the motor and main frame, must be returned to JOME in Mankato, Minnesota, or a Cannon® Authorized Service Center, for repair or replacement. To reduce shipping costs, we suggest removal of loose parts such as the boom and rod holders. Small parts that can be easily removed such as the handle and/or the counter, may be removed from the downrigger and returned for repair or replacement. Retain your sales receipt. Proof of purchase must accompany product when returned.
Return Address: Johnson Outdoors Marine Electronics, Inc., Attn: Cannon Service Dept., 121 Power Drive, Mankato, MN 5600
