MINN KOTA Ultrex 112 Trolling Motor
Product Information

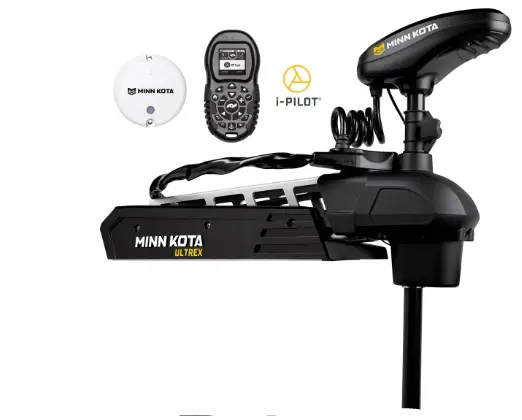

Ultrex Motor
The Ultrex Motor is a powerful motor with 80/112 lbs thrust, available in 24/36 volt options and comes with a shaft length of 45/52/60 inches.
Motor Parts List
| Item | Part # | Description | Quantity |
|---|---|---|---|
| 2 | 2777095 | WASHER-PROP (LARGE) | 1 |
| 4 | 2777243 | NUT-PROP,NYLOC,LG,MX101 3/8 SS | 1 |
Steering Module Parts List
| Item | Part # | Description | Quantity |
|---|---|---|---|
| 202 | J | – | – |
| 204 | 206 | C | – |
Product Usage Instructions
Ultrex Motor Assembly
- Refer to the Motor Parts Diagram for reference.
- Start by assembling the parts in the following order: Q, R, S, T, U, V, W, X, Y, Z, AA, BB, CC, DD, EE, FF, GG, JJ, KK, LL.
- Use the corresponding part numbers mentioned in the Motor Parts List while assembling.
- Ensure that each part is securely attached.
Steering Module Assembly
- Refer to the Steering Module Parts Diagram for reference.
- Start by assembling the parts in the following order: J, C.
- Use the corresponding part numbers mentioned in the Steering Module Parts List while assembling.
- Ensure that each part is securely attached.
Ultrex 80/112 LBS THRUST – 24/36 VOLT – 45”/52”/60” SHAFT
The parts diagram and parts list provides Minn Kota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. Tools required, but not limited to: flat head screwdriver, Phillips screwdriver, socket set, pliers, wire cutters.
Assembly Instructions

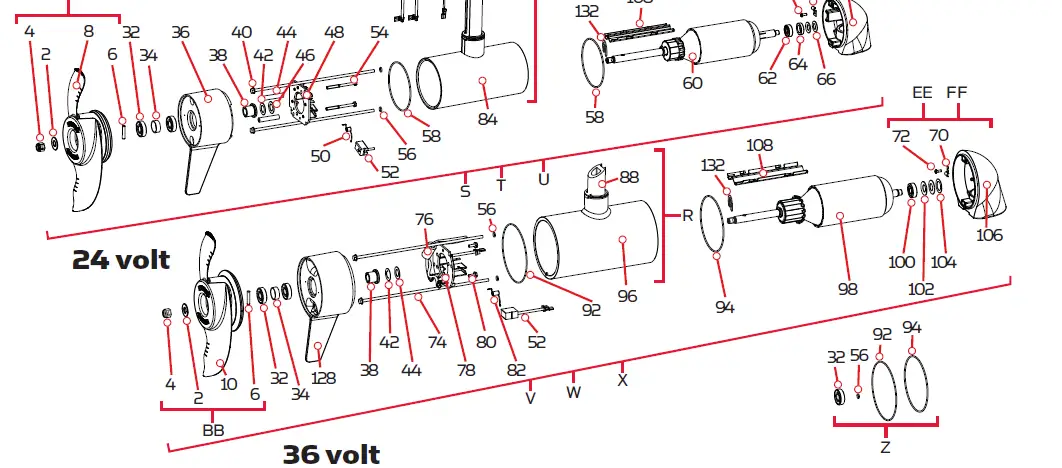

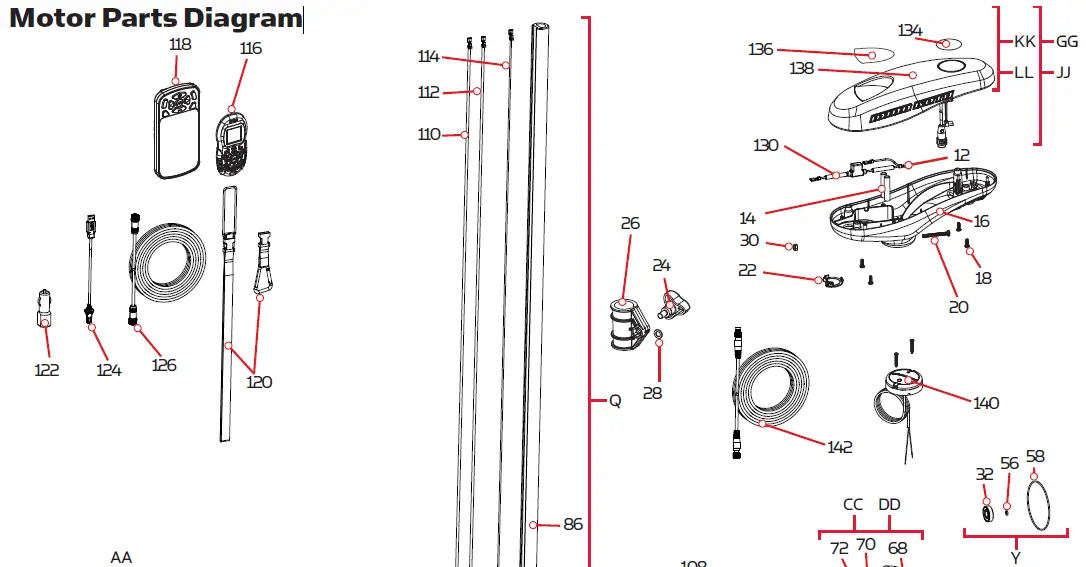

Motor Parts Diagram
Motor Parts List
| Assembly | Part # | Description | Quantity |
| Q | 2777095 | CTR HSG ASY, CB 80#, FW 60″ TUBE | 1 |
| R | 2777243 | CTR HSG ASY, CB 112#, FW, 60″ TUBE | 1 |
| S | 2777005 | 80#/45″ 24V MOTOR US2 *MOTOR & TUBE* | 1 |
| T | 2777003 | 80#/52″ 24V MOTOR US2 *MOTOR & TUBE* | 1 |
| U | 2777017 | MTR/TUBE ASSY 80# 60″ UTX/US2 *MOTOR & TUBE* | 1 |
| V | 2777089 | MTR/TUBE ASSY 112# 45″ UTX/US2 *MOTOR & TUBE* | 1 |
| W | 2777080 | MTR/TUBE ASY 112# 52″ TRRV/US2 *MOTOR & TUBE* | 1 |
| X | 2777088 | MTR/TUBE ASY 112# 60″ UTX/US2 *MOTOR & TUBE* | 1 |
| Y | 2889460 | 80# THRUST SEAL KIT | 1 |
| Z | 2881450 | 112# THRUST SEAL KIT | 1 |
| AA | 1378132 | 80# THRUST PROP KIT | 1 |
| BB | 1378160 | 112# THRUST PROP KIT | 1 |
| CC | 9421-287 | PLN END HSG/TRANSDUCER ASY 4.0 45″ | 1 |
| DD | 9421-290 | PLN END HSG/TRANSDUCER ASY 4.0 52″/60″ | 1 |
| EE | 9421-244 | PLN END HSG/TRANSDUCER ASY 4.5 45″ | 1 |
| FF | 9421-246 | PLN END HSG/TRANSDUCER ASY 4.5 52″/60″ | 1 |
| GG | 2774062 t | MOTOR KIT IPLT 1.6 TRV, ULTREX *I-PILOT RECEIVER* | 1 |
| JJ | 2774064 t | MOTOR KIT, IPLT 3.0 TRV, ULTREX *I-PILOT LINK RECEIVER* | 1 |
| KK | 2770204 t | COVER KIT, IPLT 1.6 TRV, ULTREX *I-PILOT COVER & DECALS ONLY* | 1 |
| LL | 2770211 t | COVER KIT, IPLT 3.0 TRV, ULTREX *I-PILOT LINK COVER & DECALS ONLY* | 1 |
| Item | Part # | Description | Quantity |
| 2 | 2091701 | WASHER-PROP (LARGE) | 1 |
| 4 | 2093101 | NUT-PROP,NYLOC,LG,MX101 3/8 SS | 1 |
| 6 | 2262658 | PIN-DRIVE 1″ X 3/16″ S/S | 1 |
| 8 | 2331160 | PROP-WW2 (4″) W/ADP.RING | 1 |
| 10 | 2341160 | PROP-WW2(4.5)W/ADP.RING | 1 |
| 12 | 2218200 | FUSE HOLDER ASSEMBLY | 1 |
| 14 | 2065400 | WIRE INSULATOR-LGE 1-3/4, BLUE | 2 |
| 16 | 2292500 | CONTROL BOX, ULTREX, T2 | 1 |
| 18 | 2372100 | SCREW-#8-18 X 5/8 THD* SS | 22 |
| 20 | 2093400 | SCREW-#10-24 x 1-7/8 PPH SS | 1 |
| 22 | 2224700 | INSERT-PLUG | 1 |
| 24 | 2260905 | KNOB-SOFT GRIP,HG/DR,ZNC | 1 |
| 26 | 2291500 | DEPTH COLLAR 1.3 X 3.0 | 1 |
| 28 | 2321702 | WASHER-FLAT, .3.75 NYLON | 1 |
| 30 | 2333101 | NUT-HEX #10-24 UNC-2B NYL SS | 1 |
| Item | Part # | Description | Quantity |
| 32 | 880-025 | SEAL | 2 |
| 34 | 725-095 | PAPER TUBE, SEAL | 1 |
| 36 | 92-300-170 | BRUSH END HSG, 80# | 1 |
| 38 | 144-017 | BEARING, FLANGE | 1 |
| 40 | 830-095 | THRU BOLT 12-24 | 2 |
| 42 | 990-052 | WASHER, NYLATRON | 1 |
| 44 | 990-051 | WASHER-STEEL THRUST | 1 |
| 46 | 973-025 | SPACER, BRUSHPLATE | 2 |
| 48 | 9-738-015 | BRUSH PLATE ASSY, 4″ | 1 |
| 50 | 975-041 | SPRING-TORSION | 2 |
| 52 | 186-094 | BRUSH 4″ | 2 |
| 188-095 | BRUSH, 4.5” | 2 | |
| 54 | 830-027 | SCREW-BRUSH PLATE 10-32 | 2 |
| 56 | 701-009 | O-RING, THRU BOLTS | 2 |
| 58 | 701-043 | O-RING, END HOUSINGS | 2 |
| 60 | 2-100-214 | ARMATURE ASSY | 1 |
| 62 | 140-010 | BEARING – BALL | 1 |
| 64 | 990-045 | SPACER, THRUST | 1 |
| 66 | 992-010 | WASHER, SPRING BELLEVILLE | 2 |
| 68 | ✖ | PLN END HSG-PNTD-4″ US2.5 CB | 1 |
| 70 | 230-038 | CABLE CLAMP, STEEL | 1 |
| 72 | 2302104 | SCREW-#6 X 3/8 | 1 |
| 74 | 830-094 | THRU BOLT 12-24 | 2 |
| 76 | 2307312 | BEAD-FERRITE | 1 |
| 78 | 9-738-011 | BRUSH PLATE ASSY, 4.5″ | 1 |
| 80 | 2053410 | SCREW-BRUSH PLATE, 10-32 | 2 |
| 82 | 975-045 | SPRING-TORSION | 2 |
| 84 | ✖ | CTR HSG ASY 4.0″ FW MGNTZ | 1 |
| 86 | ✖ | TUBE-COMP, BLK, 45″, W 1/4″ WALL 80# | 1 |
| ✖ | TUBE-CMP, BLK 60″ 1/4″ WALL 80# | 1 | |
| 88 | ✖ | TUBE-COMP, BLK, 45″, W 1/4″ WALL 112# | 1 |
| ✖ | TUBE-CMP, BLK 60″ 1/4″ WALL 112# | 1 | |
| 92 | 701-103 | O-RING, 103 MM X 3 MM | 1 |
| 94 | 701-098 | O-RING, 98MM X 2MM | 1 |
| 96 | ✖ | CTR HSG ASY 4.5″ MAG FW CB TER | 1 |
| 98 | 2-100-245 | ARMATURE ASSY | 1 |
| 100 | 140-014 | BEARING – BALL | 1 |
| Item | Part # | Description | Quantity |
| 102 | 992-011 | WASHER, SPRING BELLEVILLE | 2 |
| 104 | 990-011 | WASHER, SHIM | 1 |
| 106 | ✖ | PLN END HSG 4.5″ US2.5 PNT FW | 1 |
| 108 | 582-013 | CLIP, RETAINING SHORT | 1 |
|
110 | 640-117 | MOTOR WIRE, RED, 80#, 45″ | 1 |
| 640-132 | MOTOR WIRE, RED, 80#, 52″ | 1 | |
| 640-138 | MOTOR WIRE, RED, 80#, 60″ | 1 | |
| 640-140 | MOTOR WIRE, RED, 112#, 45″ | 1 | |
| 640-142 | MOTOR WIRE, RED, 112#, 52″ | 1 | |
| 640-139 | MOTOR WIRE, RED, 112#, 60″ | 1 | |
|
112 | 640-013 | MOTOR WIRE, BLACK, 80#, 45″ | 1 |
| 640-017 | MOTOR WIRE, BLACK, 80#, 52″ | 1 | |
| 640-038 | MOTOR WIRE, BLACK, 80#, 60″ | 1 | |
| 640-040 | MOTOR WIRE, BLACK, 112#, 45″ | 1 | |
| 640-042 | MOTOR WIRE, BLACK, 112#, 52″ | 1 | |
| 640-039 | MOTOR WIRE, BLACK, 112#, 60″ | 1 | |
| 114 | 640-315 | BONDING WIRE, BROWN, US2.0, 45″ | 1 |
| 640-316 | BONDING WIRE, BROWN, US2.0, 60″ | 1 | |
| 116 | 2994075 t | REMOTE ASSY, IPILOT 1.6 | 1 |
| 118 | 2994076 t | REMOTE ASSY, IPILOT LINK *LINK ONLY* | 1 |
| 120 | 2390800 | LANYARD, REMOTE W/ CARABEENER | 1 |
| 122 | 2375901 t | ADAPTER, USB DC POWER *LINK ONLY* | 1 |
| 124 | 2373241 t | CABLE, USB REMOTE CHARGER *LINK ONLY* | 1 |
| 126 | 490389-1 t | CABLE, ETHERNET, 30′ * LINK ONLY* | 1 |
| 128 | 92-300-155 | BRUSH END HSG, 112# | 1 |
| 130 | 2375400 | SHRINK TUBE-1/4 OD X 1-3/4 | 2 |
| 132 | 788-040 | RETAINING RING | 1 |
| ✖ | DECAL, DOMED IPILOT FW | 1 | |
| 134 | ✖ | DECAL, DOMED IPILOT LINK FW | 1 |
| 136 | ✖ | DECAL – GENERIC, PUSH BTN TOP FW | 1 |
| 138 | ✖ | CVR, CTRL BX IP, UTX | 1 |
| 140 | 2996400 | HEADING SENSOR ASSEMBLY | 1 |
| 142 | 2211415 | CABLE-EXTENSION, PD/AP 110″ | 1 |
Ultrex steering module

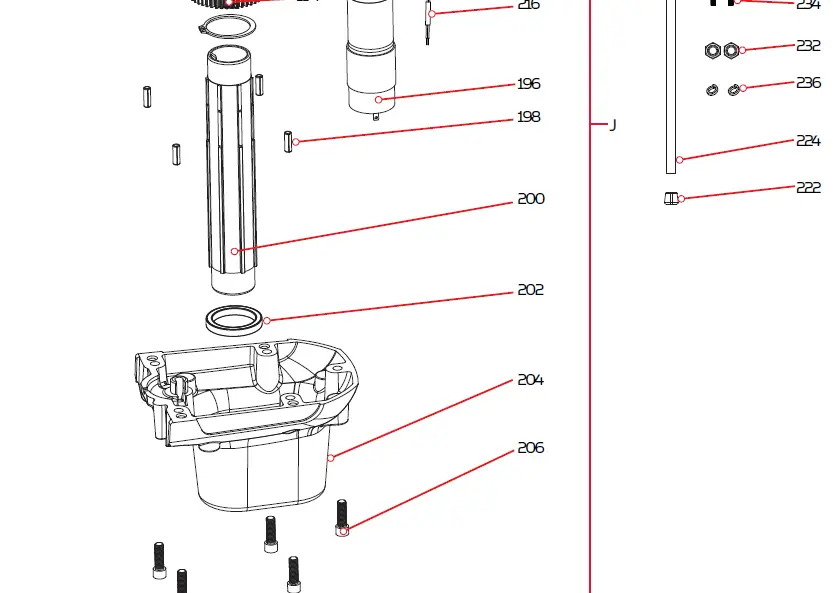

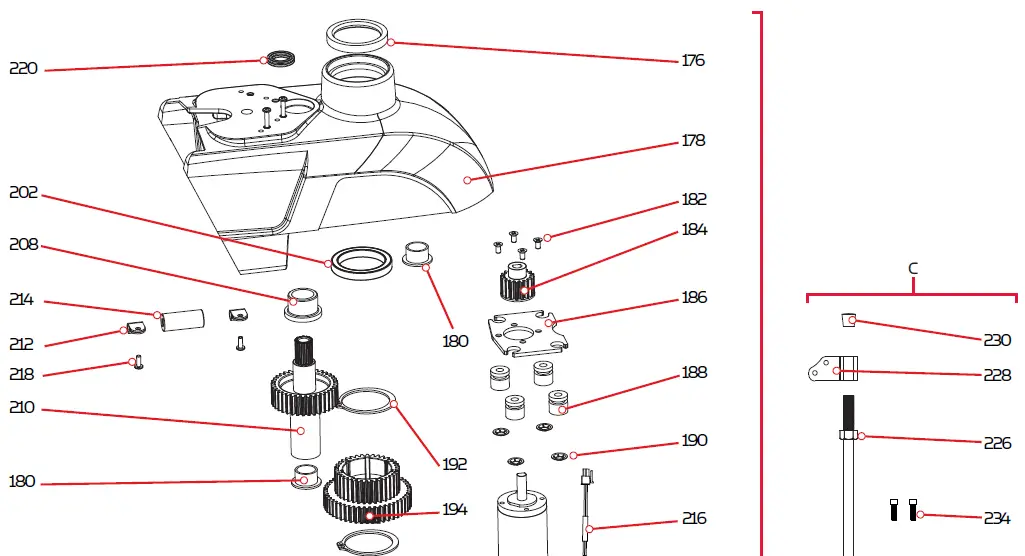

Steering Module Parts Diagram
Steering Module Parts List
| Assembly | Part # | Description | Quantity |
| J | 2991896 | STEERING MODULE ASSEMBLY FW | |
| C | 2991925 | BRACKET STABLZR ARM ASY | 1 |
| Item | Part # | Description | Quantity |
| 176 | ✖ | SEAL | 1 |
| 178 | ✖ | HOUSING, UPPER, PAINTED | 1 |
| 180 | ✖ | BUSHING-1012-08 | 2 |
| 182 | ✖ | SCREW-M4 X 8MM, FHP, SS | 4 |
| 184 | ✖ | GEAR-MOTOR | 1 |
| 186 | ✖ | PLATE, MOTOR | 1 |
| 188 | ✖ | BUSHING, DAMPENING | 4 |
| 190 | ✖ | NUT-PUSH, 1/4″ ZP | 4 |
| 192 | ✖ | RETAINING RING, 1 3/4″ SHAFT | 2 |
| 194 | ✖ | GEAR-CLUSTER, 35-48T | 1 |
| 196 | ✖ | MOTOR-DRIVE | 1 |
| 198 | ✖ | PIN-SPRING, 1/4 X 3/4, ZP | 4 |
| 200 | ✖ | TUBE-STEER, MACHINED | 1 |
| 202 | ✖ | BEARING | 2 |
| 204 | ✖ | HOUSING, LOWER, PAINTED | 1 |
| 206 | ✖ | SCREW-5/16-18 X 1″ SHCS ZP | 5 |
| 208 | ✖ | BUSHING-1216-12 | 1 |
| 210 | ✖ | GEAR, CABLE | 1 |
| 212 | ✖ | CABLE CLAMP, 3/16″, NYLON | 2 |
| 214 | ✖ | BEAD-FERRITE | 1 |
| 216 | ✖ | WIRE HARNESS, MOTOR,SHORT | 1 |
| 218 | ✖ | SCREW-#6-20 X 3/8 THD*(SS) | 2 |
| 220 | ✖ | SEAL, QUAD RING, 3/4″ | 1 |
| 222 | 2265100 | BUMPER STABILIZER | 1 |
| 224 | 2263624 | STABILIZER ROD | 1 |
| 226 | 2263107 | NYLON HEX NUT 3/4 – 10 UNC | 1 |
| 228 | 2281829 | BRACKET | 1 |
| 230 | 2260221 | VINYL CAP | 1 |
| 232 | 2223100 | NUT 5/16-18 NYLOCS SS | 2 |
| 234 | 2263422 | BOLT 5/16-18 X 1″ SS | 2 |
| 236 | 2281700 | 5/16 “ID X .457 OD HIGH COLLAR LOCK WASHER | 2 |

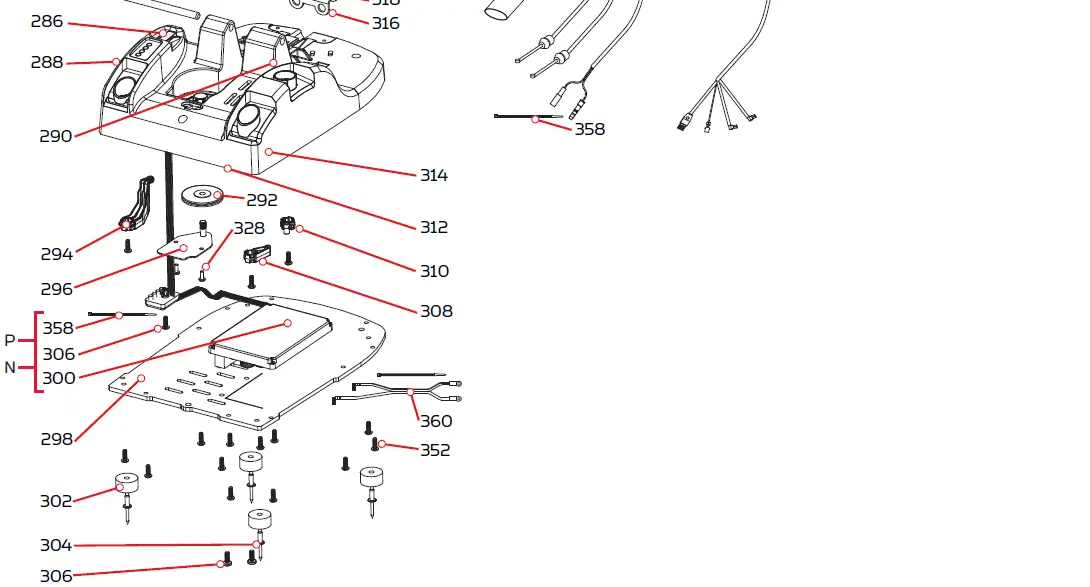

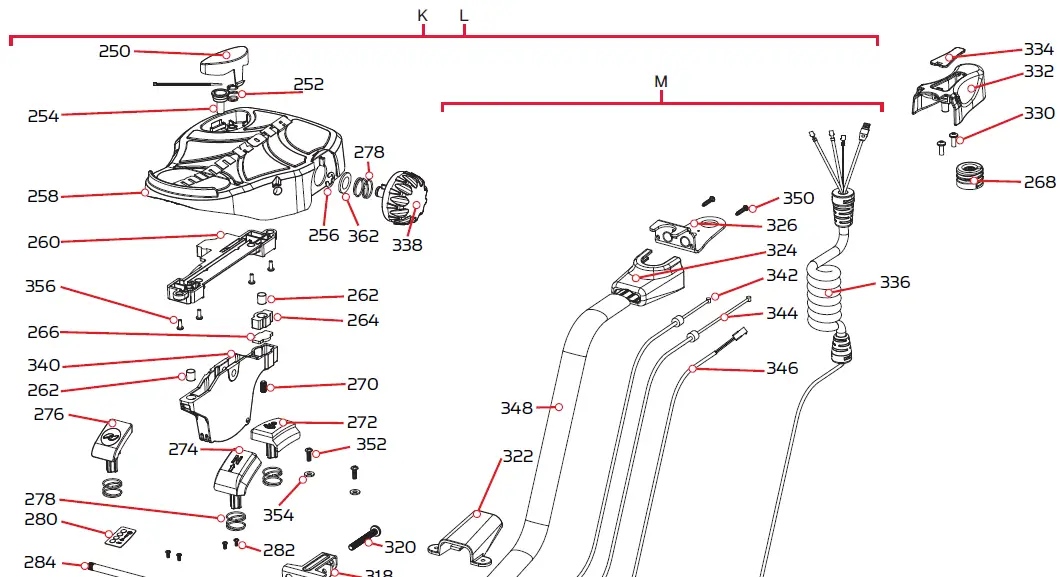

Ultrex foot Pedal
Foot Pedal Parts List
| Assembly | Part # | Description | Quantity |
| K | 2992155 | 36V FOOT PEDAL ASSEMBLY | 1 |
| L | 2992150 | 24V FOOT PEDAL ASSEMBLY | 1 |
| M | 2771200 | FT PED CABLE, WIRE HARNESS, ASM | 1 |
| N | 2774061 | CONTROL BOARD KIT, 36V ULTREX | 1 |
| P | 2774060 | CONTROL BOARD KIT, 24V ULTREX | 1 |
| Item | Part # | Description | Quantity |
| 250 | 2993705 | PUSH BTTN/MAGNET ASSY | 1 |
| 252 | 2302732 | SPRING-LOWER PEDAL S/S | 1 |
| 254 | 2260810 | CLIP, REED SENSOR | 1 |
| 256 | 2263000 | E-RING TRU-ARC#5133-43 | 1 |
| 258 | 2994450 | FOOT PEDAL W/MAGNET | 1 |
| 260 | ✖ | CONTROL BOARD,SENSOR BOARD | 1 |
| 262 | ✖ | ACTUATOR-SENSOR, DIA. .375 MAX | 2 |
| 264 | ✖ | CARRIER, ACTUATOR | 1 |
| 266 | ✖ | BACKER, CARRIER | 1 |
| 268 | 2292300 | PULLEY, CABLE DRUM | 1 |
| 270 | ✖ | SCREW-1/4-20 X 1/2 SET, 316 SS | 1 |
| 272 | 2293720 | BUTTON-SL, FOOT PEDAL | 1 |
| 274 | 2293730 | BUTTON-AP, FOOT PEDAL | 1 |
| 276 | 2293710 | BUTTON-PROP, FOOT PEDAL | 1 |
| 278 | 2292700 | SPRING, BUTTON, FOOT PEDAL | 4 |
| 280 | 2295625 | DECAL, INDICATOR LIGHTS | 1 |
| 282 | 2373440 | SCREW-#4-24 X 1/4 PHCR SS TY B | 4 |
| 284 | 2260511 | PIN-PIVOT A/T FT PDL | 1 |
| 286 | 2044022 | SWITCH-POWER, ON/OFF | 1 |
| 288 | 2992150 | FOOT PEDAL W/BASE ASM, 24V | 1 |
| 290 | 2266413 | TENSION SCREW PLATE FTPEDAL | 1 |
| 292 | 2262301 | PULLEY (FOOT PEDAL) | 1 |
| 294 | 2993715 | ARM-SENSOR, PROP W/MAGNET | 1 |
| 296 | 2266401 | COVER-PULLEY (STAMPING) | 1 |
| 298 | 2291920 | PLATE-BOTTOM | 1 |
| 300 | 2294061 | CONTROL BRD, 36V, ULTREX | 1 |
| 2294060 | CONTROL BRD, 24V, ULTREX | 1 | |
| 302 | 2265126 | BUMPER PAD, FOOT PEDAL | 4 |
| 304 | 2378600 | RIVET-POP,3/16 X 3/4 ALUM.SHNK | 4 |
| Item | Part # | Description | Quantity |
| 306 | 2223455 | SCREW-#10-32 X 1/2″ ZP MACHINE | 2 |
| 308 | 2993735 | ARM-SENSOR, AP W/MAGNET | 1 |
| 310 | 2993725 | ARM-SENSOR, SL W/MAGNET | 1 |
| 312 | 2994500 | BASE W/PIN, FOOT PEDAL | 1 |
| 314 | 2365107 | INSULATING PAD(2.3 X 3.2) | 1 |
| 316 | 2263210 | BRACKET-CONDUIT ADJUSTMEN | 1 |
| 318 | 2263140 | KEEPER-NYLOCK | 1 |
| 320 | 2263466 | SCREW-1/4-20 X 2″ PPH SS/REI | 1 |
| 322 | 2265115 | BOOT-FOOT PEDAL BASE | 1 |
| 324 | 2296410 | COVER, COIL CORD | 1 |
| 326 | 2291910 | BRACKET, CABLE ANCHOR | 1 |
| 328 | 2373450 | SCREW-#8-18 X 3/8″ THRD.CUT SS | 2 |
| 330 | 2323406 | SCREW-#10-24 X .50 CRPH SS | 2 |
| 332 | 2296400 | COVER, WRAP DRUM | 1 |
| 334 | 2296405 | COVER, MOTOR CONNECTION | 1 |
| 336 | 2291200 | COIL CORD ASSEMBLY | 1 |
| 338 | 2290100 | KNOB-SPEED CONTROL | 1 |
| 340 | ✖ | LOWER-ROCKER, FOOT PEDAL | 1 |
| 342 | 2267505 | CABLE ASSY-RIGHT (5′) | 1 |
| 344 | 2267515 | CABLE ASSY-LEFT (5′) | 1 |
| 346 | 2297411 | WIRE HARNESS, MOTOR, LONG | 1 |
| 348 | 2265430 | CABLE JACKET (5′) AT MODEL | 1 |
| 350 | 3393450 | SCREW-#6-19 X .75 PPH HI-LO | 2 |
| 352 | 2372100 | SCREW-#8-18 X 5/8 THD* (SS | 18 |
| 354 | 2261714 | WASHER-MAXXUM FT PDL 18/8 SS | 2 |
| 356 | 2332103 | SCREW-#6-20 X 3/8 THD*(SS) | 4 |
| & | 2052510 | CABLE CLAMP, 3/16″, NYLON | 2 |
| & | 2301310 | SCREW-#8-18 X 1/2 (SS) | 2 |
| & | 2298800 | LOOM-WIRE, 1/4 X 4″ | 1 |
| 358 | 2256300 | TIE WRAP-5.5″ BLACK | 4 |
| 360 | 2290605 | LEAD WIRE, FOOT PEDAL | 1 |
| 362 | 3391722 | WASHER, FLAT 7/16 | 1 |

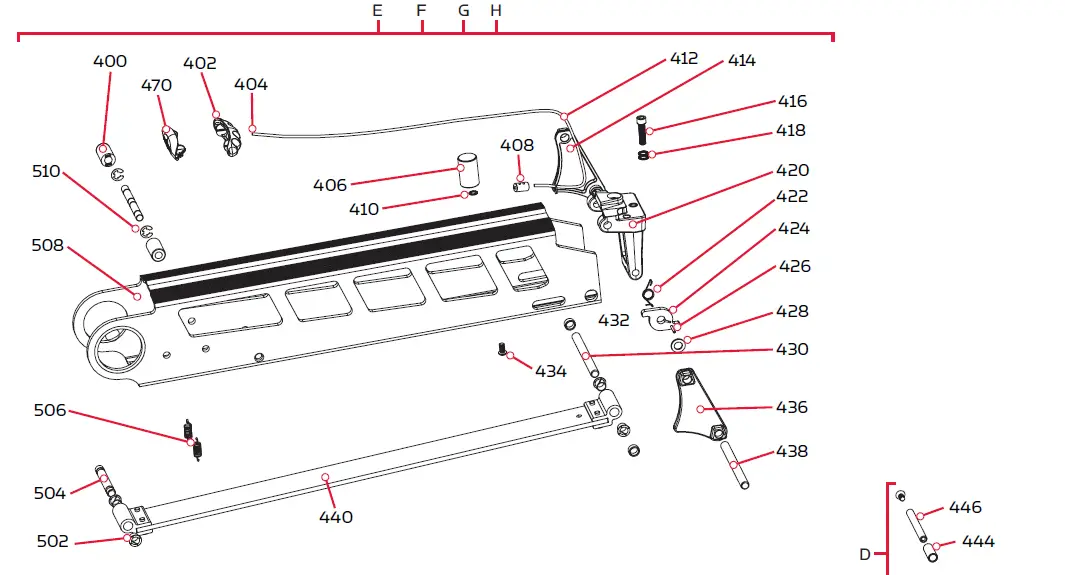

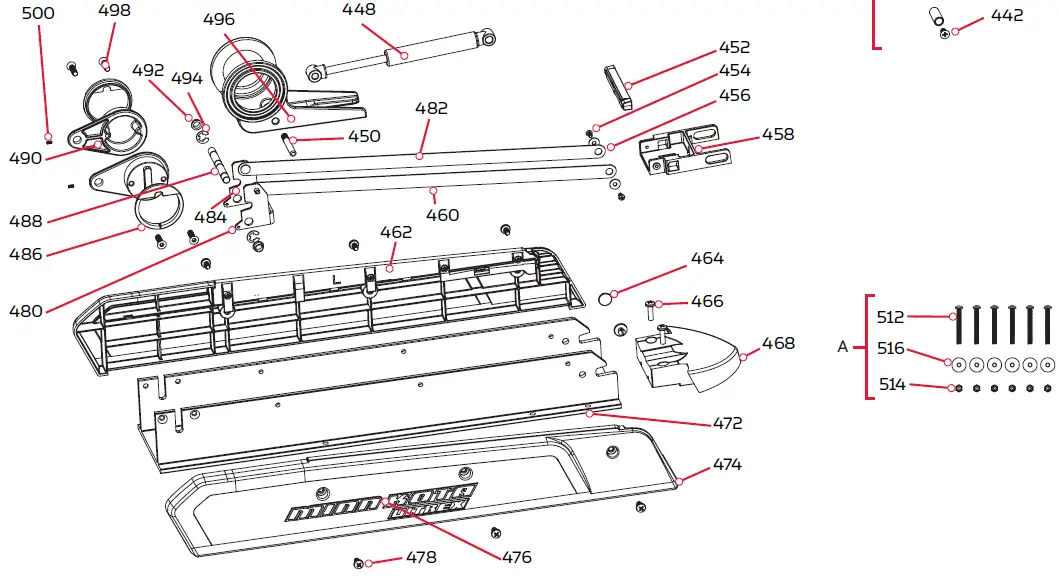

Ultrex mount
Mount Parts List
| Assembly | Part # | Description | Quantity |
| E | 2991733 | MOUNT ASM ULTREX FW 112# 45″ | 1 |
| F | 2991734 | MOUNT ASM ULTREX FW 80# 45″ | 1 |
| G | 2991735 | MOUNT ASM ULTREX FW 80# 52/60″ | 1 |
| H | 2991736 | MOUNT ASM ULTREX FW 112# 52/60″ | 1 |
| D | 2994912 | BAG ASSY, FORTREX MOUNT HDW | 1 |
| A | 2994887 | INSTALLATION HARDWARE BAG ASSEMBLY | 1 |
| Item | Part # | Description | Quantity |
| 400 | 2261505 | SPACER, MOTOR REST | 2 |
| 402 | 2280405 | PULL GRIP, SOFT, BOTTOM | 1 |
| 404 | 2291400 | CABLE, PULL HANDLE, SS | 1 |
| 406 | 2281516 | SPACER, INNER ARM | 1 |
| 408 | 2880800 | PULL CABLE CLAMP & SCREW KIT | 1 |
| 410 | 2281702 | WASHER-LOCK, 1/4″ EXTERNAL SS | 1 |
| 412 | 2151700 | WASHER-EYE SHAFT(.562 OD) SS | 1 |
| 414 | 2280800 | LINK,BOWGUARD MOUNT,LEFT | 1 |
| 416 | 2293402 | SCREW-5/16-18, SHCS, RIE, STEEL | 1 |
| 418 | 2291700 | WASHER-5/16, M8 WEDGE LOCK | 1 |
| 420 | 2992333 | ROPE GUIDE ASSEMBLY | 1 |
| 422 | 2042711 | SPRING-TORSION, SS 112# 45″ | 1 |
| 424 | 2283620 | LATCH, SAFETY | 1 |
| 426 | 2282611 | PIN-SPRING, 3/32″ | 1 |
| 428 | 2281704 | WASHER -7/16 NYLON | 1 |
| 430 | 2282600 | PIN 7/16″ X 4.80″ SS | 1 |
| 432 | 2287303 | BUSHING, UPPER PIN | 2 |
| 434 | 2223418 | SCREW-1/4-20X 1/2 SS BHCS | 1 |
| 436 | 2280805 | LINK, BOWGUARD MOUNT, RIGHT | 1 |
| 438 | 2282608 | PIN 7/16″ X 5.15″ SS | 1 |
| 440 | 2993821 | ASSY,INNER ARM,LONG,FW 80/112# 52/60″ | 1 |
| 2993819 | ASSY,INNER ARM,SHORT,FW 80/112# 45″ | 1 | |
| 442 | 2283410 | SCREW-1/4-20 X .500″ PFH | 2 |
| 444 | 2281710 | SPACER, GAS SPRING, FORTREX | 2 |
| 446 | 2282610 | PIN, UPPER SHOCK | 1 |
| 448 | 2288403 | GAS SPRING (CYLINDER) | 1 |
| 2288404 | GAS SPRING (CYLINDER) 80# 45″ 52/60″ | 1 | |
| 2288405 | GAS SPRING (CYLINDER) 112# 45″ | 1 | |
| 450 | 2282604 | PIN-KNURLED 5/16″X2 1/4″SS | 1 |
| Item | Part # | Description | Quantity |
| 452 | 2283615 | LATCH BAR | 1 |
| 2283616 | LATCH BAR, STAINLESS STEEL *112 # 60″ ONLY* | 1 | |
| 454 | 2373450 | SCREW-#8-18 X 3/8″ THRD.CUT SS | 2 |
| 456 | 2261732 | WASHER-#8, NYLON | 3 |
| 458 | 2283610 | BRACKET-LATCH/STRAP,ROPE PULL | 1 |
| 460 | 2283601 | LATCH STRAP, LONG MNT SS 80/112# 52/60″ | 2 |
| 2283600 | LATCH STRAP, SHORT MNT SS 80/112# 45″ | 2 | |
| 462 | 2993915 | SIDEPLATE ASSY,LONG,LEFT,FW 80/112# 52/60″ | 1 |
| 2993910 | SIDEPLATE ASSY,SHORT,LEFT,FW 80/112# 45″ | 1 | |
| 464 | 2286700 | PLUG-SPACER,BASE EXTRUSION | 2 |
| 466 | 2073408 | SCREW-1/4-20 X 7/8 PPH S/S | 2 |
| 468 | 2283900 | RAMP-MOTOR FW | 1 |
| 470 | 2280400 | PULL GRIP,SOFT, TOP | 1 |
| 472 | 2281903 | BASE EXTRUSION-SHORT, MACH. 80/ 112# 45″ | 1 |
| 2281913 | BASE EXTRUSION-LONG, MACH. 80/112# 52/60″ | 1 | |
| 474 | 2993925 | SIDEPLATE ASSY, LONG, RIGHT, FW 80/112# 52/60″ | 1 |
| 2993920 | SIDEPLATE ASSY, SHORT, RIGHT, FW80/112#045″ | 1 | |
| 476 | 2295510 | DECAL, SIDEPLATE, ULTREX | 2 |
| 478 | 2323405 | SCREW-1/4-20 X 1/2″ MCH SS | 6 |
| 480 | 2281922 | BRACKET, LATCH | 1 |
| 482 | 2288610 | RIVET,SHLDR 5/16″X.159″SS | 2 |
| 484 | 2280006 | BEARING,NYLINER 5/16″ (5L1-FF) | 2 |
| 486 | 2287300 | BUSHING-REAR PIVOT | 2 |
| 488 | 2282602 | PIN 3/8″ X 3 3/4″ SS | 2 |
| 490 | 2281932 | BRACKET-REAR PIVOT FW | 2 |
| 492 | 2280008 | BEARING-I GLIDE 3/8 SHAFT | 2 |
| 494 | 2263011 | E-RING 3/8 DIA. SHAFT | 4 |
| 496 | 2281501 | YOKE, FORTREX | 1 |
| 498 | 2283411 | SCREW-1/4-20X1.00 FHS RIE TORX | 4 |
| 500 | 2283402 | SCREW-SET 6/32 X .25″ SS | 2 |
| 502 | 2280005 | BEARING,NYLINER 7/16″ (7L7-F) | 4 |
| 504 | 2282606 | PIN-PIVOT, 7/16″ X 3 1/8″ SS | 1 |
| 506 | 2282720 | SPRING-EXTENSION SS | 2 |
| 508 | 2284202 | ARM-OUTER,SHORT,FW 80/112# 45″ | 1 |
| 2284212 | ARM-OUTER,LONG,FW 80/112# 52/60″ | 1 | |
| 510 | 2263011 | E-RING 3/8 DIA. SHAFT | 2 |
| 512 | 2263468 | 1/4 – 20 X 2.5″ SS PPH SCREW | 6 |
| 514 | 2263103 | 1/4 – 20 SS NYLOCK NUT | 6 |
| 516 | 2261713 | 1/4 FLAT 18-8 SS WASHER | 6 |
- This part is included in an assembly and cannot be ordered individually.
- Not shown on Parts Diagram.
- May only be available with i-Pilot or i-Pilot Link.
©2016 Johnson Outdoors Marine Electronics, Inc.
minnkotamotors.com
minnkotamotors.com
