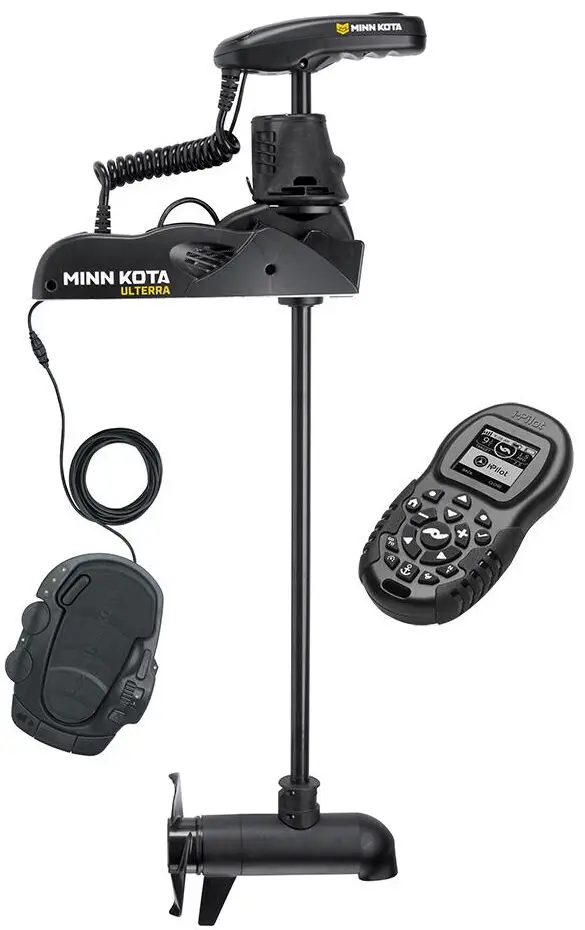

MINN KOTA 1358922 Ulterra 80 Trolling Motor
POWER ON
The Ulterra Trolling Motor must be powered “on” manually. The remote will not turn the motor on. The power button is located on the base of the motor. Pressing the power button will turn on Ulterra. The red STATUS light and the green SYSTEM READY light will both be illuminated when powered on.
POWER OFF
To power off Ulterra, press and hold the POWER button for approximately three seconds, until the green light turns off. Ulterra has an auto-shut off as well. It will automatically power off after 1.5 hours of inactivity in the stowed position.
STATUS LIGHT
The red STATUS light indicates:
SOLID:
Motor is stowed
FLASHING:
Motor is stowing/deploying
OFF:
Motor is deployed or off
SOLID:
FLASHING:
OFF:
SYSTEM READY LIGHT
The green SYSTEM READY light will remain lit while Ulterra is operating. If the green light does not remain illuminated after power up, this is an indicator of insufficient voltage/power.
UPDATE YOUR SOFTWARE
If you have Ulterra with i-Pilot Link, make sure that you have the latest i-Pilot Link and Humminbird software installed. Simply go to Humminbird.com, click on My Humminbird, and register your products using the Link serial number format P###UM##### to have access to all software downloads.

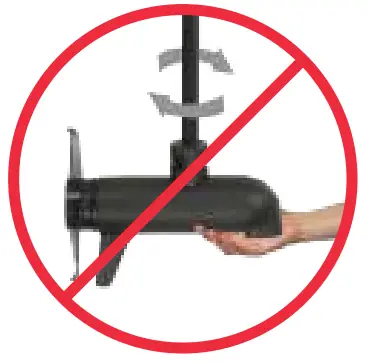

WARNING:
When the motor is powered off while off the ramps, never turn the lower unit of the motor manually (by hand). This will affect the alignment of the motor and cause it to stow improperly.
MOTOR CONTROL
Ulterra functions can be controlled by two different methods: the i-Pilot / i-Pilot Link wireless remote or the foot pedal. For wireless remote functions, please refer to the remote Quick Reference Guide.

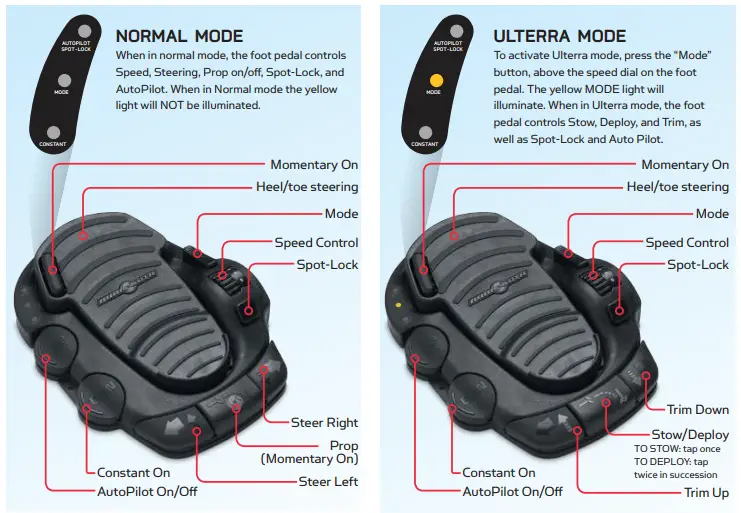

FOOT PEDAL FUNCTIONS
The foot pedal has dual mode operation: Normal Mode and Ulterra Mode.
FOR A COMPLETE LISTING OF ULTERRA FAQS, VISIT MINNKOTAMOTORS.COM/ULTERRA
