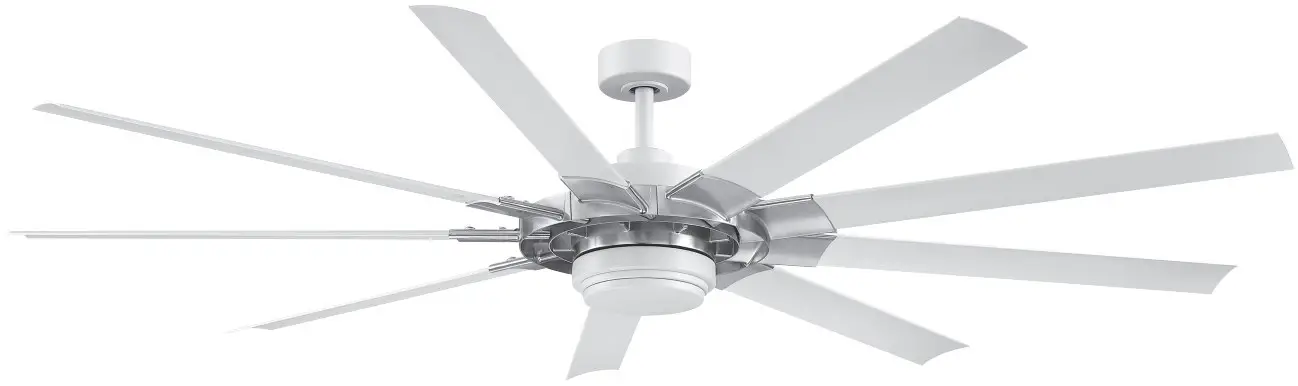

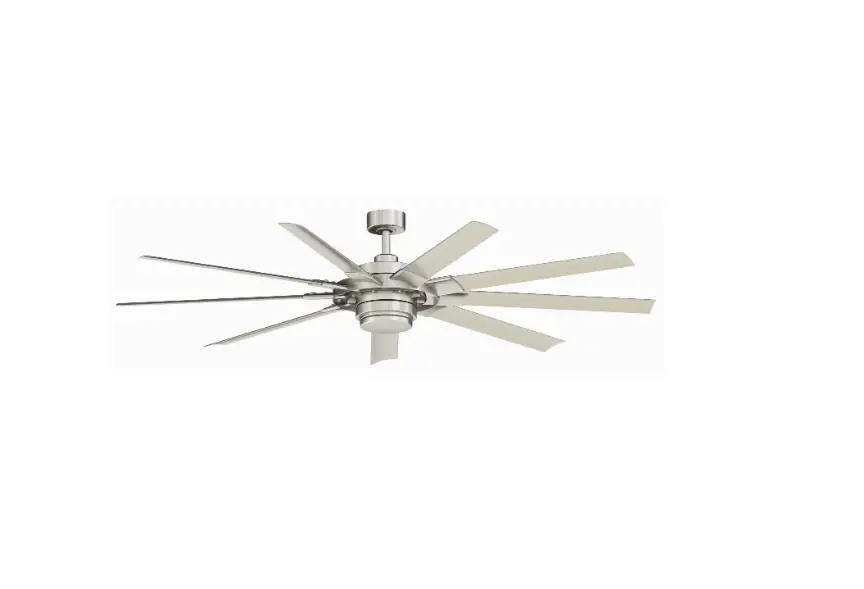

FANIMATION LP8147SLBN 72 Inch Ceiling Fan Instructions
INSTALLATION REQUIREMENTS
Fan must be attached to a securely anchored electrical junction box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS
Requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
MOTOR SPECS
DC-165NM sensorless DC motor is designed for optimal performance with this fan. Fan is Energy Star Rated.
BLADES:
A set of nine 29˝ composite blades is included.
CONTROL OPTIONS
TR305S hand-held remote control is included. Push button remote control with 16 fan speeds, fresh air, reverse, ON/OFF dimmer light levels, CCT Select (correlated color temperature selection), fan/light timer, home away, safe exit and off button. Optional TW306 wall control is available — sold separately. Instructions is provided with each control.
LIGHTING OPTIONS:
One 18-watt CCT LED (3000K/4000K/5000K) included.
DOWNROD OPTIONS
Fan comes with a 1˝ dia. x 6˝ downrod (DRT1-6). Optional downrods are available in 12˝,18˝, 24˝, 36˝, 48˝, 60˝ and 72˝. For installations requiring a longer downrod, a downrod coupler is available. Fan can be mounted on a sloped ceiling up to 19°. Most sloped ceiling installations require a standard 18˝ downrod or longer downrod. Optional sloped ceiling kits (SCK1-52) are available for up to 42°. Call technical support for more information.
LOCATION USE:
Fan is rated for dry and damp locations. This fan is for room over 400 sq ft.

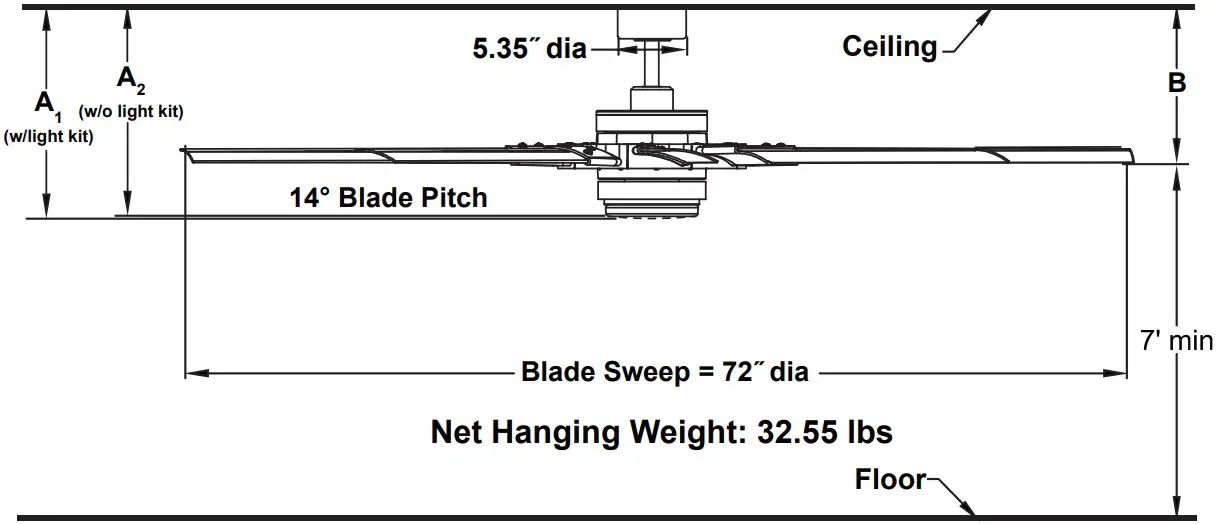

| A1 | A2 | B | |
| Fan w/ 6˝downrod | 15.65˝ | 15.34˝ | 11.52˝ |
| Fan w/12˝ downrod | 21.65˝ | 21.34˝ | 17.52˝ |
| Fan w/18˝ downrod | 27.65˝ | 27.34˝ | 23.52˝ |
| Fan w/24˝ downrod | 33.65˝ | 33.34˝ | 29.52˝ |
| Fan w/36˝ downrod | 45.65˝ | 45.34˝ | 41.52˝ |
| Fan w/48˝ downrod | 57.65˝ | 57.34˝ | 53.52˝ |
| Fan w/60˝ downrod | 69.65˝ | 69.34˝ | 65.52˝ |
| Fan w/72˝ downrod | 81.65˝ | 81.34˝ | 77.52˝ |
| Available Finishes | |
| LBN | Brushed Nickel with Gray Blade and Opal Frosted Glass / Steel Cap |
| LBL | Black with Black Blade and Opal Frosted Glass / Steel Cap |
| LMWBN | Matte Whith / Brushed Nickel with Matte White Blade and Opal Frosted Glass / Steel Cap |
| Airflow / Energy Efficiency Info (120V) | |||||
| Fan Speed | Max RPM | CFM | CFM / Watts | Amps | Watts |
| High (16 th) | 87 | 8563 | 285 | 0.39 | 30 |
| Med (9 th) | 59 | 5573 | 615 | 0.14 | 9 |
| Low (1 th) | 29 | 2478 | 960 | 0.05 | 3 |
| Energy Guide FTC | |||
| Power (Wave) | Total Air Delivery (CFMave) | Estimated Yearly Energy Cost ($) | Ceiling Fan Efficiency (CFM/W) |
| 20 | 6830 | 6 | 342 |
| Light Bulb Information (120V) | |||||
| Bulb Type | Watts | QTY | LumensAmount | Color Temp | CRI |
| LED | 18 | 1 | 1600 | 3000/4000/5000 | 90% |
